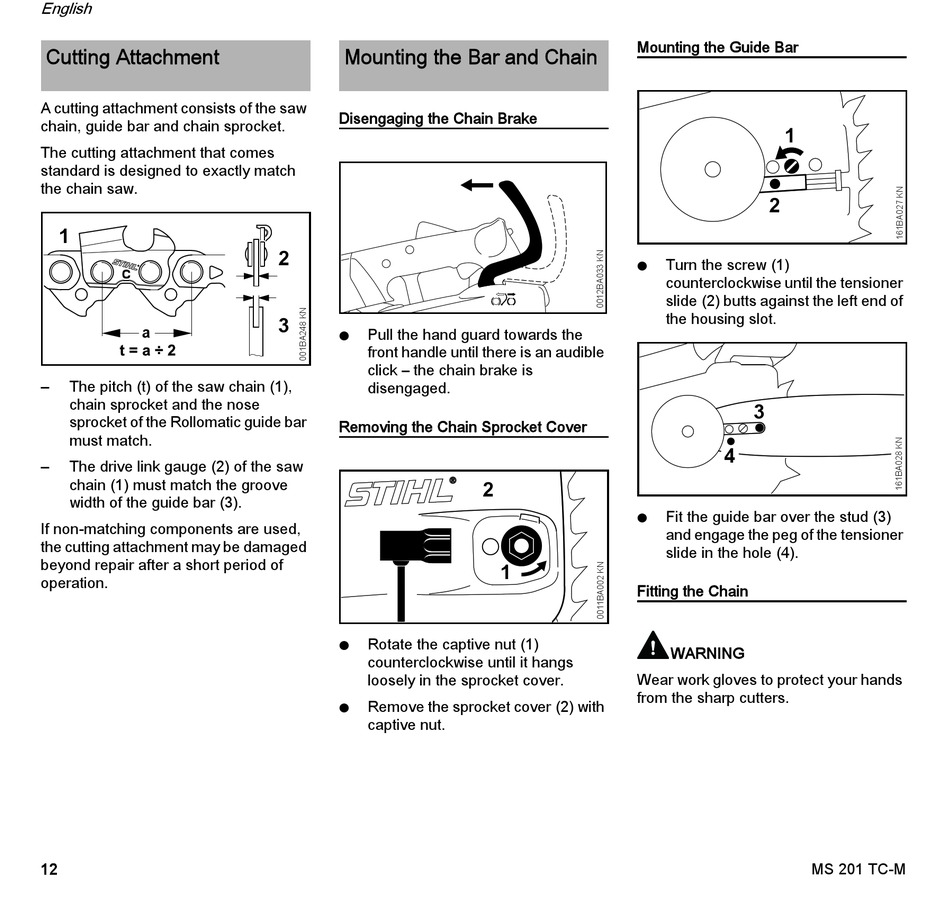

Cutting Attachment

A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the chain saw.
1
a
The pitch (t) of the saw chain (1),
–
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
The drive link gauge (2) of the saw
–
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
12

Mounting the Bar and Chain

Disengaging the Chain Brake
2
3
Pull the hand guard towards the
N
front handle until there is an audible
click – the chain brake is
disengaged.
Removing the Chain Sprocket Cover
Rotate the captive nut (1)
N
counterclockwise until it hangs
loosely in the sprocket cover.
Remove the sprocket cover (2) with
N
captive nut.
Mounting the Guide Bar
N
2
N
1
Fitting the Chain
Wear work gloves to protect your hands
from the sharp cutters.
1
2
Turn the screw (1)
counterclockwise until the tensioner
slide (2) butts against the left end of
the housing slot.
3
4
Fit the guide bar over the stud (3)
and engage the peg of the tensioner
slide in the hole (4).
WARNING
