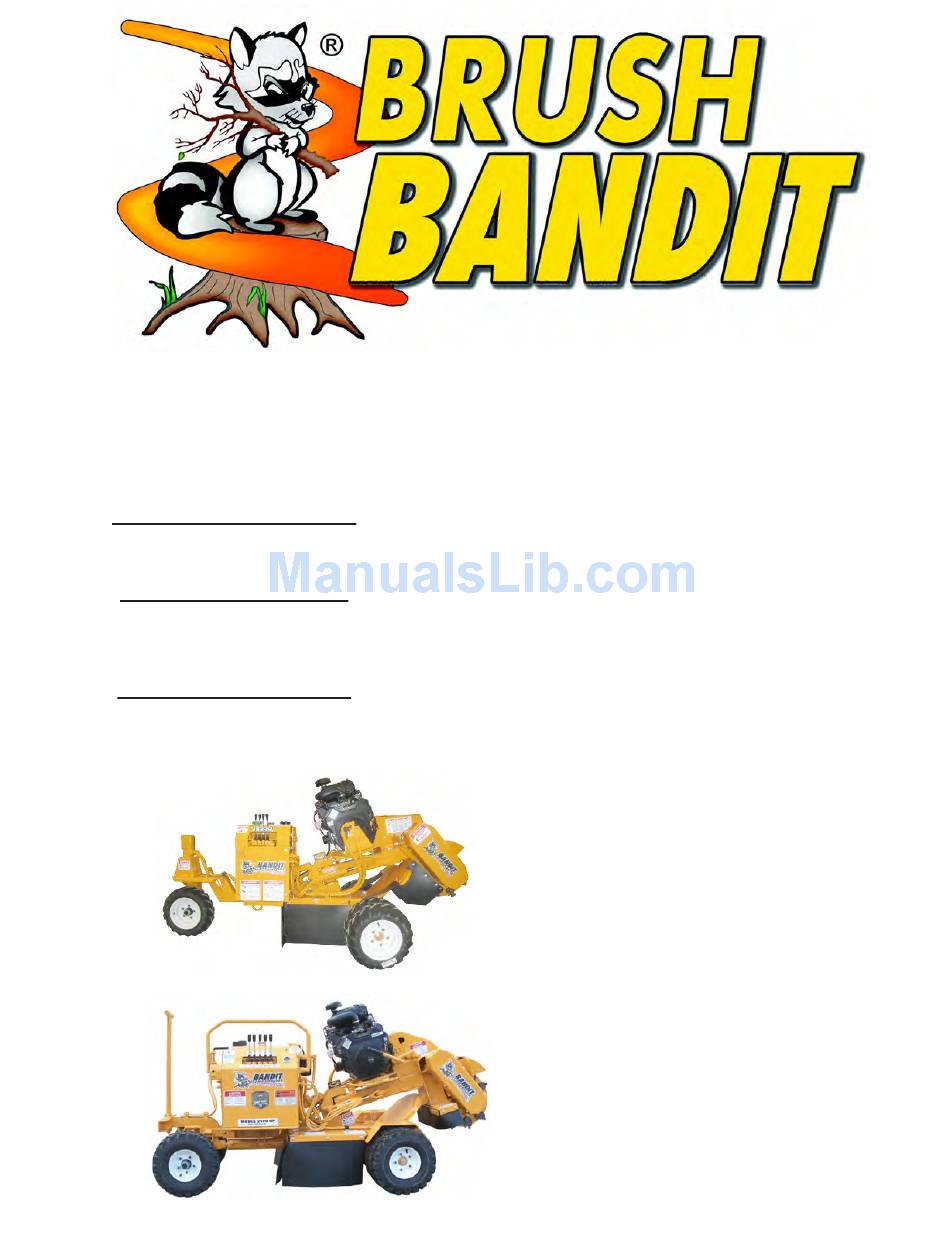

Page 1 BUILT WITH QUALITY AND DESIGN FIRST STUMP GRINDER ATTENTION: Depending on what replacement MODELS 2000XP / 2100SP parts you are ordering, we will need the following information: OPERATING & PARTS MANUAL GRINDER COMPONENTS Serial Number Model Number of Grinder Model No: _________________...
Page 3 Copyright 12-07 FORM #WV-124 IT IS VERY IMPORTANT THAT THIS FORM IS FILLED OUT COMPLETELY & ACCURATELY. IF WE CANNOT READ THE PURCHASER’S INFORMATION OR IT IS INCORRECT, OUR CUSTOMER LIST WILL NOT BE ACCURATE. Customer Data Department IMPORTANT - THIS FORM MUST BE RETURNED TO THE 6750 Millbrook Road CUSTOMER DATA DEPARTMENT WITHIN TEN (10)
Page 4: Operating Instructions
OPERATING INSTRUCTIONS BRUSH BANDIT STUMP GRINDERS SAFETY ALERT SYMBOLS AND NOTATIONS Degree of Potential Signal Word Likelihood of Occurrence Injury or Damage DANGER Will occur if warning is ignored Severe WARNING Severe Can occur if warning is ignored CAUTION Will or can occur if warning is ignored...
Page 5 Copyright 7-04 FORM #Q-112 DATE PURCHASED: _________________ TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION MODEL: ___________________________ Please return to: Customer Data Department SERIAL NUMBER: ___________________ 6750 Millbrook Road DEALER NAME: ____________________ Remus, MI 49340 ___________________________________ (800) 952-0178 in USA (989) 561-2270 FAX: (989) 561-2273 E-MAIL: www.banditchippers.com...
Page 7: Table Of Contents
MODELS 2000XP / 2100SP TABLE OF CONTENTS TABLE OF CONTENTS PAGES INTRODUCTION & WARRANTY ............. 2 SERIAL NUMBER LOCATIONS ............SAFETY PROCEDURES ..............EQUIPMENT SPECIFICATIONS ............11 DECALS ................... SUPER SWEEP OPTION ..............17 CONTROLS ..................21 MACHINE OPERATION ..............29 TRANSPORTATION PROCEDURES ..........
Page 8: Introduction & Warranty
INTRODUCTION & WARRANTY INTRODUCTION The purpose of this manual is to provide the user with specifications and procedures for the operation, maintenance and repair of this BANDIT product. As with any piece of equipment, safety should always be a constant thought while the machine is being operated, serviced or stored. In order to highlight this consideration, the material which addresses safety is proceeded by the following signal words: Degree of Potential Signal Word...
Page 9 BANDIT INDUSTRIES, INC. EXPLANATION OF LIMITED WARRANTY The manufacturer will not reimburse the customer or dealer labor costs incurred for installing “bolt-on” or “slip-on” items, such as hydraulic pumps and motors, control valves, flow dividers, belts, sheaves, etc. The manufacturer will provide replacement parts to the customer for defective parts during the warranty period.
Page 10 INTRODUCTION & WARRANTY BANDIT INDUSTRIES, INC. LIMITED WARRANTY (989) 561-2270 Bandit Industries Inc., also referred to as “Manufacturer” warrants this new product to be free of defects in workmanship and material for a period of 1 year. This warranty takes effect upon delivery to the original retail purchaser. The manufacturer at it’s option will replace or repair at a point designated by the manufacturer, any parts which appear to have been defective in material or workmanship.
Page 11 INTRODUCTION & WARRANTY BANDIT INDUSTRIES, INC. LIMITED WARRANTY (989) 561-2270 NOTICE This warranty applies only to new and unused equipment or parts thereof manufactured by Bandit Industries Inc. and is void if the machine is operated with replacement parts or equipment not manufactured or recommended by Bandit Industries Inc.
Page 12: Serial Number Locations
MODELS 2000XP / 2100SP SERIAL NUMBER LOCATIONS TYPICAL GRINDER SERIAL NUMBER AND/OR WORK ORDER NUMBER LOCATIONS . Serial Number NOTICE The engine information is located on the 2. Work Order Number welded on top engine block. The clutch information of frame is located on the clutch plate (if 3.
Page 13: Safety Procedures
MODELS 2000XP / 2100SP SAFETY PROCEDURES SAFETY PROCEDURES DANGER The words Danger, Warning, Caution, and DANGER Notice are used on the safety decals and throughout this manual, to make you aware of the safety Before starting the machine, take a minute to check a procedures.
Page 14 MODELS 2000XP / 2100SP SAFETY PROCEDURES SAFETY PROCEDURES DANGER DANGER Do not go near or in-line with the debris field of NEVER sit, stand, lay, climb or ride anywhere the stump grinder while in operation. While grinding on this machine while it is running, operating, or in stumps, the chips and portions of the stump fly from transit.
Page 15 MODELS 2000XP / 2100SP SAFETY PROCEDURES SAFETY PROCEDURES NOTICE DANGER Do Not start to grind a stump unless you are Do not attempt to start the engine or engage the completely sure there are not any power lines, water engine PTO (power-take-off) system on this machine if the cutter wheel is jammed or frozen in place.
Page 16 MODELS 2000XP / 2100SP SAFETY PROCEDURES SAFETY PROCEDURES IF MACHINE IS EQUIPPED WITH A SELF PROPELLED UNDERCARRIAGE Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer. Refer to it for service, operation, and safety information.
Page 17: Equipment Specifications
Width: 35” (.9 m) or opt. 29” (.7 m) Cutting Wheel: Mod. 2000XP: Top of: 43” (1.1 m) Center of: 29” (.7 m) Cutting Depth Below Ground: 14.5” (.4 m) Mod. 2100SP: Top of: 44” (1.1 m) Center of: 33” (.8 m) Cutting Depth Below Ground: 12.5” (.3 m)
Page 18 MODELS 2000XP / 2100SP DECALS MODEL 2000XP DECAL LOCATIONS Decal locations may vary, these are general locations. 12,27,28,29 15,21,23 1,3,10 9,24 1,15 11,17 2,5,8,16,32 7,10,18 20,22,30 13,19 14,21,31 1,10 1,15 Bandit Copyright 5/09 PAGE ...
Page 19 ...Go Slow Around Corners... 900-5900- Basic Safety Decal Kit (Options may require additional decals) Bandit Model 2000XP Logo Decal Kit NOTICE Some decals are for optional equipment. Decal locations may vary, these are general locations. If any decals become damaged, replace immediately.
Page 20 MODELS 2000XP / 2100SP DECALS MODEL 2100SP DECAL LOCATIONS Decal locations may vary, these are general locations. 9,30 34,35,36 15,32 7,8,12,16,22,23,24, 26,28,29,34,38 18,20 17,19 13,18 11,27 4,10,37,39 Bandit Copyright 5/09 PAGE ...
Page 21 MODELS 2000XP / 2100SP DECALS MODEL 2100SP DECAL LOCATIONS Modifications and/or additions of decals to this list will happen. Consult machine dealer or manufacturer for most current decal package. LOCATION NUMBER DESCRIPTION SPD-0 Moving Parts Keep Hands... SPD-0 Flying Objects Stand Clear...
Page 22: Decals
MODELS 2000XP / 2100SP DECALS DECALS Decals located on your Bandit equipment contain useful information to assist you in operating your equipment safely. Some of the decals on your machine and their location are shown in this section. It is very important that all decals remain in place and in good condition on your machine. Please follow the care and instructions given below: 1) You should use soap and water to keep your decals clean.
Page 23: Super Sweep Option
MODELS 2000XP / 2100SP SUPER SWEEP OPTION MODEL 2100SP OPTIONAL SUPER SWEEP Consult the original manufacturer’s manual for your machines Super Sweep operating and maintenance procedures When grinding material with the machine, the Super Sweep system will automatically stop when the engine drops below a preset RPM point.
Page 24 MODELS 2000XP / 2100SP SUPER SWEEP OPTION SUPER SWEEP TERMINOLOGY Pulses per revolution. On magnetic pick-up machines, this setting will be the number of teeth on the gear or sprocket it is reading. On alternator pick-up machines, the setting will need to be obtained from your local dealer or Bandit Industries.
Page 25 MODELS 2000XP / 2100SP SUPER SWEEP OPTION TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No Display -Gauge not getting power. -Check continuity of Red wire to a clean power source. -Check 7.5 amp fuse. -Check connection at engine disable plug at hood pin.
Page 26 MODELS 2000XP / 2100SP SUPER SWEEP OPTION TROUBLE SHOOTING GUIDE cont. NOTICE Super sweeps with dual output block will need a jumper plug. This can be a good test to determine if you problem is hydraulic or electronic. LOR Jumper Plug IEC Jumper Plug Part No.: 900-2913-51...
Page 27: Controls
MODELS 2000XP / 2100SP CONTROLS Basic Location of Controls and Adjustments LOCATION SHOWN Drive Belts 11. Clutch Switch (Model 2000XP) Cutter Wheel Lock Pin 12. Tilt Indicator Cutter Wheel Lock Pin Hole 13. Engine Throttle (varies with engines) Cutter Wheel Teeth .
Page 28 MODELS 2000XP / 2100SP CONTROLS MODEL 2000XP CONTROLS Basic Location of Controls and Adjustments LOCATION SHOWN Travel Speed Control Steer Right / Left Travel Forward / Reverse Cutter Down / Up Boom Travel Left / Right Swing Speed Control Clutch Engagement Switch...
Page 29 MODELS 2000XP / 2100SP CONTROLS MODEL 2000XP CONTROL OPERATING PROCEDURES 1. Travel Speed Control: Controls the rate the machine approaches the stump. To increase the travel speed turn the control knob clockwise. To decrease the travel speed turn the control knob counter-clockwise.
Page 30 MODELS 2000XP / 2100SP CONTROLS MODEL 2100SP CONTROLS Basic Location of Controls and Adjustments LOCATION SHOWN Swing Speed Control . Key Switch (varies with engines) Steer Right / Left . Remote / Local Travel Forward / Reverse . Engine Throttle (varies with engines)
Page 31 MODELS 2000XP / 2100SP CONTROLS MODEL 2100SP CONTROL OPERATING PROCEDURES 1. Swing Speed Control: The swing speed controls the rate the cutter wheel passes through the stump. To increase or decrease the swing speed, the control knob will have to be turned clockwise or counter-clockwise depending on if the machine has manual hydraulic controls or electric hydraulic controls and when it was built.
Page 32 MODELS 2000XP / 2100SP CONTROLS MODEL 2100SP RADIO CONTROLS Basic Location of Controls and Adjustments LOCATION SHOWN Lift Down / Up Engine Stop Tongue Out / In Steer Right / Left Swing Left / Right Cutter Bump Adjustment Drive Forward / Reverse...
Page 33 MODELS 2000XP / 2100SP CONTROLS MODEL 2100SP RADIO CONTROL OPERATING PROCEDURES 1. Lift Down / Up: To lower the cutter wheel, push the switch away from the operator. To lift the cutter wheel, pull the switch towards the operator. The cutter wheel lift is stationary when the switch is in the center location.
Page 34 MODELS 2000XP / 2100SP CONTROLS CONSULT THE ENGINE MANUFACTURER’S MANUAL FOR SPECIFIC CONTROLS, OPERATION, & MAINTENANCE FOR TYPICAL ENGINES Ignition Switch: Turn the ignition switch key clockwise one stop (on position) to turn the electrical system on. The key should remain in the on position while the engine is running.
Page 35: Machine Operation
MODELS 2000XP / 2100SP MACHINE OPERATION MACHINE OPERATION • Check all fluids before starting the machine. • Make sure to go through the daily start-up and maintenance procedures before operating the machine. • Drive belts or clutch must be disengaged before starting.
Page 36 MODELS 2000XP / 2100SP MACHINE OPERATION MACHINE OPERATION (cont.) Continue in this manner until stump has been DO NOT ENGAGE OR DISENGAGE DRIVE BELTS removed. AT A HIGH ENGINE SPEED. Damage to belts and machine will occur. Larger stumps may require repositioning machine to remove complete stump.
Page 37 MODELS 2000XP / 2100SP MACHINE OPERATION MOVING A MODEL 2000XP WITHOUT POWER NOTICE Use this procedure only when the machine will not start or run to help prevent damage to the hydraulic system. With the key in the “off” position and in your possession, follow the steps below: .
Page 38 MODELS 2000XP / 2100SP MACHINE OPERATION MOVING A MODEL 2100SP WITHOUT POWER NOTICE Use this procedure only when the machine will not start or run to help prevent damage to the hydraulic system. With the key in the “off” position and in your possession, follow the steps below: 1.
Page 39: Transportation Procedures
MODELS 2000XP / 2100SP TRANSPORTATION PROCEDURES TRANSPORTATION PROCEDURES WARNING BEFORE TRANSPORTING THE MACHINE, INSPECT AND CONFIRM THE FOLLOWING STEPS: The trailer has a cargo weight rating capacity for the weight of the stump grinder. The combined weight of the trailer and the stump grinder can not exceed the load capacity of the tires, axles, hitch coupler system or the GVWR (Gross Vehicle Weight Rating) of the trailer.
Page 40 MODELS 2000XP / 2100SP TRANSPORTATION PROCEDURES LOADING & UNLOADING WARNING BEFORE LOADING OR UNLOADING THE MACHINE INSPECT AND CONFIRM THE FOLLOWING STEPS: When loading or unloading the self-propelled machine on the trailer, use care and caution. The maneuvering of the equipment must be slow, smooth, and intentional, not fast and jerky.
Page 41 MODELS 2000XP / 2100SP MAINTENANCE SECTION MAINTENANCE SECTION The Bandit is a very simple machine to maintain. If you will follow a regular scheduled preventative maintenance program you should have years of trouble free operation. DANGER Before attempting any type of maintenance disengage clutch, turn off engine, wait for the cutterwheel to come to a complete stop, install the cutter wheel lock pin, place cutter wheel on the ground, disconnect battery, and make sure the ignition key is in your possession.
Page 42 MODELS 2000XP / 2100SP MAINTENANCE SECTION DAILY START UP & MAINTENANCE cont. 7) Check cutter wheel pocket bolts: 15) Check the fuel level: All cutter wheel pocket bolts must be factory approved. Check the fuel level, running out and repriming is time Bolts must be replaced after a maximum of 4-5 consuming.
Page 43 Adjust and maintain per the engine manufacturer’s Grease steering bearings with to shots of EP- manual. Lithium type grease on the Model 2000XP and the 2100SP with the tight turn option. Wipe off excessive ) Check wheel lug nuts: grease.
Page 44 MODELS 2000XP / 2100SP MAINTENANCE SECTION 3 MONTH MAINTENANCE 1) Hydraulic oil filter: Must be replaced after FIRST 10 HOURS OF OPERATION, USE A 10 MICRON FILTER. After first change replace oil filter every 3 months or 400 hours. 6 MONTH MAINTENANCE...
Page 45 Grease (purge) cutter wheel and jackshaft bearings daily. Grease upper frame pivot bushings with 1 to 2 shots. 10) Grease steering bearings with 1 to 2 shots on 2000XP & 2100SP with tight turn option. 11) Clean debris from beltshield and poly chain guard.
Page 46 Grease steering bushings with 1 to 2 shots (Model 2100SP Start 2/06). Grease steering spindle bearings with 1 to 2 shots (Model 2100SP Pre 2/06). Grease steering bearings with 1 to 2 shots (2000XP & 2100SP with tight turn option). Grease cylinder lug pin bushings with 1 to 2 shots.
Page 47: Maintenance
MODELS 2000XP / 2100SP MAINTENANCE SECTION BOLT TORQUE CHART (THESE TORQUES ARE BASED ON DRY, CLEAN THREADS) DESCRIPTION BOLT SIZE TORQUE (FT.-LBS.) TORQUE (Nm) Grinder Bearing Bolts /”- NC Grinder Bearing Set Screws Engine Hold Downs /”- NC Engine Sheave Bushing - SH /”-0 NC...
Page 48 MODELS 2000XP / 2100SP MAINTENANCE SECTION MODEL 2000XP LUBRICATION CHART CHECK DESCRIPTION DAY WEEK MONTH PROCEDURE Grinder Bearings Purge bearings daily - wipe off excess Jack Shaft Bearings Purge bearings daily - wipe off excess Upper Frame Pivot Bushings 1 to 2 shots of grease - wipe off excess...
Page 49 MODELS 2000XP / 2100SP MAINTENANCE SECTION MODEL 2000XP LUBRICATION CHART NOTICE Use as a reference only, locations may vary depending on options or component manufacturer. Lubrication point instructions are described on the machine, in the Lubrication & Coolant Section Bandit and Maintenance Section of this manual, or component manufacturer’s manual.
Page 50 MODELS 2000XP / 2100SP MAINTENANCE SECTION MODEL 2100SP LUBRICATION CHART CHECK DESCRIPTION DAY WEEK MONTH PROCEDURE Grinder Bearings Purge bearings daily - wipe off excess Jack Shaft Bearings Purge bearings daily - wipe off excess Upper Frame Pivot Bushings 1 to 2 shots of grease - wipe off excess...
Page 51 MODELS 2000XP / 2100SP MAINTENANCE SECTION MODEL 2100SP LUBRICATION CHART NOTICE Use as a reference only, locations may vary depending on options or component manufacturer. Lubrication point instructions are described on the machine, in the Lubrication & Coolant Section Bandit and Maintenance Section of this manual, or component manufacturer’s manual.
Page 52 MODELS 2000XP / 2100SP MAINTENANCE SECTION BELT TENSION GENERAL RULES FOR TENSIONING 1. Check tensioning during the first 2 through 48 hours of run-in operation especially. . Over tensioning or under tensioning shortens belt and bearing life. . Keep belts free from foreign materials that may cause the belt to slip.
Page 53 MODELS 2000XP / 2100SP MAINTENANCE SECTION CUTTER WHEEL BELT (V-Belt & Poly Chain Belt) Special care needs to be taken with your cutter wheel belt. Alignment, tension, and cleanliness of this belt is very important. The cutter wheel belt needs to be checked for tension approximately every 70 to 100 hours of use.
Page 54 MODELS 2000XP / 2100SP MAINTENANCE SECTION NOTICE Caterpillar, Kohler, NOTICE Robin, and Briggs & Stratton Adjust jackshaft (cutter wheel belt) Engines (if equipped): Adjust first, then engine belt. idler pulley linkage before ENGINE BELT adjusting engine mounts. LOOSEN TIGHTEN LINKAGE...
Page 55 MODELS 2000XP / 2100SP MAINTENANCE SECTION TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Engine will not start. . Loose ground cable. . Clean and tighten. (See Engine MFG. . Loose hot cable. . Clean and tighten. manual for further . Dead battery.
Page 56 MODELS 2000XP / 2100SP HYDRAULIC SECTION HYDRAULIC SECTION WARNING DO NOT GO NEAR HYDRAULIC LEAKS! High pressure oil easily punctures skin causing serious injury, gangrene, or death. If injured, seek emergency medical help. Immediate surgery is required to remove oil. DO NOT use fingers or skin to check for leaks. Lower load or relieve hydraulic pressure before loosening fittings.
Page 57 MODELS 2000XP / 2100SP HYDRAULIC SECTION HYDRAULIC SECTION Alternate hydraulic oils are available, but they do not equal the performance or longevity of the “Hydrex XV” oil. Consult the following information supplied by the oil distributor. C E L C IU S...
Page 58: Hydraulic Section
MODELS 2000XP / 2100SP HYDRAULIC SECTION HYDRAULIC SECTION THE BANDIT HYDRAULIC SYSTEM The Bandit is equipped with a very efficient, simple • Replace hydraulic oil & suction screen(s) at least hydraulic system. Each component is capable of once yearly. This is also a very good time to flush and withstanding a specified PSI (bar) and still operate for clean the tank.
Page 59 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODELS 2000XP / 2100SP TYPICAL HYDRAULIC RELIEF PRESSURE SETTINGS TYPICAL HYDRAULIC FLOWS AND RPM SETTINGS (Approximate, For Reference Only, Engine At Full RPM) Equipment Equipment Model 2000XP Model 00SP Pump GPM Pump GPM (LPM)
Page 60 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2000XP CHECKING HYDRAULIC PRESSURE Cutter Wheel Main Lift Control Relief Test Port Bandit NOTICE Valves may not be exactly as shown, depending on options. Copyright 5/09 PAGE 5...
Page 61 MUST be installed correctly. CHECKING MAIN RELIEF PRESSURE The main relief pressure is all you need to check or adjust with the model 2000XP. 1. Make sure all the controls are in the off position. . Install pressure gauge into the test port.
Page 62 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2100SP CHECKING HYDRAULIC PRESSURE MANUAL CONTROLS Cutter Down Steer Relief Relief Steer Main Test Port Relief Relief REMOTE CONTROLS Counter Balance Swing Drive Steer Cutter Down Swing Flow Main Relief Relief Relief Relief...
Page 63 MUST be installed correctly. CHECKING MAIN RELIEF PRESSURE The main relief pressure is all you need to check or adjust with the model 2000XP. 1. Make sure all the controls are in the off position. . Install pressure gauge into the test port.
Page 64 MODELS 2000XP / 2100SP HYDRAULIC SECTION TROUBLE SHOOTING BEFORE ATTEMPTING ANY TYPE OF MAINTENANCE DISENGAGE CLUTCH, TURN OFF ENGINE, WAIT FOR THE CUTTER WHEEL TO COME TO A COMPLETE STOP, INSTALL THE CUTTER WHEEL LOCK PIN, DISCONNECT BATTERY, AND MAKE SURE THE IGNITION KEY IS IN YOUR POSSESSION.
Page 65 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2000XP HYDRAULIC SCHEMATIC SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 59...
Page 66 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2100SP 2WD MANUAL CONTROL HYDRAULIC SCHEMATIC SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 60...
Page 67 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2100SP 4WD MANUAL CONTROL HYDRAULIC SCHEMATIC SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 6...
Page 68 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2100SP 2WD ELECTRIC CONTROL HYDRAULIC SCHEMATIC SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 6...
Page 69 MODELS 2000XP / 2100SP HYDRAULIC SECTION MODEL 2100SP 4WD ELECTRIC CONTROL HYDRAULIC SCHEMATIC SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 6...
Page 70: Cutter Wheel Section
There are eighteen (18) teeth and pockets to a A locking pin is provided to hold the cutter wheel complete set on a model 2000XP and a model 2100SP in position during tooth removal and reinstallation. built in and after 6/08. Eighteen (18) teeth, six (6) Locking pin will only lock on outer teeth.
Page 71 MODELS 2000XP / 2100SP CUTTER WHEEL SECTION CUTTER WHEEL SECTION (PRE 6/08) DO NOT OPERATE MACHINE WITHOUT A FULL SET OF TEETH. OPERATING MACHINE WITHOUT A FULL SET OF TEETH CAN CAUSE EXCESSIVE VIBRATION AND PREMATURE BEARING FAILURE. Use only original equipment manufacturer’s teeth. The use of any other aftermarket teeth may cause damage or premature failure to the drive train.
Page 72: Lubrication & Coolant
12) Grease steering bearings (if equipped): Grease steering bearings with to shots of EP- Lithium type grease on the Model 2000XP and the 2100SP with the tight turn option. Wipe off excess grease. Excessive grease will attract dirt.
Page 73 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (991-8000-06) MODEL 2000XP SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 67...
Page 74 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-800003) MANUAL CONTROL MACHINES SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 68...
Page 75 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-8000-11) LOR TO OMNEX RADIO HARNESS SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 69...
Page 76 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-800001) LOR RADIO CONTROL SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 70...
Page 77 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-800000) LOR RADIO CONTROL WITH SLIDING TONGUE SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 7...
Page 78 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (983-800002) LOR RADIO VALVE HARNESS SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 7...
Page 79 MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-8000-14) SWITCH PANEL TO TETHER ADAPTER SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. Bandit Copyright 5/09 PAGE 7...
Page 80: Electrical Section
MODELS 2000XP / 2100SP ELECTRICAL SECTION ELECTRICAL SCHEMATIC (993-8000-16) DUAL COIL SUPER SWEEP SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING ON OPTIONS OR COMPONENT MANUFACTURER. LOR AUTOFEED TACHOMETER DUAL COIL CLOSED CENTER VALVE 900-3929-14 RED POWER FROM KEY SWITCH E 3 METER HIRSCHMAN...
Page 81: Replacement Parts Section
MODELS 2000XP / 2100SP REPLACEMENT PARTS REPLACEMENT PARTS SECTION Depending on what replacement parts you are ordering the following information will be needed: GRINDER COMPONENTS ENGINE COMPONENTS CLUTCH COMPONENTS Serial Number Brand Brand Model Number of Grinder Engine Serial Number Serial Number Engine Spec.
Page 82 MODELS 2000XP / 2100SP CUTTER WHEEL COMPONENTS GREEN TEETH (START 6/08) PIN TEETH (PRE 6/08) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 76...
Page 83: Cutterwheel Components
MODELS 2000XP / 2100SP CUTTER WHEEL COMPONENTS MODEL 2000XP MODEL 2100SP LOCATION PART NUMBER PART NUMBER DESCRIPTION 1 a. 900-4900-13 900-4900-13 3/8”-16NC x 1” Hex Head Bolt 900-4906-62 900-4906-62 3/8” Lock Washer (Not Shown) 900-4913-27 900-4913-27 3/8” x 1 3/4” O.D. Washer...
Page 84: Upper Frame Components
MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2000XP Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 78...
Page 85 MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2000XP LOCATION PART NUMBER DESCRIPTION 900-90-07 Retaining Ring 900-90-0 Bearing Seal 900-90-0 Pivot Bearing 900-90-0 Bearing Cup 900-90-7 Cylinder Pin - Swing 900-1902-42 Split Bushing - 1 1/4” OD x 1” ID x 1”...
Page 86 MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2100SP GRADING BLADE OPTION Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 80...
Page 87 MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2100SP LOCATION PART NUMBER DESCRIPTION 99-0086 Rubber Curtain 99-005 Chip Guard 99-005 Chip Guard Curtain Mount 99-0055 Chip Guard Curtain Mount 99-0008 Cutter Wheel Guard 900-4907-44 Lock Pin 900-4906-82 1/2”-13NC Hex Nut 900-906-90 /”...
Page 88 MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2100SP GRADING BLADE OPTION Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 8...
Page 89 MODELS 2000XP / 2100SP UPPER FRAME COMPONENTS MODEL 2100SP LOCATION PART NUMBER DESCRIPTION 0 a. 900-906-0 Engine Belt - Lombardini Engines 900-908-65 Engine Belt - Kohler / Robin Engines 900-9-9 Engine Belt - Briggs & Stratton Engines 900-9-76 Engine Belt - CAT Engines 31 a.
Page 90: Engine Mount Components
MODELS 2000XP / 2100SP ENGINE MOUNT COMPONENTS KOHLER / ROBIN / BRIGGS & STRATTON ENGINES LOCATION PART NUMBER DESCRIPTION 900-4900-74 1/2”-13NC x 2” Hex Head Bolt 99-00077 Engine Mount Washer a. 99-0007 Kohler / Robin Engine Mount 99-009 Briggs & Stratton Engine Mount...
Page 91 MODELS 2000XP / 2100SP ENGINE MOUNT COMPONENTS LOMBARDINI / CAT ENGINES LOCATION PART NUMBER DESCRIPTION 900-4900-74 1/2”-13NC x 2” Hex Head Bolt 99-00077 Engine Mount Washer 900-4902-29 1/2”-13NC x 6” Eye Bolt - Engine Adjuster 900-906-90 /” Flat Washer 900-4906-84 1/2”-13NC Automation Lock Nut...
Page 92 MODELS 2000XP / 2100SP BELT ENGAGE COMPONENTS MODEL 2100SP (START 11/08) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 86...
Page 93: Belt Engage Components
MODELS 2000XP / 2100SP BELT ENGAGE COMPONENTS MODEL 2100SP (START 11/08) LOCATION PART NUMBER DESCRIPTION 900-4900-13 3/8”-16NC x 1” Hex Head Bolt a. 900-906-65 /8” Flat Washer 900-4906-62 3/8” Lock Washer (Not Shown) 900-9- Idler Pulley Assembly (Pulley & Shaft) 4 a.
Page 94 MODELS 2000XP / 2100SP BELT ENGAGE COMPONENTS MODEL 2100SP KOHLER/ROBIN/CAT/ BRIGGS & STRATTON ENGINES (PRE 11/08) LOCATION PART NUMBER DESCRIPTION 900-1902-42 Split Bushing - 1 1/4” OD x 1” ID x 1” 900-4907-33 Split Lock Collar - 1” ID 993-200078 Clamp-On Linkage a.
Page 95 MODELS 2000XP / 2100SP BELT ENGAGE COMPONENTS MODEL 2100SP LOMBARDINI ENGINES (PRE 11/08) LOCATION PART NUMBER DESCRIPTION 900-1902-42 Split Bushing - 1 1/4” OD x 1” ID x 1” 900-4907-33 Split Lock Collar - 1” ID 99-00080 Belt Engage Handle Assembly...
Page 96: Pivot Bracket Components
MODELS 2000XP / 2100SP PIVOT BRACKET COMPONENTS INTERNAL TAPER ROLLER BEARING STYLE PIVOT (Start 8/04) LOCATION PART NUMBER DESCRIPTION 900-1902-50 Split Bushing - 1 1/4” OD x 1” ID x 1 1/2” 900-4900-79 1” USS Washer 900-4909-08 1”-8NC Slotted Hex Nut 900-4911-72 1/8”...
Page 97 MODELS 2000XP / 2100SP PIVOT BRACKET COMPONENTS FLANGE BEARING STYLE PIVOT (Pre 8/04) LOCATION PART NUMBER DESCRIPTION 900-1902-50 Split Bushing - 1 1/4” OD x 1” ID x 1 1/2” 900-4900-79 1” USS Washer 900-4909-08 1”-8NC Slotted Hex Nut 900-4911-72 1/8”...
Page 98 MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2000XP Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 9...
Page 99 MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2000XP LOCATION PART NUMBER DESCRIPTION 99-000- Chip Guard 99-000-98 Rubber Fender 900-3940-00 Hydraulic Motor With Brake a. 99-00087 Wheel Hub Assembly 900-5905-97 /”-0NF Stud Only 900-3938-50 1”-20UNEF Hex Slotted Nut 6 a.
Page 100 MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2100SP TELESCOPING TONGUE OPTION DUAL WHEEL OPTION Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 9...
Page 101 MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2100SP LOCATION PART NUMBER DESCRIPTION a. 99-0006 Chip Guard 99-00050 Chip Guard (9” Wide Machine) 900-3940-00 Hydraulic Motor With Brake (Replaces 900-3928-56) a. 99-000-98 Rubber Fender 99-000 Fender Assembly (Specify Right Or Left & Steel Or Aluminum)
Page 102 MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2100SP TELESCOPING TONGUE OPTION DUAL WHEEL OPTION Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 96...
Page 103: Frame Components
MODELS 2000XP / 2100SP FRAME COMPONENTS MODEL 2100SP LOCATION PART NUMBER DESCRIPTION 900-1902-42 Split Bushing - 1 1/4” OD x 1” ID x 1” 7 a. 99-000-98 Rubber Fender 99-000 Fender Assembly (Specify Right Or Left & Steel Or Aluminum)
Page 104 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2000XP - SINGLE STEERING WHEEL Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 98...
Page 105: Steering Components
MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2000XP - SINGLE STEERING WHEEL LOCATION PART NUMBER DESCRIPTION 900-9-00 /”-0NF Lug Nut 2 a. 900-5909-22 18” x 8.50” - 10” Tire & White, 5 Bolt Rim (Specify Left Or Right) 900-5909-20 18” x 8.50” - 10” Tire Only 900-5909-21 10”...
Page 106 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2000XP - DUAL STEERING WHEEL Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 00...
Page 107 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2000XP - DUAL STEERING WHEEL LOCATION PART NUMBER DESCRIPTION 900-9-00 /”-0NF Lug Nut 2 a. 900-5909-22 18” x 8.50” - 10” Tire & White, 5 Bolt Rim (Specify Left Or Right) 900-5909-20 18” x 8.50” - 10” Tire Only 900-5909-21 10”...
Page 108 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - STANDARD 35” WIDTH 2 WHEEL DRIVE (START 2/06) 4 WHEEL DRIVE Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 0...
Page 109 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - STANDARD 35” WIDTH LOCATION PART NUMBER DESCRIPTION 993-200120 Steering Axle Assembly (Includes 2 & 4) 900-1908-37 Split Bushing - 1 3/4” OD x 1 1/2” ID x 1 1/2” 3 a.
Page 110 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - STANDARD 35” WIDTH (PRE 2/06) 2 WHEEL DRIVE 4 WHEEL DRIVE HUBS Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 0...
Page 111 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - STANDARD 35” WIDTH (PRE 2/06) LOCATION PART NUMBER DESCRIPTION a. 99-006 Tie Rod 900-907-9 Tie Rod End Only 900-4900-74 1/2”-13NC x 2” Hex Head Bolt 900-4906-82 1/2”-13NC Hex nut a.
Page 112 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - OPTIONAL 29” WIDTH 2 WHEEL DRIVE 4 WHEEL DRIVE Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 06...
Page 113 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - OPTIONAL 29” WIDTH LOCATION PART NUMBER DESCRIPTION 993-100080 Steering Axle Assembly (Includes 2 & 4) 900-1908-37 Split Bushing - 1 3/4” OD x 1 1/2” ID x 1 1/2” 3 a.
Page 114 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - WIDE TIRE OPTION 2 WHEEL DRIVE Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 08...
Page 115 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - WIDE TIRE OPTION LOCATION PART NUMBER DESCRIPTION 993-100085 Steering Axle Assembly (Includes 2 & 4) 900-1908-37 Split Bushing - 1 3/4” OD x 1 1/2” ID x 1 1/2” 3 a.
Page 116 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - TIGHT TURN OPTION Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 0...
Page 117 MODELS 2000XP / 2100SP STEERING COMPONENTS MODEL 2100SP - TIGHT TURN OPTION LOCATION PART NUMBER DESCRIPTION 1 a. 900-5909-22 18” x 8.50” - 10” Tire & White, 5 Bolt Rim (Specify Left Or Right) 900-5909-20 18” x 8.50” - 10” Tire Only 900-5909-21 10”...
Page 118 MODELS 2000XP / 2100SP CONTROL BOX COMPONENTS MODEL 2100SP CONTROL BOX (START 7/08) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE ...
Page 119 MODELS 2000XP / 2100SP CONTROL BOX COMPONENTS MODEL 2100SP CONTROL BOX (START 7/08) LOCATION PART NUMBER DESCRIPTION 1 a. 993-2001-62 Manual Control Box Assembly 993-2001-80 Radio Control Box Assembly 2 a. 900-2908-63 Cap And Chain For Tether Jack 900-2911-08 Tether Jack a.
Page 120 MODELS 2000XP / 2100SP CONTROL BOX COMPONENTS MODEL 2100SP CONTROL BOX (PRE 7/08) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE ...
Page 121 MODELS 2000XP / 2100SP CONTROL BOX COMPONENTS MODEL 2100SP CONTROL BOX (PRE 7/08) LOCATION PART NUMBER DESCRIPTION 1 a. 993-100013 4 Station Manual Control Box Assembly 993-100036 5 Station Manual Control Box Assembly 993-100036 Radio Control Box Assembly 993-100108 4 Station Manual Control Box Ass’y - 29” Wide Option - Kohler, Robin, Briggs & Stratton 993-100106 4 Station Manual Control Box Ass’y - 29”...
Page 122: Control Box Components
MODELS 2000XP / 2100SP CONTROL BOX COMPONENTS MODEL 2000XP CONTROL BOX LOCATION PART NUMBER DESCRIPTION 991-2000-07 Control Box Assembly 90-0005-07 Latch & Keeper a. 900-909-80 Clutch On / Off Toggle Switch 900-909-8 Rubber Boot For Toggle Switch (Not Shown)
Page 123: Tank Components
MODELS 2000XP / 2100SP TANK COMPONENTS MODEL 2000XP FUEL & HYDRAULIC TANK LOCATION PART NUMBER DESCRIPTION 900-9-60 Magnetic Drain Plug 991-1000-12 Fuel & Hydraulic Tank Assembly 900-900-07 Suction Screen 900-3900-44 Glass Sight Gauge For Hydraulic Tank 5 a. 900-4912-40 Padlock With Short Shackle For Tank With Locking Cap...
Page 124 MODELS 2000XP / 2100SP TANK COMPONENTS MODEL 2100SP FUEL & HYDRAULIC TANK FUEL & HYDRAULIC TANK (START 6/08) FUEL TANKS (PRE 6/08) HYDRAULIC TANKS (PRE 6/08) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 8...
Page 125 MODELS 2000XP / 2100SP TANK COMPONENTS MODEL 2100SP FUEL & HYDRAULIC TANK LOCATION PART NUMBER DESCRIPTION 900-9-60 Magnetic Drain Plug 993-2001-63 Fuel & Hydraulic Tank Assembly 900-900-07 Suction Screen 900-3900-44 Glass Sight Gauge For Hydraulic Tank 5 a. 900-4912-40 Padlock With Short Shackle For Tank With Locking Cap...
Page 126 MODELS 2000XP / 2100SP REMOTE CONTROL COMPONENTS MODEL 2100SP Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 0...
Page 127: Remote Control Components
MODELS 2000XP / 2100SP REMOTE CONTROL COMPONENTS MODEL 2100SP LOCATION PART NUMBER DESCRIPTION 900-2916-66 Transmitter - Omnex 900-2916-75 Receiver - Omnex 900-2917-58 Radio Remote Kit - Omnex (includes 1 & 2) a. 900-98-7 Tether 900-2908-63 Cap For Tether Jack (Not Shown) 5 a.
Page 128 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2000XP HYDRAULIC COMPONENTS Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE ...
Page 129 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2000XP HYDRAULIC COMPONENTS LOCATION PART NUMBER DESCRIPTION 900-9-57 Steering Motor 900-9-05 Steering Counter Balance 900-9-60 Swing Speed Control 900-3926-11 1/2” Ball Valve 5 a. 900-98-65 Double Counter Balance 900-99-09 Counter Balance Relief Only 900-3917-50 Double “T”...
Page 130 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2100SP HYDRAULIC COMPONENTS Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE ...
Page 131 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2100SP HYDRAULIC COMPONENTS LOCATION PART NUMBER DESCRIPTION a. 900-97-6 Steering Cylinder - Double Rod 900-97-68 Steering Cylinder 900-9-56 Steering Cylinder (Pre /06) 900-9-57 Steering Motor (With Tight Turn Option) 900-9-05 Steering Counter Balance - With Steering Motor Only...
Page 132 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2100SP (4WD OPTION) HYDRAULIC COMPONENTS Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 6...
Page 133 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS MODEL 2100SP (4WD OPTION) HYDRAULIC COMPONENTS LOCATION PART NUMBER DESCRIPTION a. 900-97-6 Steering Cylinder - Double Rod 900-97-68 Steering Cylinder 900-9-56 Steering Cylinder (Pre /06) 900-9-57 Steering Motor (With Tight Turn Option) 900-9-05...
Page 134: Hydraulic Components
1/2” Ball Valve: 900-3926-11 1/4” Ball Valve: 900-3943-65 Needle Valve: 900-3924-30 Needle Valve: 900-3943-60 (Model 00SP Swing & Travel Speed Adjustment) (Model 2000XP Swing & Travel Speed Adjustment) Bandit NOTICE Parts may not be exactly as shown. Copyright 5/09 PAGE 8...
Page 135 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS Hydraulic Pump: 900-3938-89 Pump Coupler Ass’y: 900-1915-59 (Replaces 900-95-) Model 2000XP (Pre 1/09) and Hydraulic Pump: 900-3943-85 Model 2000XP (Pre 1/09) and 2100SP With Kohler, Robin, or Model 2000XP (Start 1/09) 2100SP With Kohler, Robin, or Briggs &...
Page 136 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS Drive Wheel Motor With Brake: 900-3940-00 Drive Wheel Motor Without Brake: 900-3926-14 (Replaces 900-98-56) Castle Nut Only: 900-3938-50 Castle Nut Only: 900-3938-50 Steering Motor: 900-3921-57 Steering Counter Balance: 900-3923-05 Double Counter Balance: 900-3918-65 Counter Balance Relief Only: 900-3929-09 Bandit NOTICE Parts may not be exactly as shown.
Page 137 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS Divider / Brake Manifold Assembly 900-3940-96 Counter Balance Relief Only 900-99-09 Divider Cartridge Only 900-98-08 Bypass Valve Cartridge Only 900-3929-22 Bypass Coil 900-99- Brake Check Valve Cartridge 900-3929-24 Brake Shuttle Valve Cartridge 900-3929-25 Series/Parallel Valve Cartridge Only...
Page 138 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS Upper Frame Lift Cylinder: 900-3937-13 Counter Balance Relief: 900-3944-87 Swing Cylinder: 900-3937-09 Steering Cylinder: 900-3937-16 Steering Cylinder: 900-3937-68 900-9-56 (Pre /06) Tongue Extension Cylinder: 900-3937-10 Bandit NOTICE Parts may not be exactly as shown.
Page 139 MODELS 2000XP / 2100SP HYDRAULIC COMPONENTS Dual Coil Super Sweep Valve: 900-3930-99 Coil Only: 900-3931-01 Nut For Coil: 900-3931-02 O-Ring For Coil: 900-3931-03 Single Coil Super Sweep Valve: 900-3926-09 Coil Only: 900-3931-01 Subplate For Super Sweep Valve: 900-3926-12 Nut For Coil:...
Page 140: Service Record
MODELS 2000XP / 2100SP SERVICE RECORD SERVICE RECORD DATE DESCRIPTION AMOUNT Bandit Copyright 5/09 PAGE ...

This manual is also suitable for:

2100sp

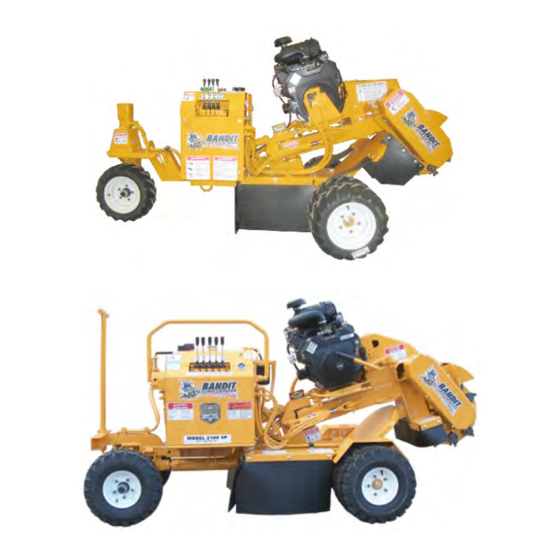

Brush Bandit 2000XP Operating & Parts Manual
