FIRMWARE UPDATE-1

DSP Update procedure

[Preparation]

1. PC (Personal Computer) which can play back wav files and output digital audio signal at 44.1 kHz (sampling frequency).
2. Software: Given wav-formatted FW Store it in the PC in advance (PC Update) or burn a CD-R with it as a music disc (CD Update).
3. Connection: DIGITAL (OPTICAL/COAXIAL) OUTPUT of PC/CD Player --> DIGITAL (OPTICAL/COAXIAL) INPUT of HTX-22HDX.

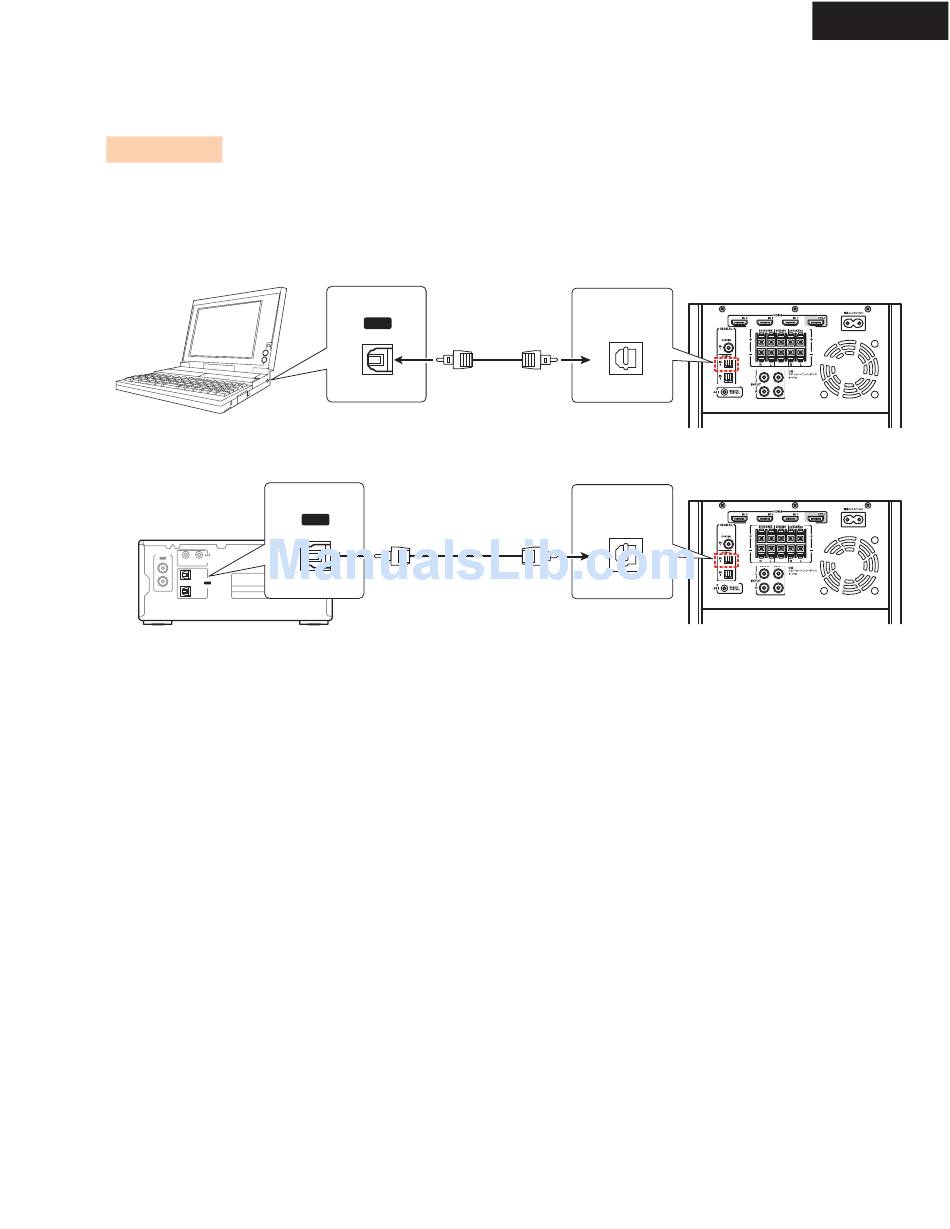

Connection Example

PC (Personal Computer)
ANALOG
OUT REMOTE
CONTROL
DIGITAL
L
OUT
OPTICAL
R
CD player
* PC needs to be able to handle wav files and output digital audio signal at Sampling Frequency 44.1 kHz.
* For wav-compatible PCs which do not output audio signal at the above specification,
use a commercially-available USB-AUDIO interface unit. e.g. Onkyo-made ND-S1
* Set Sampling frequency to 44.1 kHz and also set Volume to Maximum.
For further information, please see Owner's manual of your PC.
* Instead of PC, CD players with DIGITAL output terminal can be used.
Note: CD players need to output digital audio signal at 44.1 kHz of Sampling frequency.
Some CD players and DVD players are not suitable for update because they process audio signal to output.
Burn a CD-R as music disc.
DIGITAL
OUT
OPTICAL
For a different shape of OPTICAL terminal,
Use a conversion adapter.
DIGITAL
OUT
OPTICAL
OPTICAL
IN
2
HTX-22HDX Rear Panel
OPTICAL
IN
2
HTX-22HDX
