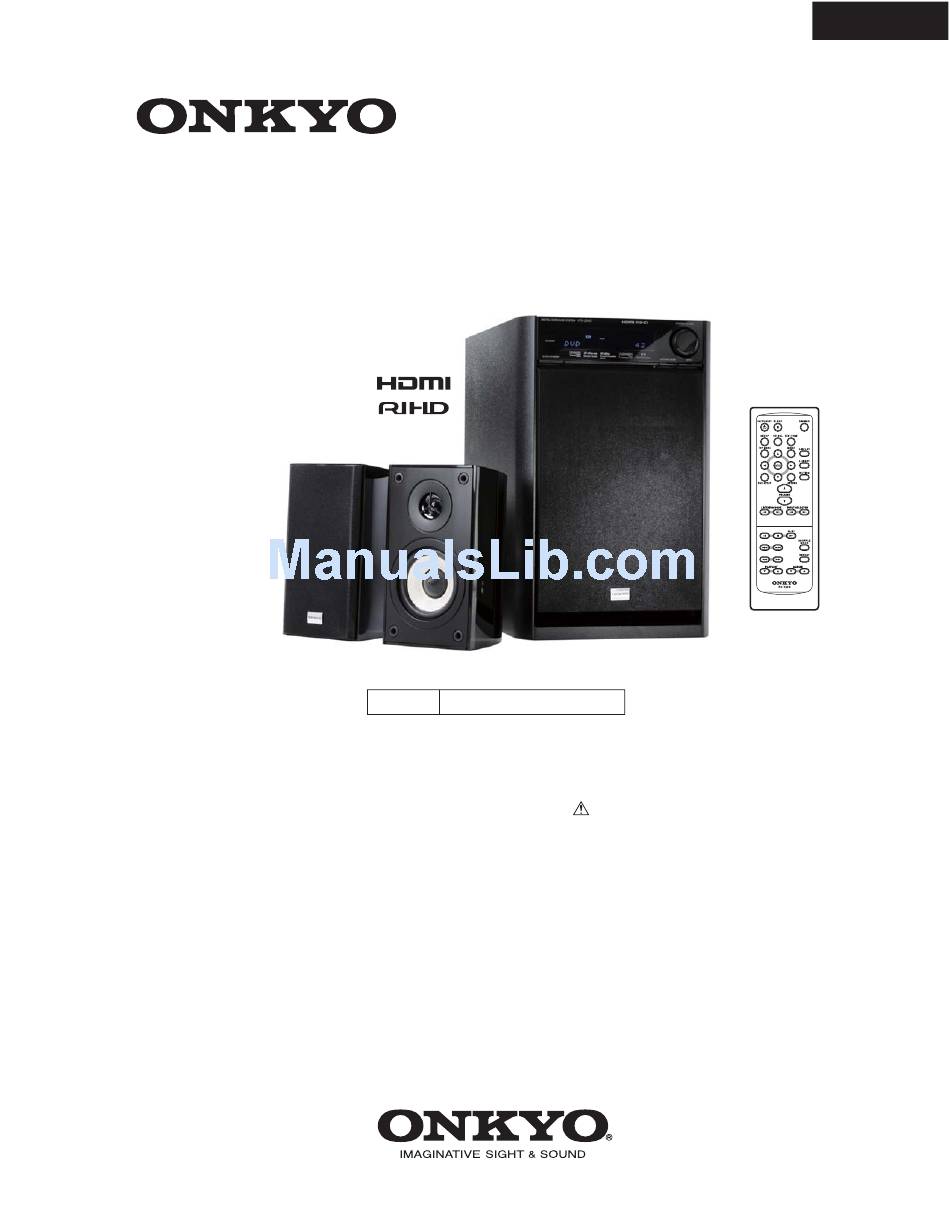

SERVICE MANUAL
SERVICE MANUAL
DIGITAL SURROUND SYSTEM
HTX-22HD(B)
MODEL
Black model
B MPB
230V AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Ref. No. 4073
RC-720S
ON THE
HTX-22HD
062008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTX-22HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo HTX-22HD

Summary of Contents for Onkyo HTX-22HD

  • Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...

  • Page 2: Exploded Views

    HTX-22HD EXPLODED VIEWS-1 AMPLIFIER SECTION x 2pcs x 3pcs A105 A106 x 15pcs x 3pcs E890 A132 L=150mm U08b A107 x 4pcs Q5001A A108 Refer to PC Board parts list x 4pcs x 2pcs x 2pcs E890 U11b A101 A132...
  • Page 3 HTX-22HD EXPLODED VIEWS-2 SPEAKER SECTION SP06 x 5pcs SP11 x 2pcs L=85mm SP09 x 2pcs Refer to "EXPLODED VIEWS-1" L=35mm SP10 L=95mm SP12 SP01 SP13 SP08 SP05 (With SP14) x 4pcs ---Rear--- SP15 SP14 (Badge)
  • Page 4 HTX-22HD EXPLODED VIEWS-3 FRONT SPEAKER (HTX-22HDST) - - - - - SP21 (L&R Speaker Ass’y) - - - - - [Left] [Right] SP22 (With SP23) SP22 (With SP23) I N A I N A l a c l a c...
  • Page 5 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD BLOCK DIAGRAM ( PART-1 ) MIC_DET MIC_IN MIC_AMP HEADPHONES from HPIN PreOut PRE_OUT_BL/BR POWER AMPLIFIER MUTE_RELAYS SPEAKER TERMINALS +29dB TONE FRONT LEFT +29dB to PowerAMP FRONT RIGHT TONE FRONT LEFT FRONT RIGHT +29dB INVERTING SURR. LEFT SURR. LEFT SURR.
  • Page 6 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD Schematic Diagram (Part-2) ASP Section NAAF-9566 TO NCAR-9567(PART-4/CPU) SN25052296 TO NCAR-9567(PART-4/CPU) P4102B 9110#13 P4101B 9110#13 VOLH R5578 P7901 SA-205HD Only HPDET HPDET HPMUT R5501 R5715 1/2W AMUT PREMUTE R5701 C5701 C5703 NJM4580 R5711 10/50 10/50 C5709 3.3k...
  • Page 7 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD NAAF-9592 SA-205HD ONLY C5801 SCHEMATIC DIAGRAM (PART-3) AMP Section D5801 1ss352 R5801 10(1/2W) P5801 L5801 S-1.3C NAAF-9566 NO.2 SP OUT L5802 S-1.3C R5802 RL5801 FL_SPOUT 10(1/2W) VCC-B C5002 R5003 R5001 FR_SPOUT 47/25 +IN_B R5011 C5009 -IN_B R5013 2.2k...
  • Page 8 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD Schematic Diagram (Part-4) CPU & Codec & VLSC Section P8602A to_NAVD-9568 P706A to_NAVD-9568 P705A P704A P7006 Flash_Jig_for_QB2 NAAR-9567 FLHS SCKB3 FLCLK P9305 SOB3 SIB3 +BDG FILTER_GND GNDA R9304 C641 104Z +12VA +BDG -12VA +5.0V DSPRST Q711 DIGSDO...
  • Page 9 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD SCHEMATIC DIAGRAM (PART-5) DSP SECTION Comment : Clock Level adjust Comment : EMI Level adjust NAAR-9567 R221 - 47ohm -> 75ohm L203 - LL121 C240 - 100D CPU_CONTROL DSPRST DSPRST_3.3V DIGSDO DIGSDO_3.3V DSPCS DSPCS_3.3V DIGSDI DIGSDI_3.3V DSPCLK DSPCLK_3.3V...
  • Page 10 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD SCHEMATIC DIAGRAM (PART-6) HDMI SECTION P702A TO_FLASH_WRITER NAVD-9568 SHIELD_GND C8691 102K APOWER_W R8675 GNDDG HPD_IN4 FLTXD HP DET Q8405 R8113 FLHS +3.3VMPU DSDA_IN4 DSDA_IN4 FLCLK DDC DATA DSCL_IN4 DSCL_IN4 CEC_IO FLRXD DDC CLK FLMD0 SN74CB3Q3305PWR RESET CERemote...
  • Page 11 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD Schematic Diagram (Part-7-1) Display Section TO NAPS-9570 P8003C NADIS-9569 Q8502 C8511 104Z C8510 C8512 104Z FLDCLK 104Z FLDSDO FLDCS R8507 +5VDIS +5VDIS R8508 FLDRST C8514 GNDCPU 104Z VOLB R8523 VOLA R8524 KEYINT0 REMIN S8501 KEY0 +3VSTB C8513...
  • Page 12 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD Schematic Diagram (Part-7-2) Display Section NADIS-9586 TO NAPS-9570 P8003A 16-ST-97GNK Q8002 C8011 104Z +3VSTB C8010 C8012 104Z FLDCLK 104Z FLDSDO FLDCS R8007 +5VDIS +5VDIS R8008 FLDRST C8014 GNDCPU 104Z VOLB R8023 VOLA R8024 KEYINT0 REMIN S8001 KEY0...
  • Page 13 Model No. DHT-9HD/HTX-22HD/HTX-E5HD/GXW-2.1HD/SA-205HD Schematic Diagram (Part-8) PowerSupply Section NAPS-9570 Q9101 NAPS-9595 FLAC2 R9101 2SC2235 220(1W) FLAC1 +5VDIS 103M/275VAC T901 C9003 MJJ 2.5A/125V MPB T1AL250V NCH-3581 F9001B F9001A RL9001 L9001 CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH FUSE OF SAME TYPE AND RATING INDICATED.

  • Page 14: Packing Procedure

    HTX-22HD PACKING PROCEDURE (Top/Bottom) (4 pcs) x 2 sheets 3.5m 3.5m White line Red line (For front speakers) <Dummy pad> 1.5m x 2 pcs (4 pcs) (For Subwoofer) Front side Front side...
  • Page 15 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -1 Q201 : D788E001BRFP266 (Audio DSP) -1/5 Device Block Diagram Program/Data JTAG EMU 256K Bytes McASP0 Data 16 Serializers Program/Data C67x+ CPU ROM Page1 256K Bytes Memory Data Controller Program/Data McASP1 ROM Page2...

  • Page 16: Pin Configuration

    HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -2 Q201 : D788E001BRFP266 (Audio DSP) -2/5 PIN CONFIGURATION SPI0_SIMO EM_CKE SPI0_SOMI/I2C0_SDA EM_CLK AXR0[0] EM_WE_DQM[1] AXR0[1] EM_D[8] AXR0[2] AXR0[3] EM_D[9] EM_D[10] AXR0[4] AXR0[5]/SPI1_SCS EM_D[11] AXR0[6]/SPI1_ENA AXR0[7]/SPI1_CLK EM_D[12] EM_D[13] EM_D[14] AXR0[8]/AXR1[5]/SPI1_SOMI EM_D[15] AXR0[9]/AXR1[4]/SPI1_SIMO EM_D[0]...

  • Page 17: Terminal Description

    HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -3 Q201 : D788E001BRFP266 (Audio DSP) -3/5 TERMINAL DESCRIPTION (1/3) SIGNAL NAME TYPE PULL GPIO DESCRIPTION External Memory Interface (EMIF) Address and Control EM_A[0] EM_A[1] EM_A[2] EM_A[3] EM_A[4] EM_A[5] EMIF Address Bus EM_A[6]...
  • Page 18 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -4 Q201 : D788E001BRFP266 (Audio DSP) -4/5 TERMINAL DESCRIPTION (2/3) SIGNAL NAME TYPE PULL GPIO DESCRIPTION McASP0, McASP1, McASP2, and SPI1 Serial Ports AHCLKR0/AHCLKR1 McASP0 and McASP1 Receive Master Clock ACLKR0 McASP0 Receive Bit Clock...
  • Page 19 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -5 Q201 : D788E001BRFP266 (Audio DSP) -5/5 TERMINAL DESCRIPTION (3/3) SIGNAL NAME TYPE PULL GPIO DESCRIPTION External Memory Interface (EMIF) Data Bus EM_D[0] EM_D[1] EM_D[2] EM_D[3] EM_D[4] EM_D[5] EM_D[6] EM_D[7] EMIF Data Bus [Lower 16 Bits]...

  • Page 20: Block Diagram

    HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -6 Q301 CS42518 (8-ch CODEC with S/PDIF Receiver) -1/4 BLOCK DIAGRAM VARX AGND LPFLT DGND DGND VD RXP0 RXP1/GPO1 RXP2/GPO2 C&U Bit Control RXP3/GPO3 Data Buffer AD0/CS S/P DIF Clock/Data Port RXP4/GPO4 AD1/CDIN...

  • Page 21: Ic Block Diagrams And Terminal Descriptions

    HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -7 Q301 : CS42518 (8-ch CODEC with S/PDIF Receiver) -2/4 PIN LAYOUT CX_SDIN1 RXP1/GP01 CX_SCLK RXP1/GP01 CX_LRCK RXP1/GP01 RXP1/GP01 DGND RXP1/GP01 RXP1/GP01 SCL/CCLK RXP1/GP01 SDA/CDOUT VARX CS42518 AD1/CDIN AGND AD0/CS LPFLT MUTEC AOUTA1-...
  • Page 22 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -8 Q301 : CS42518 (8-ch CODEC with S/PDIF Receiver) -3/4 TERMINAL DESCRIPTION Name Pin No. Function AD0/CS Address Bit 0 (I2C)/Control Port Chip Select (SPI) (INput) - AD0 is a chip address pin in I2C mode; CS is the chip select signal in SPI mode.
  • Page 23 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -9 Q301 : CS42518 (8-ch CODEC with S/PDIF Receiver) -4/4 TERMINAL DESCRIPTION Name Pin No. Function CL_SDOUT CODEC Serial Data Output (Output) - Output for two's complement serial audio data the internal and external ADCs.

  • Page 24: System Diagram

    HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -10 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control) -1/3 SYSTEM DIAGRAM Multi Multi Rch Tone Lch Tone CLOCK DATA MCU I/F Tone Bass & Volume Volume...
  • Page 25 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -11 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control) -2/3 BLOCK DIAGRAM 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25...
  • Page 26 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -12 Q5501 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control) -3/3 TERMINAL DESCRIPTION PIN No. Name Function 19,17, FROUT, FLOUT, 14,12, 6-OUT, 5-OUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel...
  • Page 27 HTX-22HD IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -13 Q8503 : M66005-0001AHP (FL Tube Driver) BLOCK DIAGRAM Display code RAM SEG00 CG ROM Bank 1 : 8bit x 16 (35bit x 160) Bank 2 : 8bit x 64 SEG26 Segment output...

  • Page 28: Service Procedure

    HTX-22HD SERVICE PROCEDURE 1. Replacing the fuse This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse , For fuse rating, refer to the marking adjacent to the symbol.

  • Page 29: Firmware Update

    3. Writing soft : "Update_DHT9HD_M_101.zip"(File name depends on the version.) Unzip "Update_DHT9HD_M_101.zip" in advance. * For a writing soft, contact Onkyo or your local distributor. <Connection> 1. While a target unit is off, connect RS-232 terminal of 0JFLASH to PC and insert FFC(9 contacts) of 0JFLASHEX to a connector slot on Rear Panel of the target unit.
  • Page 30 HTX-22HD FIRMWARE UPDATE -2 Main microprocessor (Continued) [Main Update Procedure] 1. Make sure that the unit is on. 2. Double-click "Update.exe" in the unzipped folder "Update_DHT9HD_M_101". The following window will appear. (Folder name depends on the version.) 3. Click "Main Update" button to start update. It takes about 3 minutes.
  • Page 31 2. Writing soft : "CD_DHT9HD0_08618A.wav" (File name depends on the version.) <NOTE>Store the wav file in a blank CD-R as a music CD in advance. * For a writing soft, contact Onkyo or your local distributor. 3. CD player with Optical or Coaxial output terminal : 1 pc <NOTE>Some CD players and a lot of DVD players process audio signal before output.
  • Page 32 1/66 PAGE HTX-22HD <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED.
  • Page 33 2/66 PAGE A130 CUSHION (tr) 28141786 EXPLODED A132 CUSHION (t5x150x40) 28141781 EXPLODED A134 CUSHION (t8x15x10) 28141782 EXPLODED A800 TAPE TAPE(CLOTH-16U) 29110083 EXPLODED E889 9S0612H405 24502329 EXPLODED E890 WIRE TIE BSK-1 260208 EXPLODED E892 IB CUSHION W15*3t TAPE 28141585 EXPLODED F901 FUSE 1A-SE-EAK FUSE 252070GR...
  • Page 34 ANM5NS490-BM07 EXPLODED SP22 CLOTH FRAME ASS'Y (FOR FRONT SPEAKER)(With BADGE) ANK5NS490-BM01 EXPLODED SP23 BADGE (ONKYO LOGO / SILVER) BPL5001010002 EXPLODED HTX-22HD PRINTED CIRCUIT BOARD PARTS LIST AMPLIFIER PC BOARD (NAAF-9566-1C) PWB1 MICROPROCESSOR&DSP PC BOARD (NAAR-9567-1C) PWB1 THERMAL SENSOR PC BOARD (NAETC-9573-1C) PWB1 CIRCUIT NO.
  • Page 35 4/66 PAGE U302 or PHT CP GP1FAV51RK0F 24120129 PWB1 Q172 TC7WU04FU(TE12L_F) 22240935R2 PWB1 Q201 D788E001BRFP266 22242502R3 PWB1 Q202 TC74VHC157FT 22274157ER2TO PWB1 Q211 TC74VHC541FT(EKJ) 22274541E1R2TO PWB1 Q211 or SN74AHC541PWR 22274541IR2TI PWB1 Q281 M12L64164A-7TG 22242441R3 PWB1 Q281 or K4S641632K-UC60 22242462R2 PWB1 Q282 IC (DSP ROM) ES29LV160ET-70TG(0284) 222W0069R302846...
  • Page 36 5/66 PAGE Q306 NJM4580M-D 22241448R2 PWB1 Q401 NJM4580M-D 22241448R2 PWB1 Q402 NJM4580M-D 22241448R2 PWB1 Q403 NJM4580M-D 22241448R2 PWB1 Q404 NJM4580M-D 22241448R2 PWB1 Q411 NJM4580M-D 22241448R2 PWB1 Q421 NJM4580M-D 22241448R2 PWB1 Q431 NJM4580M-D 22241448R2 PWB1 Q701 IC (MAIN MICROPROCESSOR) MPD70F3745GJ-GAE-AX(0283) 222W0089R302830 PWB1 Q702 S-812C50AUA-C3E...
  • Page 37 6/66 PAGE Q5501 R2S15211FP 22242297R3 PWB1 Q5503 NJM4580M-D 22241448R2 PWB1 Q5600 RN1441 2215410R2 PWB1 Q5601 RN1441 2215410R2 PWB1 Q5602 RN1441 2215410R2 PWB1 Q5603 RN1441 2215410R2 PWB1 Q5604 RN1441 2215410R2 PWB1 Q5605 RN1441 2215410R2 PWB1 Q5606 RN1441 2215410R2 PWB1 Q5607 RN1441 2215410R2 PWB1 Q5610...
  • Page 38 7/66 PAGE Q5614 RN1441 2215410R2 PWB1 Q5615 RN1441 2215410R2 PWB1 Q5616 RN1441 2215410R2 PWB1 Q5617 RN1441 2215410R2 PWB1 Q5630 NJM4580M-D 22241448R2 PWB1 Q5670 78M15HF(NJM78M15FA) 222780155JRC PWB1 Q5670 or UPC78M15AHF-AZ 222780155NEC PWB1 Q5670A HEAT SINK HEAT-SINK(RAD-078) 27160229 PWB1 Q5670B SCREW 3P+6FN(3BC) 82143006GR PWB1 Q5671...
  • Page 39 8/66 PAGE Q9305 KRA102S 2216220R2 PWB1 Q9305 or RN2402 2214530R2 PWB1 Q9306 KRC104S 2216210R2 PWB1 Q9306 or RN1404 2214490R2 PWB1 Q9307 RN1441 2215410R2 PWB1 Q9308 NJM4580M-D 22241448R2 PWB1 D301 C-DIODE KDS4148U 223283R2 PWB1 D301 or C-DIODE 1SS352 223234R2 PWB1 D301 or C-DIODE MA2J111 223279R2...
  • Page 40 9/66 PAGE D601 or C-DIODE MA2J111 223279R2 PWB1 D602 C-DIODE KDS4148U 223283R2 PWB1 D602 or C-DIODE 1SS352 223234R2 PWB1 D602 or C-DIODE MA2J111 223279R2 PWB1 D2001 C-DIODE 1SR154-400 22380284R2 PWB1 D2002 C-DIODE KDS4148U 223283R2 PWB1 D2002 or C-DIODE 1SS352 223234R2 PWB1 D2002 or C-DIODE...
  • Page 41 10/66 PAGE D9502 or C-DIODE MA2J111 223279R2 PWB1 L201 CHOKE COIL BLM21PG221SN1 230949R2 PWB1 L202 CHOKE COIL BLM21PG221SN1 230949R2 PWB1 L203 C-CARBON R RN72K1J-000JE 435030004R1 PWB1 L204 EMIFIL BK1608LM182-T 230958R1 PWB1 L205 CHOKE COIL LBC2518T470M 231364M470R2 PWB1 L241 EMIFIL ACF451832-333-T 230978R2 PWB1 L281...
  • Page 42 11/66 PAGE L304 CHOKE COIL BLM21PG221SN1 230949R2 PWB1 L306 CHOKE COIL LBC2518T470M 231364M470R2 PWB1 L307 CHOKE COIL LBC2518T470M 231364M470R2 PWB1 L308 CHOKE COIL LBC2518T4R7M 231364M047R2 PWB1 L309 CHOKE COIL LBC2518T2R2M 231364M022R2 PWB1 L312 EMIFIL BK1608LM182-T 230958R1 PWB1 L313 EMIFIL BK1608LM182-T 230958R1 PWB1 L314...
  • Page 43 12/66 PAGE C216 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C217 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C218 UTSP C CE04W10V-100M(UTSP) 397531017T PWB1 C221 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C222 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C223 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C224 C-CERA C CK725F1E-104Z1 332161040R1 PWB1...
  • Page 44 13/66 PAGE C232 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C233 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C234 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C235 UTSP C CE04W10V-100M(UTSP) 397531017T PWB1 C238 C-CERA C CC725CH1H-060D1 342100602R1 PWB1 C239 C-CERA C CC725CH1H-060D1 342100602R1 PWB1 C241 UTSP C CE04W10V-470M(UTSP) 397534717T PWB1...
  • Page 45 14/66 PAGE C303 UTSP C CE04W10V-470M(UTSP) 397534717T PWB1 C304 UTSP C CE04W10V-470M(UTSP) 397534717T PWB1 C305 UTSP C CE04W25V-47M(UTSP) 397554707T PWB1 C306 UTSP C CE04W10V-100M(UTSP) 397531017T PWB1 C307 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C308 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C309 C-CERA C CK725F1E-104Z1 332161040R1 PWB1...
  • Page 46 15/66 PAGE C318 C-CERA C CC725CH1H-060D1 342100602R1 PWB1 C319 C-CERA C CC725CH1H-060D1 342100602R1 PWB1 C320 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C321 UTSP C CE04W10V-220M(UTSP) 397532217T PWB1 C322 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C325 C-CERA C CC725CH1H-080D1 342100802R1 PWB1 C328 C-CERA C CK725F1E-104Z1 332161040R1 PWB1...
  • Page 47 16/66 PAGE C408 TF C ECQ-B50V-471J 374724714T PWB1 C411 TF C ECQ-B50V-151K 374721515T PWB1 C412 TF C ECQ-B50V-151K 374721515T PWB1 C413 TF C ECQ-B50V-151K 374721515T PWB1 C414 TF C ECQ-V50V-473J 374724734T PWB1 C415 TF C ECQ-B50V-151K 374721515T PWB1 C416 TF C ECQ-B50V-151K 374721515T PWB1...
  • Page 48 17/66 PAGE C426 TF C ECQ-B50V-151K 374721515T PWB1 C427 TF C ECQ-B50V-151K 374721515T PWB1 C428 TF C ECQ-B50V-151K 374721515T PWB1 C431 TF C ECQ-B50V-122J 374721224T PWB1 C432 TF C ECQ-B50V-122J 374721224T PWB1 C441 TF C ECQ-B50V-471J 374724714T PWB1 C442 TF C ECQ-B50V-471J 374724714T PWB1...
  • Page 49 18/66 PAGE C2008 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C2009 UTSP C CE04W50V-10M(UTSP) 397581007T PWB1 C2010 UTSP C CE04W10V-470M(UTSP) 397534717T PWB1 C2011 C-CERA C CK725F1E-104Z1 332161040R1 PWB1 C2012 UTSP C CE04W10V-220M(UTSP) 397532217T PWB1 C5001 TF C ECQ-B50V-471J 374724714T PWB1 C5002 UTSP C CE04W50V 47M(UTSP) 397584707T PWB1...
  • Page 50 19/66 PAGE C5102 UTSP C CE04W50V 47M(UTSP) 397584707T PWB1 C5103 TF C ECQ-B50V-471J 374724714T PWB1 C5104 UTSP C CE04W50V 47M(UTSP) 397584707T PWB1 C5109 UTSP C CE04W10V-220M(UTSP) 397532217T PWB1 C5110 UTSP C CE04W10V-220M(UTSP) 397532217T PWB1 C5111 TF C ECQ-V50V-104J 374721044T PWB1 C5112 TF C ECQ-V50V-104J...
  • Page 51 20/66 PAGE C5574 UTSP C CE04W25V-47M(UTSP) 397554707T PWB1 C5575 UTSP C CE04W25V-47M(UTSP) 397554707T PWB1 C5576 UTSP C CE04W25V-47M(UTSP) 397554707T PWB1 C5590 C-CERA C CC725CH1H-330J1 342103304R1 PWB1 C5591 C-CERA C CC725CH1H-330J1 342103304R1 PWB1 C5600 UTSP C CE04W50V 47M(UTSP) 397584707T PWB1 C5601 UTSP C CE04W50V 47M(UTSP) 397584707T...
  • Page 52 21/66 PAGE C5631 TF C ECQ-B50V-221K 374722215T PWB1 C5632 C-FILM C ECHU16V-103J 373041034R2 PWB1 C5641 TF C ECQ-V50V-474J 374724744T PWB1 C5642 UTSP C CE04W50V-1M(UTSP) 397580107T PWB1 C5666 UTSP C CE04W25V-220M(UTSP) 397552217T PWB1 C5667 UTSP C CE04W25V-220M(UTSP) 397552217T PWB1 C5670 C-CERA C CK725F1H-104Z1 332151040R1 PWB1...
  • Page 53 22/66 PAGE C9505 C-CERA C CK725B1H-102K1 332101025R1 PWB1 R200 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R201 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R202 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R203 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R204 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R205 C-CARBON R RN72K1J-103JE 435031034R1 PWB1...
  • Page 54 23/66 PAGE R213 C-R NET RM7LJ330X04 43484733004R2 PWB1 R214 C-R NET RM7LJ330X04 43484733004R2 PWB1 R215 C-R NET RM7LJ330X04 43484733004R2 PWB1 R216 C-R NET RM7LJ330X04 43484733004R2 PWB1 R217 C-R NET RM7LJ330X04 43484733004R2 PWB1 R218 C-R NET RM7LJ330X04 43484733004R2 PWB1 R221 C-CARBON R RN72K1J-750JE 435037504R1 PWB1...
  • Page 55 24/66 PAGE R288 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R289 C-CARBON R RN72K1J-472JE 435034724R1 PWB1 R290 C-CARBON R RN72K1J-472JE 435034724R1 PWB1 R301 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R302 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R303 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R304 C-CARBON R RN72K1J-331JE 435033314R1 PWB1...
  • Page 56 25/66 PAGE R313 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R314 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R315 EMIFIL BK1608LM182-T 230958R1 PWB1 R316 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R317 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R318 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R319 C-CARBON R RN72K1J-331JE 435033314R1 PWB1...
  • Page 57 26/66 PAGE R404 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R405 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R406 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R407 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R408 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R411 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R412 C-CARBON R RN72K1J-332JE 435033324R1 PWB1...
  • Page 58 27/66 PAGE R422 C-CARBON R RN72K1J-681JE 435036814R1 PWB1 R423 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R424 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R425 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R426 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R427 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R428 C-CARBON R RN72K1J-471JE 435034714R1 PWB1...
  • Page 59 28/66 PAGE R467 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R468 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R471 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R472 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R473 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R474 C-CARBON R RN72K1J-181JE 435031814R1 PWB1 R475 C-CARBON R RN72K1J-181JE 435031814R1 PWB1...
  • Page 60 29/66 PAGE R501 C-CARBON R RN72K1J-152JE 435031524R1 PWB1 R502 C-CARBON R RN72K1J-152JE 435031524R1 PWB1 R511 C-CARBON R RN72K1J-223JE 435032234R1 PWB1 R512 C-CARBON R RN72K1J-223JE 435032234R1 PWB1 R521 C-CARBON R RN72K1J-223JE 435032234R1 PWB1 R522 C-CARBON R RN72K1J-223JE 435032234R1 PWB1 R531 C-CARBON R RN72K1J-223JE 435032234R1 PWB1...
  • Page 61 30/66 PAGE R651 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R652 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R653 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R654 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R655 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R656 C-CARBON R RN72K1J-000JE 435030004R1 PWB1 R657 C-CARBON R RN72K1J-000JE 435030004R1 PWB1...
  • Page 62 31/66 PAGE R669 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R670 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R671 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R672 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R673 C-CARBON R RN72K1J-470JE 435034704R1 PWB1 R674 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R677 C-CARBON R RN72K1J-221JE 435032214R1 PWB1...
  • Page 63 32/66 PAGE R735 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R736 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R737 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R740 C-CARBON R RN72K1J-000JE 435030004R1 PWB1 R744 C-CARBON R RN72K1J-472JE 435034724R1 PWB1 R747 C-CARBON R RN72K1J-333JE 435033334R1 PWB1 R748 C-CARBON R RN72K1J-103JE 435031034R1 PWB1...
  • Page 64 33/66 PAGE R760 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R761 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R766 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R767 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R769 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R770 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R771 C-CARBON R RN72K1J-273JE 435032734R1 PWB1...
  • Page 65 34/66 PAGE R2015 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R2016 EMIFIL BK1608LM182-T 230958R1 PWB1 R2017 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R2018 EMIFIL BK1608LM182-T 230958R1 PWB1 R2019 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R2020 EMIFIL BK1608LM182-T 230958R1 PWB1 R2021 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R2022 EMIFIL...
  • Page 66 35/66 PAGE R2029 EMIFIL BK1608LM182-T 230958R1 PWB1 R2030 C-CARBON R RN72K1J-333JE 435033334R1 PWB1 R2031 C-CARBON R RN72K1J-332JE 435033324R1 PWB1 R2032 C-CARBON R RN72K1J-393JE 435033934R1 PWB1 R2033 C-CARBON R RN72K1J-000JE 435030004R1 PWB1 R2034 C-CARBON R RN72K1J-393JE 435033934R1 PWB1 R2035 C-CARBON R RN72K1J-152JE 435031524R1 PWB1...
  • Page 67 36/66 PAGE R5114 C-CARBON R RN72K3A-047JE 435320474R2 PWB1 R5201 C-CARBON R RN72K1J-102JE 435031024R1 PWB1 R5202 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R5203 C-CARBON R RN72K1J-102JE 435031024R1 PWB1 R5204 C-CARBON R RN72K1J-563JE 435035634R1 PWB1 R5205 C-CARBON R RN72K1J-123JE 435031234R1 PWB1 R5206 C-CARBON R RN72K1J-222JE 435032224R1 PWB1...
  • Page 68 37/66 PAGE R5307 METAL R RNU1/2WCJ-4.7 453530474T PWB1 R5503 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R5504 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R5505 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R5506 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R5507 C-CARBON R RN72K1J-101JE 435031014R1 PWB1 R5508 C-CARBON R RN72K1J-101JE 435031014R1 PWB1...
  • Page 69 38/66 PAGE R5611 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5612 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5613 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5614 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5615 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5616 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R5617 C-CARBON R RN72K1J-222JE 435032224R1 PWB1...
  • Page 70 39/66 PAGE R5627 C-CARBON R RN72K1J-101JE 435031014R1 PWB1 R5630 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R5631 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R5632 C-CARBON R RN72K1J-153JE 435031534R1 PWB1 R5633 C-CARBON R RN72K1J-122JE 435031224R1 PWB1 R5634 C-CARBON R RN72K1J-103JE 435031034R1 PWB1 R5641 C-CARBON R RN72K1J-681JE 435036814R1 PWB1...
  • Page 71 40/66 PAGE R9211 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R9212 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R9213 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R9214 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R9215 C-CARBON R RN72K1J-473JE 435034734R1 PWB1 R9216 C-CARBON R RN72K1J-222JE 435032224R1 PWB1 R9217 C-CARBON R RN72K1J-473JE 435034734R1 PWB1...
  • Page 72 41/66 PAGE R9306 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R9307 C-CARBON R RN72K1J-471JE 435034714R1 PWB1 R9308 EMIFIL BK1608LM182-T 230958R1 PWB1 R9309 C-CARBON R RN72K1J-331JE 435033314R1 PWB1 R9310 C-CARBON R RN72K1J-221JE 435032214R1 PWB1 R9311 C-CARBON R RN72K1J-472JE 435034724R1 PWB1 R9312 C-CARBON R RN72K1J-221JE 435032214R1 PWB1...
  • Page 73 42/66 PAGE P4101B PLUG NPLG-13P0968 25056018 PWB1 P4102A SOCKET NSCT-13P2193 25052296 PWB1 P4102B PLUG NPLG-13P0968 25056018 PWB1 P5001B SOCKET AS NSAS-10P1744 2009991120BUL PWB1 P5101B PLUG NPLG-5P119 25055135 PWB1 P5201B PLUG NPLG-2P116 25055132 PWB1 P5302 PLUG NPLG-2P149 25055165 PWB1 P7902 PIN JACK NPJ-6PDWWWRRR561 25045779 PWB1...
  • Page 74 43/66 PAGE P9303 ST JACK YKB21-5352N 25045903 PWB1 P9304 TRM(SCREW) NEJITANSI M3 25065425 PWB1 P9305 WS CLAMP CB-71694(L=30) 260260 PWB1 P9306 NTM-1P233(M1969) 25060302 PWB1 P9307 NTM-1P232(M1700) 25060301 PWB1 P9501B PLUG NPLG-4P151 25055167 PWB1 P9801 RETAINER (BUS) 27142108 PWB1 P9802 RETAINER (BUS) 27142108 PWB1...
  • Page 75 44/66 PAGE Q8161 TA48018AF(TE16L_NQ) 22278018DR2TO PWB2 Q8162 SII9185ACTU 22242471R3 PWB2 Q8305 S-812C50BUC-C5ET2G 22242407R2 PWB2 Q8306 TC7SZ08FU(TE85L_F) 22242071R2TO PWB2 Q8309 TR ARRAY UM6K1N 226066R2 PWB2 Q8309 or TR ARRAY UPA672T 226067R2 PWB2 Q8401 SII9134CTU 22242394R3 PWB2 Q8404 XC6213B182MR 22242443R2 PWB2 Q8405 SN74CB3Q3305PWR 22242258R2 PWB2...
  • Page 76 45/66 PAGE Q8651 or UPC2918T-E1-AZ 22278018ER2NE PWB2 Q8652 XC6213B332MR 22242277R2 PWB2 Q8653 TA48033AF(TE16L_NQ) 22278033DR2TO PWB2 Q8653 or TA48033BF(TE16L_NQ) 22278033DBR2TO PWB2 Q8654 TA48018AF(TE16L_NQ) 22278018DR2TO PWB2 Q8655 TC74VHC541FT(EKJ) 22274541E1R2TO PWB2 Q8655 or SN74AHC541PWR 22274541IR2TI PWB2 D8301 DIODE DAN217T146 223285R2 PWB2 D8302 C-DIODE KDS4148U 223283R2 PWB2...
  • Page 77 46/66 PAGE C8161 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8162 CHIP ELECT C CEWX4V-100M 3981G1017R2 PWB2 C8164 CHIP ELECT C CEWX4V-22M 3981G2207R2 PWB2 C8165 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8166 CHIP ELECT C CEWX4V-22M 3981G2207R2 PWB2 C8167 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8168 CHIP ELECT C...
  • Page 78 47/66 PAGE C8176 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8177 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8178 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8179 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8180 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8181 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8182 C-CERA C CK725B1H-102K1 332101025R1 PWB2...
  • Page 79 48/66 PAGE C8427 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8428 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8429 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8430 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8431 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8432 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8433 C-CERA C CK725B1H-102K1 332101025R1 PWB2...
  • Page 80 49/66 PAGE C8444 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8501 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8502 CHIP ELECT C CEWX4V-22M 3981G2207R2 PWB2 C8503 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8504 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8505 CHIP ELECT C CEWX4V-22M 3981G2207R2 PWB2 C8506 C-CERA C CK725F1A-105Z1...
  • Page 81 50/66 PAGE C8541 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8542 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8543 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8544 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8545 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8546 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8547 C-CERA C CK725B1H-102K1 332101025R1 PWB2...
  • Page 82 51/66 PAGE C8555 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8556 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8557 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8558 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8559 C-CERA C CK725B1H-102K1 332101025R1 PWB2 C8560 C-CERA C CK725F1A-105Z1 332181050R1 PWB2 C8561 C-CERA C CK725B1H-102K1 332101025R1 PWB2...
  • Page 83 52/66 PAGE C8684 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8702 C-CERA C CK725F1E-104Z1 332161040R1 PWB2 C8703 CHIP ELECT C CEWX4V-22M 3981G2207R2 PWB2 R8109 C-CARBON R RN72K1J-473JE 435034734R1 PWB2 R8110 C-CARBON R RN72K1J-472JE 435034724R1 PWB2 R8113 C-CARBON R RN72K1J-103JE 435031034R1 PWB2 R8123 C-CARBON R RN72K1J-103JE 435031034R1...
  • Page 84 53/66 PAGE R8165 C-CARBON R RN72K1J-103JE 435031034R1 PWB2 R8323 C-CARBON R RN72K1J-103JE 435031034R1 PWB2 R8324 C-CARBON R RN72K1J-472JE 435034724R1 PWB2 R8325 C-CARBON R RN72K1J-473JE 435034734R1 PWB2 R8326 C-CARBON R RN72K1J-473JE 435034734R1 PWB2 R8334 C-CARBON R RN72K1J-222JE 435032224R1 PWB2 R8335 C-CARBON R RN72K1J-222JE 435032224R1 PWB2...
  • Page 85 54/66 PAGE R8503 C-CARBON R RN72K1J-330JE 435033304R1 PWB2 R8504 C-R NET RM7LJ330X04 43484733004R2 PWB2 R8505 C-R NET RM7LJ330X04 43484733004R2 PWB2 R8506 C-CARBON R RN72K1J-120JE 435031204R1 PWB2 R8507 C-R NET RM7LJ330X04 43484733004R2 PWB2 R8508 C-R NET RM7LJ330X04 43484733004R2 PWB2 R8509 C-R NET RM7LJ330X04 43484733004R2 PWB2...
  • Page 86 55/66 PAGE R8517 C-CARBON R RN72K1J-101JE 435031014R1 PWB2 R8518 C-CARBON R RN72K1J-472JE 435034724R1 PWB2 R8519 C-CARBON R RN72K1J-470JE 435034704R1 PWB2 R8520 C-CARBON R RN72K1J-330JE 435033304R1 PWB2 R8521 C-CARBON R RN72K1J-330JE 435033304R1 PWB2 R8522 C-R NET RM7LJ330X04 43484733004R2 PWB2 R8523 C-CARBON R RN72K1J-330JE 435033304R1 PWB2...
  • Page 87 56/66 PAGE P8121 SOCKET YKF45-7037V 25053253R3 PWB2 P8302 SOCKET YKF45-7037V 25053253R3 PWB2 P8602B PLUG NPLG-2P349 25055366 PWB2 P8603 TRM(SCREW) NEJITANSI M3 25065425 PWB2 P8604 TRM(SCREW) NEJITANSI M3 25065425 PWB2 P8605 WS CLAMP CB-71694(L=30) 260260 PWB2 POWER TRANS. PC BOARD (NAPS-9570-1C) PWB3 U07b DISPLAY PC BOARD (NADIS-9586-1C)
  • Page 88 57/66 PAGE U8541 REMO SENS GP1UX511RK 241370 PWB3 Q8502 FL TUBE 16-ST-97GNK 212270 PWB3 Q8502A HOLDER (FL) 27191281 PWB3 Q8503 M66005-0001AHP 22242208R3 PWB3 Q8504 2SC2712-GR 2213145R2 PWB3 Q8505 2SC2713-GR(TE85R_F) 2213135R2 PWB3 Q9001 KRC105S 2217290R2 PWB3 Q9001 or RN1405 2214500R2 PWB3 Q9101 2SC2235-O(TPE6_F) 2211653T...
  • Page 89 58/66 PAGE D9009 DIODE RL1N4003 22380260T PWB3 D9105 ZENER D MAZ8180-M 224751802R2 PWB3 D9105 or ZENER D UDZS18B 224551800R2 PWB3 D9112 DIODE RL1N4003 22380260T PWB3 D9113 ZENER D MAZ8180-M 224751802R2 PWB3 D9113 or ZENER D UDZS18B 224551800R2 PWB3 L5851 S COIL S-1.3C 231176S PWB3...
  • Page 90 59/66 PAGE T9002 P TRANS NPT-1520GQ 2301813A PWB3 C5851 C-CERA C CC725CH1H-102J1 342101024R1 PWB3 C5852 C-CERA C CC725CH1H-102J1 342101024R1 PWB3 C5853 C-CERA C CC725CH1H-102J1 342101024R1 PWB3 C5854 TF C ECQ-B50V-102J 374721024T PWB3 C5855 TF C ECQ-B50V-102J 374721024T PWB3 C5856 TF C ECQ-B50V-102J 374721024T PWB3...
  • Page 91 60/66 PAGE C8544 C-CERA C CK725F1E-104Z1 332161040R1 PWB3 C8545 ELECT C CE04W50V-10M 355781009T PWB3 C9001 IS C DE1007E472M-KY 3300063 PWB3 C9002 IS C DE1007E472M-KY 3300063 PWB3 C9003 IS C MKP R46 103M 3500202S PWB3 C9004 TF C ECQ-V50V-104J 374721044T PWB3 C9005 TF C ECQ-B50V-223J...
  • Page 92 61/66 PAGE R0051 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0052 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0053 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0054 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0055 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0056 C-CARBON R RN72K1J-000JE 435030004R1 PWB3 R0057 C-CARBON R RN72K1J-000JE 435030004R1 PWB3...
  • Page 93 62/66 PAGE R9004 METAL O R RS1/2WBJ-68 443526804T PWB3 R9101 METAL O R RS1WBJ-220 443622214T PWB3 R9102 C-CARBON R RN72K1J-822JE 435038224R1 PWB3 R9103 C-CARBON R RN72K1J-822JE 435038224R1 PWB3 R9104 C-CARBON R RN72K1J-333JE 435033334R1 PWB3 R9105 METAL R RNU1/2WCJ-2.2 453530224T PWB3 R9106 METAL R RNU1/2WCJ-2.2...
  • Page 94 WS CLAMP CB-71683(L=50) 260261 PWB3 E8003 WS CLAMP CB-71683(L=50) 260261 PWB3 E8004 WS CLAMP CB-71683(L=50) 260261 PWB3 HTX-22HD PACKING PROCEDURE PARTS LIST REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS CARTON BOX HTX-22(B)MPB 730-HTX22B-10 PACKING POLYFOAM (TOP) 720-DHT9BT-00...
  • Page 95 64/66 PAGE TAPE NITTO NO.29 W18 (Yellow) 29110149 PACKING POLYFOAM (TOP/BOTTOM) ITF5306840001 PACKING MIRAMAT BAG 320 x 220 x 0.5t (FRONT SPEAKER) IVA5080160020 PACKING PP TAPE 29110071 or PACKING 09 or PP TAPE W48 OPP TAPE 29110148 or PACKING 09 or PP TAPE NITTO 3703 SUPER W50L100 29110176...
  • Page 96 INS MANUAL En(HTX-22HD) 29344714 PACKING INS MANUAL DeFrIt(HTX-22HD) 29344717 PACKING INST SHEET WEEE 29355537 PACKING INST SHEET En(HTX-22HD RI-HD) 29355707 PACKING CORD AS HDMI 1.5M 2010449 PACKING 24 or CORD AS HDMI 1.5M (687670089) (1.3a) 2010473 Added PACKING POLY BAG 200 x 100 x 0.025t (For SP CABLE)
  • Page 97 66/66 PAGE...
