Home Theater Speaker System
HTP-L50
Instruction Manual
Thank you for purchasing the Onkyo home theater speaker
system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to
obtain optimum performance and listening enjoyment from
your new home theater speaker system.
Please retain this manual for future reference.
English
Contents
Important Safeguards........................ 2
Precautions ....................................... 3
Supplied Accessories........................ 3
Feature .............................................. 4
Speaker placement............................ 5
Connecting the speakers ................... 6
Adjustment procedure ...................... 7
(SL-105)........................................ 7
Precaution on use.............................. 8
Troubleshooting guide...................... 8
Specifications ................................... 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTP-L50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo HTP-L50

Summary of Contents for Onkyo HTP-L50

  • Page 1: Table Of Contents

    Home Theater Speaker System HTP-L50 Instruction Manual Thank you for purchasing the Onkyo home theater speaker system. Please read this manual thoroughly before using it. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new home theater speaker system.

  • Page 2: Important Safeguards

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Precautions

    2. AC Fuse The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Onkyo authorized service station. 3. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth.

  • Page 4: Feature

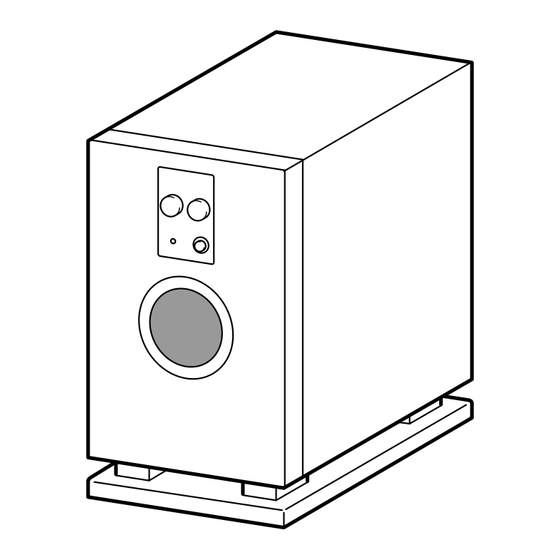

    Feature The HTP-L50 is a 5.1-channel speaker package that consists of five satellite speakers and one subwoofer with an internal amplifier. The HTP-L50 features the SL-105 subwoofer with L/R mixing circuits and a built-in cut-off filter as the subwoofer and the D-L1 speakers with MDF (Medium Density...

  • Page 5: Speaker Placement

    Speaker placement Layout of your speaker system Satellite speakers • Front left/right speakers and center speakers These three speakers should be placed in front of the listener. All three speakers should be placed at the same level. Placement should be such so that the speakers all aim at the ears of the listener when the listener is listening to music or watching the screen.

  • Page 6: Connecting The Speakers

    For safety reasons, do not turn on any devices or components until you have completed all wiring procedures. Connecting the satellite speakers Note: The nominal impedance of this speaker system is 6 . Use only amplifiers capable of handling this impedance. Front right Center...

  • Page 7: Adjustment Procedure

    Note: Make sure that the input levels do not reach excessive levels. The HTP-L50 is designed for playing back music at a normal volume, but if the input levels are set to enormous levels, it may damage the speakers. Also, always first lower the volume at the amplifier before changing the settings of any switches to prevent accidental damage.

  • Page 8: Precaution On Use

    Precaution on use Placement • The enclosure is made of wood and therefore sensitive to extreme temperatures and humidity. Avoid placing the unit in locations subjected to direct sunlight or in humid places such as near an air conditioner, bathroom or kitchen, as well as in locations subjected to soot or steam such as near a kitchen table and humidifier.

  • Page 9: Specifications

    Specifications Subwoofer SL-105 Type Bass-reflex with built-in power amplifier For superbass-range reproduction Frequency response 30-200 Hz (at maximum cross- over frequency) Crossover frequency 50-200 Hz (variable) Maximum output power 60 W Input impedance 4.7 k (for speaker-level input terminals) 12 k (for low-level input jacks) Sensitivity Speaker-Level 2 V Line...
  • Page 10 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 http://www.onkyo-intl.com ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net...
