Nortec GS Installation Manual page 29

10

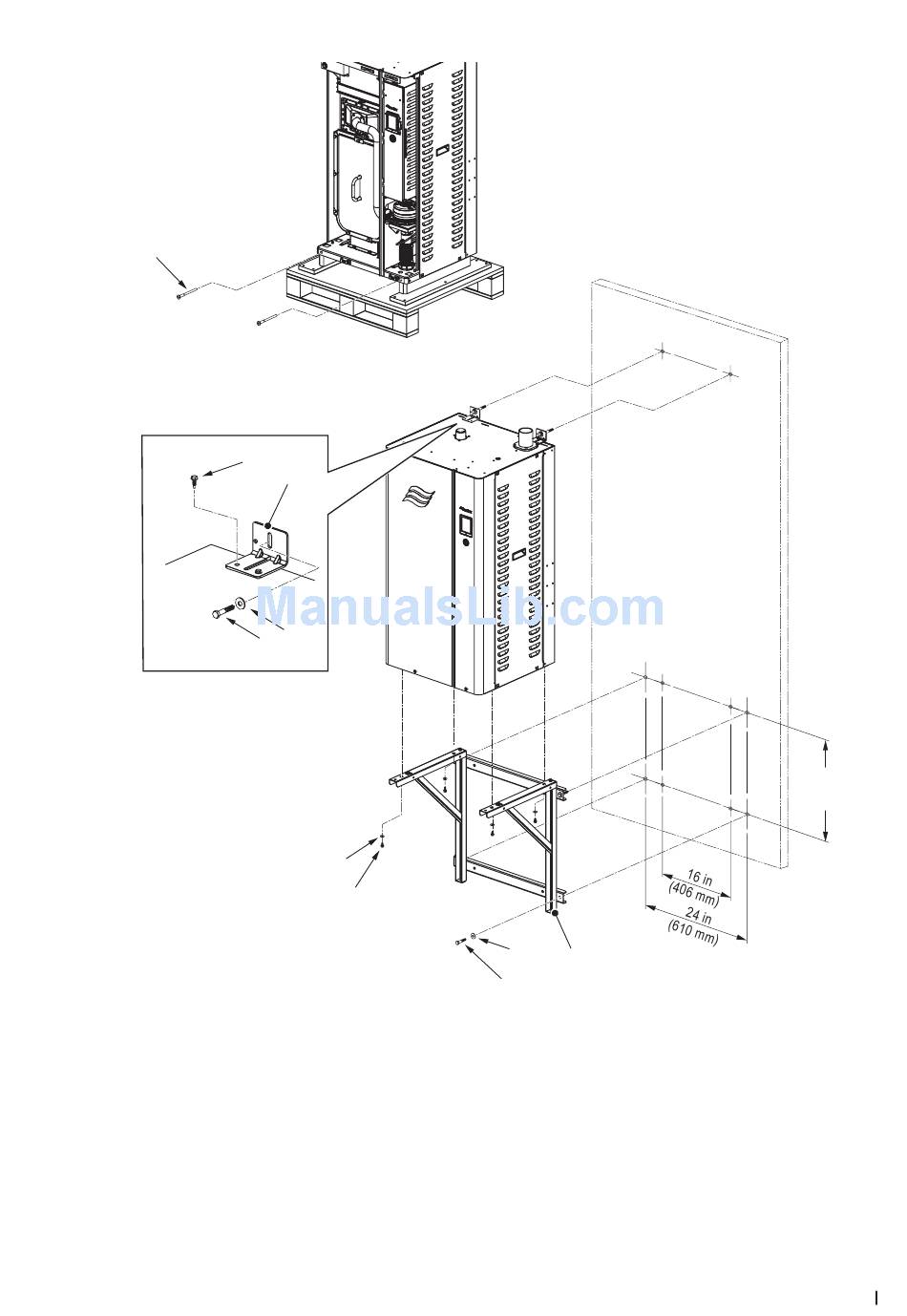

Figure 8: Standard Wall Mounting, Compact Unit Only
1 Bracket, mounting (supplied)
2 Washer, flat, 3/8 in (×4, not supplied)
3 Bolt, lag, 3/8×2 in (×4, not supplied)
4 Bolt, M6×12 (×4, supplied)
5 Washer, flat, M6 (×4, supplied)
6 Washer, flat, 1/4 in (×2, not supplied)
7 Bolt, lag, 1/4×1 in (×2, not supplied)
8 Screw, sheetmetal (×4, supplied)
9 Bracket, L (×2, supplied)
10 Screw, shipping (×2, discard)
Nortec GS
8
9
6
7
5
4
2583703_EN_1608
2
1
3
19.7 in
(500 mm)
Installation
23
