S/M No. : OR6L353S001
Service Manual

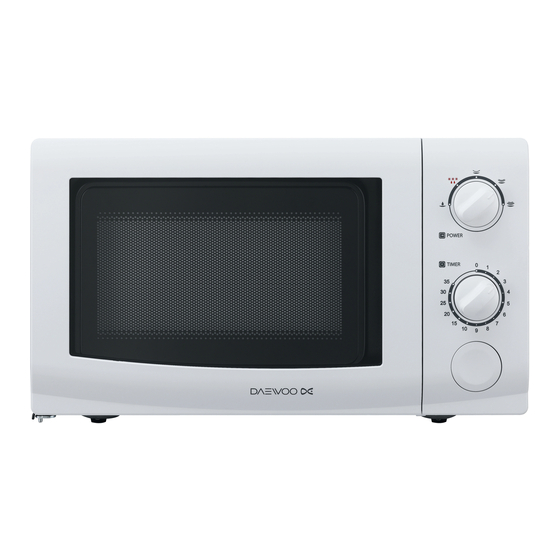

Microwave Oven
Model: KOR-6L35
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
May. 2010
Advertisement
Table of Contents
Related Manuals for Daewoo KOR-6L35
Summary of Contents for Daewoo KOR-6L35
-
Page 1: Microwave Oven
S/M No. : OR6L353S001 Service Manual Microwave Oven Model: KOR-6L35 Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr). -
Page 2: Specifications
SPECIFICATIONS POWER SUPPLY 230V AC, 50Hz SINGLE PHASE WITH GROUNDING INPUT POWER 1000 W MICROWAVE ENERGY OUTPUT 700 W FREQUENCY 2,450MHz OUTSIDE DIMENSIONS (W 446 x 270 x 319 mm CAVITY DIMENSIONS (W 295 x 219 x 303 mm CAVITY VOLUME 20 L NET WEIGHT APPROX. -
Page 3: External View
EXTERNAL VIEW 1. OUTER DIMENSION... -
Page 4: Troubleshooting Guide
TROUBLESHOOTING GUIDE Following the procedure below to check if the oven is defective or not. 1. Check grounding before trouble checking. 2. Be careful of the high voltage circuit. 3. Discharge the high voltage capacitor. 4. When checking the continuity of the switches, fuse or high voltage transformer, disconnect one lead wire from these parts and check continuity with the AC plug removed. - Page 5 Does the fan motor work when you shut the door and turn the timer? Does the oven lamp light? Replace or repair oven lamp, Does the turntable turn? turntable motor. Normal reading should be approx. 0 If microwave do not Check continuity No Continuity Continuity...
-
Page 6: Measurement And Test
MEASUREMENT AND TEST 1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below. PROCEDURE 1. A cylindrical container of borosilicate glass is used for the test. It has a maximum thickness of 3mm, an external diameter of approximately 190mm and a height of approximately 90mm. -
Page 7: Microwave Radiation Test
2. MICROWAVE RADIATION TEST CAUTION 1. Make sure to check the microwave leakage before and after repair of adjustment. 2. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy. 3. Do not place your hands into any suspected microwave radiation field unless the safe density level is known. 4. -
Page 8: Component Test Procedure
3. COMPONENT TEST PROCEDURE • High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle. • It is neither necessary nor advisable to attempt measurement of the high voltage. • Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST 1. DOOR ASSEMBLY Refer to Disassembly and assembly. 2. CONTROL PANEL ASSEMBLY Refer to Disassembly and assembly. 3. GUIDE WIND ASSEMBLY Refer to Disassembly and assembly. 4. TOTAL ASSEMBLY... - Page 11 REF. NO PART CODE PART NAME DESCRIPTION Q'TY 3511729900 DOOR AS KQG-6L353S 3516739010 CONTROL-PANEL AS KOR-6L353S 3510808410 CABINET AS KOR-6L0B1A 3516117410 CAVITY AS KOR-6L0B1A 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 35113AEQ0D CORD POWER AS...
- Page 12 DAEWOO ELECTRONICS CORP. 1-2, Jeo-dong 1(il)-ga, Jung-gu, Seoul, Korea C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” S/M NO. : OR6L353S001 PRINTED DATE: May. 2010...
