Allen-Bradley PowerFlex 753 Quick Start Manual page 71

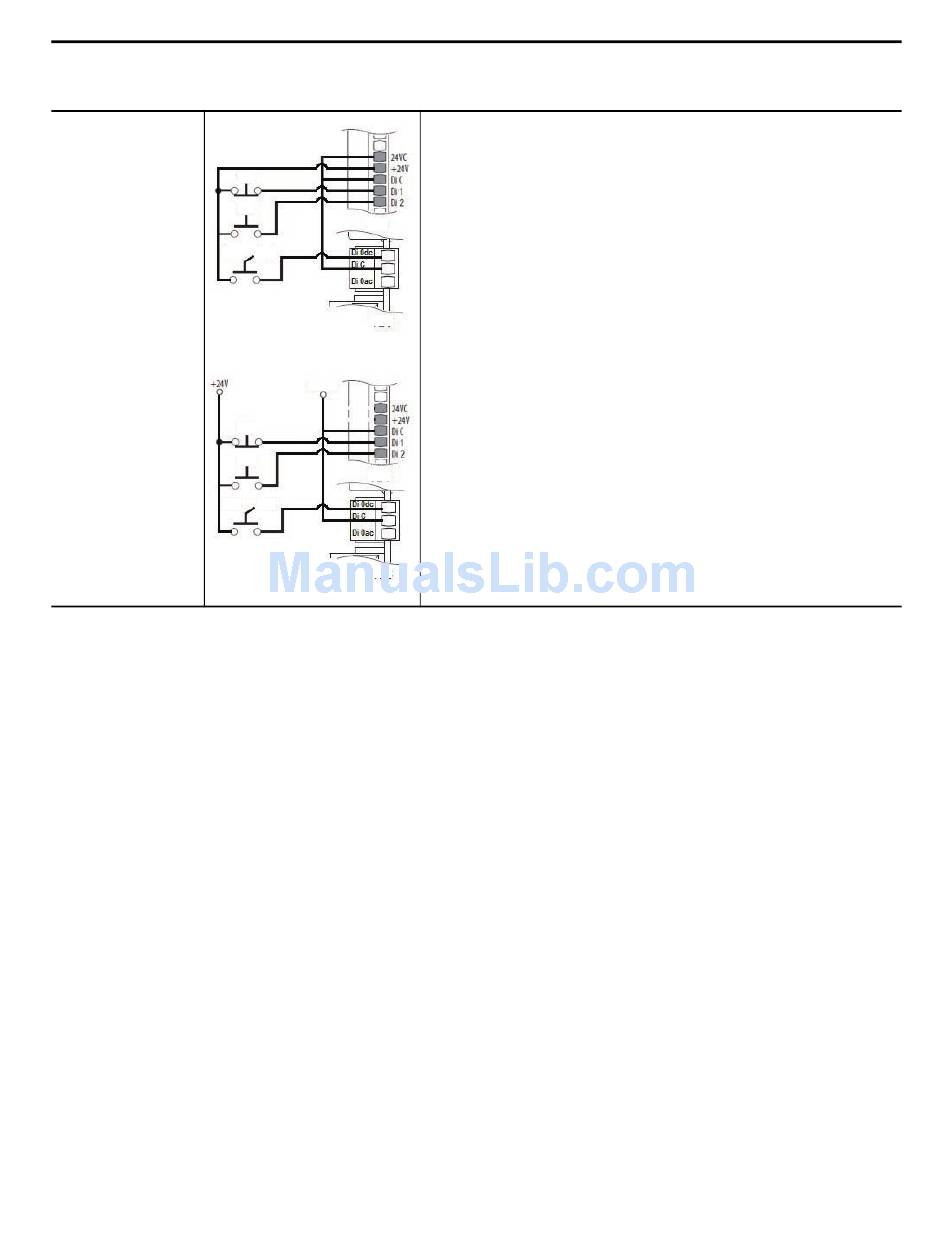

Table 47 - 753 Main Control Board TB1 & TB3 3-Wire Control with Reversing Wiring
3-Wire Control Reversing
Internal Supply
Rev
3-Wire Control Reversing
External 24V Supply
Rev
Stop
Start
TB1
Fwd
TB3
753 Main Control Board TB1 & TB3
Common
Stop
Start
TB1
Fwd
TB3
753 Main Control Board TB1 & TB3
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Set Selection
Port 0: P158 [DI Stop] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 0
Port 0: P161 [DI Start] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 1
Port 0: P162 [DI Fwd Reverse] = Port 0: P220 [Digital In Sts], bit 3 = Digital In 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
Reference Section
71
