When you feel that the power of the tool becomes
weaker, stop using the tool and recharge its battery. If
you continue to use the tool and exhaust the electric
current, the battery may be damaged and its life will
become shorter.
Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after
use. If such a battery is recharged immediately after
use, its internal chemical substance will deteriorate,
and the battery life will be shortened. Leave the
battery and recharge it after it has cooled for a while.

PRIOR TO OPERATION

CAUTION
To avoid serious accident, ensure the switch is
in the OFF position, and pull out the battery.
1. Check the work area environment
Check the work area to make sure that it is clear of
debris and clutter.
Clear the area of unnecessary personnel. Ensure that
lighting and ventilation is adequate.
2. Mounting the Saw Blade (Fig. 5)
WARNING
If the left-hand bolt is worked using other
tools than the provided hex. wrench, excessive
tightening and insuffi cient tightening may take
place, resulting in injury.
(1) Thoroughly remove any sawdust which has
accumulated on the spindle, bolt and washers.
(2) Apply quality machine oil to the surfaces of washers
(B2) and (A1) which come into contact with the blade.
(3) As shown in Fig. 5, one side of the saw blade should
be fi tted to the projecting center of washer (A1) which
matches the blade's inner diameter, and the other
side to the concave side of washer (B2).
(4) To ensure that the saw blade rotates in the correct
direction, make sure the arrow on the saw blade
points in the same direction indicated by the arrow on
the saw cover.
(5) Using the fi ngers, tighten the left-hand bolt securing
the saw blade as much as possible. Then press the
lock button, lock the spindle, and fully tighten the left-
hand bolt with the hex. wrench.
Left-hand bolt
Washer (B2)
Concave
CAUTION
After mounting the saw blade, reconfi rm that the
lock button is fi rmly secured in the prescribed
position.
3. Dismounting the saw blade
CAUTION
Never touch the saw blade immediately after
use. The metal is hot and can easily burn your
skin.
(1) Set the cutting volume at maximum, and place the
Circular Saw as shown in Fig. 6.
Loosen
Tighten
Lock botton
(2) Depress the lock botton, lock the spindle, and
remove the left-hand bolt and washer (B2) with the
hex. bar wrench.
(3) While holding the lower guard lever to keep the lower
guard fully retracted into the saw cover, remove the
saw blade (Fig. 7).
Saw cover
English
Washer (A1)
Spindle
Saw blade

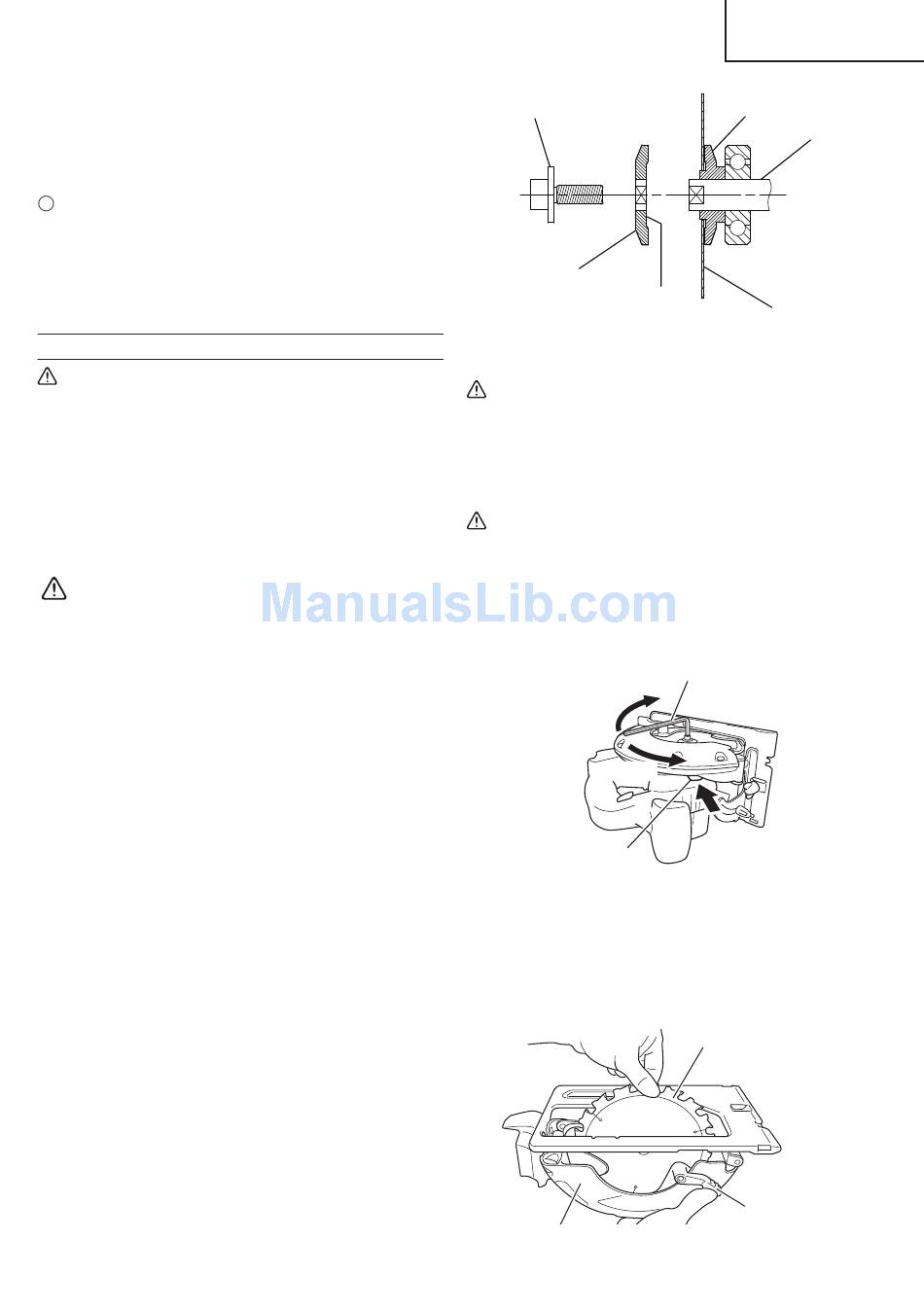

Fig. 5
Hex. bar wrench
Fig. 6
Saw blade
Lower guard lever
Fig. 7
13
