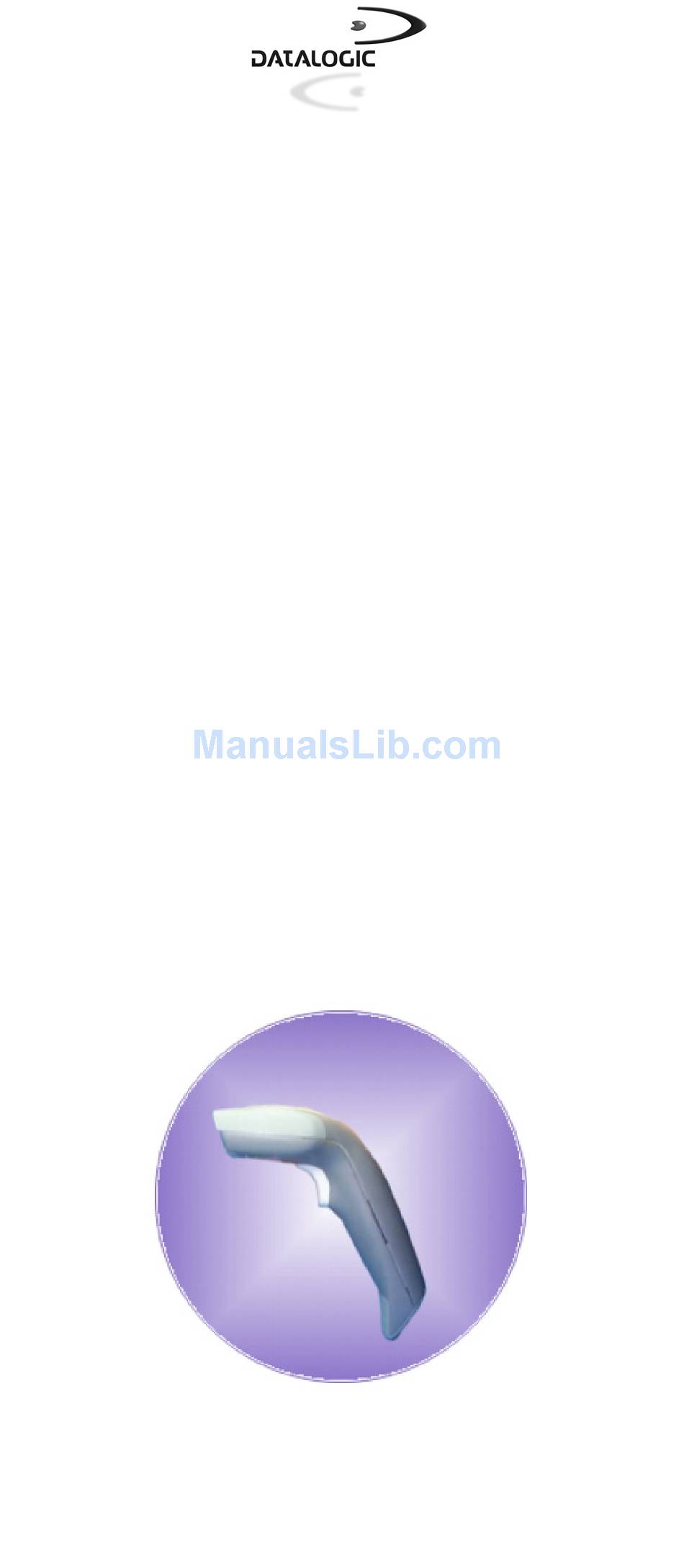

- Page 1 Heron™ D140 READERS QUICK REFERENCE GUIDA RAPIDA GUIDE RAPIDE KURZANLEITUNG GUÍA RÁPIDA 820001211 (Rev. A)
- Page 2 USING HERON™ SERIES READERS Heron™ readers automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the light bar emitted from the reading window. This bar must cross the entire code. Successful scanning is obtained by tilting the scanner with respect to the barcode to avoid direct reflections which impair the reading performance, see the figure above.
- Page 3 Die Heron™ Lesepistolen lesen Strichcodes berührungslos. Es genügt auf den Code zu zielen und die Taste zu drücken. Der Code wird mittels eines Lichtbands gelesen, die das Gerät durch das Lesefenster verläßt und den gesamten Code durchqueren muss. Ein optimales Leseergebnis wird erreicht, wenn der Benutzer den Scanner bzgl.
-
Page 4: Disconnecting The Cable
CONNECTIONS DISCONNECTING THE CABLE... -
Page 5: Stand Installation
STAND INSTALLATION The stand can be mounted by using self-tapping screws, double sided adhesive strips or rubber feet: mount the stand directly to the surface using the self-tapping screws; carefully clean the bottom surface of the stand and the table surface. Remove the protective plastic from one side of the adhesive strips and stick them on the stand bottom. - Page 6 Pour le montage du support il est possible également d’utiliser des vis filetées, des bandes adhésives ou des petits patins en caoutchouc: utiliser des vis filetées pour le montage sur la surface d’appui; nettoyer soigneusement la surface inférieure du support et la surface d’appui.
-
Page 7: Insertion Into Stand
INSERTION INTO STAND Pair the reader to the stand paying attention to insert the handle into the stand clip (see figure above). Posizionare la pistola nello stand assicurandosi che il manico sia inserito nel fermo dello stand stesso (vedi figura sopra). Placer le pistolet dans le support en faisant attention d’introduire la poignée dans le crochet du support (voir figure ci-dessus). -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS The Heron™ D140 scanner can be used with CAB 397 (coiled cable and 9-pin male connector) for direct connection to the DATAPLUS and DLD series decoders. CAB 397 1 - Not connected 5 - TRIGGER 2 - SCAN 6 - BEEPER/LED 3 - Not connected 7 - VIDEO... - Page 9 BEEPER/LED This scanner input drives the decoding LED, the Good Read Spot and the beeper in the scanner. The LED and Good Read Spot turn on when a positive current is applied to the pin. The beeper sound is obtained pulsating this current at a frequency of about 2 kHz.
-
Page 10: Restore Default
BEEPER FUNCTIONING Heron™ Reader Start-Up Beeper Meaning L L L L Parameters loaded correctly H H H H Parameter loading error, reading or writing in the non-volatile memory long tones H L H L Hardware error in EEPROM No beeper performed when illuminator line is kept high at power on. -
Page 11: Optional Configuration Parameters
OPTIONAL CONFIGURATION PARAMETERS configure reader with optional parameters, follow the procedure (5 steps). In step 3 select only parameters relative your application. Seguire la procedura per configurare il lettore con i parametri opzionali (5 passi). All’interno del passo 3 selezionare solamente i parametri relativi alla propria applicazione. - Page 12 Video Polarity Normal: space white black barcode output Video Polarity Inverted: black space white barcode output Scan Rate 18 scan/sec 36 scan/sec 72 scan/sec 144 scan/sec Beeper Intensity Beeper Off Low Intensity Medium Intensity High Intensity...
- Page 13 Beeper Tone Tone 1 Tone 2 Tone 3 Tone 4 Beeper Length Long Short Beeper Type Monotone Bitonal Exit Configuration Set to Transparent Mode...
-
Page 14: Technical Features
LED Safety Class Class 1 EN 60825-1 Reading Field see reading diagram Max. Resolution 0.12 mm (5 mils) min. 15% (Datalogic Test Chart) Environmental Features 0 °C to + 40 °C Working Temperature -20 °C to + 60 °C Storage Temperature... -
Page 15: Reading Diagram
READING DIAGRAM D140 - Reading Zones (10° skew angle) EAN13 M=1 0.33 mm CODE 39 0.50 mm (13 mils) (20 mils) 0.50 mm (20 mils) CODE 39 0.13 mm (5 mils) (cm) FCC COMPLIANCE This device complies with PART 15 of the FCC Rules. -
Page 16: Led Class
LED CLASS Class 1 LED product Apparecchio LED classe 1 Appareil à LED de classe 1 LED Klasse 1 Clase de LED 1 This product conforms to EN60825-1:2001. PATENTS This product is licensed by one or more of the following U.S. patents: 4,894,523;... -
Page 17: Warranty
5 anni dalla data di consegna, a condizione che il prodotto sia utilizzato come previsto. Datalogic si riserva la facoltà di riparare o sostituire il prodotto. Quanto sopra non prolunga la garanzia originale. La garanzia non si applica a prodotti utilizzati in modo non corretto, danneggiati accidentalmente, sottoposti a riparazioni non autorizzate o manomessi. -
Page 18: Services And Support
Datalogic Services - Warranty Extensions and Maintenance Agreements • Downloads - Software Downloads, Manuals and Catalogues • Contact Us - Listing of Datalogic Subsidiaries and Quality Partners • Authorised Repair Centres • Products >Hand-Held Readers >Software Tools - DL Sm@rtSet™... - Page 19 DATALOGIC S.p.A., Via Candini, 2 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Heron D1XX e tutti i suoi modelli and all its models et tous ses modèles...
