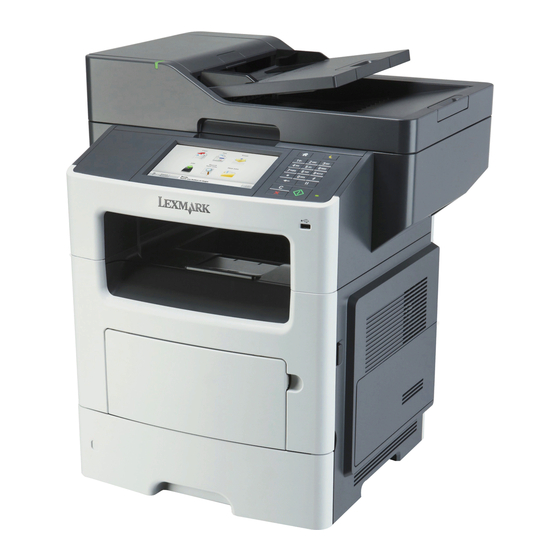

MX610 & XM3150
Machine Type 7016-630, -67x

Service Manual

•
Start diagnostics
•
Maintenance
•
Safety and notices
•
Trademarks
•
Index
April 12, 2016
P/N 12G2272
www.lexmark.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX610 and is the answer not in the manual?

Questions and answers

Related Manuals for Lexmark MX610

Summary of Contents for Lexmark MX610

  • Page 1: Service Manual

    MX610 & XM3150 Machine Type 7016-630, -67x Service Manual • Start diagnostics • Maintenance • Safety and notices • Trademarks • Index April 12, 2016 www.lexmark.com P/N 12G2272...

  • Page 2: Parts Catalog

    7016 Parts catalog Legend The following column headings are used in the parts catalog: • ASM‑index—Identifies the assembly and the item in the diagram. For example, 3‑1 indicates Assembly 3 and item 1 in the table. • Part number—Identifies the unique number that correlates with the part. •...

  • Page 3: Assembly 1: Covers

    7016 Assembly 1: Covers Parts catalog...
  • Page 4 7016 Assembly 1: Covers Asm-index Units/mach Units/FRU Description Removal procedure 40X9102 Output expander 40X9099 Top cover “Top cover removal” on page 349 40X9096 Exit rear door “Rear exit door removal” on page 340 40X9084 Diverter cover “Diverter cover removal” on page 348 40X9087 Rear cover “Rear cover removal”...

  • Page 5: Assembly 2: Imaging

    7016 Assembly 2: Imaging Parts catalog...
  • Page 6 7016 Assembly 2: Imaging Asm-index Units/mach Units/FRU Description Removal procedure 40X9108 ADF separator roller “ADF separator roll removal ” on page 357 40X9054 ADF input tray “ADF input tray removal” on page 360 40X9093 ADF assembly “ADF unit removal” on page 360 40X9110 Restraint pad “Restraint pad removal”...

  • Page 7: Assembly 3: Control Panel

    7016 Assembly 3: Control panel Parts catalog...
  • Page 8 7016 Assembly 3: Control panel Asm-index Units/mach Units/FRU Description Removal procedure 40X9125 Control panel cover “Control panel cover removal” on (MX610de) page 305 40X9132 Control panel cover “Control panel cover removal” on (MX611de and XM3150) page 305 40X9133 Control panel cover “Control panel cover removal”...

  • Page 9: Assembly 4: Electronics

    7016 Assembly 4: Electronics 1 Parts catalog...
  • Page 10 7016 Assembly 4: Electronics 1 Asm-index Units/mach Units/FRU Description Removal procedure 40X8079 Galvo LSU* “Laser scanning unit (LSU) removal” on page 353 41X0362 Polygon LSU* “Laser scanning unit (LSU) removal” on page 353 40X8343 Fuser, 100 V “Fuser removal” on page 345 40X8023 Fuser, 110 V “Fuser removal”...
  • Page 11 7016 Assembly 5: Electronics 2 Parts catalog...
  • Page 12 7016 Assembly 5: Electronics 2 Asm-index Units/mach Units/FRU Description Removal procedure 40X8048 Front door sensor “Front door sensor removal” on page 316 40X8266 Cartridge smart chip “Toner cartridge smart chip contact contact removal” on page 284 40X8046 Toner density sensor “Toner density sensor removal”...
  • Page 13 7016 Assembly 6: Frame Parts catalog...
  • Page 14 7016 Assembly 6: Frame Asm-index Units/mach Units/FRU Description Removal procedure 40X8393 Transfer roll “Transfer roll removal” on page 290 40X9098 Stapler diverter “Diverter spring removal” on page 348 spring 40X9082 Redrive assembly “Redrive assembly removal” on page 341 40X8850 Redrive shaft “Redrive shaft removal”...
  • Page 15 7016 Assembly 7: Option trays Parts catalog...
  • Page 16 7016 Assembly 7: Option trays Asm-index Units/mach Units/FRU Description Removal procedure 40X8287 250-sheet tray 40X8286 550-sheet tray 40X9654 550-sheet tray, lockable 40X8520 Dust cover, 250‑sheet tray “Dust cover removal” on page 339 40X8521 Dust cover, 550‑sheet tray “Dust cover removal” on page 339 40X8262 ACM assembly (option tray...
  • Page 17 7016 Assembly 8: Staple finisher option Parts catalog...
  • Page 18 7016 Assembly 8: Staple finisher option Asm-index Units/mach Units/FRU Description Removal procedure 40X8121 Staple finisher option “Staple finisher option removal” on page 379 Parts catalog...
  • Page 19 7016 Assembly 9: Staple finisher (right) Parts catalog...
  • Page 20 7016 Assembly 9: Staple finisher (right) Asm-index Units/mach Units/FRU Description Removal procedure 40X8144 Stapler interface cable “Stapler interface cable removal” on page 401 40X7592 Sensor (stapler access “Sensor (stapler access door) removal” door) on page 385 40X8139 Stapler door close limit “Stapler door close limit switch switch with cable removal”...
  • Page 21 7016 Assembly 10: Staple finisher (top) Parts catalog...
  • Page 22 7016 Assembly 10: Staple finisher (top) Asm-index Units/mach Units/FRU Description Removal procedure 40X8140 Stapler service cover “Stapler service cover removal” on page 395 40X8141 Stapler top cover “Stapler top cover removal” on page 40X8137 Stapler controller “Stapler controller card removal” on card page 395 40X8125...
  • Page 23 7016 Assembly 11: Staple finisher (rear) Parts catalog...
  • Page 24 7016 Assembly 11: Staple finisher (rear) Asm-index Units/mach Units/FRU Description Removal procedure 40X8148 Stapler cooling fan “Stapler cooling fan removal” on page 399 40X8135 Stapler power supply “Stapler power supply unit removal” unit on page 399 40X8540 Stapler power supply “Stapler power supply unit removal”...
  • Page 25 7016 Assembly 12: Staple finisher exit assembly Parts catalog...
  • Page 26 7016 Assembly 12: Staple finisher exit assembly Asm-index Units/mach Units/FRU Description Removal procedure 40X8748 Stapler tamper main “Tamper main assembly removal” on assembly page 413 40X8751 Stapler accumulator “Stapler accumulator assembly assembly removal” on page 420 Parts catalog...
  • Page 27 7016 Assembly 13: Staple finisher tamper assembly Parts catalog...
  • Page 28 7016 Assembly 13: Staple finisher tamper assembly Asm-index Units/mach Units/FRU Description Removal procedure 40X8754 Sensor (stapler “Sensor (stapler paddle HP) removal” on paddle HP) page 422 40X8754 Sensor (stapler left “Sensor (stapler left tamper HP) tamper HP) removal” on page 421 40X8750 Stapler tamper drive “Tamper drive belt removal”...
  • Page 29 7016 Assembly 14: Staple finisher accumulator assembly Parts catalog...
  • Page 30 7016 Assembly 14: Staple finisher accumulator assembly Asm-index Units/mach Units/FRU Description Removal procedure 40X8752 Stapler diverter “Diverter gearbox removal” on gearbox page 417 40X8753 Stapler paddle motor “Stapler paddle motor removal” on page 391 Parts catalog...
  • Page 31 7016 Assembly 15: Maintenance kits Asm-index Units/mach Units/FRU Description Removal procedure 40X9147 Maintenance kit, 100 V 40X9137 Maintenance kit, 110 V 40X9138 Maintenance kit, 220 V Parts catalog...

  • Page 32: Assembly 16: Power Cords

    7016 Assembly 16: Power cords Asm-index Units/mach Units/FRU Description Removal procedure 40X0269 Power cord, 2.5 m (straight)—USA, Canada N/A 40X0289 Power cord, 1.8 m (straight)—USA 40X3141 Power cord, 2.5 m (straight)—Europe and others 40X0288 Power cord, 2.5 m (straight)—Argentina 40X0271 Power cord, 2.5 m (straight)—United Kingdom 40X0275...
  • Page 33 7016 Assembly 17: Miscellaneous Asm-index Units/mach Units/FRU Description Removal procedure 40X7856 Hard disk drive (ATA pass through) Adapter, 802.11B/G/N ‑ US 40X7858 40X4819 Adapter, RS232C serial 40X5315 Screw, shipped with ISP (2PER) 40X5316 Cable, 14‑pin JST‑ for ISP 40X5317 Standoff, tee with thumbscrew 40X4826 Adapter, N8120 GB INA 40X4823...
