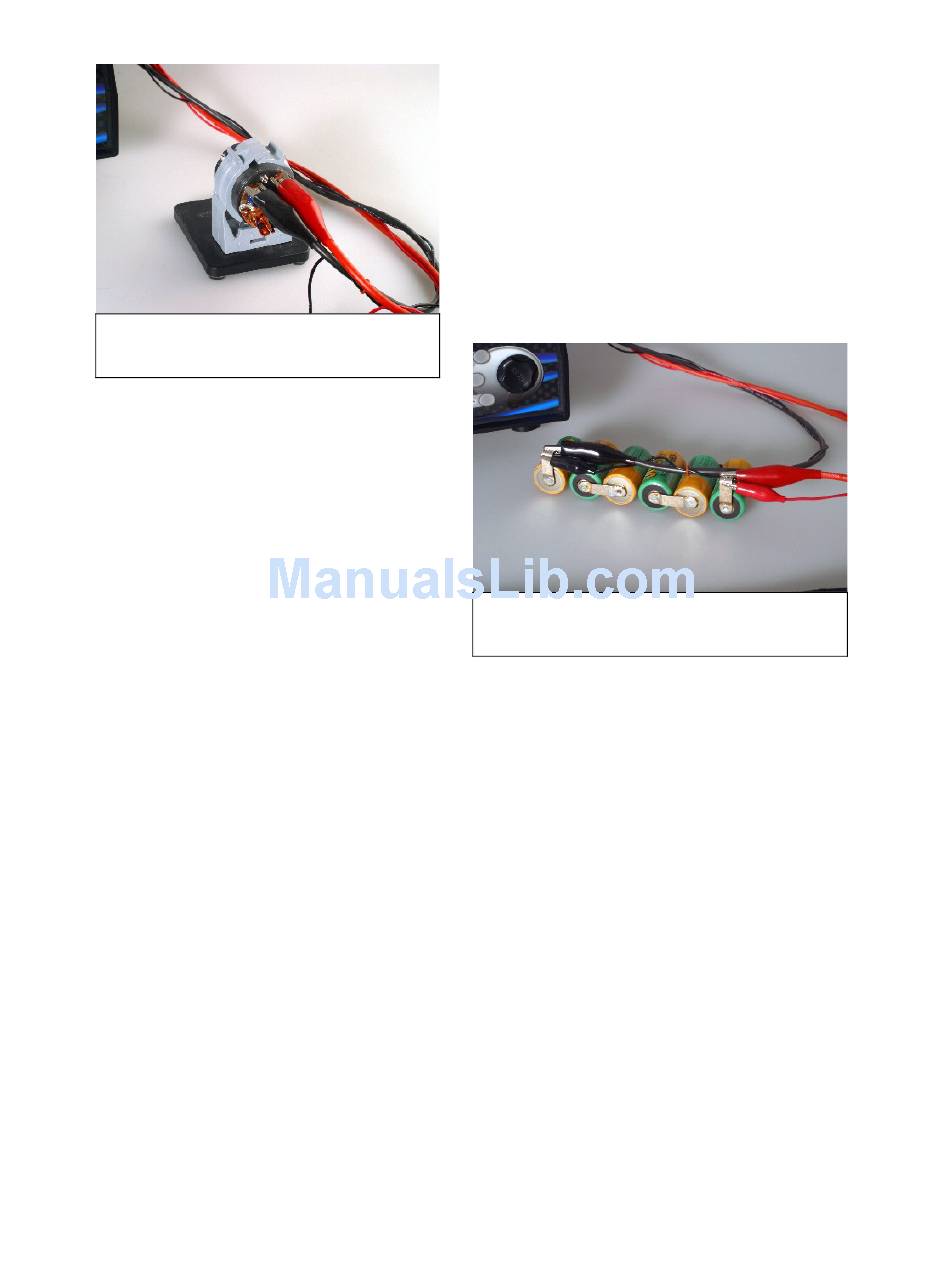

Figure 5. Motor Connections.
will not affect the amount of charge
delivered to the pack.
And another thing: it is critical that the
sense leads be connected directly to the
pack/motor solder tabs, and not clipped
or soldered to the large leads. If you do
this, you will defeat the purpose of the
sense leads and they will do you
absolutely no good.

Quick Start: Charge

1. Load a setup from the T35-GFX memory, or use the currently loaded setup, if
appropriate.
2. Navigate to the "chg mode" screen.
3. Make any adjustments that might differ from the stock factory setup.
4. Connect Power and Sense leads to the pack.
5. Press "Start".

Quick Start: Discharge

1. Load a setup from the T35-GFX memory, or use the currently loaded setup, if
appropriate.
2. Navigate to the "dcg mode" screen.
3. Make any adjustments that might differ from the stock factory setup.
4. Connect Power and Sense leads to the pack.
5. Press "Start".

Quick Start: Cycle

1. Load a setup from the T35-GFX memory, or use the currently loaded setup, if
appropriate.
2. Navigate to the "cyc mode" screen.
3. Make any adjustments that might differ from the stock factory setup.
4. Connect Power and Sense leads to the pack.
discharge. That is why we have the additional
small sense leads. These leads are designed
specifically for measuring, and will have
essentially no voltage drop at all, because the
current flowing through these leads is
relatively low. The advantage of this is that
they can measure the voltage far more
accurately. So in general, it's best to always
use the sense leads. However, the sense leads
are not absolutely necessary for a charge cycle.
Although the readings will be slightly off, it
Figure 6. Pack Connections.
