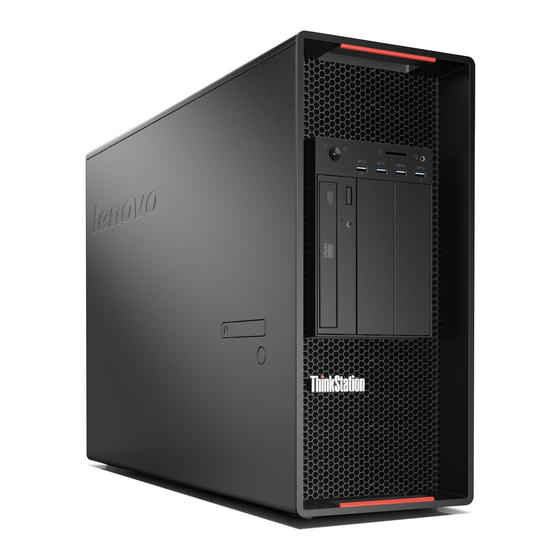

ThinkStation P900
User Guide
Machine Types: 30A4 and 30A5

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkStation P900

Summary of Contents for Lenovo ThinkStation P900

  • Page 1 ThinkStation P900 User Guide Machine Types: 30A4 and 30A5...
  • Page 2 Important safety information” on page v and Appendix E “Notices” on page 161. Third Edition (September 2015) © Copyright Lenovo 2014, 2015. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA”...

  • Page 3: Table Of Contents

    Accessing a program on your computer . . . Enabling or disabling a device ..An introduction to Lenovo programs ..Selecting a startup device ..
  • Page 4 Safety and Warranty... Reinstalling programs and device drivers . . Lenovo Web site ... . Solving recovery problems ..
  • Page 5 Index....Battery recycling information for the European Union ....© Copyright Lenovo 2014, 2015...
  • Page 6 ThinkStation P900 User Guide...

  • Page 7: Read This First: Important Safety Information

    ® Format (PDF) version from the Lenovo Support Web site at http://www.lenovo.com/UserManuals. The Lenovo Support Web site also provides the Safety, Warranty, and Setup Guide and this User Guide in additional languages. Service and upgrades Do not attempt to service a product yourself unless instructed to do so by the Customer Support Center or your documentation.

  • Page 8: Static Electricity Prevention

    Do not use any power cords where the electrical contacts on either end show signs of corrosion or overheating or where the power cord appears to have been damaged in any way. ThinkStation P900 User Guide...

  • Page 9: Extension Cords And Related Devices

    • Ventilation slots, fans, and heat sinks are provided with the product for safety, comfort, and reliable operation. These features might inadvertently become blocked by placing the product on a bed, sofa, carpet, or other flexible surface. Never block, cover, or disable these features. © Copyright Lenovo 2014, 2015...

  • Page 10: Operating Environment

    • Do not remove the covers. Removing the covers of the laser product could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device. • Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure. viii ThinkStation P900 User Guide...

  • Page 11: Power Supply Statement

    Do not spray any liquid detergent directly on the computer or use any detergent containing flammable material to clean the computer. Spray the detergent on a soft cloth and then wipe the computer surfaces. © Copyright Lenovo 2014, 2015...
  • Page 12 ThinkStation P900 User Guide...

  • Page 13: Chapter 1. Product Overview

    • Locations of parts on the system board • Locations of internal drives • Computer features • Software programs provided by Lenovo Locations This section provides the following topics: • “Locating connectors, controls, and indicators on the front of your computer” on page 2 •...

  • Page 14: Locating Connectors, Controls, And Indicators On The Front Of Your Computer

    When you lay the computer on its side, you can slightly pull out the logo plate, turn it 90° counterclockwise, and then push it back in. ThinkStation P900 User Guide...

  • Page 15: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer The following illustration shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer.

  • Page 16: Locating Components

    PDA. Locating components The following illustration shows the locations of the various components in your computer. To remove the computer cover, see “Removing the computer cover” on page 73. ThinkStation P900 User Guide...

  • Page 17: Locating Parts On The System Board

    Figure 3. Component locations Power supply assembly Flex adapter (some models) M.2 solid-state drive (some models) Memory modules (amount varies by model) Multi-function bracket Front fan assembly Optical drive, flex module, or front-access storage Hard disk drive, hybrid drive, or solid-state drive (amount and combination vary by model) enclosure (amount and combination vary by model) Front fan assembly...
  • Page 18 Memory slot Memory slot Memory slot Flex adapter slot 1 4-pin power connector eSATA connector Front-access storage enclosure control connector Front-access storage enclosure control connector Front fan assembly connector Thermal sensor SATA 3.0 connector SATA 3.0 connector ThinkStation P900 User Guide...

  • Page 19: Locating Internal Drives

    29-in-1 card reader connector Front USB 3.0 connector Cover presence switch connector (intrusion switch Thunderbolt™ adapter control connector connector) Internal-storage-drive activity indicator connector SATA 1/SATA 2 connector (used only with a 9364 RAID card) SATA 3/SATA 4 connector Clear CMOS /Recovery jumper Front panel connector Seven-segment indicator PCI Express 2.0 x4 card slot...
  • Page 20 Storage drive bays (with hard disk drives, solid-state drives or hybrid drives installed in some bays) PCI Express x16 graphics card slots and PCI Express x4 card slots (with PCI Express solid-state drives or other PCI cards installed in some models) ThinkStation P900 User Guide...

  • Page 21: Locating The Machine Type And Model Label

    Locating the machine type and model label The machine type and model label identifies your computer. When you contact Lenovo for help, the machine type and model information helps support technicians to identify your computer and provide faster service. The machine type and model label is attached on the front of your computer as shown.
  • Page 22 • PS/2 mouse connector • USB connectors For more information, see “Locating connectors, controls, and indicators on the front of your computer” on page 2 and “Locating connectors on the rear of your computer” on page 3. ThinkStation P900 User Guide...
  • Page 23 Expansion • Hard disk drive bays • Flex adapter slots • Optical drive bays • PCI Express x1 card slots • PCI Express x4 card slots • PCI Express x16 graphics card slots • SD card reader slot For more information, see “Locating internal drives” on page 7 and “Locating parts on the system board” on page 5.
  • Page 24 The operating systems listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this manual. This list is subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system provider.

  • Page 25: Specifications

    Accessing a program on your computer Note: For Windows 7, some of the Lenovo programs might be ready to be installed, so you need to install them manually. Then, you can access and use these programs. To install such a program, open ®...

  • Page 26: An Introduction To Lenovo Programs

    – Read how-to articles, explore Lenovo forums, and stay up-to-date on technology news with articles and blogs from trusted sources. Lenovo Companion is filled with exclusive Lenovo content to help you learn more about what you can do with your computer.
  • Page 27 The Lenovo ID program enables you to create your Lenovo ID and access all supported Lenovo programs and web portals with single sign-on. • REACHit or Lenovo Reach (Windows 7, Windows 8.1, and Windows 10) The REACHit or Lenovo Reach program enhances your cloud experience. This program keeps you connected at all times and enables you to access all your favorite items from personal computers, smartphones, or tablets.
  • Page 28 ThinkStation P900 User Guide...

  • Page 29: Chapter 2. Using Your Computer

    When you register your computer with Lenovo, you enter required information into a Lenovo database. The information enables Lenovo to contact you when there is a recall or other severe problem and provide quicker service when you call Lenovo for help. In addition, some locations offer extended privileges and services to registered users.

  • Page 30: Using The Wheel Mouse

    (LAN). To enable the Wake on LAN function or the Wake Up on Alarm function on the Windows 8.1 operating system, do the following: 1. Open Control Panel. 2. Click Hardware and Sound ➙ Power Options. ThinkStation P900 User Guide...

  • Page 31: Setting The Computer Volume

    3. In the left panel, click Choose what the power button does. 4. In the Shutdown setting section, clear Turn on fast startup. Note: If the settings are unavailable, click Change settings that are currently unavailable. 5. Click Save changes. Setting the computer volume To set the computer volume, do the following: 1.

  • Page 32: Playing And Removing A Disc

    – Using a touch screen: Swipe in and out on the left edge of the screen. Representations of all available workspaces are displayed along the left edge of the screen. Tap the Windows Start-screen control at the bottom. ThinkStation P900 User Guide...
  • Page 33 Note: The Windows Start-screen control is displayed only when you have at least one active workspace in the background of the system. • From the desktop or any other workspace that is opened from the Start screen, do one of the following to navigate to the Start screen: –...

  • Page 34: Accessing Control Panel On The Windows 8.1 Operating System

    USB key. If your computer does not come with it, contact the Lenovo Customer Support Center to order a recovery disc set or recovery USB key. For a list of Lenovo Support phone numbers, go to http://www.lenovo.com/support/phone. If you cannot find the support telephone number for your country or region, contact your Lenovo reseller.
  • Page 35 How can I change the Windows 8.1 startup behavior to open either the desktop or the Start screen? On the Windows 8.1 operating system, you can set the computer to open either the desktop or the Start screen by default. To set the default startup screen, do the following: 1.
  • Page 36 ThinkStation P900 User Guide...

  • Page 37: Chapter 3. You And Your Computer

    51–61 cm (20–24 inches). Then, position the monitor so that you can view it without twisting your body. Also, position other equipment you use regularly, such as the telephone or a mouse, within easy reach. © Copyright Lenovo 2014, 2015...

  • Page 38: Glare And Lighting

    For more information about power cords, see “Power cords and power adapters” on page vi. Accessibility information Lenovo is committed to providing users who have hearing, vision, and mobility limitations with greater access to information and technology. This section provides information about the ways these users can get the most out of their computer experience.
  • Page 39 Keyboard shortcut Function Windows logo key + U Open Ease of Access Center Right Shift for eight seconds Turn on or turn off Filter Keys Shift five times Turn on or turn off Sticky Keys Num Lock for five seconds Turn on or turn off Toggle Keys Left Alt+Left Shift+Num Lock Turn on or turn off Mouse Keys...
  • Page 40 • To change the item size temporarily, use the Magnifier tool in Ease of Access Center. See “Ease of Access Center” on page 27. • To change the item size permanently, do the following: – Change the size of all the items on your screen. ThinkStation P900 User Guide...

  • Page 41: Moving Your Computer To Another Country Or Region

    Then, you can type a message on your computer and send it to the telephone. Documentation in accessible formats Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader.
  • Page 42 ThinkStation P900 User Guide...

  • Page 43: Chapter 4. Security

    For security, store the keys in a secure place when you are not using them. Note: The key lock and keys are available only in some models. © Copyright Lenovo 2014, 2015...
  • Page 44 Figure 7. Locking the computer cover ThinkStation P900 User Guide...

  • Page 45: Attaching A Kensington-Style Cable Lock

    The cable lock also locks the buttons used to open the computer cover. This is the same type of lock used with many notebook computers. You can order such a cable lock directly from Lenovo by searching for Kensington at: http://www.lenovo.com/support Figure 8.

  • Page 46: Using Fingerprint Authentication

    Your computer is preinstalled with an antivirus program to help you guard against, detect, and eliminate viruses. Lenovo provides a full version of antivirus software on your computer with a free 30-day subscription. After 30 days, you must renew the license to continue receiving the antivirus software updates.

  • Page 47: Chapter 5. Advanced Configuration

    Setup Utility program. See “Starting the Setup Utility program” on page 35. Then, follow the instructions on the screen. You can use either the keyboard or the mouse to navigate through menu choices. The keys used to perform various tasks are displayed at the bottom of each screen. © Copyright Lenovo 2014, 2015...

  • Page 48: Using Bios Passwords

    Setting, changing, and deleting a password To set, change, or delete a password, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 35. 2. From the Setup Utility program main menu, select Security. ThinkStation P900 User Guide...

  • Page 49: Enabling Or Disabling A Device

    3. Depending on the password type, select Set Power-On Password, Set Administrator Password, or Hard Disk Password. 4. Follow the instructions on the right side of the screen to set, change, or delete a password. Note: A password can be any combination of up to 64 alphabetic and numeric characters. For more information, see “Password considerations”...

  • Page 50: Selecting A Startup Device

    39. Enabling ErP LPS compliance mode Lenovo computers meet the eco-design requirements of the ErP Lot 3 regulation. For more information, go http://www.lenovo.com/ecodeclaration You can enable ErP LPS compliance mode in the Setup Utility program to reduce the consumption of electricity when your computer is off or in sleep mode.

  • Page 51: Exiting The Setup Utility Program

    Setup Utility program. Updating or recovering the BIOS Lenovo might make changes and enhancements to the BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com/drivers. Instructions for using the BIOS updates are available in a TXT file that is included with the update files.

  • Page 52: Using System Programs

    Lenovo might make changes and enhancements to the POST and BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com. Instructions for using the POST and BIOS updates are available in a TXT file that is included with the update files.

  • Page 53: Recovering From A Bios Update Failure

    Note: If you want to update the BIOS from a flash update disc, the installation instructions might not provide the information about how to record the update disc. See “Recording a disc” on page 20. Recovering from a BIOS update failure To recover from a BIOS update failure, do the following: 1.
  • Page 54 Entering the Intel RSTe configuration utility This section provides instructions on how to enter the Intel RSTe configuration utility. During the computer startup, follow the instructions on the screen. Press Ctrl+I to enter the Intel RSTe configuration utility. ThinkStation P900 User Guide...
  • Page 55 The following four options are displayed after you enter the Intel RSTe configuration utility: 1. Create RAID Volume 2. Delete RAID Volume 3. Reset Disks to Non ‐ RAID 4. Exit Press the up and down arrow keys to select an option. Press Enter to enter the menu for the selected option.

  • Page 56: Quick Raid Setup Using The Lsi Megaraid Bios Configuration Utility

    – Better performance without fault tolerance • RAID Level 1 - Mirrored disk array – A RAID Level 1 hard disk drive group consisting of two or four hard disk drives – Improved read performance and 100% redundancy ThinkStation P900 User Guide...
  • Page 57 • RAID Level 10 - A combination of RAID Level 0 and RAID Level 1 – A RAID Level 10 hard disk drive group consisting of four hard disk drives – Data being striped across hard disk drive groups – Provides both high data transfer rates and complete data redundancy •...
  • Page 58 3. Select Make Global HSP or Make Dedicated HSP, and then click Go. 4. The main screen of the LSI MegaRAID BIOS configuration utility is displayed, and the hard disk drive you selected is listed as a hot spare hard disk drive in the right pane. ThinkStation P900 User Guide...

  • Page 59: Chapter 6. Preventing Problems

    2. Follow the instructions on the screen. Note: The device drivers provided by Windows Update might not be tested by Lenovo. It is recommended that you get device drivers by using Lenovo programs or from the Lenovo Web site at http://www.lenovo.com/drivers.

  • Page 60: Cleaning Your Computer

    5. Reconnect the mouse cable to the computer. 6. Turn your computer back on. Display screen Dust buildup compounds problems associated with glare. Remember to clean your monitor screen periodically. ThinkStation P900 User Guide...

  • Page 61: Good Maintenance Practices

    The cause of a problem might be change in hardware, change in software, or any other actions that might have taken place. A log book can help you or a Lenovo technician determines the cause of a problem. • Create Product Recovery discs. See “Creating and using recovery media” on page 65 for more information about using Product Recovery discs to restore the hard disk drive to the factory-default settings.
  • Page 62 6. Note where any remaining cables are attached to the computer; then, remove them. 7. If you saved the original shipping cartons and packing materials, use them to pack the units. If you are using different cartons, cushion the units to avoid damage. ThinkStation P900 User Guide...

  • Page 63: Chapter 7. Troubleshooting And Diagnostics

    Note: If you cannot correct the problem, have the computer serviced. For a list of service and support telephone numbers, refer to the Safety, Warranty, and Setup Guide that comes with your computer or go to the Lenovo Support Web site at: http://www.lenovo.com/support/phone...

  • Page 64: Troubleshooting Procedure

    If this does not correct the problem, continue with the next step. 6. Run the diagnostic program. See “Lenovo Solution Center” on page 62 for more information. • If the diagnostic program detects a hardware failure or if you are unable to run the diagnostic program, contact the Lenovo Customer Support Center.

  • Page 65: Audio Problems

    1. Remove the new hardware option or software. If you must remove the computer cover to remove a hardware option, ensure that you review and follow the electrical safety information provided with your computer. For your safety, do not operate the computer with the cover removed. 2.

  • Page 66: Dvd Problems

    Invalid disc or no disc found message Solutions: • Ensure that a DVD disc is in the drive with the shiny side of the disc facing down. • Ensure that video resolution is set to less than 1152 x 864 pixels. ThinkStation P900 User Guide...

  • Page 67: Intermittent Problems

    (one to five hard disk drives) or the LSI MegaRAID SAS adapter is installed. If these actions do not correct the problem, run the diagnostic program Lenovo Solution Center. See “Lenovo Solution Center” on page 62. If you need technical assistance, see Chapter 10 “Getting information, help, and service”...

  • Page 68: Problems With The Keyboard Or Mouse

    Solutions: Your screen saver or power management might have been enabled. Do one of the following: • Press a key to exit the screen saver. • Press the power button to resume the computer from sleep or hibernation mode. ThinkStation P900 User Guide...

  • Page 69: Application Programs

    The monitor works when I turn on the computer, but goes blank when I start some application programs Solutions: • Connect the monitor signal cable from your monitor to an appropriate connector on the computer. A loose cable might cause intermittent problems. •...
  • Page 70 Note: For information about how to open Control Panel on Windows 8.1, see “Accessing Control Panel on the Windows 8.1 operating system” on page 22. 3. Click Hardware and Sound ➙ Sound. 4. Select the Playback tab. ThinkStation P900 User Guide...

  • Page 71: I Have Connected An Option To My Computer, But It Does Not Work

    5. If you are using the Headset profile, select Bluetooth Hands-free Audio and click the Set Default button. If you are using the AV profile, select Stereo Audio and click the Set Default button. 6. Click OK to close the Sound window. Note: The Bluetooth feature is supported only on some computer models.

  • Page 72: The Printer Does Not Work

    • Turn on the serial device and keep the device online. • Install any application programs supplied with the serial device. Refer to the documentation that comes with the serial device for more information. • If you added one serial-connector adapter, install the adapter correctly. ThinkStation P900 User Guide...

  • Page 73: Software Problems

    Software problems This section provides solutions to software-related problems. When using a sort feature, dates cannot be sorted in the correct order Solution: Some programs developed before the year 2000 used only the last two digits of a year to sort dates, assuming the first two digits were 19.

  • Page 74: Diagnostics

    Note: If you cannot isolate and repair the problem yourself after running the program, save and print the log files. You will need the log files when you speak to a Lenovo technical support representative. For additional information, refer to the Lenovo Solution Center help system.
  • Page 75 USB key. • If you are using an Android device with the Lenovo Workstation Diagnostics app installed, open the application for details about the error. For more information on the Lenovo Workstation Diagnostics app, go to http://www.thinkworkstationsoftware.com/diags.
  • Page 76 ThinkStation P900 User Guide...

  • Page 77: Chapter 8. Recovery Information

    Product Recovery program installed. If the Enhanced Backup and Restore icon in the Lenovo ThinkVantage Tools program is dimmed, it indicates that you must install the Rescue and Recovery program manually before enabling its features. To install the Rescue and Recovery program, do the following: 1.

  • Page 78: Creating Recovery Media

    Note: On the Windows 7 operating system, you can create recovery media using discs or external USB storage drives. To create recovery media on the Windows 7 operating system, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Factory Recovery Disks. Then, follow the instructions on the screen.
  • Page 79 To perform a recovery operation using the Rescue and Recovery program on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 80: Creating And Using A Rescue Medium

    Creating a rescue medium To create a rescue medium on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 81: Reinstalling Preinstalled Programs And Device Drivers

    Reinstalling preinstalled programs and device drivers Your computer enables you to reinstall preinstalled programs and device drivers. Reinstalling preinstalled programs To reinstall programs preinstalled on your Lenovo computer, do the following: 1. Turn on the computer. 2. Go to C:\SWTOOLS.

  • Page 82: Solving Recovery Problems

    To reset your computer, do the following: 1. Move the pointer to the top-right or bottom-right corner of the screen to display the charms. Click Settings ➙ Change PC settings ➙ Update and recovery ➙ Recovery. ThinkStation P900 User Guide...

  • Page 83: Using The Advanced Startup Options

    2. In the Remove everything and reinstall Windows section, click Get started. Using the advanced startup options Advanced startup options enable you to change the startup settings of your Windows operating system, start the computer from an external device, or restore the Windows operating system from a system image. To use the advanced startup options, do the following: 1.
  • Page 84 Note: To create a recovery medium, see “Good maintenance practices” on page 49. • Use the recovery USB key provided by Lenovo to restore the entire storage drive to the factory-default settings. – If your computer comes with the recovery USB key, follow the instructions shipped with the USB key.

  • Page 85: Chapter 9. Installing Or Replacing Hardware

    Important safety information” on page v. Notes: • Use only computer parts provided by Lenovo. • When installing or replacing an option, use the appropriate instructions in this section along with the instructions that come with the option.

  • Page 86: Installing Or Replacing An Internal Storage Drive

    Depending on your computer model, your computer might come with one or more of the following internal storage drives: • 3.5-inch hard disk drive • 3.5-inch hybrid drive • 2.5-inch hard disk drive • 2.5-inch solid-state drive • M.2 solid-state drive ThinkStation P900 User Guide...
  • Page 87 • PCI Express solid-state drive To install or replace an internal storage drive, refer to one of the following topics: • “Installing or replacing a 3.5-inch storage drive” on page 75 • “Installing or replacing a 2.5-inch storage drive” on page 80 •...
  • Page 88 • If you are replacing a storage drive, flex the sides of the bracket to release the four pins from the storage drive. Then, remove the storage drive from the bracket. Figure 11. Removing the storage drive from the bracket ThinkStation P900 User Guide...
  • Page 89 6. Hold the storage drive so that the connectors face towards the rear of the bracket and the circuit board faces upward. Then, flex the sides of the bracket and align the four pins on the bracket with the corresponding holes in the storage drive. Note: Do not touch the circuit board of the storage drive.
  • Page 90 • If you are installing a storage drive, do the following: a. Press the clip on the bottom of the optical drive bay so that the plastic cover is ejected out of the bay. Then, remove the metal static shield from the bay. ThinkStation P900 User Guide...
  • Page 91 b. Press the tab as shown to open the cover of the front-access storage enclosure. Figure 14. Opening the cover of the front-access storage enclosure c. Open the handles on both sides of the hard disk drive bracket. Then, pull the bracket out of the front-access storage enclosure.
  • Page 92 3. Locate the hard disk drive bay in which you want to install or replace a storage drive. See “Locating internal drives” on page 7. 4. Remove the storage drive bracket from the hard disk drive bay. See step 4 on page 75. ThinkStation P900 User Guide...
  • Page 93 5. Depending on whether you are installing or replacing a storage drive, do one of the following: • If you are installing a storage drive, go to step 6. • If you are replacing a storage drive, flex the sides of the bracket to release the four pins from the storage drive.
  • Page 94 7. 4. Remove the storage drive bracket from the hard disk drive bay. See step 4 on page 75. 5. Depending on whether you are installing or replacing a storage drive, do one of the following: ThinkStation P900 User Guide...
  • Page 95 • If you are installing a storage drive, pivot tab on the metal adapter upward. Then, push the adapter to the rear of the converter as shown until the four tabs on the adapter are slide into the four notches .
  • Page 96 6. Note the orientation of the connector on the new storage drive. Then, flex the sides of the adapter and align the four pins with the corresponding holes in the storage drive. Note: Do not touch the circuit board (if accessible) of the 2.5-inch storage drive. Figure 22. Installing the storage drive into the adapter ThinkStation P900 User Guide...
  • Page 97 7. Align the four tabs on the adapter with the corresponding notches in the converter. Then, slide the storage drive as shown until the tab snaps into position. The adapter with the storage drive is installed into the converter. Figure 23. Installing the adapter into the converter 8.
  • Page 98 Locate the M.2 slot into which you want to install an M.2 solid-state drive on the flex adapter. Note: If the flex adapter is new, ensure that you install M.2 solid-state drives in the numerical order printed on the flex adapter (SLOT 1 and SLOT 2). ThinkStation P900 User Guide...
  • Page 99 c. Remove the screw that is aligned with the M.2 slot. Figure 24. Removing the screw that is aligned with the M.2 slot • If you are replacing an M.2 solid-state drive, do the following: a. Remove the flex adapter. See “Installing or replacing a flex adapter” on page 108. b.

  • Page 100: Replacing The Cover Presence Switch (Intrusion Switch)

    6. Pivot the tab on the cover presence switch bracket to the left as shown. Then, remove the bracket together with the cover presence switch from the chassis. Figure 27. Removing the cover presence switch bracket ThinkStation P900 User Guide...
  • Page 101 7. Pivot the clip on the bracket outward, and then disengage the failing cover presence switch from the circle clip to remove it from the bracket. Figure 28. Removing the cover presence switch from the bracket 8. Insert the end of the new cover presence switch with the post into the circle clip .

  • Page 102: Removing And Reinstalling The Direct Cooling Air Baffle

    1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2. Remove the computer cover. See “Removing the computer cover” on page 73. ThinkStation P900 User Guide...
  • Page 103 3. Pull the direct cooling air baffle outward by its handle to remove it from the chassis. Figure 31. Removing the direct cooling air baffle Chapter 9 Installing or replacing hardware...

  • Page 104: Removing And Installing A Device In An Optical Drive Bay

    Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Depending on your computer model, the following devices might be installed in the optical drive bays: ThinkStation P900 User Guide...
  • Page 105 • Optical drive • Front-access storage enclosure • Flex module Note: The flex module might be installed with the following: – IEEE 1394 connector – eSATA connector – 29-in-1 card reader – Slim optical drive To remove and install a flex module and a front-access storage enclosure, follow the steps of removing and installing an optical drive.

  • Page 106: Installing Or Replacing A Device In The 5.25-Inch Flex Module

    To install or replace a slim optical drive in the flex module, do the following: 1. Remove the flex module from the front of the computer. See “Removing and installing a device in an optical drive bay” on page 92. ThinkStation P900 User Guide...
  • Page 107 2. Lift the clip on the rear of the flex module and slide the flex module cover to the rear of the flex module to remove the cover. Figure 35. Removing the flex module cover 3. If you are installing a new slim optical drive, press the two metal clips to remove the plastic clip with the two screws as shown.
  • Page 108 Figure 39. Installing the plastic clip to the slim optical drive 5. Slide the new slim optical drive with the plastic clip into the flex module until the slim optical drive snaps into position. Figure 40. Installing the slim optical drive in the flex module ThinkStation P900 User Guide...
  • Page 109 6. Position the flex module cover on the flex module so that the rail guides on the bottom of the flex module cover engage the rails on the flex module. Then, push the cover to the front of the flex module until it snaps into position.
  • Page 110 4. To install the a new card reader into the card reader retaining bracket, align the four holes in the card reader with the corresponding studs on the bracket and then press the new card reader downward until it snaps into position. Figure 45. Installing the card reader into the card reader retaining bracket ThinkStation P900 User Guide...
  • Page 111 5. Note the orientation of the new card reader and route the card reader cable into the cable clip. Hold the clip on the card reader retaining bracket to insert the new card reader into the card reader slot in flex module until it snaps into position.
  • Page 112 Press the two clips toward each other as shown to pull the eSATA connector or IEEE 1394 connector out of the flex module. Figure 49. Removing the eSATA connector or IEEE 1394 connector in the flex module ThinkStation P900 User Guide...

  • Page 113: Removing And Reinstalling The Multi-Function Brackets

    4. Note the orientation of the eSATA connector or IEEE 1394 connector and route the eSATA connector or IEEE 1394 connector cable into the cable clip. 5. Place the eSATA connector or IEEE 1394 connector into the metal retainer. Then insert the eSATA connector or IEEE 1394 connector into the corresponding slot in the flex module as shown.
  • Page 114 7. Lay the computer on its side for easier access to the bracket. 8. Hold the handle and the foot at the same time and then pull the bracket to the rear of the chassis to remove the bracket. Figure 52. Removing the multi-function bracket ThinkStation P900 User Guide...

  • Page 115: Replacing The Front Fan Assemblies

    9. Align the three tabs on the bracket with the corresponding holes in the chassis. Then, insert the three tabs into the corresponding holes until the bracket snaps into position. Figure 53. Reinstalling the multi-function bracket What to do next: •...
  • Page 116 Figure 55. Installing the front fan assembly What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. ThinkStation P900 User Guide...

  • Page 117: Replacing The Power Supply Assembly

    Replacing the power supply assembly Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Although there are no moving parts in your computer after the power cord has been disconnected, the following warnings are required for your safety and proper Underwriters Laboratories (UL) certification.
  • Page 118 Figure 57. Installing the power supply assembly What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. ThinkStation P900 User Guide...

  • Page 119: Replacing The Battery

    Replacing the battery Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as parallel-connector assignments (configuration).

  • Page 120: Installing Or Replacing A Flex Adapter

    1. If your computer is installed with two microprocessors, ensure you install flex adapters into the flex adapter slot 1 first, and then the flex adapter slot 2. 5. Depending on whether you are installing or replacing a flex adapter, do one of the following: ThinkStation P900 User Guide...
  • Page 121 • If you are installing a flex adapter, pivot the tab upward to open the latch inside the multi-function bracket. Figure 60. Opening the card latch • If your are replacing a failing flex adapter, pivot the tab upward to open the latch inside the multi-function bracket.
  • Page 122 Ensure that the latch inside the multi-function bracket is closed. Figure 63. Closing the card latch 8. If a device only works with its cable connected to the flex adapter, connect the cable to the new flex adapter. ThinkStation P900 User Guide...

  • Page 123: Installing Or Replacing A Pci Card

    What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. Installing or replacing a PCI card Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information”...
  • Page 124 • If you are replacing a PCI card, do the following: a. For some models, you must remove the PCI card retainer first. Pivot the tab upward to open the latch inside the multi-function bracket. Figure 66. Opening the card latch ThinkStation P900 User Guide...
  • Page 125 b. Grasp the PCI card retainer by its edges and gently pull it out of the latch. Remove the retainer completely from the PCI card latch. Figure 67. Removing the PCI card retainer Chapter 9 Installing or replacing hardware...
  • Page 126 On the left of the PCI card slot, lift the handle until it stops, and then pivot it to the left until it stops. The PCI card latch is opened. Figure 68. Opening the PCI card latch ThinkStation P900 User Guide...
  • Page 127 d. Grasp the card that is currently installed and gently pull it out of the slot. Notes: – If the card is connected to other device, disconnect the cables from the card. – If the card is held in place by a retaining latch, press the card retaining latch as shown to disengage the latch.
  • Page 128 Then, insert the new PCI card downward into the card slot until it is secured tightly. See “Locating parts on the system board” on page 5. Note: Do not touch the circuit board of the PCI card. Figure 70. Installing the PCI card ThinkStation P900 User Guide...
  • Page 129 8. Pivot the handle to the right until it stops, and then press it downward until the latch snaps into position. Figure 71. Closing the PCI card latch Chapter 9 Installing or replacing hardware...
  • Page 130 90. What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. ThinkStation P900 User Guide...

  • Page 131: Installing Or Replacing A Full-Length Pci Express Card

    Installing or replacing a full-length PCI Express card Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Your computer has the following PCI card slots: •...
  • Page 132 Figure 75. Opening PCI card latches b. Remove the metal slot cover of the PCI card slot on the rear of the chassis. • If you are replacing a full-length PCI Express card, do the following: ThinkStation P900 User Guide...
  • Page 133 a. On the right of the PCI card slot, pivot the tab outward until it stops. The card latch opened. On the left of the PCI card slot, lift the handle until it stops, and then pivot it to the left until it stops.
  • Page 134 Figure 77. Removing the full-length PCI Express card ThinkStation P900 User Guide...
  • Page 135 7. To install a new full-length PCI Express card, align the notch on the new full-length PCI Express card with the slot key in the PCI card slot. Then, insert the new card downward into the card slot until it is secured tightly.

  • Page 136: Installing Or Replacing The Super Capacitor Module

    2. Remove the computer cover. See “Removing the computer cover” on page 73. 3. Lay the computer on its side for easier access to the super capacitor module. ThinkStation P900 User Guide...
  • Page 137 4. Locate the PCI Express card slot in which the super capacitor module holder is installed. See “Locating components” on page 4. 5. If necessary, remove the direct cooling air baffle for easier operation. See “Removing and reinstalling the direct cooling air baffle” on page 90. 6.
  • Page 138 90. What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. ThinkStation P900 User Guide...

  • Page 139: Installing Or Replacing A Memory Module

    Installing or replacing a memory module Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Your computer has 16 slots for installing or replacing DDR4 DIMMs that provide up to a maximum of 1024 GB system memory.
  • Page 140 Figure 84. Opening retaining clips • If you are replacing a memory module, open the retaining clips and gently pull the memory module out of the memory slot. Figure 85. Removing the memory module ThinkStation P900 User Guide...

  • Page 141: Replacing The Heat Sink And Fan Assemblies

    7. To install a new memory module, position the new memory module over the memory slot. Ensure that the notch on the memory module aligns correctly with the slot key on the system board. Push the memory module straight down into the slot until the retaining clips close. Note: Do not touch the circuit board of the memory module.
  • Page 142 12. Reinstall the direct cooling air baffle. See “Removing and reinstalling the direct cooling air baffle” on page 90. What to do next: • To work with another piece of hardware, go to the appropriate section. ThinkStation P900 User Guide...

  • Page 143: Replacing The Rear Fan Assembly

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 140. Replacing the rear fan assembly Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. CAUTION: Hazardous moving parts.

  • Page 144: Replacing The Wi-Fi Units

    1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. 2. Remove the computer cover. See “Removing the computer cover” on page 73. ThinkStation P900 User Guide...
  • Page 145 3. If your computer comes with a Wi-Fi card module that supports the Bluetooth function, disconnect the Bluetooth cable from the Wi-Fi adapter card. Figure 90. Disconnecting the Bluetooth cable 4. On the rear of the computer, lift the handle and pivot it as shown until it stops.
  • Page 146 To remove the Wi-Fi card module, do the following: 1. Remove the Wi-Fi adapter card from the computer, and then disconnect the two Wi-Fi antenna cables from the Wi-Fi card module. Figure 93. Disconnecting the Wi-Fi antenna cables ThinkStation P900 User Guide...
  • Page 147 2. Remove the two screws that secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 94. Removing the screws that secure the Wi-Fi card module 3. Pull the Wi-Fi card module out of the mini PCI Express slot. Figure 95.
  • Page 148 1. Insert the Wi-Fi card module into the mini PCI Express slot on the Wi-Fi adapter card. Figure 96. Installing the Wi-Fi card module 2. Install the two screws to secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 97. Installing the screws to secure the Wi-Fi card module ThinkStation P900 User Guide...
  • Page 149 3. Connect the two Wi-Fi antenna cables to the Wi-Fi card module. Figure 98. Installing the Wi-Fi antenna cables 4. Install the Wi-Fi adapter card into the PCI Express slot on the system board. See “Locating parts on the system board” on page 5. Figure 99.

  • Page 150: Installing Or Removing The Wi-Fi Antenna

    To remove the Wi-Fi antenna, do the following: 1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect all power cords from electrical outlets and disconnect all cables that are connected to the computer. ThinkStation P900 User Guide...

  • Page 151: Replacing The Keyboard Or Mouse

    2. Unscrew the Wi-Fi antenna connectors to remove the Wi-Fi antenna from the rear of the computer. Figure 101. Removing the Wi-Fi antenna What to do next: • To work with another piece of hardware, go to the appropriate section. •...

  • Page 152: Completing The Parts Replacement

    See “Locating components” on page 4 for the locations of various components in your computer. 2. Ensure that the cables are routed correctly before reinstalling the computer cover. Keep cables clear of the hinges and sides of the computer chassis to avoid interference with reinstalling the computer cover. ThinkStation P900 User Guide...

  • Page 153: Obtaining Device Drivers

    7. To update your configuration, refer to “Using the Setup Utility program” on page 35. Note: In most areas of the world, Lenovo requires the return of the defective CRU. Information about this will come with the CRU or will come a few days after the CRU arrives.
  • Page 154 ThinkStation P900 User Guide...

  • Page 155: Chapter 10. Getting Information, Help, And Service

    You can use the information in this section to access useful resources relating to your computing needs. Lenovo ThinkVantage Tools The Lenovo ThinkVantage Tools program provides easy access to various tools to help you work more easily and securely. To access the Lenovo ThinkVantage Tools program, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools.

  • Page 156: Lenovo Support Web Site

    Most computers come with a diagnostic program that help you identify hardware problems. You can also get the latest technical information and download device drivers and updates from Lenovo Support Web site at: http://www.lenovo.com/support...

  • Page 157: Using Other Services

    • Engineering Change management - There might be changes that are required after a product has been sold. Lenovo or your reseller will make selected Engineering Changes (ECs) that apply to your hardware available. These items are not covered by the warranty: •...
  • Page 158 • Upgraded or extended hardware repair services • Custom installation services Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com ThinkStation P900 User Guide...

  • Page 159: Chapter 11. System Memory Speed

    Intel Xeon E5-2699 v3, E5-2698 v3, E5-2697 v3, E5-2695 V3, E5-2690 v3, E5-2685 v3, E5-2683 v3, E5-2680 v3, 1.2 V 2133 MHz E5-2670 v3, E5-2667 v3, E5-2660 v3, E5-2650 v3, E5-2643 v3, E5-2637 v3, E5-2650L v3, E5-1680 v3, E5-1660 © Copyright Lenovo 2014, 2015...
  • Page 160 E5-1650 v3, E5-1630 v3, E5-1620 1.2 V Intel Xeon E5-2640 v3, E5-2630 v3, E5-2623 v3, E5-2620 v3, E5-2630L 1866 MHz v3, E5-1607 v3, E5-1603 v3 1.2 V Intel Xeon E5-2609 v3, E5-2603 v3 1600 MHz ThinkStation P900 User Guide...

  • Page 161: Appendix A. Regulatory Information

    • Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 162 Klasse B. Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo (Deutschland) GmbH, Meitnerstr. 9, D-70563 Stuttgart. Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse B.

  • Page 163: Eurasian Compliance Mark

    The ac power cord shipped with your product can be used only for this specific product. Do not use the ac power cord for other devices. Lenovo product service information for Taiwan Keyboard and mouse compliance statement for Taiwan Eurasian compliance mark Brazil audio notice Ouvir sons com mais de 85 decibéis por longos períodos pode provocar danos ao sistema auditivo.

  • Page 164: Additional Regulatory Information

    All regulatory notices are available on the Lenovo Support Web site in electronic format. To access electronic copies of the documentation, go to http://www.lenovo.com/UserManuals.

  • Page 165: Appendix B. Weee And Recycling Information

    Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources.

  • Page 166: Recycling Information For Brazil

    If you need to replace it with a new one, contact your place of purchase or contact Lenovo for service. If you need to dispose of a disused lithium battery, insulate it with vinyl tape, contact your place of purchase or an industrial-waste-disposal operator, and follow their instructions.
  • Page 167 Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. For proper collection and treatment, go to: http://www.lenovo.com/recycling Appendix B. WEEE and recycling information...
  • Page 168 ThinkStation P900 User Guide...

  • Page 169: Appendix C. Restriction Of Hazardous Substances Directive (Rohs)

    (RoHS) European Union RoHS Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).

  • Page 170: Ukraine Rohs

    Ukraine RoHS India RoHS RoHS compliant as per E-Waste (Management & Handling) Rules, 2011. ThinkStation P900 User Guide...

  • Page 171: Appendix D. Energy Star Model Information

    For more information about ENERGY STAR, go to: http://www.energystar.gov Lenovo encourages you to make efficient use of energy an integral part of your day-to-day operations. To help in this endeavor, set the following power-management features to take effect when your computer has been inactive for a specified duration: Table 4.
  • Page 172 3. Follow the instructions on the screen. ThinkStation P900 User Guide...

  • Page 173: Appendix E. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 174: Trademarks

    Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Rescue and Recovery The Lenovo logo The ThinkStation logo ThinkStation ThinkVantage Microsoft, Windows, and Windows Media are trademarks of the Microsoft group of companies.

  • Page 175: Index

    © Copyright Lenovo 2014, 2015...
  • Page 176 Hard disk installing options Power-on password memory module setting, changing, deleting internal drives passwords internal storage drive erasing installing lost or forgotten replacing PCI card installing replacing PCI Express solid-state drive Kensington-style installing cable lock replacing ThinkStation P900 User Guide...
  • Page 177 PCI Express solid-state drive temporary startup device power supply assembly trademarks rear fan assembly troubleshooting, basic storage drive troubleshooting, diagnostics super capacitor module Rescue and Recovery workspace, Rescue and Recovery Rescue and Recovery workspace resources, information updating © Copyright Lenovo 2014, 2015...
  • Page 178 BIOS passwords diagnostic program documentation other services Setup Utility video features viewing and changing settings warranty information Wi-Fi antenna, installing, removing Wi-Fi units, Wi-Fi adapter card, Wi-Fi card module, Wi-Fi antenna cable, replacing workspace, backup and recovery ThinkStation P900 User Guide...

Table of Contents
