FRONT PANEL
The front panel will be different depending on which of the 3 FL20
models is being installed, and each is shown below.
The following information is displayed:
•
Detector Status: Normal, Alarm, Fault or Isolate
•
Alarm Level; Alarm, Pre-Alarm (only available with panels
using Advanced Protocol)
•
Particulate Levels; 1-9 (only available with panels using
Advanced Protocol)
•
Flow Level
•
Test, Reset and Disable Buttons

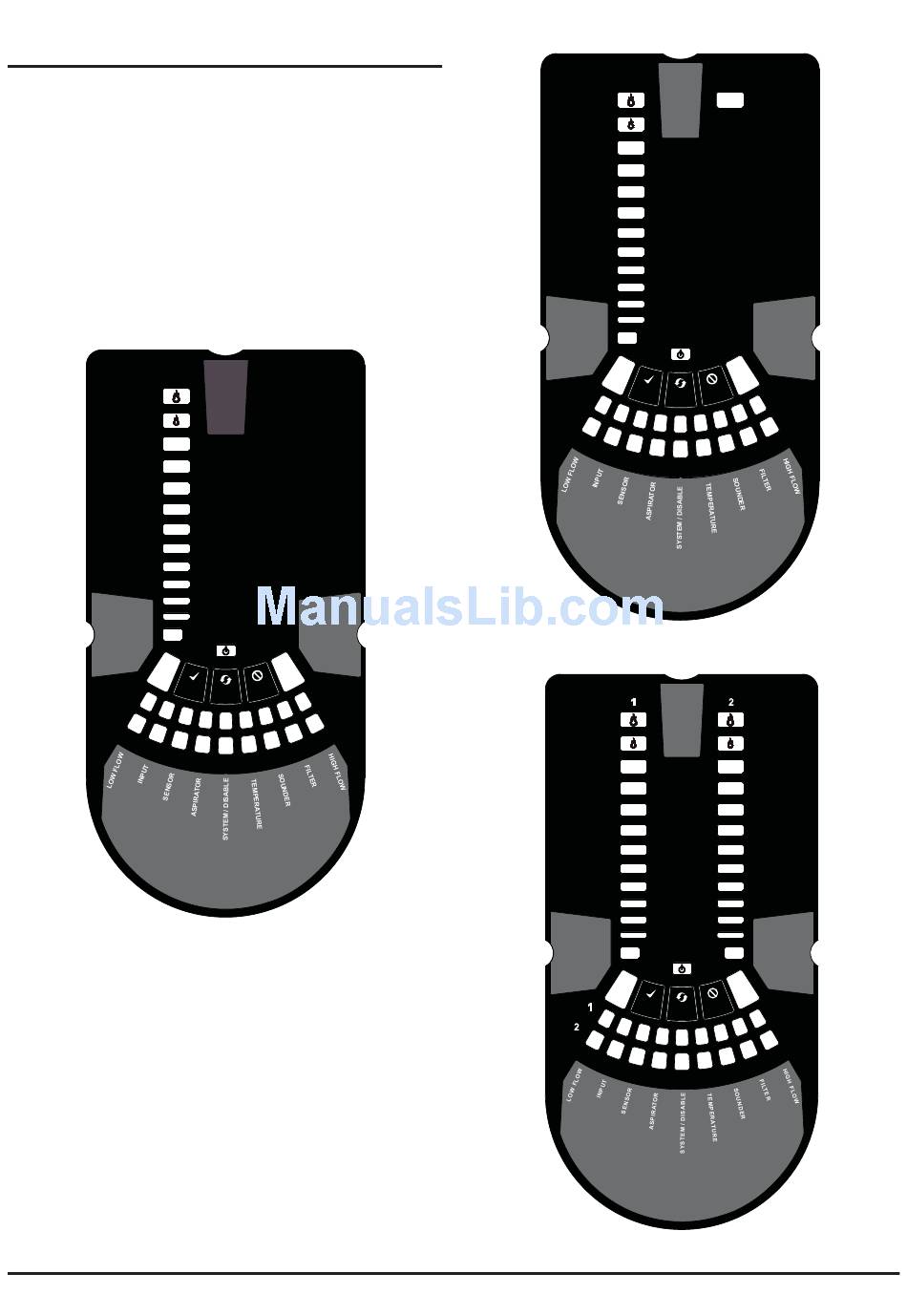

Figure 11: Front Panel Display
10
9
8
7
6
5
4
3
2
SMOKE
1
LEVEL
MODULE
FAULT
11a: FL2011EI 1 Channel Detector (1 Sensor)
D200-102-00
Pittway Tecnologica S.r.l. Via Caboto 19/3, 34147 TRIESTE, Italy
ALARM
PREALARM
POWER
FAULT
SMOKE
LEVEL
MODULE
FAULT
11b: FL2012EI 1 Channel Detector (2 Sensors)
SMOKE
LEVEL 1
MODULE 1
FAULT
11c: FL2022EI 2 Channel Detector
6
ALARM
PREALARM
10
9
8
7
6
5
4
3
2
1
POWER
FAULT
ALARM
PREALARM
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
SMOKE
1
1
LEVEL 2
MODULE 2
POWER
FAULT
I56-3888-203
