This equipment and all associated pipe work must be installed in
accordance with all relevant codes and regulations.

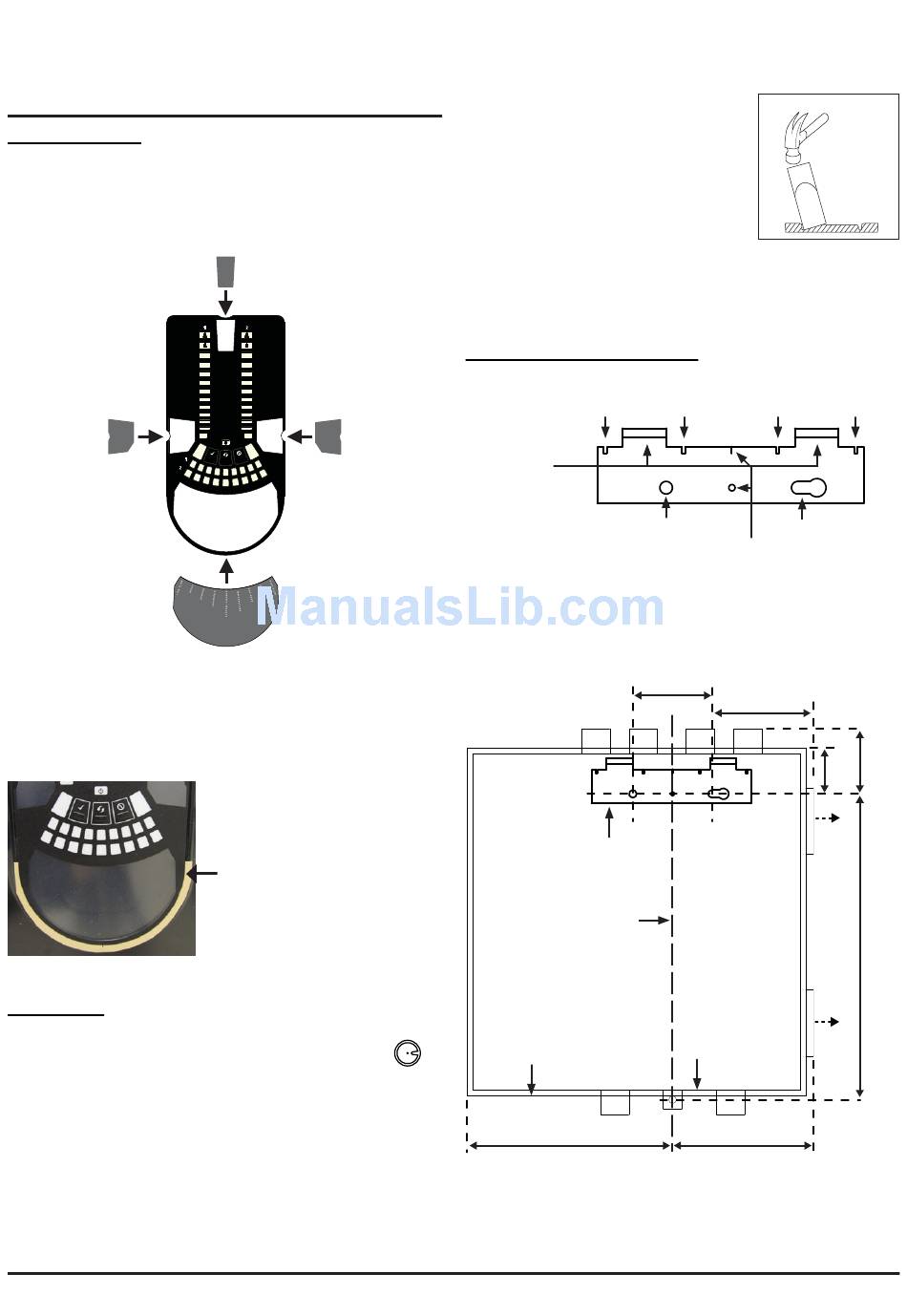

PHYSICAL INSTALLATION
Front Panel Labels
The LT FL20 is shipped without the front panel labels fixed in
place. This allows the installer to choose the language required
for the installation from the Front Panel Labelling Pack.
Figure 2 shows where the labels need to be placed:
SMOKE
LEVEL 1
MODULE 1
FAULT
Figure 2: Placing the Front Panel Labels
When label A is in place, remove the protector from the bottom of
the clear cover to stick the cover down, as shown in Figure 3:
Cable Access
Knock out cable gland holes where required. The
location of the cable gland holes is shown in Figure 1,
represented by the icon:
D200-102-00
Pittway Tecnologica S.r.l. Via Caboto 19/3, 34147 TRIESTE, Italy
ALARM
PREALARM
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
SMOKE
1
1
LEVEL 2
MODULE 2
POWER
FAULT
A
Figure 3: Remove Backing to
Stick Cover Down
Figure 4: How to Knock Out Cable
Gland Holes
Mounting the LT FL20 to the Wall
INDICATES CENTRE OF ASPIRATING PIPES
FAAST LT
HANGING LUGS
FIXING HOLE
Figure 5: Mounting Bracket
POSITION OF BRACKET
PLUMB LINE
OUTER DIMENSION OF UNIT
212 mm
* Minimum clearance required from hinges to open door = 35 mm.
Figure 6: Fasten the mounting bracket to the wall
2
FIXING HOLE
USE FOR PLUMB-LINE
90 mm
99 mm
BASE OUTLINE
144 mm
I56-3888-203
59
41
mm
mm
*
329
mm
*
