INSTALLATION AND MAINTENANCE INSTRUCTIONS

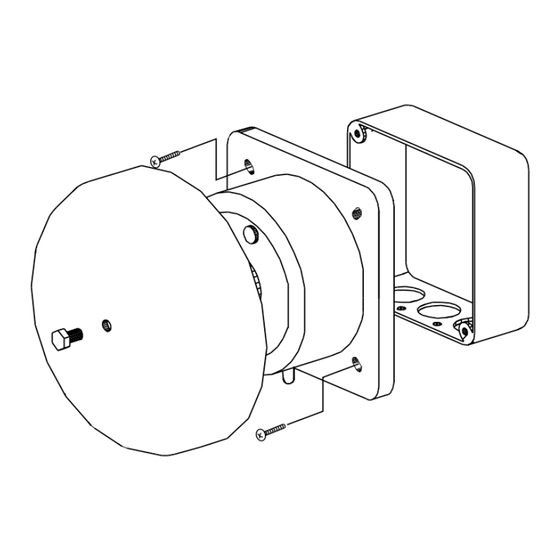

SSM and SSV BELL Series
Specifications
SSM Series:
Starting Voltage:
Rated Voltage:
Operating Voltage Range:
Average Current (at rated voltage):
Operating Temperature:
SSV Series:
Starting Voltage:
Rated Voltage:
Operating Voltage Range:
Average Current (at rated voltage:
Operating Temperature:
24 VDC SSM
SSM24-6
(6˝, 24 VDC, P, S)
SSM24-8
(8˝, 24 VDC, P, S)
SSM24-10
(10˝, 24 VDC, P, S)
120 VAC SSV
SSV120-6
(6˝, 120 VAC)
SSV120-8
(8˝, 120 VAC)
SSV120-10
(10˝, 120 VAC)
P = Polarized
S = Suppressed
Important
Please Read Carefully and Save
This instruction manual contains important information
about the installation and operation of bells. Purchasers
who install bells for use by others must leave this manual
or a copy of it with the user.
System Sensor supplies bells for nearly all sprinkler/fire
alarm/burglar applications.
These instructions apply to all System Sensor bells in the
series. Read all instructions carefully before beginning. Fol-
low only those instructions that apply to the model you are
installing.
CAUTION
Do not use in potentially explosive atmospheres.
Do not leave any unused wires exposed.
D770-11-00
12 VDC
24 VDC
19.2 - 26.4 VDC
0.03 A
-31° to 150° F (-35° to +66° C)
96 VAC
120 VAC
96 - 132 VAC
0.047 A
-31° to 150° F (-35° to +66° C)
UL Reverberant Room
Sound Output per UL 464 (dBA)
85
85
85
82
85
82
General Description
The National Fire Protection Association has published
codes, standards, and recommended practices for the in-
stallation and use of the above appliances. It is recom-
mended that the installer be familiar with these
requirements, with local codes, and any special require-
ments of the authority having jurisdiction.
These bells are intended to be connected to alarm indicat-
ing circuits of UL listed fire alarm control panels. The SSM
series is polarized to enable supervision of the installation
wiring. The SSM bells require 24 VDC and the SSV bells re-
quire 120 VAC.
1
A Division of Pittway
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
I56-674-04
Advertisement
Related Manuals for System Sensor SSM Series
Summary of Contents for System Sensor SSM Series
- Page 1 These bells are intended to be connected to alarm indicat- ing circuits of UL listed fire alarm control panels. The SSM These instructions apply to all System Sensor bells in the series is polarized to enable supervision of the installation series.
- Page 2 In this case, bell should be replaced. Failure to follow these directions may result in failure of the device to report an alarm condition. System Sensor is not Do not repair or replace any bell components in the responsible for devices that have been improperly installed, field.
- Page 3 Figure 1. Typical SSM and SSV bell wiring diagrams: WIRING (REAR VIEW) USE BOTH LEADS FOR USE BOTH LEADS FOR OBSERVE POLARITY CONNECTION. BREAK CONNECTION. BREAK ON SSMA MODELS WIRE RUN TO PROVIDE WIRE RUN TO PROVIDE ELECTRICAL SUPERVISION. ELECTRICAL SUPERVISION. BLACK BLACK BLACK...
- Page 4 Three-Year Limited Warranty System Sensor warrants its enclosed SSM or SSV bell to be free from de- ment, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174. Please fects in materials and workmanship under normal use and service for a include a note describing the malfunction and suspected cause of failure.
