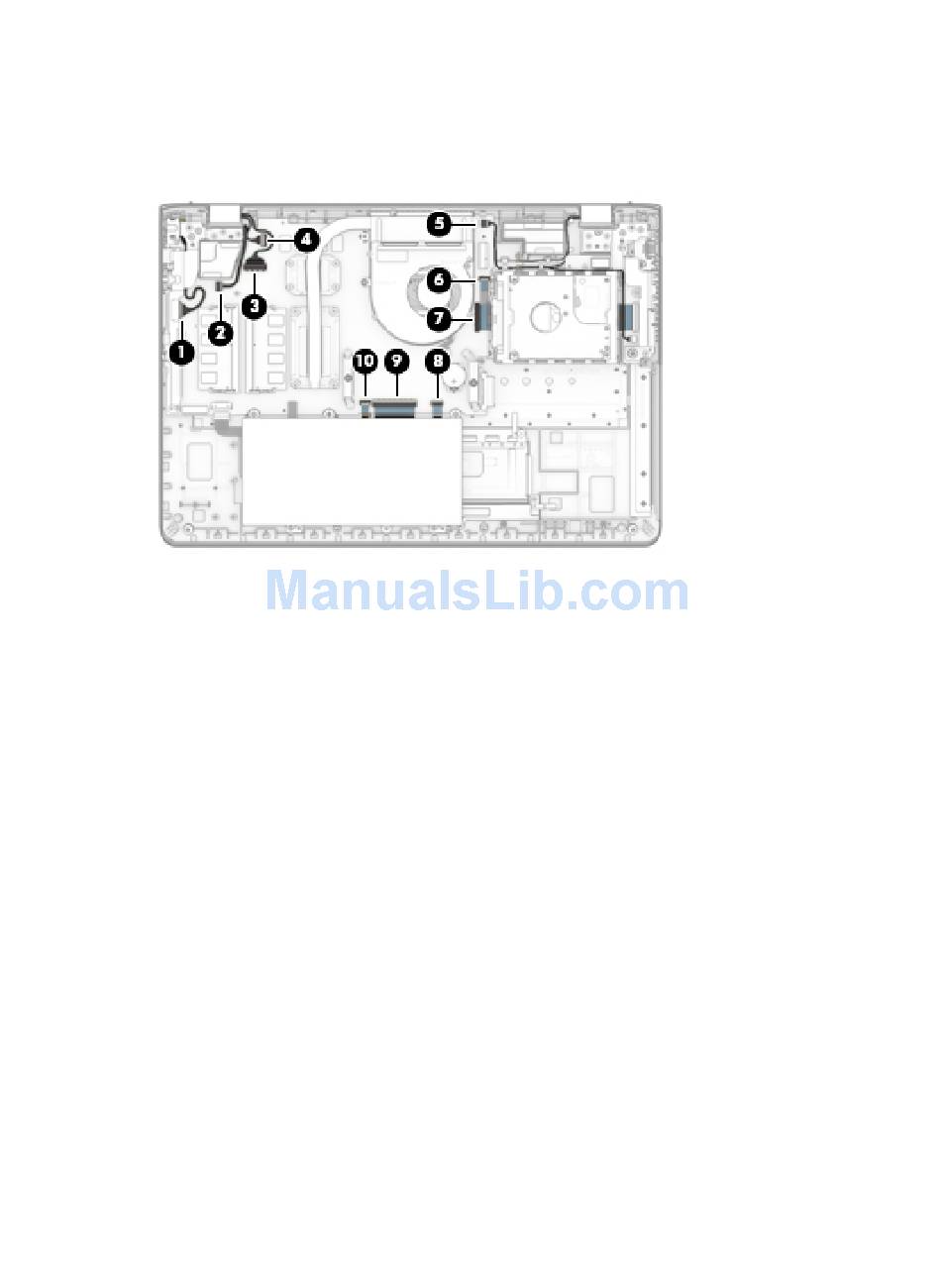

(7) USB board ZIF connector cable
(8) TouchPad ZIF connector cable
(9) Keyboard ZIF connector cable
(10) Keyboard backlight ZIF connector cable
2.
Remove the three Phillips M2.0×4.8 screws (1) that secure the power connector cable bracket to
the keyboard/top cover.
3.
Remove the power connector cable bracket (2).
4.
Remove the two Phillips M2.0×3.8 screws (3) that secure the system board to the keyboard/top cover.
5.
Remove the four Phillips M2.0×4.8 screws (4) that secure the plastic support bridges and the heat sink
to the keyboard/top cover.
42
Chapter 5 Removal and replacement procedures
