Supported chassis and adapter cards
The switches are installed in switch bays in the rear of the Flex System chassis, as shown in Figure 2.
Switches are normally installed in pairs since ports on the I/O adapter cards installed in the compute nodes
are routed to two switch bays for redundancy and performance.

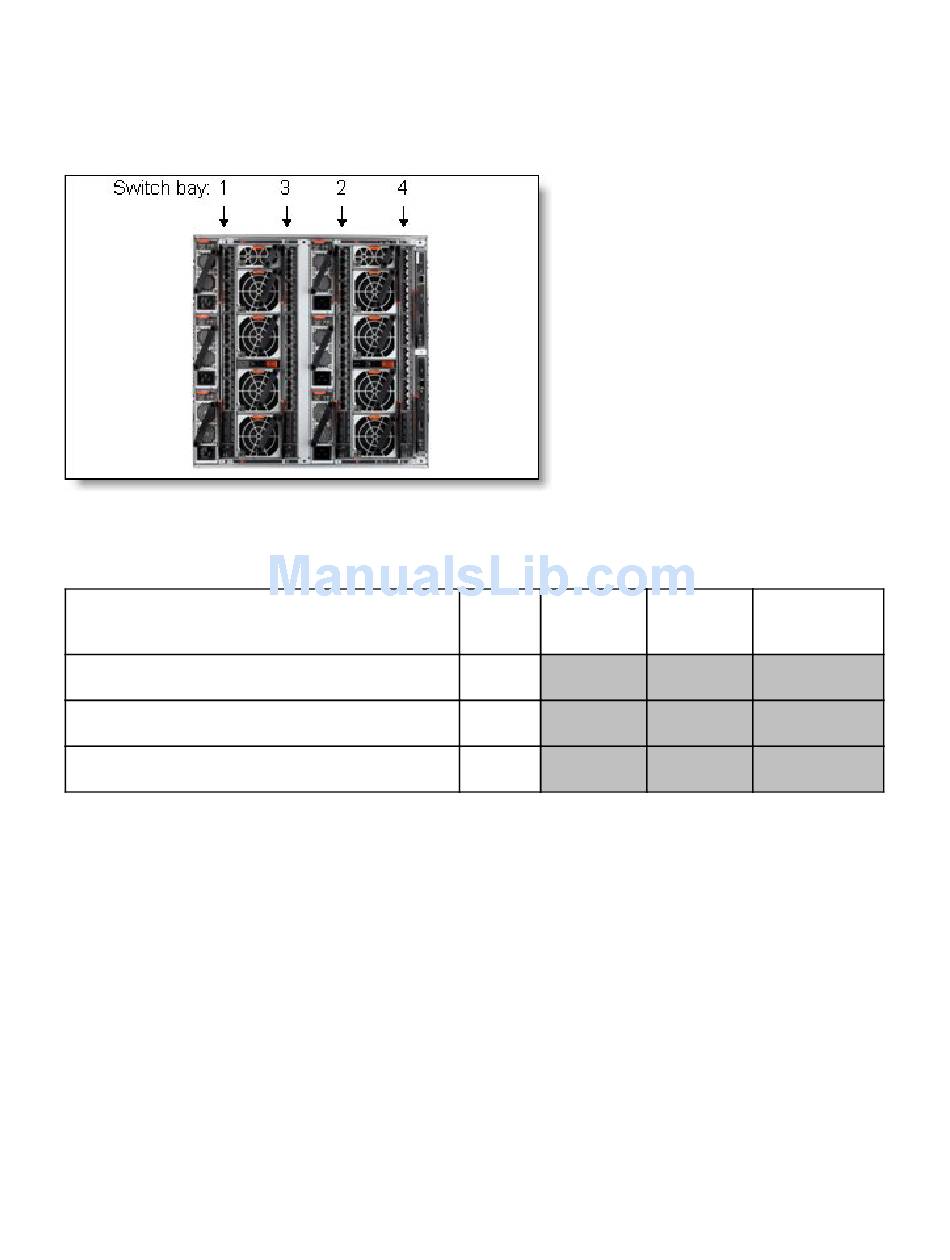

Figure 2. Location of the switch bays in the Flex System chassis
Table 6 shows compatibility information for the FC5022 and Flex System chassis.
Table 6. Flex System chassis compatibility
Description
Lenovo Flex System FC5022 16Gb SAN Scalable
Switch
Lenovo Flex System FC5022 24-port 16Gb SAN
Scalable Switch
Lenovo Flex System FC5022 24-port 16Gb ESB SAN
Scalable Switch
The connections between the 2-port adapters that are installed in the compute nodes and the switch bays
in the chassis are shown in Figure 3. Figure 3 shows both half-wide servers, such as the x240 with two
adapters, and full-wide servers, such as the x440 with four adapters.
Lenovo Flex System FC5022 16Gb SAN Scalable Switches
Part Enterprise
number Chassis
with CMM
88Y6374 Yes
00Y3324 Yes
90Y9356 Yes
Enterprise Carrier-grade
Chassis Chassis with
with CMM2 CMM2
Yes Yes
Yes Yes
Yes Yes
