Summary of Contents for easybike G3
-

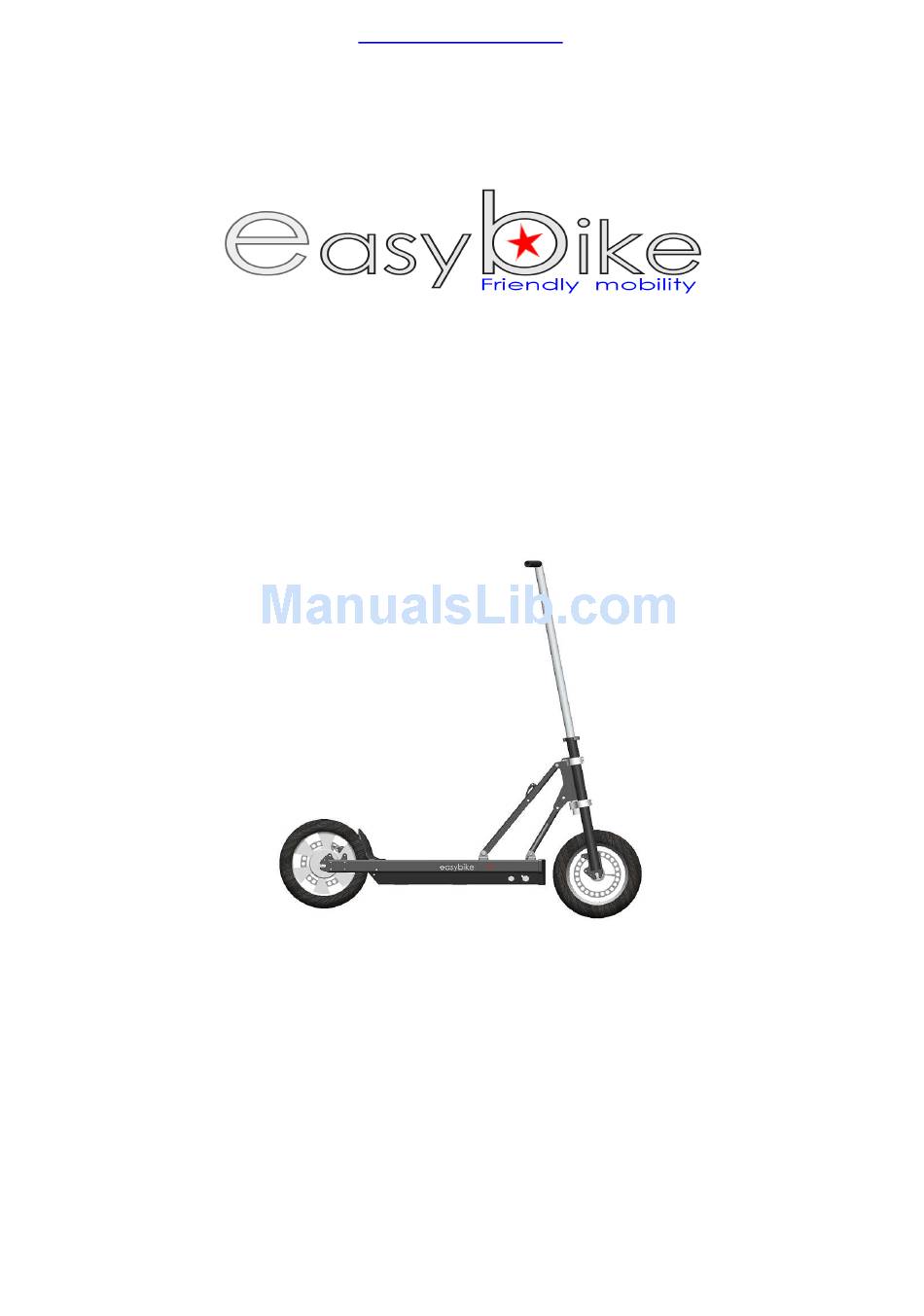

Page 1: User Manual
Electric Scooter model G3 User manual Pleas ready carefully before use. easybike israel -ultra light mobility Golan 62, Nirit,44805 , ISRAEL 03-9382567,054-6648155 page... - Page 2 page...
- Page 3 1. THE RIDING RULE the G3 design for use any age begin 9 years old. No need driver license , insurance not must. must use hamlet The riding allowed on pavement and special sign line for bicycle Not allow to ride on highway or fast road The max speed possible is 28 km/h but limit by country regulation.
- Page 4 YouTube for "G3 EASYBIKE" . OPERATE THE G3 SCOOTER The G3 controlled by Remote key for turn on/OFF and alarm turn on : double click on the electric sign. Turn Off : One click on the the lock open key.
-
Page 5: Display Function
Display function the green led use for battery level indicator the blue led use to controll the riding option . Mode a: the max speed is 6 km/h . you must push the scooter first to enable the throttel to work. - Page 6 Handlebar the throotle located on the right side change the handlebar high change the handlebar height each steering stem can be move up and down . you have two quick clamp to set . open the clamps to change .
- Page 7 Using Brake the G3 come with double disk brake front and rear. Using the front brake must be very careful because it is very strong brake. use it soft touch and slow. make sure the front wheel never block.
-
Page 8: Battery And Charging
BATTERY AND CHARGING To charge the battery use the original changer from easybike. this charger is set SSLC084V42 specially to the battery . use SANS model for 36v battery. charge time : 4.5 hours when the battery is during the time the battery capacity get lower . - Page 9 Battery safe instruction : • This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode. • Shorting the battery terminals may cause burns or fire. • Do not place battery pack on wet or metallic surfaces.
-
Page 10: User Maintenance
40psi the battery will work much harder , the range will be shorter and the life of the battery will be much shorter. replace the tire if need. USER MAINTENANCE * Many parts on your E-SCOOTER are subject to a higher degree of wear due to their function and depending on their use. - Page 11 • Take care when loading your e-scooter into a car or when mounting it on a e-scooter carrier. • We DO NOT recommend that you use a e-scooter trailer with your Easybike e-scooter. • You can fit a standard fitment luggage carrier to your e-scooter. Please check with the manufacturer to make sure that a child seat can be safely attached to the luggage carrier.
- Page 12 • Never modify the charger in any way. • The charger has been designed for a specific voltage, always check that the mains voltage is the same as that stated on the rating label. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack;...
- Page 13 G3 e-scooter specfication Performace item Description spec comment Weight according from 12kg to according to battery to battery 16kg selected Speed 4 option for 6 , 12 , 25 , 28 Can be set by the max speed km/h...
- Page 14 36v / 48V Battery Samsung sdi Li-on battery 36v , 8.8A Standard 18650 22p ncm chines brand Li-on battery 36v , 17A Option 1 Li-on battery 48v , 8.8A Option 2 Li-on battery 48v , 17A Option 3 Controller DHMC...
- Page 15 Item Description spec comment Alloy 6005 / 6061 made with Can ship without assembly / 6063 T6 extrusion + CNC ALL ASSY by screw Water proof Screw High M6 , M5 with quality lock stainless steel screw...
- Page 16 Tire Standard Kenda 12 1/2 Option x 2.125 Tire option INNOVA 12 Need to order in advance 1/2 X 3" length Distance 960 mm between wheel center Brake Item Description spec comment brake lever Wuxing Rear braek Disk Tektro novella...
- Page 17 page...
