VIZIO
QUICK START GUIDE

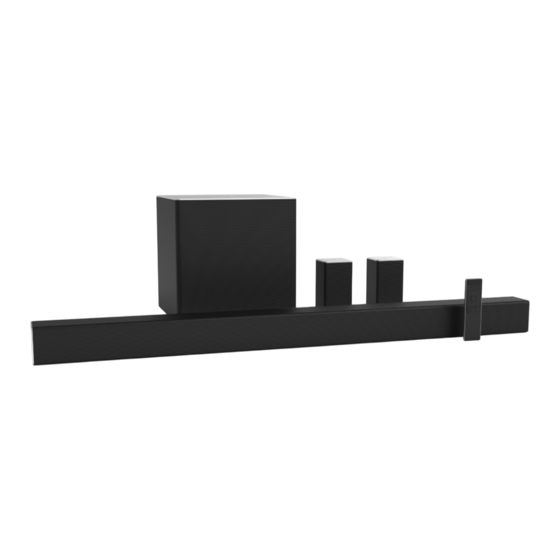

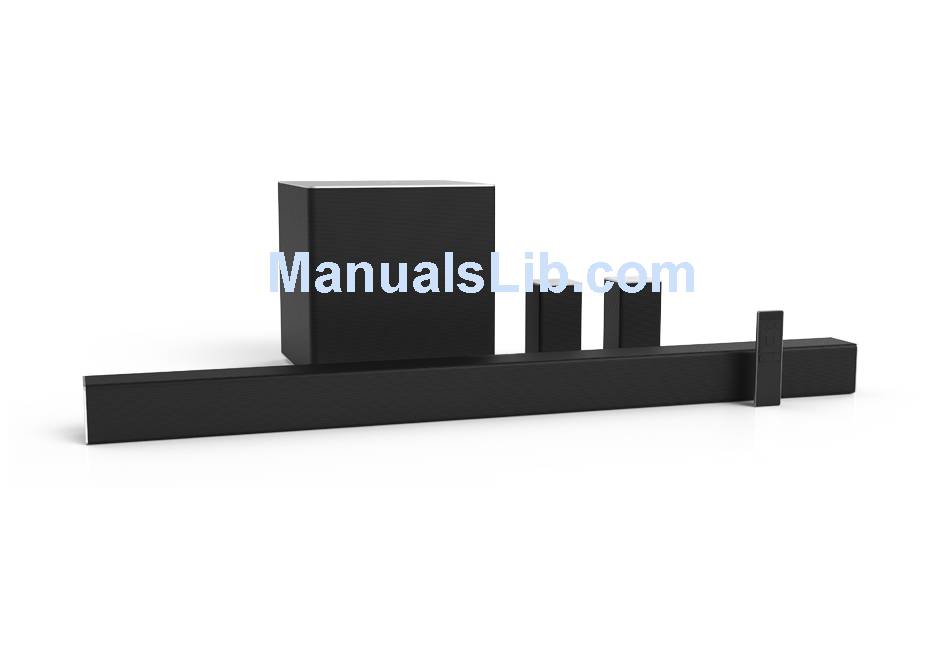

Model: SB4451-C0

Advertisement

Table of Contents
loading

Related Manuals for Vizio SB4451-C0

Summary of Contents for Vizio SB4451-C0

  • Page 1 VIZIO QUICK START GUIDE Model: SB4451-C0...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit.
  • Page 3 electric shock. • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer.
  • Page 4 English - iv...
  • Page 5 And then just tap to cast the content to your VIZIO Sound Bar - from anywhere in your home. It works over WiFi, so you can control your VIZIO Sound Bar from any room, and keep using your smartphone or tablet to continue browsing, play games, text or even watch another show, without disrupting what’s playing on your sound bar.

  • Page 6: Table Of Contents

    Using Button Combinations ...........................28 Pairing your smartphone or tablet ........................29 Getting started with Google Cast™ ........................30 How to cast content ............................30 Getting started with the VIZIO SmartCast App .....................31 Account Setup ............................31 Selecting a SmartCast device ........................32 Creating an Audio Group ..........................33 Bluetooth Pairing .............................34...

  • Page 7: Package Contents

    PACKAGE CONTENTS High Definition 2 x Satellite Wireless Remote Control Sound Bar Speakers with Batteries Subwoofer Stereo RCA to Stereo RCA to Coaxial Audio HDMI Cable 3.5mm Audio Cable Stereo RCA Cable 4 x Wall 2 x Satellite Speaker Mount Screws Digital Optical Audio Cables 2 x Power Cables...

  • Page 8: Controls & Connections

    CONTROLS & CONNECTIONS Back of Sound Bar Power Port Analog Audio In (Stereo RCA) Ethernet Ethernet In English - 8...
  • Page 9 HDMI OUT USB* HDMI Out (ARC) USB In HDMI IN DIGITAL HDMI IN Coaxial In OPTICAL Digital Optical Audio In * Supports .WAV file format playback only. English - 9...
  • Page 10 Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Pairing’ for more information.) Power Press to turn sound bar Input Press to change the audio on or off. source. Top of Sound Bar English - 10...
  • Page 11 Back of Subwoofer Back of Satellite Speaker Satellite Speaker Port (Connects to Subwoofer) Power Switch Power Port Satellite Speaker Ports (Connects to Satellite Speakers) LED Indicator Pairing Button English - 11...

  • Page 12: First-Time Setup

    FIRST-TIME SETUP Back of Sound Bar RCA TO DIGITAL OPTICAL DIGITAL COAXIAL RCA CABLE CABLE CABLE † † GOOD BETTER BETTER * Not all TVs have the audio outputs shown CHOOSE ONE CABLE above. To connect the Sound Bar directly to your other devices (Blu-Ray player, game system, etc.) GOOD see your device’s user manual.
  • Page 13 Do not use HDMI IN for First-Time Setup. See Advanced Setup if you would like to connect HDMI HDMI ARC devices (such as Blu-ray™ players, cable boxes, and CABLE game consoles) to your Sound Bar. BEST HDMI cables send Video (Out) and receive Connect the Sound Bar to your TV* using one of the Audio from the TV.
  • Page 14 Connect the power cable to the sound bar AC IN as shown. Plug the power cable into an electrical out- let. English - 14...
  • Page 15 Connect the satellite speakers to the subwoofer using the included satellite speaker audio cables. Match the color coded speaker cable to the matching speaker port color. English - 15...
  • Page 16 Connect a power cable to the subwoofer. Plug the power cable into a power outlet. Flip the power switch into the ON position. English - 16...
  • Page 17 For the best surround sound experience, position the sound bar, subwoofer, and satellite speakers as shown. The sound bar should be close to ear level. sound bar is centered below the TV. Note: Speaker stands not included. English - 17...
  • Page 18 Remove the battery cover by gently Insert the included batteries and gently sliding it away from the remote. slide the battery cover back into place. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries.

  • Page 19: Using The Remote

    USING THE REMOTE Display Displays Sound Bar Settings Power Press to turn on or off. Menu Press to access the menu Input settings. *Press to change the input source Enter/Play/Pause Press to select an option. Press to play or pause. Previous Press to return to previous track.

  • Page 20: Using Your Tablet Or Smartphone As A Remote

    Easily search, discover and browse for content to listen through your speakers. To use your smartphone or tablet as your VIZIO SmartCast Remote: • Download the VIZIO SmartCast app on your...

  • Page 21: Minimum Recommended Requirements

    † iOS* • iOS 8.0 or later • Devices supported: iPhone, iPad The VIZIO SmartCast app is available for download from the Google Play Store and Apple App Store. *Subject to change **To use the Bluetooth LE functionality you must have Android 5.1 or later https://support.google.com/googleplay/answer/1727131...

  • Page 22: Connecting With Hdmi

    The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your TV’s user manual for more information. CEC Function naming may differ by TV manufacturer. See your TV’s user manual for more information.
  • Page 23 Back of TV* Connect to HDMI (ARC) port on your TV * HDMI ARC port location may differ by TV manufacturer. See your TV’s user manual for more information. English - 23...

  • Page 24: Led Indicators

    Press the Enter button on the remote. The sound bar will be discoverable for 15 Bluetooth Pairing device) minutes. You can now search for the sound bar (VIZIO SB4451) using your Bluetooth Flash from Bottom Device. The sound bar will power down if no device is found.
  • Page 25 Function LED Behavior Description Surround Balance Two center LEDs Press the Next/Previous button to increase/decrease the surround balance level on each Surr Bal indicate Surround side. The LED indicators will move to the top with balance levels to the right and down Balance is centered.
  • Page 26 Press the Next/Previous button to enable/disable VIZIO TV Remotes. When en- TV Remote On VZtv Rmt abled (On), you can use a VIZIO TV remote control to turn on the sound bar (using TV Remote Off the TV Volume Up button) and control volume.

  • Page 27: Programming The Sound Bar

    PROGRAMMING THE SOUND BAR You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute.

  • Page 28: Using Button Combinations

    Note: This will erase all settings and preferences that you have set. Enable VIZIO VIZIO TV Enable/disable the use of a VIZIO TV remote control to power on and TV Remote Remote adjust the volume of the sound bar. To enable/disable this function,...

  • Page 29: Pairing Your Smartphone Or Tablet

    PAIRING YOUR SMARTPHONE OR TABLET To pair your smartphone or tablet with your VIZIO SmartCast Sound Bar for the first time: 1. Launch the VIZIO SmartCast app on your smartphone or tablet and press the Power button on your SmarCast Sound Bar 2.

  • Page 30: Getting Started With Google Cast

    GETTING STARTED WITH GOOGLE CAST™ Google Cast™ allows you to wirelessly send, or cast, music from your smartphone or tablet to your SmartCast Sound Bar. How to cast content To cast music to your sound bar: 1. Open any Cast-enabled app. Visit g.co/cast/audioapps for a list of compatible apps 2.

  • Page 31: Getting Started With The Vizio Smartcast App

    System. The app allows you to search for content and control cast playback across your favorite music apps. Account Setup You will need to log into your MyVIZIO account to take full advantage of the VIZIO SmartCast app. If you do not have an account, you can sign up for a free account.

  • Page 32: Selecting A Smartcast Device

    To select a different SmartCast device: 1. On the Home screen of the Vizio SmartCast app, tap This Device to reveal a list of available devices 2. Tap to select a new device to control. Make sure the newly selected SmartCast device is turned on.

  • Page 33: Creating An Audio Group

    With Google Cast’s multi-room playback capability, you can create audio groups and cast different music or the same music to multiple speakers at the same time. Prior to creating an audio group, make sure all speakers and sound bars have been set up using the VIZIO SmartCast App. To create an audio group: Install and open the Google Chromecast app.

  • Page 34: Bluetooth Pairing

    BLUETOOTH PAIRING To pair the sound bar with a Bluetooth device: Press and hold the Bluetooth button on the sound bar for five (5) seconds or select the BT Pair option from the display remote menu. When the sound bar is in Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from bottom to top and back again.

  • Page 35: Using Bluetooth Mode

    USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired.

  • Page 36: Re-Linking The Subwoofer With The Sound Bar

    RE-LINKING THE SUBWOOFER WITH THE SOUND BAR The subwoofer has already been paired with the sound bar by VIZIO. However, they may need to be re-linked if there is no sound coming from the subwoofer. Turn off your TV speakers when programming your sound bar.

  • Page 37: Advanced Setup

    ADVANCED SETUP Back of Sound Bar DIGITAL COAXIAL DIGITAL OPTICAL RCA CABLE HDMI CABLE CABLE CABLE Game Console Network Media Player Tablet/MP3 Player/Laptop USB Thumb Drive* Supports .WAV file format playback only. English - 37...

  • Page 38: Advanced Setup - Hdmi

    ADVANCED SETUP - HDMI Connect to HDMI (ARC) port on your TV HDMI cables transmit both audio and video. To view video from these devices, turn the sound bar HDMI CABLE on, then set the sound bar input to HDMI 5. Set your TV input to the HDMI port to which the sound bar is connected.

  • Page 39: Wall-Mounting The Sound Bar

    WALL-MOUNTING THE SOUND BAR Wall-Mount Screw Holes Back of Sound Bar Insert the two wall-mount screws into the wall-mount screw holes, and then tighten them with a Phillips screwdriver. Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil.
  • Page 40 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer.

  • Page 41: Wall-Mounting The Satellite Speakers

    WALL-MOUNTING THE SATELLITE SPEAKERS To wall-mount the satellite speakers: Attach the wall mount screw to the back of the satellite speaker. Attach the wall mount to the back of the satellite speaker. Align and mount the satellite speaker with the wall mount bracket. Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls).
  • Page 42 Take a moment to register your product VIZIO.COM/PRODUCT-REGISTRATION Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications.

  • Page 43: Need Help

    Award-Winning Customer Care At Your Convenience. NEED HELP? Go to: support.vizio.com Find help with: New product setup • • Connecting your devices • Technical problems • Product updates and more Live chat support available You can also contact our popular support team at:...
  • Page 44 VIZIO Recommends HDMI Cable ® The VIZIO HDMI Cable brings television, movies, sports, and gaming to life with ® support for Ultra High Definition video and audio. Easily installed in tight spaces, these cables keep your entertainment setup tidy. Available at VIZIO.com...
  • Page 45 VIZIO Recommends SmartCart™ E-Series TV Using the revolutionary VIZIO SmartCast app that turns your smartphone or tablet into your remote, E-Series lets you easily browse your favorite shows across multiple apps at once. Just tap to cast a show to your E-Series HDTV.

  • Page 46: Help & Troubleshooting

    HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your Sound Bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •...

  • Page 47: Limited Warranty

    VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no English - 47...
  • Page 48 What to Do If You Are Not Satisfied With Service If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
  • Page 49 General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement;...

  • Page 50: Specifications

    Specifications Sound Bar: Two 2.75” Full Range Drivers for Each Channel (2 for left, 2 for right) Sound Pressure Level 103 dB Two 2.75” Full Range Drivers for Center (System): Satellite: One 2.5” High-Efficiency Full-Range Driver (Each Satellite) Frequency Response 40 Hz - 20 KHz (System): Subwoofer:...

  • Page 51: Legal & Compliance

    LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 52 Image(s) used under license from Shutterstock.com This Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable efforts to ensure the accuracy of the information provided herein. All product specifications, functionality, features, configurations, performance, design and other product information described herein are subject to change without notice.
  • Page 53 Minimum requirements: Android 4.0 or later (to use the bluetooth functionality you must have Android™ 5.1 or later) iOS 8.0 or later. Subject to change. For a list of Android™ supported devices see HTTPS://Support.Google.com/GooglePlay/Answer/1727131?HL=EN Article. iOS devices supported: iPhone, iPad. Manufactured under license from Dolby Laboratories.
  • Page 54 © 2016 VIZIO INC. ALL RIGHTS RESERVED. 160602AD-US-A...
