Summary of Contents for Vizio SB4020E0-B0

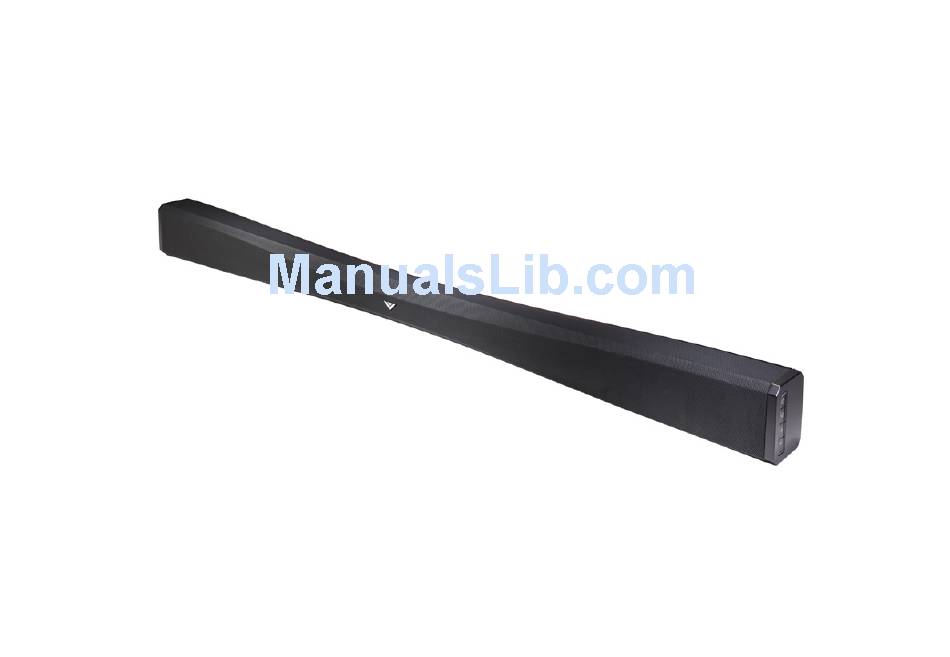

- Page 1 VIZIO QUICK START GUIDE Model: SB4020E-B0...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your Sound Bar is designed and manufactured to operate within defined design limits, and misuse may • If any of the following occurs, contact the dealer: result in electric shock or fire. To prevent your Sound Bar from being damaged, the following rules should - The power cord fails or frays be observed for its installation, use, and maintenance. - Page 3 WARNING DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two (2) hours and can lead to death. Keep new and used batteries away from children.
-
Page 4: Package Contents
PACKAGE CONTENTS SUB- MUTE SUB+ TVOL TSHD High Definition Sound Bar Remote Control with Battery Power Adapter w/Cable Stereo RCA to 3.5mm Digital Optical Audio Cable Cable This Quick Start Guide Wall Mount Template Wall Mount Brackets... -
Page 5: Controls And Connections
CONTROLS & CONNECTIONS Connections are located here: Power Port Aux Input Optical Input (Stereo 3.5mm) Service Port Sub Out Aux Input (Stereo RCA) For use only by service technician. Optical Input located on side:... - Page 6 Controls located here: Power Button Input Button Volume Up/Down Buttons Indicator LEDs...
-
Page 7: First Time Setup
FIRST-TIME SETUP BOTTOM OF SOUND BAR GOOD BETTER BEST 3.5MM TO RCA DIGITAL OPTICAL 3.5MM TO RCA CABLE CABLE CABLE CHOOSE ONE CABLE: GOOD BETTER BEST AND CONNECT IT TO YOUR TV* *Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual. - Page 9 Sound Bar is centered When using below the TV. remote, point it at the center of the Sound Bar. The sensor is located there. For the best surround sound experience, position the Sound Bar as shown.* The Sound Bar should be close to ear level.
- Page 10 Gently pull the plastic tab from the back of the remote control. (The plastic tab can be thrown away) Power Turn your TV on, then press the Power button on the remote to turn the Sound Bar on. MUTE SUB+ SUB- Press the Input button to cycle through the audio inputs.
-
Page 11: Using The Remote
USING THE REMOTE Power Press to turn on or off. Volume Up Press to increase volume. Mute Press to mute. SUB + MUTE SUB+ SUB- Press to increase subwoofer volume. SUB - Press to decrease subwoofer volume. Volume Down Press to decrease volume. SRS TruVolume SRS TruSurround HD Press to enable/disable SRS TruVolume. -
Page 12: Indicator Leds
INDICATOR LEDS Indicator LEDs located here: Indicator LEDs flash according to input selection: Optical - Input 3* AUX - Input 2 AUX - Input 1 *Rapid flash indicates incompatible source or file format. If there is no sound output, see Help & Troubleshooting page. - Page 13 Indicator LEDs located here: When the four center Indicator LEDs are brightly lit, the selected SRS mode is enabled. When the LEDs are not lit, SRS mode is disabled.
-
Page 14: Wall Mounting The Sound Bar
WALL MOUNTING THE SOUND BAR Place the included wall mounting template against the wall under your TV. Mark the locations of the 4 bracket holes using a pencil. 32.24’’/ 819mm 32.2 32.24’’/ 819mm 80g White paper, 920x160mm, 2折后尺寸：230x160mm 请按照档案1：1印刷 80g White paper, 920x160mm, 2折后尺寸：230x160mm 请按照档案1：1印刷... -
Page 15: Vizio Recommends
HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks out your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment. And with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness, VIZIO Co-Star is the ultimate entertainment upgrade for any high-definition television. -
Page 16: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your Sound Bar. • Ensure the power cord is securely connected. There is no power. • Ensure the light on the power adapter is glowing green. •... -
Page 17: Specifications
VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion. - Page 18 LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 19 DO YOU HAVE QUESTIONS? LET US HELP! YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT The VIZIO support team is highly trained and is based in the United States. We can help with: • New Product Setup • Connecting Your Devices •...
- Page 20 © 2013 VIZIO INC. ALL RIGHTS RESERVED. 130207OC-NC...
