Optional Equipment Connections

Note: The remote control must be programmed with supplied
codes to operate the optional equipment.

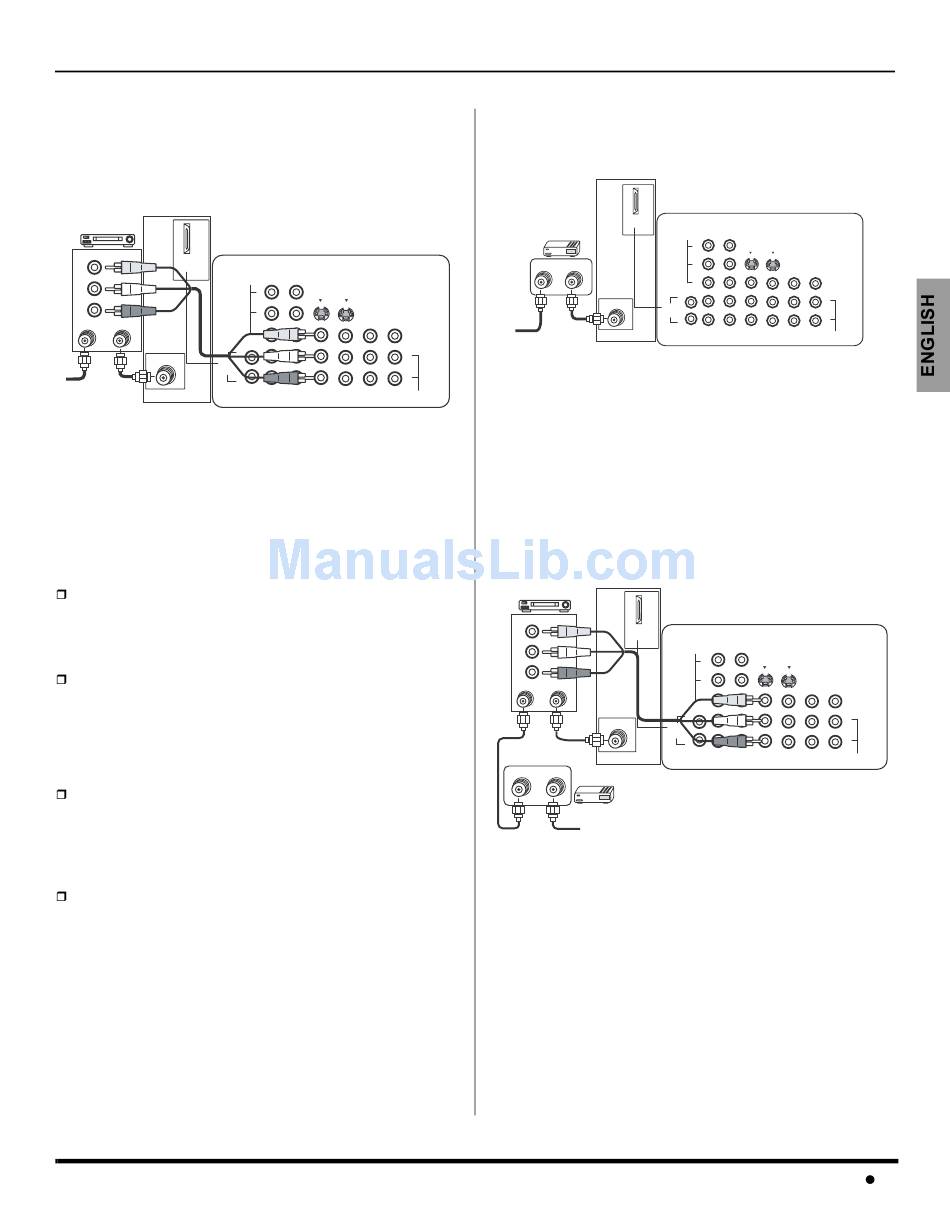

VCR Connection

Follow this diagram when connecting your television to a
VCR only.

VCR

PLAY
R
E FF
W
STOP
VIDEO OUT
HDMI
AV IN
L
AUDIO OUT
R
ANT IN ANT OUT
ANT
AUDIO
IN
Incoming
Cable
Note: Rear A/V jacks may vary, depending on model. Please
refer to the FEATURE CHART on page 4 for your
model's capabilities.
Viewing a television program
Procedure
• Tune the television to the program you want to view.
Viewing a video tape
Procedure
Option A
• Press the TV/VIDEO button on the remote control to
select the video input (VIDEO 1, VIDEO 2, etc.)
connected to your VCR.
• Begin to play the video tape.
Option B
• Tune the television to Channel 3 or 4, depending on your
VCR.
• Begin to play the video tape.
Recording a television program
Procedure
Option A (Recording and viewing the same program)
• Tune the television to Channel 3 or 4, depending on your
VCR.
• Using the VCR, tune to the television program you want
to record.
• Begin recording.
Option B (Recording one program while viewing another
program)
• Press the TV/VIDEO button on the remote control to
select the video input (VIDEO 1, VIDEO 2, etc.) to which
your VCR is connected.
• Using the VCR, tune to the television program you want
to record.
• Begin recording.
• Press the TV/VIDEO button on the remote control to
switch back to TV mode.
• Tune the television to the program you want to view.
TERMINALS ON BACK OF TELEVISION
VIDEO
Y
P
B
S-VIDEO
VIDEO
P
R
L
L
R
R
1 2
INPUT INPUT INPUT PROG
COMPONENT
TO AUDIO
OUT
1 2 3
VIDEO INPUT AMP
CABLES NOT INCLUDED
O
PTIONAL
Cable Box Connection
Follow this diagram when connecting your television to a
cable box only.
HDMI
AV IN

CABLE BOX

15
ANT IN ANT OUT
ANT
AUDIO
IN
Incoming
Cable
Note: Rear A/V jacks may vary, depending on model. Please
refer to the FEATURE CHART on page 4 for your
model's capabilities.
Viewing a premium (scrambled) cable channel
Procedure
• Tune the television to Channel 3.
• Using the cable box, tune to the premium cable channel
you want to view.
VCR and Cable Box Connection
Follow this diagram when connecting your television to
both a VCR and a cable box.
VCR
PLAY
R
E FF
W
STOP
VIDEO OUT
HDMI
AV IN
L
AUDIO OUT
R
ANT IN ANT OUT
ANT
AUDIO
ANT OUT ANT IN
CABLE BOX
15
Incoming
Cable
Note: Rear A/V jacks may vary, depending on model. Please
refer to the FEATURE CHART on page 4 for your
model's capabilities.
Viewing a premium (scrambled) cable channel
Procedure
• Tune the television to Channel 3.
• Using the cable box, tune to the premium cable channel
you want to view.
Recording a premium (scrambled) cable channel
Procedure
• Press the TV/VIDEO button on the remote control to
select the video input (VIDEO 1, VIDEO 2, etc.) for your
VCR.
• Turn the VCR ON.
• Tune the VCR to Channel 3 or 4, depending on the
switch setting on the back of the VCR.
E C
QUIPMENT ONNECTIONS
TERMINALS ON BACK OF TELEVISION
VIDEO
Y
P
B
S-VIDEO
VIDEO
P
R
L
L
R
R
1 2
INPUT INPUT INPUT PROG
COMPONENT
TO AUDIO
OUT
1 2 3
VIDEO INPUT AMP
CABLES NOT INCLUDED
TERMINALS ON BACK OF TELEVISION
VIDEO
Y
P
B
S-VIDEO
VIDEO
P
R
L
L
IN
R
R
1 2
INPUT INPUT INPUT PROG
COMPONENT
1 2 3 OUT
VIDEO INPUT
CABLES NOT INCLUDED CABLES NOT INCLUDED
TO AUDIO
AMP
