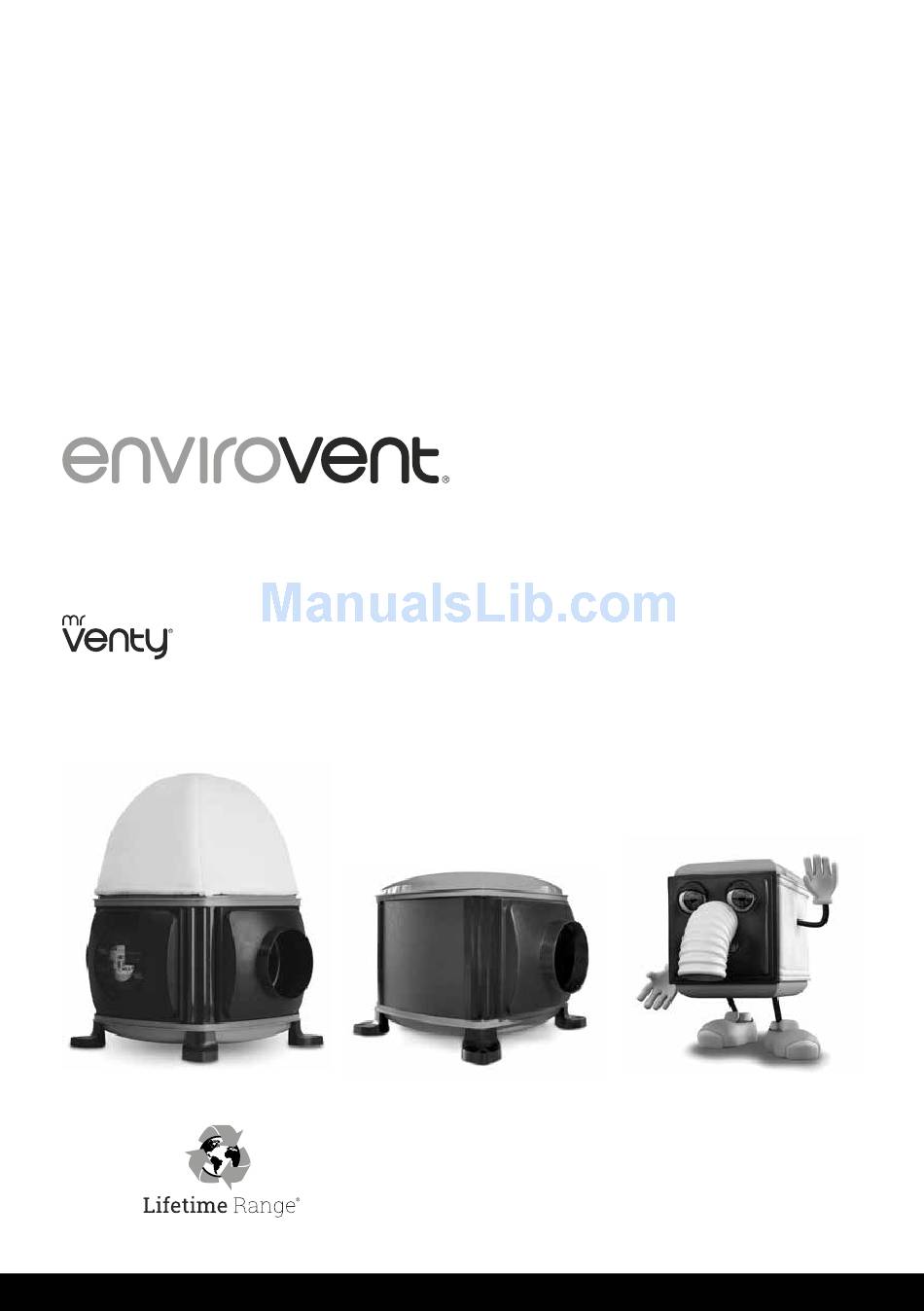

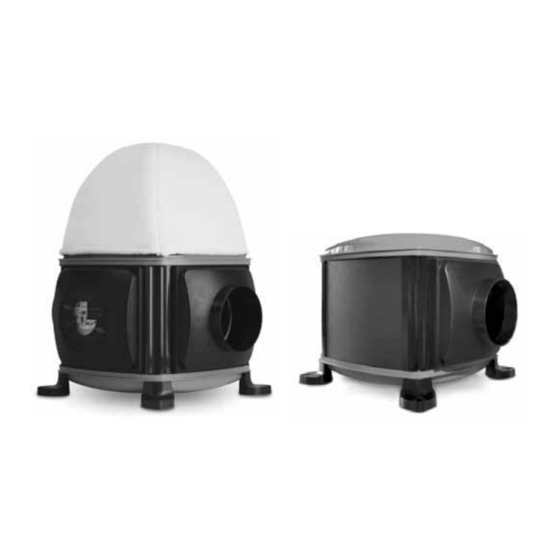

- Page 1 Air & ECO Loftight INSTALLATION GUIDE FOR ENGINEER / INSTALLER...
-
Page 2: Safety And Recommendations
Safety IMPORTANT SAFETY AND RECOMMENDATIONS Be sure to have read and understood • All wiring must comply with Building these instructions before beginning Regulations and the current I.E.E. the installation process. Wiring Regulations (BS7671) or the equivalent standards for your Smoke Detectors country. - Page 3 Made in Harrogate UK Thank you for choosing EnviroVent The fastest growing ventilation company in the UK. You are about to install a product that is designed to outlast the life-cycle of the building. Once installed the unit will operate continuously for 5 years and beyond without a major service.
-
Page 4: Pre-Installation Checklist
Pre-Installation Checklist Check that the loft has adequate cross flow FIXING KIT ventilation. Check that all party walls are intact, seek Description Item advice if the wall is missing or broken. Check that any flue which passes through the loft is not damaged, seek advice if the 8 X FOAM PADS flue is in a poor state of repair. -
Page 5: Installation Diagrams
Installation Diagrams Contents for unit Supply Voltage • 1 x Cardboard template 230V • STANDARD INSTALLATION 2 x Diffuser 50Hz • 1 x Fixing kit (page 3) 525W Max Installation diagram for the ECO 1 x Unswitched fused spur 1m x Ø200mm Flexi duct 1 x Filter 650mm x 50mm x 25mm batten 1 x Heater enable switch or... -
Page 6: Installation Instructions
Installation Instructions FIRST STAGE THIRD STAGE Position a dustsheet beneath the site you have Push ducting through the hole in the ceiling. chosen for cutting the hole for the diffuser. Protect Return to the hallway and connect the ducting your lungs with a mask. Enter the loft space with onto the neck of the diffuser using rest of the the ECO Air or ECO... - Page 7 Installation Instructions FIFTH STAGE - Fitting the inline filter Filter location - The filter should be located in the supply airflow between the external input point and the unit. It is recommended that it is fitted directly to the ECO Air Unit spigot in a section of Ø150mm x 350mm (min) ridged duct.
- Page 8 Installation Instructions Maintenance - For maximum efficiency of the unit, it is recommended that the filter is cleaned every 24 to 36 months by a competent person. Use a vacuum cleaner, a soft brush or warm water (air dry fully before replacing).
- Page 9 Installation Instructions SIXTH STAGE SEVENTH STAGE Choose a location for the fresh air intake and The ECO Air and ECO Loftight units must only be drill a Ø158mm (or Ø132mm) hole for wall kit. installed by a competent person and should be Depending on the layout of your attic, you have connected to an electrical supply in accordance three options for locating the input of fresh air...
- Page 10 Installation Instructions NINTH STAGE cont. - Wireless units only On commission the unit will Press button once, to indicate default to the trickle flow rate current fan speed and heater with heater enable on status. LEDs stay on constant for a few seconds To pair additional remote control switches: To change speed setting 1.
- Page 11 (when it is pressed) the control will need to be reprogrammed. Call your maintenance company or EnviroVent for advice. (Green) AFTER INSTALLING THIS UNIT, DO NOT THROW AWAY PLEASE PASS ONTO END USER...
- Page 12 Your feedback is important to us as we strive to improve our and improvement EnviroVent reserves the products, services, and overall customer experience. Please email right to alter products specification and us to help us serve you better: feedback@envirovent.com appearance without notice.
