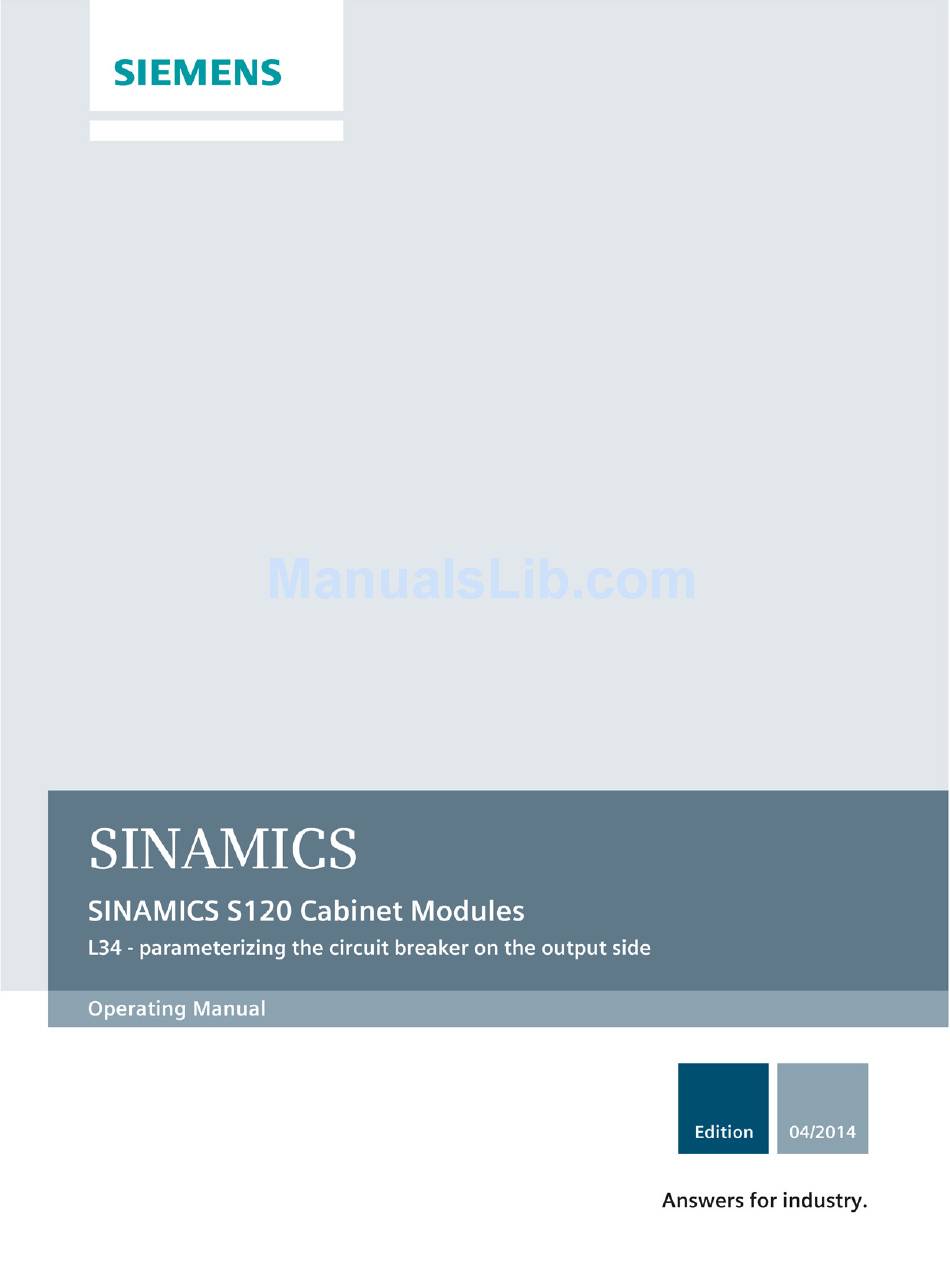

  • Page 3 ___________________ Option L34 parameterizing the circuit Safety notes breaker on the output side ___________________ Description ___________________ SINAMICS Operation (software) S120 Cabinet Modules Option L34 parameterizing the circuit breaker on the output side Operating Instructions 04/2014 A5E02914106A...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Safety notes ..............................7 General safety instructions ....................... 7 Description ..............................11 Operation (software) ..........................13 Handling instruction for execution of scripts ................13 Option L34 parameterizing the circuit breaker on the output side Operating Instructions, 04/2014, A5E02914106A...
  • Page 6 Table of contents Option L34 parameterizing the circuit breaker on the output side Operating Instructions, 04/2014, A5E02914106A...
  • Page 7: Safety Notes

    Safety notes General safety instructions DANGER Danger to life due to live parts and other energy sources Death or serious injury can result when live parts are touched. • Only work on electrical equipment if you are appropriately qualified. • Always observe the country-specific safety rules for all work. Generally, six steps apply when establishing safety: 1.
  • Page 8 Safety notes 1.1 General safety instructions WARNING Danger to life when live parts are touched on damaged devices Improper handling of devices can cause damage. Hazardous voltages can be present at the housing or exposed components on damaged devices. • Ensure compliance with the limit values specified in the technical data during transport, storage and operation.
  • Page 9 Safety notes 1.1 General safety instructions WARNING Danger to life through unexpected movement of machines when using mobile wireless devices or mobile phones Using mobile radios or mobile phones with a transmit power > 1 W closer than approx. 2 m to the components may cause the devices to malfunction, influence the functional safety of machines therefore putting people at risk or causing material damage.
  • Page 10 Safety notes 1.1 General safety instructions NOTICE Device damage caused by incorrect voltage/insulation tests Incorrect voltage/insulation tests can damage the device. • Before carrying out a voltage/insulation test, disconnect the system/machine. All converters and motors are subject to a high voltage test in the manufacturer's facility. As a consequence, it is not necessary to carry out additional tasks in the system/machine.
  • Page 11: Description

    Description The option L34 (output-side circuit breaker) can be used to disconnect the motor terminals from the converter. This option is pre-wired and installed in a separate cabinet. The option is described in the S120 Cabinet Modules Manual. A script can be used for the automatic parameterization, which automatically makes the parameter settings in STARTER.
  • Page 12 Description Option L34 parameterizing the circuit breaker on the output side Operating Instructions, 04/2014, A5E02914106A...
  • Page 13: Operation (software)

    Operation (software) Handling instruction for execution of scripts Inserting a script folder into the project 1. Right-click the project in offline mode in the project navigator to open the project's context menu. 2. Select > "Expert" in the context menu. 3.
  • Page 14 Operation (software) 3.1 Handling instruction for execution of scripts Your inserted script folder should look like this: Importing the script 1. Right-click the > "SCRIPTS" folder in the project navigator to open the context menu of the script folder. 2. Left-click > "Import object" in the context menu of the script folder to open the Import window.
  • Page 15 Operation (software) 3.1 Handling instruction for execution of scripts 3. Left-click the > "Browse" button in the Import window. The Explorer window for the script import will open. 4. Now select the path to the XML script from the customer DVD (e.g.
  • Page 16 Operation (software) 3.1 Handling instruction for execution of scripts Your inserted script should look like this: Accepting and executing the script For the following steps, you must have the project in online mode. 1. Left-click > "Connect to target system" in the toolbar. 2.
  • Page 17 Operation (software) 3.1 Handling instruction for execution of scripts A progress display will be displayed while the script is executing. The user interface of the application is blocked while the script is executing. Selecting the drive objects (DO) If several drive objects (DO) and/or several input/output components are available in the project (e.g.
  • Page 18 Operation (software) 3.1 Handling instruction for execution of scripts 3. Select the desired input/output component (TM31) by entering the corresponding number. 4. Confirm your selection with "OK". 5. Confirm your selection with "OK", when you have selected the correct drive object (DO) and/or input/output component (TM31).
