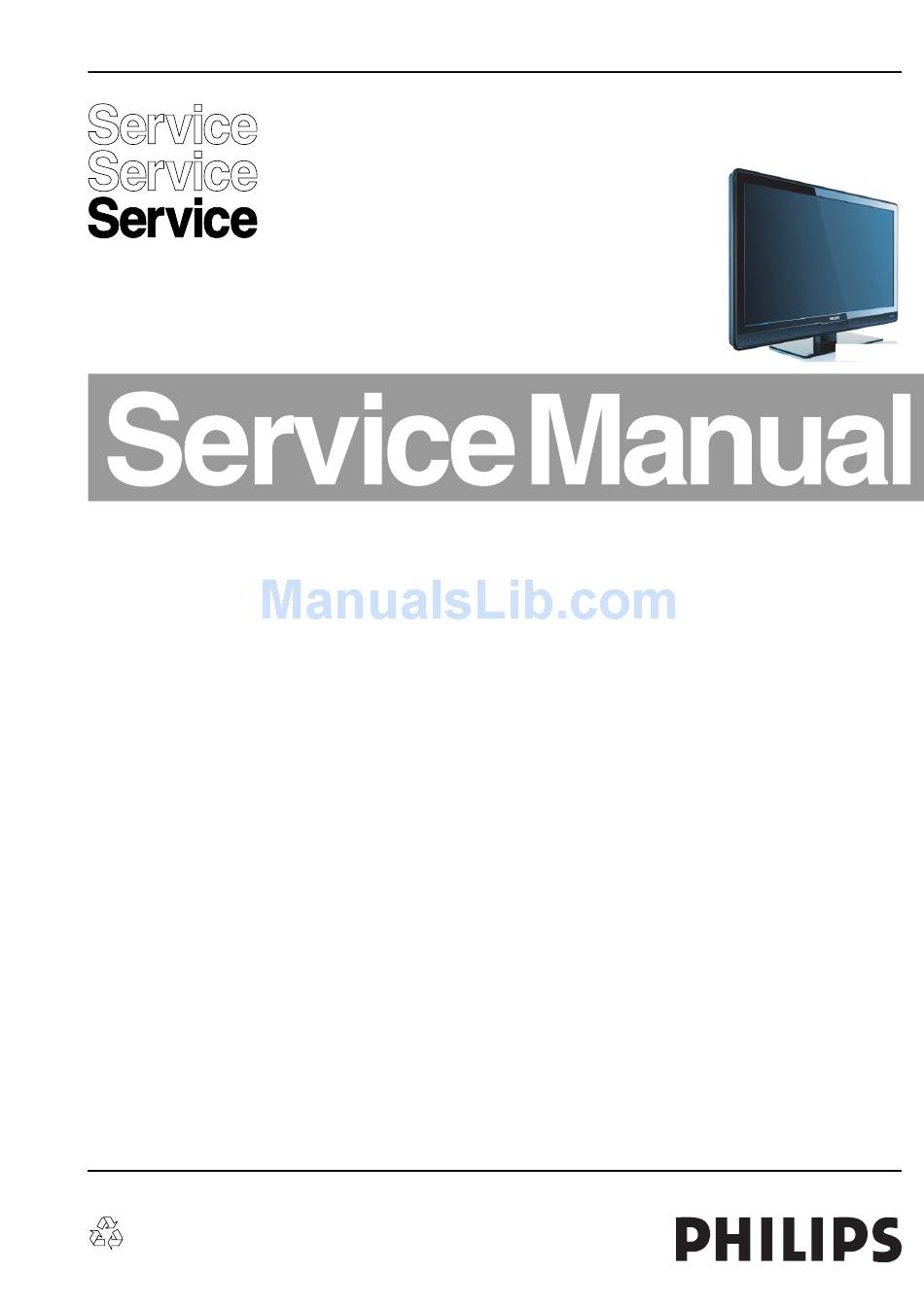

Colour TV
Contents
©
Copyright 2008 Koninklijke Philips Electronics N.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by CS 0864 BU CD Consumer Care
Page
Contents
2
5
6
7
13
14
15
16
17
18
19
20
Diagram PWB
(A) 21
22
(A1) 23
25
(A2) 24
25
27
46-55
46-55
46-55
46-55
(B05) 32
46-55
46-55
46-55
(B08) 35
46-55
(B09) 36
46-55
46-55
(B11) 38
46-55
46-55
(B13) 40
46-55
Printed in the Netherlands
Subject to modification
Chassis
TPS1.3A
LA
I_17610_000.eps
100408
Page
46-55
46-55
46-55
46-55
(B18) 45
46-55
57
59
61
63
64
66
68
71
81
EN 3122 785 17610

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS1.3A and is the answer not in the manual?

Questions and answers

Related Manuals for Philips TPS1.3A

Summary of Contents for Philips TPS1.3A

  • Page 1: Table Of Contents

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips. Published by CS 0864 BU CD Consumer Care...

  • Page 2: Technical Specifications, Connections, And Chassis Overview

    EN 2 TPS1.3A LA Technical Specifications, Connections, and Chassis Overview 1. Technical Specifications, Connections, and Chassis Overview Index of this chapter: 1.1.3 Miscellaneous 1.1 Technical Specifications 1.2 Connection Overview Power supply 1.3 Chassis Overview AC-input (V_ac) : 100 ~ 240 Power consumption (W) : 150 max (32”)
  • Page 3 Technical Specifications, Connections, and Chassis Overview TPS1.3A LA EN 3 Connection Overview VGA: Video RGB - In E_06532_002.eps 050404 Figure 1-3 VGA Connector - Video Red 0.7 V / 75 ohm - Video Green 0.7 V / 75 ohm - Video Blue 0.7 V...
  • Page 4 EN 4 TPS1.3A LA Technical Specifications, Connections, and Chassis Overview Chassis Overview I_17610_004.eps 100408 Figure 1-5 Chassis Overview...

  • Page 5: Safety Instructions, Warnings, And Notes

    • Be careful during measurements in the high voltage • Use only lead-free soldering tin Philips SAC305 with order section. code 0622 149 00106. If lead-free solder paste is required, • Never replace modules or other components while the unit please contact the manufacturer of your soldering is switched "on".

  • Page 6: Directions For Use

    2008 week 10). The 6 last digits contain the reduce heat. serial number. • Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to MADE IN BELGIUM MODEL 32PF9968/10 avoid mixed regimes. If this cannot be avoided, carefully 220-240V 50/60Hz clear the solder-joint from old tin and re-solder with new tin.

  • Page 7: Mechanical Instructions

    Mechanical Instructions TPS1.3A LA EN 7 4. Mechanical Instructions Index of this chapter: Notes: 4.1 Cable Dressing • Figures below can deviate slightly from the actual situation, 4.2 Service Positions due to the different set executions. 4.3 Assy/Panel Removal •...
  • Page 8 EN 8 TPS1.3A LA Mechanical Instructions Service Positions 4.3.2 Keyboard Control Board 1. Refer to next figure. For easy servicing of this set, there are a few possibilities 2. Unscrew two screws[1] created: 3. Release clips [2]. • The buffers from the packaging.
  • Page 9 Mechanical Instructions TPS1.3A LA EN 9 4.3.5 Power Supply Board 1. Refer to next figure. 2. Unplug all the connectors [1]. 3. Remove the fixation screws [2] 4. Remove the board. I_17610_011.eps 280308 Figure 4-8 SB removal Set Re-assembly To re-assemble the whole set, execute all processes in reverse order.

  • Page 10: Service Modes, Error Codes, And Fault Finding

    EN 10 TPS1.3A LA Service Modes, Error Codes, and Fault Finding 5. Service Modes, Error Codes, and Fault Finding Index of this chapter: 5.1 Test Points 5.2 Service Mode 5.3 Error Codes 5.4 Software Upgrading Test Points This chassis is NOT equipped with test points in the service printing.
  • Page 11 Service Modes, Error Codes, and Fault Finding TPS1.3A LA EN 11 Contents of CSM I_17610_013.eps 280308 Figure 5-3 CSM Menu Menu Explanation 1. Set Type. Type number and region. 2. Production code. Product serial no. 3. SW naming main-processor. Software cluster and version is displayed.

  • Page 12: Error Codes

    Scaler Chip Error Software Upgrading 5.4.1 ComPair Introduction ComPair (Computer Aided Repair) is a Service tool for Philips ComPair II Developed by Philips Brugge Consumer Electronics products. and offers the following: 1. ComPair features TV software upgrade possibilities. Optional power 2.

  • Page 13: Block Diagrams, Test Point Overviews, And Waveforms

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA 6. Block Diagrams, Test Point Overviews, and Waveforms Wiring Diagram (37”) WIRING DIAGRAM 37” I_17610_018.eps 080408...

  • Page 14: Wiring Diagram (42")

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Wiring Diagram (42”) Wiring Diagram (42”) I_17610_019.eps 100408...

  • Page 15: Wiring Diagram (47")

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Wiring Diagram (47”) Wiring Diagram (47”) I_17610_020.eps 080408...

  • Page 16: Block Diagram Internal System (42")

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Block Diagram Internal System (42”) Key Bd IR Bd L-R Speaker 42PFL3403 Internal System Block Diagram CN7301 CN7302 CN6101 CN6102 LIPS Bd TPA3120D U6102 STDBY MCU 1st_SPI NVRAM X’FRM S25FL004A WT6702...

  • Page 17: Block Diagram Internal System (47")

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Block Diagram Internal System (47”) Key Bd IR Bd L-R Speaker 47PFL3403 Internal System Block Diagram CN7301 CN7302(7P) CN6101 CN6102 LIPS Bd TPA3120D U6102 STDBY MCU 1st_SPI NVRAM S25FL004A WT6702 M24C32...
  • Page 18 Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Block Diagram Power Management (1) POWER MANAGEMENT (1) +5V_STBY +3.3V_STBY AIC1550 WT6702F U7101 U4101 +3V3_HD_SW +3V3_SW +5V_SW PI3HDMI1212ABE AME8815 S14835 FB1503 U1503 U7103 Q7103 SPI Flash ROM U4402 +1V2 AIC1550 U7104...
  • Page 19 Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA Block Diagram Power Management (2) POWER MANAGEMENT (2) +12V +12V_SW SI4835 PANEL FB7105 Q7114 PANEL_PWR +24V +24V_SW +24V_AMP SI4835 TPA3123D2 U6102 FB6103 Audio post - AMP Q6105 SOUND_EN I_17610_024.eps 080408...

  • Page 20: External I/O (42" - 47")

    Block Diagrams, Test Point Overviews, and Waveforms TPS1.3A LA External I/O (42” - 47”) EXTERNAL I/O FOR 42_47PFL3403 SIF0 Tuner Tuner CVBS0 HDMI 1 DVI-D HDMI 2 R1,G1,B1 D-SUB UART1 AUL2, AUR2 Com Pair PC Audio Cloning (ITV-1) CVBS CVBS1...

  • Page 21: Circuit Diagrams And Pwb Layouts

    Circuit Diagrams and PWB Layouts TPS1.3A LA 7. Circuit Diagrams and PWB Layouts Display Supply (32”) BD901 NR901 DISPLAY SUPPLY (32”) C901 Q901 C902 Q945 C903 Q951 FB902 C904 Q952 +400V_F +400V C905 Q988 Jump FB904 FB905 C906 Q992 D902...
  • Page 22 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Display Supply Panel (32”) (Top Side) Layout Display Supply Panel (32”) (Bottom Side) BD901 D2 C944 C985 D980 HD935 A3 J912 J924 L906 R971 T902 C910 C1 C936 C1 C958 A3 Q988 B3...

  • Page 23: Display Supply (37"-42") (Part 1) (A1)

    Circuit Diagrams and PWB Layouts TPS1.3A LA Display Supply (37”-42”) (Part 1) BD901 R911 C901 R912 DISPLAY SUPPLY (37”-42”) (PART 1) C902 R913 C903 R914 C904 R915 C907 R916 C908 R917 C909 R918 C911 R919 STTH5L06FP FB905 D901 C912 R920...

  • Page 24: Display Supply (37"-42") (Part 2) (A2)

    Circuit Diagrams and PWB Layouts TPS1.3A LA Display Supply (37”-42”) (Part 2) C801 R881 POWER SUPPLY (37”-42”) (PART 2) C802 R882 C806 R883 C807 R884 INVERTER C808 R885 C809 T801 T803 C810 T802 TRF-UU28(NC) C812 T803 395V C814 CN803 D812...
  • Page 25 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Display Supply Panel (37”-42”) (Top Side) Layout Display Supply Panel (37”-42”) (Bottom Side) BD901 C907 C932 C950 D806 D923 HD921 IC921 J902 J912 C806 C818 C845 C914 C935 C952 D813 IC901 C3...
  • Page 26 Circuit Diagrams and PWB Layouts TPS1.3A LA Display Supply (47”) BD901 C910 C922 C929 C937 C952 C969 D902 D931 FB919 HD902 IC902 L901 L964 Q920 R916 R928 R939 R947 R957 C900 C912 C923 C930 C939 C955 CN901 D903 D932 FB920...

  • Page 27: Display Supply (47

    Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Display Supply Panel (47”) (Top Side) Layout Display Supply Panel (47”) (Bottom Side) BD901 C935 CN901 D931 HBD902 D1 IC914 J914 L903 R926 TH901 C900 C936 CN902 D932 HD901 J901 J915 L906...

  • Page 28: Ssb: Dc / Dc Power (B01)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: DC / DC Power C7101 A1 DC / DC POWER C7103 A2 C7105 A4 C7107 A5 C7110 B3 C7113 D3 U7101 L7101 C7116 E3 AIC1550POTR R7138 C7118 G4 +5V_STBY +3V3_STBY C7120 B5 6.8uH...

  • Page 29: Ssb: Lips & Inverter I/F (B02)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: LIPS & Inverter I/F CN7201 C2 C7204 C7209 FB7201 FB7206 R7202 R7208 R7213 CN7202 C2 C7205 C7210 FB7202 FB7207 R7203 R7209 R7214 C7201 C7206 C7211 FB7203 Q7201 R7204 R7210 R7215 C7202 C7207...

  • Page 30: Ssb: Tuner (B03)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Tuner CN1101 A2 C1104 C1108 C1112 C1116 FB1102 C5 R1103 R1107 R1111 R1115 TU1101 B1 C1101 C1105 C1109 C1113 C1117 Q1101 R1104 R1108 R1112 R1116 TU1102 A1 C1102 C1106 C1110 C1114 C1118...

  • Page 31: B04

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Video Input 1 C1201 C1206 C1211 C1216 CN1201 D1203 D1208 FB1205 R1204 R1209 C1202 C1207 C1212 C1217 CN1202 D1204 FB1201 FB1206 R1205 R1210 C1203 C1208 C1213 C1218 CN1203 D1205 FB1202 R1201 R1206...

  • Page 32: Ssb: Video Input 2 (Side Io)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Video Input 2 (Side IO) N1301A A1 N1301B B1 VIDEO INPUT 2 (SIDE IO) CN1302 C1 CN1301A CN1303 C3 SJACK+RCA1X3H C1301 A2 C1302 A2 SIDE_SV_Y0 R1302 C1303 C1303 A3 SV_Y0 FB1301 C1304 B2...

  • Page 33: Ssb: Dsub Input (B06)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: DSUB Input C1401 C1407 CN1401 C4 FB1401 C5 R1402 R1408 R1414 R1420 R1426 R1432 ZD1404 D4 C1402 C1408 CN1402 C1 FB1402 C6 R1403 R1409 R1415 R1421 R1427 U1401 ZD1405 D5 C1403 C1409...

  • Page 34: B07

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: HDMI Input 1 C1501 C1506 C1511 C1516 C1521 C1528 D1501 FB1501 B3 Q1503 R1502 R1507 R1512 R1517 R1523 R1528 R1533 R1538 ZD1501 B3 ZD1506 C1 C1502 C1507 C1512 C1517 C1522 C1529 D1502...

  • Page 35: Ssb: Hdmi Input 2 (Side Io)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: HDMI Input 2 (Side IO) CN1601 A1 HDMI INPUT 2 (SIDE IO) C1601 B3 C1602 A5 +5V_SW HD5V_C C1603 B4 CN1601 D1601 C1604 B4 BAT54C(NC) 2RX2+ R1605 2R2(NC) C1605 D1 R_2TX2+ R1606...

  • Page 36: Ssb: Wt6702F (Standby Mcu)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: WT6702F (Standby MCU) C4101 A3 WT6702F (STANDBY MCU) C4102 A3 C4103 A6 C4104 A6 FB4101 C4105 B2 C4106 B2 +3V3_STBY +3V3_STBY 120R C4107 D4 C4108 C6 C4101 C4102 C4109 D5 10U 10V 0.1uF...

  • Page 37: Ssb: Scaler Mst98981Cld (B10)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Scaler MST98981CLD C4201 A1 C4210 C2 C4219 C2 C4228 F1 C4237 A5 C4246 E3 CN4201 C10 FB4208 F1 R4207 B3 R4216 F4 R4227 G4 R4236 G5 R4245 G7 R4254 G8 R4263 C7...

  • Page 38: Ssb: Flash Rom & Memory

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Flash ROM & Memory C4401 A1 C4402 B1 FLASH ROM & MEMORY C4403 B1 C4404 B2 C4405 B2 C4406 B2 1st SPI Flash ROM for Main Control C4407 B2 C4408 B3 C4409 B3...

  • Page 39: Ssb: Key, Ir Bd, & Compair I/F (B12)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Key, IR BD, & ComPair I/F CN7301 A3 KEY, IR BD & COMPAIR I/F CN7302 C5 CN7303 A6 CN7304 C4 CN7305 C5 C7301 A2 C7302 A2 C7303 D2 C7304 B4 C7305 D4...

  • Page 40: Ssb: Itv I/F

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: ITV I/F C7401 ITV I/F C7402 C7403 C7404 C7405 C7406 C7407 C7408 I-BOARD SYSTEM I/F (ITV Level 2) CN7402 C7409 Power for MM/DVB-T Module/ I-BOARD (ITV Level 2) C7410 C7411 C7412 I2C_SCL...

  • Page 41: Ssb: Panel I/F (B14)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Panel I/F CN7501 B1 PANEL I/F R7501 B2 R7502 C2 R7503 A2 R7504 B2 PANEL_VCC R7503 10K 1%(NC) PANEL_HIGH R7504 0R05 RXE3+ RXE3+ PANEL_VCC RXE3- RXE3- RXEC+ RXEC+ RXEC- RXEC- PANEL_HIGH RXE2+...

  • Page 42: Ssb: Audio I/F (B15)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Audio I/F CN1701 A1 AUDIO I/F CN1702 B1 CN1703 C1 C1701 A3 C1702 A4 CN1701 C1703 A5 YPbPr1_AU_INL R1701 C1703 100N AUL0 C1704 A3 C1705 A4 C1701 R1702 C1702 C1706 A5 560P...

  • Page 43: Ssb: Audio Amplifier (B16)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Audio Amplifier CN6101 D10 C6113 C6137 C6155 FB6103 D7 R6105 R6119 R6145 R6164 U6101B E4 C6110 C6134 C6152 D6101 R6102 R6116 R6142 R6157 R6175 C6101 C6125 C6139 C6157 L6101 R6107 R6121 R6147...

  • Page 44: Ssb: Audio Out (B17)

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: Audio Out CN6201 B6 AUDIO OUT C6201 C2 C6202 C2 C6203 B3 C6204 B3 C6205 B3 C6206 C3 C6207 B4 C6208 C4 +24V C6210 A3 C6211 A4 FB6201 120R C6212 B5 C6213 C5...

  • Page 45: Ssb: Usb

    Circuit Diagrams and PWB Layouts TPS1.3A LA SSB: USB CN1801 C2 CN1802 C2 +5V_STBY +5V_SW2 C1801 B2 C1802 A3 R1813 R1814 C1803 B3 0R05(NC) 0R05(NC) C1804 B3 C1805 C2 C1806 D3 C1807 C2 FB1801 A3 FB1802 A3 Q1802 L1801 B3...
  • Page 46 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Overview Top Side) C1101 C1115 C1211 C1305 C1407 C1520 C1708 C1722 C4105 C4242 C4402 C6112 C6136 C6154 C6215 C7117 C7132 C7204 C7305 C7414 CN1601 C1 CN7303 D3 D1204 D1601...
  • Page 47 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 1 Top Side) Part 1 I_17610_055a.eps 100408...
  • Page 48 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 2 Top Side) Part 2 I_17610_055b.eps 100408...
  • Page 49 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 3 Top Side) Part 3 I_17610_055c.eps 100408...
  • Page 50 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 4 Top Side) Part 4 I_17610_055d.eps 100408...
  • Page 51 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Overview Bottom Side) C1509 C2 C1514 C2 C1519 C2 C1528 C2 C4203 B3 C4208 B3 C4215 B3 C4221 B3 C4226 B3 C4231 B3 C4403 B4 C4408 A4 C6165 B5...
  • Page 52 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 1 Bottom Side) Part 1 I_17610_056a.eps 100408...
  • Page 53 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 2 Bottom Side) Part 2 I_17610_056b.eps 100408...
  • Page 54 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 3 Bottom Side) Part 3 715T2878-1 I_17610_056c.eps 100408...
  • Page 55 Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Small Signal Board (Part 4 Bottom Side) Part 4 I_17610_056d.eps 100408...
  • Page 56 Circuit Diagrams and PWB Layouts TPS1.3A LA Side I/O Panel CN0301 A1 SIDE I/O PANEL CN0302 A5 N0303A C1 N0303B B1 HR_DET C0301 A2 CN0301 Front_CVBS C0302 A2 2SJ1508-001111 Front_C C0303 C2 Front_Y C0304 C2 HR_ROUT Aud_IN_L C0305 B3 HR_LOUT...

  • Page 57: Side I/O Panel

    Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Side I/O Panel (Top Side) Personal Notes: CN0301 A2 CN0302 A1 CN0303 A1 I_17610_058.eps 715T2977-1 090408 Layout Side I/O Panel (Bottom Side) C0301 C0303 C0305 C0307 FB0302 A2 J002 R0301 R0309 C0302...
  • Page 58 Circuit Diagrams and PWB Layouts TPS1.3A LA Keyboard & Control Panel CN0101 A1 KEYBOARD & CONTROL PANEL C0101 B1 C0102 B2 C0103 B2 R0101 B3 R0102 B3 R0103 B4 R0104 B4 R0105 B5 CN0101 SW0101 B2 SW0102 B3 SW0103 B3...

  • Page 59: Keyboard & Control Panel

    Circuit Diagrams and PWB Layouts TPS1.3A LA Layout Keyboard & Control Panel (Top Side) Personal Notes: CN0101 A2 SW0101 A3 SW0102 A1 SW0103 A1 SW0104 A2 SW0105 A3 SW0106 A3 I_17610_061.eps 715T2939-1 090408 Layout Keyboard & Control Panel (Bottom Side)
  • Page 60 Circuit Diagrams and PWB Layouts TPS1.3A LA IR & LED Panel CN0201 C1 IR & LED PANEL C0201 C4 +5V_STBY C0202 C3 C0203 C2 C0204 C2 C0205 C2 FB0201 C1 R0206 R0201 FB0202 C2 390R FB0203 C2 FB0204 C2 FB0205 C1...

  • Page 61: Ir & Led Panel

    Circuit Diagrams and PWB Layouts TPS1.3A LA Layout IR & LED Panel (Top Side) Personal Notes: C0201 C0204 FB0202 A1 FB0205 A1 Q0201 R0202 R0205 R0208 C0202 C0205 FB0203 A1 ED0201 A1 Q0202 R0203 R0206 U0201 C0203 FB0201 A1 FB0204 A1...
  • Page 62 Circuit Diagrams and PWB Layouts TPS1.3A LA Personal Notes: E_06532_013.eps 131004...

  • Page 63: Alignments

    Alignments TPS1.3 A LA EN 63 8. Alignments Index of this chapter: Table 8-1 Reading With Minolta CA-210 8.1 Electrical Alignments 8.2 Serial Number Definition Normal (9300K) Cool (11500K) Warm (6500K) 0.289 +/- 0.015 0.278 +/- 0.015 0.314 +/- 0.015 Note: 0.291 +/- 0.015 0.278 +/- 0.015...

  • Page 64: Circuit Descriptions, Abbreviation List, And Ic Data Sheets

    The special colour The platform is also designed for the lowest power processing technology provides favourite and natural colours. consumption in off/stand-by mode (<0.3W) to fulfil new Philips CE environment policy requirement. The WT6702F is a micro controller for system power...
  • Page 65 Circuit Descriptions, Abbreviation List, and IC Data Sheets TPS1.3 A LA EN 65 I_17610_017.eps 280308 Figure 9-2 Power management...

  • Page 66: Abbreviation List

    Committee LATAM LATin AMerica C-FRONT Chrominance front input LC04 Philips chassis name for LCD TV 2004 Circuit Board Assembly (or PWB) project Constant Level: audio output to Liquid Crystal Display connect with an external amplifier Light Emitting Diode...
  • Page 67 Sound right SCART2 out SNDS-VL-OUT Surround sound left variable level out SNDS-VR-OUT Surround sound right variable level out SOPS Self Oscillating Power Supply S/PDIF Sony Philips Digital InterFace SRAM Static RAM STBY Stand-by SVHS Super Video Home System Sub Woofer / SoftWare...

  • Page 68: Ic Data Sheets

    EN 68 TPS1.3 A LA Circuit Descriptions, Abbreviation List, and IC Data Sheets IC Data Sheets This section shows the internal block diagrams and pin layouts of ICs that are drawn as "black boxes" in the electrical diagrams (with the exception of "memory" and "logic" ICs). 9.4.1 Diagram B1A, MST98981CL Pin Diagram (MST98981CL)
  • Page 69 Circuit Descriptions, Abbreviation List, and IC Data Sheets TPS1.3 A LA EN 69 9.4.2 Diagram B2A, P13HDMI1212_A I_17610_066.eps 090408 Figure 9-4 Pin configuration...
  • Page 70 EN 70 TPS1.3 A LA Circuit Descriptions, Abbreviation List, and IC Data Sheets 9.4.3 Diagram B3A, WT6702F Block Diagram Turbo 8031 MCU 8K bytes code 8051 flash UART,Timer0, Timer1 Internal 256 bytes SRAM 1st SIIC 32K Oscillator 2nd SIIC 3rd SIIC Oscillator HV DPMS Detector...

  • Page 71: Spare Parts List

    Spare Parts List TPS1.3 A LA EN 71 10. Spare Parts List Sets Listed per Model Number (CTN) C814 9965 100 14175 CAP 0805 5N6 50V X7R +/-10% C815 9965 000 43406 100nF 10% 25V 0805 C815 9965 000 43407 100nF 10% 50V 0805 42PFL3403/93 C816 9965 000 42264 1μF 16V 0805...
  • Page 72 EN 72 TPS1.3 A LA Spare Parts List C939 9965 000 44292 0.1uF 50V 0805 R914 9965 100 14156 RSTR 39KOHM +-5% 1/8W YAGEO C940 9965 000 43407 100nF 10% 50V 0805 R915 9965 100 12255 RST CHIPR 22 OHM +-5% 1/8W C940 9965 000 44292 0.1uF 50V 0805 R916...
  • Page 73 9965 100 14780 TVS P6KE160A DO-15 ZD911 9965 100 14782 DIODE P6KE160A DO-15 IC801 9965 000 36059 0Z9938 IC901 9965 100 11636 IC TEA1530AT/N2 SO-8 PHILIPS ZD911 9965 100 14783 DIODE P6KE160A DO-15 IC902 9965 000 44633 SG6961 IC903 9965 000 36055 PC123Y22FZOF...
  • Page 74 9965 100 14769 RST CFR 2K7 1/6W 5% D928 9965 100 13025 DIODE 40V/10A SBF1040CT R929 9965 100 02493 47kΩ 5% 1/8W D930 9965 100 14785 DIODE BAV21 PHILIPS R930 9965 100 14752 RSTR 4.7 KOHM +-5% 1/4W D931 9965 100 14785 DIODE BAV21 PHILIPS R932...
  • Page 75 9965 100 03320 DIODE SMD ESD PROTECTER C1720 9965 000 43889 560pF 50V 0805 ZD1509 9965 100 03320 DIODE SMD ESD PROTECTER C1721 9965 000 36040 0.1μF 10% 25V ZD6101 9965 100 14233 DIODE BZX84-B18 SOT-23 PHILIPS C1722 9965 000 42229 22pF 50V NPO 0603...
  • Page 76 EN 76 TPS1.3 A LA Spare Parts List C1723 9965 000 43889 560pF 50V 0805 C6133 9965 000 43989 470nF 20% 50V C1724 9965 000 36040 0.1μF 10% 25V C6133 9965 100 14230 CER 1206 470N 50V Y5V +/-20% C4101 9965 000 42233 10μF 20% 10V 1206 C6134 9965 000 42604 470μF 25V...
  • Page 77 Spare Parts List TPS1.3 A LA EN 77 C7136 9965 100 04333 10μF 50V R1431 9965 000 42212 0Ω 5% 1/10W C7137 9965 000 43488 100nF 25V 0603 R1502 9965 000 42213 100Ω 5% 1/10W C7138 9965 000 44247 100μF 10V R1503 9965 000 42213 100Ω...
  • Page 78 EN 78 TPS1.3 A LA Spare Parts List R4216 9965 000 42217 22Ω 5% 1/10W R6139 9965 100 05994 47kΩ 1% 1/10W R4218 9965 000 40053 1KΩ 1/10W 5% R6140 9965 000 42656 10Ω 5% 1/10W R4219 9965 000 40053 1KΩ 1/10W 5% R6145 9965 000 42213 100Ω...
  • Page 79 U7101 9965 100 14211 IC AIC1550POTR MSOP8 U7103 9965 000 44276 AME8815AEGT330Z U7104 9965 100 14211 IC AIC1550POTR MSOP8 D1401 9965 000 44258 BAT54C PHILIPS U7105 9965 000 44276 AME8815AEGT330Z D1401 9965 100 06782 BAT54C(L43) U7106 9965 100 11788 AME1117ACGTZ...
  • Page 80 EN 80 TPS1.3 A LA Spare Parts List IR & LED Panel [J] Various FB0201 9965 000 43995 Bead 600Ω/200mA FB0201 9965 000 43997 Bead 600Ω/500mA FB0201 9965 100 02513 Bead 600Ω/200mA FB0202 9965 000 43995 Bead 600Ω/200mA FB0202 9965 000 43997 Bead 600Ω/500mA FB0202 9965 100 02513 Bead 600Ω/200mA FB0203...

  • Page 81: Revision List

    Revision List TPS1.3 A LA EN 81 11. Revision List Manual xxxx xxx xxxx.0 • First release.

Table of Contents
