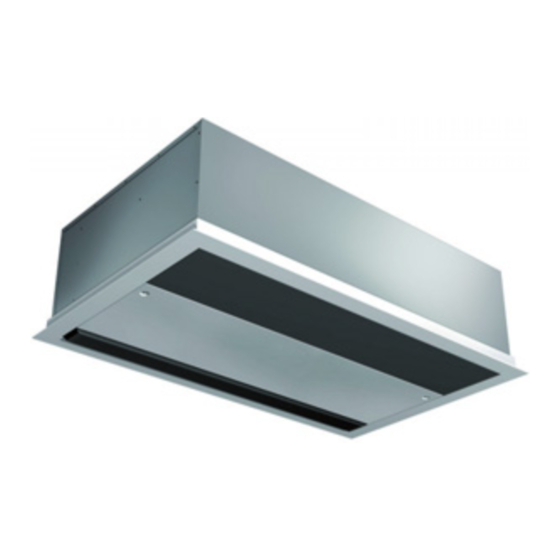

  • Page 1 Original instructions AR3500 ..14 ..23 ..28 ..33 ..19 ..38 ..43 ..48 ..53 ..58 ..63 ..68...
  • Page 2 AR3500 Introduktionssidorna består huvudsakligen av bilder. För översättning av de engelska texter som används, se respektive språksidor. The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de engelske tekstene, se de respektive språksidene Les pages de présentation contiennent principalement des images.
  • Page 3 AR3500 Type [mm] [mm] [mm] [mm] AR3510 1057 1016 1067 AR3515 1567 1526 1577 1466 AR3520 2073 2031 2083 1971 Mounting Fig. 1: The mounting brackets on delivery.
  • Page 4 AR3500 Mounting Fig. 2a: Mounting on threaded bars. Fig. 2b: Mounting on threaded bars inside unit.

  • Page 5: Water Connections

    AR3500 90° Service hatch Fig. 3: Function of the snap fixing Water connections Fig. 4: The water coil is connected inside the unit through holes which are made (during installation) on the upper side or through the side of the unit, possible places are marked with punch marks. SIRe SIRe Fig.
  • Page 6 AR3500 Accessories SIRe SIReB SIReAC SIReAA SIReB SIReUR SIReRTX 70x33x23 mm SIReUR 114x70x50 mm SIReWTA SIReWTA SIReCJ4 SIReCJ6 SIReCC603 SIReCC605 SIReAC/SIReAA SIReCC610 10 m SIReCJ4/SIReCJ6 SIReCC615 15 m SIReCC640 40 m SIReCC403 SIReCC405 10 m SIReCC410 SIReCC415 SIReRTX SIReCC VMO15LF DN15 VMOP VMO15NF...
  • Page 7 AR3500 AR3500 A AR3500 W...
  • Page 8 AR3500 AR3500 E...
  • Page 9 AR3500 SIReB Basic AR3500 A / AR3500 E SIReUB1 SIReRTX SIReB1/B2/B1EC 230V~ (optional) ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX L=2m (max 50 m) SIReCC6XX (max 10 m) SIReB1/B2/B1EC 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX (max 50 m) SIReB1/B2/B1EC 230V~ ROOM...
  • Page 10 AR3500 SIReB Basic AR3500 W SIReUB1 SD230 SIReRTX SIReB1/B2/B1EC 230V~ (optional) ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX L=2m (max 50 m) L=1,5m SIReCC6XX (max 10 m) SD230 SIReB1/B2/B1EC 230V~ ROOM Pot. Unit ID ACTUATOR SUPPLY SIReCC6XX (max 50 m) SD230 SIReB1/B2/B1EC 230V~...
  • Page 11 AR3500 Output charts water AR3500 AR3500W Standard coil Supply water temperature:80 °C Water temperature: 80/60 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return water Water Pressure Output * Outlet Water Pressure position temp.
  • Page 12 AR3500 Output charts water AR3500 AR3500WLL Special coil Supply water temperature:55 °C Water temperature: 55/35 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return water Water Pressure Output * Outlet Water Pressure position temp.
  • Page 13 AR3500 Technical specifications | AR3500 A without heat   Type Output Airflow Sound level* Voltage Length Weight Amperage [kW] [dB(A)] (control) [mm] [kg] AR3510A 1000/2100 39/58 230 V~/2,6 A 1057 AR3515A 1400/2900 40/59 230 V~/3,5 A 1567 2000/4200 41/61 230 V~/5,3 A 2073 AR3520A Technical specifications...

  • Page 14: Operation

    For the protection of wider doorways, Frico mounting and operating instructions. several units can be mounted next to each other. Application area Minimum distance from outlet to floor for The AR3500 air curtain unit is supplied electrically heated units is 1800 mm.
  • Page 15 The connections to the heating coil must be AR3500E: The unit is supplied through equipped with shut off valves to allow problem cable glands on the side of the unit. For free removal.

  • Page 16: Maintenance

    AR3500 Maintenance Fan replacement Since fan motors and other components are 1. Determine which of the fans is not maintenance free, no maintenance other than functioning. cleaning is necessary. The level of cleaning 2. Disconnect the cables to the relevant fan. can vary depending on local conditions.
  • Page 17 • The unit must not be fully or partially covered with clothing, or similar materials, as overheating can result in a fire risk! (AR3500E) • This appliance can be used by children aged from 8 years and above and persons...
  • Page 21 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
