QuickSpecs
Supported Products

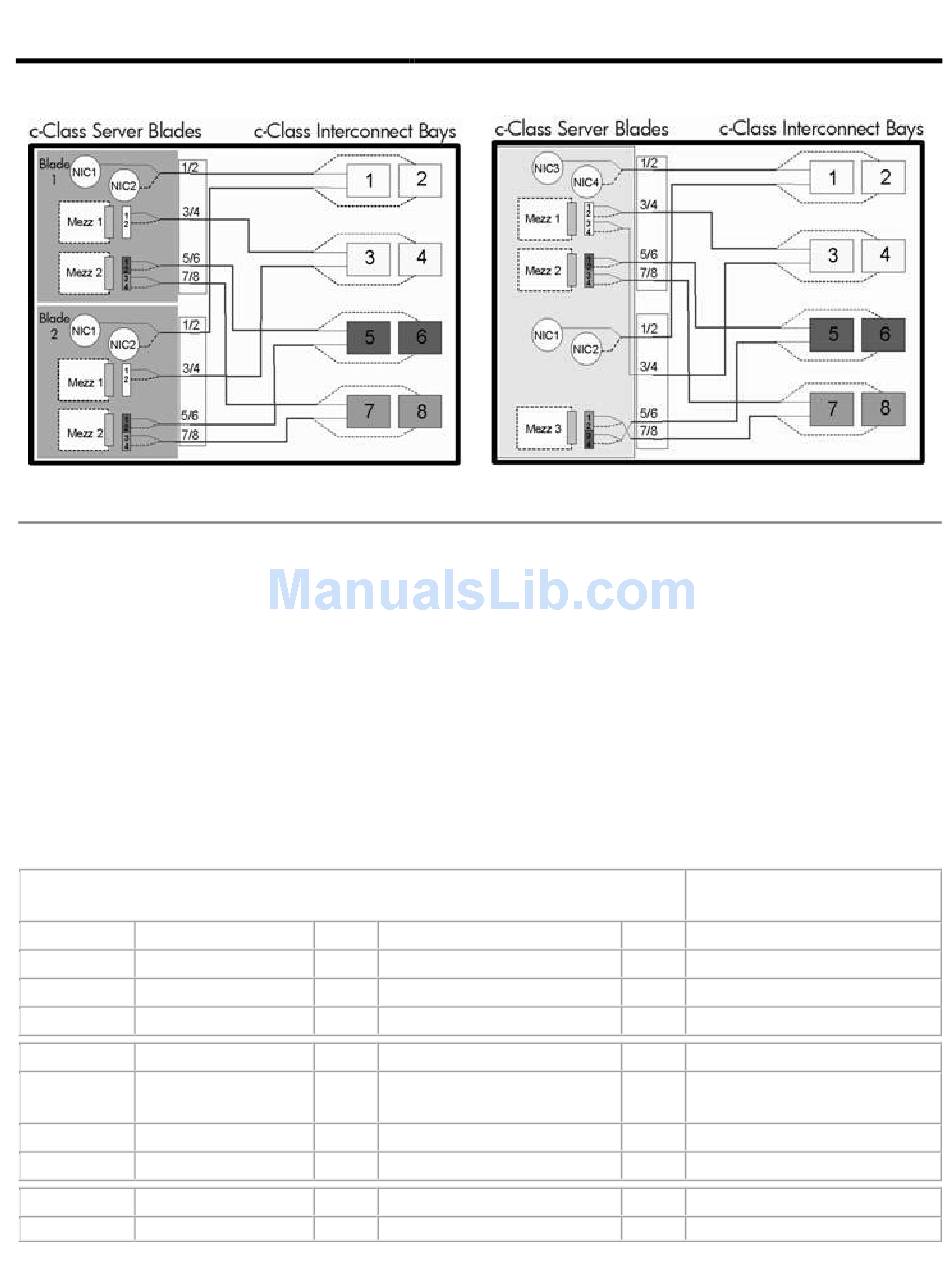

Half Height Server Blade
HPE BladeSystem c7000 Enclosure
NOTE: Virtual Connect FlexFabric-20/40 F8 modules are supported on c7000 enclosures with the following SKUs: 5XXXXX-
B21, 6XXXXX-B21, and 7XXXXX-B21. Hewlett Packard Enterprise recommends a c7000 enclosure with a 10-fan configuration
when HPE Virtual Connect FlexFabric-20/40 F8 modules are installed.
NOTE: The following tables show a number of supported configurations for an HPE BladeSystem c7000 Enclosure with
Virtual Connect FlexFabric-20/40 F8 Modules. Not all possible combinations are shown here. A maximum of 6 VC FlexFabric-
20/40 F8 modules are allowed in each enclosure. A total of 16 Ethernet and 16 VC-FC type modules can be installed in a multi-
enclosure domain. Each FlexFabric module counts as one Ethernet and one VC-FC module. Combinations of FlexFabric, VC-
Enet and VC-FC modules are allowed as long as the 16-module limit for each module type (Ethernet and FC) is not exceeded in
the domain.
NOTE: If more than two VC FlexFabric-20/40 F8 Modules are installed in an enclosure, the ambient temperature cannot
exceed 30C or physical damage may result.
NOTE: VC FlexFabric modules are not supported in HPE BladeSystem c3000 enclosures.
[Bay 1] VC FlexFabric-20/40 F8
[Bay 3] Empty
[Bay 5] Empty
[Bay 7] Empty
[Bay 1] VC FlexFabric-20/40 F8
[Bay 3] VC Flexfabric-20/40 F8
[Bay 5] Empty
[Bay 7] Empty
[Bay 1] VC FlexFabric-20/40 F8
[Bay 3] VC FlexFabric-20/40 F8
Interconnect Module Configurations
-> VC Flexfabric-20/40 F8 or Empty
-> Empty
-> Empty
-> Empty
-> VC FlexFabric-20/40 F8 or Empty [Bay 2]
-> VC FlexFabric-20/40 F8 or Empty [Bay 4]
-> Empty
-> Empty
-> VC FlexFabric-20/40 F8 or Empty [Bay 2]
-> VC FlexFabric-20/40 F8 or Empty [Bay 4]
HPE Virtual Connect FlexFabric-20/40 F8 Module
Full Height Server Blade
[Bay 2] FlexFabric Adapter 10/20 LOM
[Bay 4]
[Bay 6]
[Bay 8]
FlexFabric Adapter 10/20 LOM
FlexFabric Adapter 10/20
[Bay 6]
[Bay 8]
FlexFabric Adapter 10/20 LOM
FlexFabric Adapter 10/20
Server Network
Adapters Used
Mezzanine
