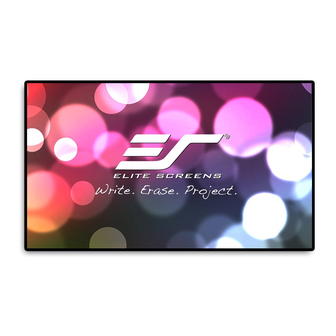

Dry-Erase Front Projection Screen Film
Product Features
Award winning and GREENGUARD certified VersaWhite material.
1.1 gain with 160 degree wide viewing angle.
Special anti-scratch layer to ensure long use as a
dry- erase/projection screen.
Application Advantages
Instantly converts flat surfaces/walls into a dry-erase whiteboard projection screen.
Includes adhesive black velveteen border to enhance contrast and overall appearance.
Perfect dry-erase and projection solution for today's short throw projectors.
Ideal and effective instructional presentation tool in the classroom, boardroom, and training facilities.
Product specifications
Specifications:
Color display
Thickness
Material composition
Weight
Temperature
Gain
Viewing Angle
062013-JA
Insta-DE2 Series
User's Guide
White
2.1mm
High molecular weight copolymer
of Terephthalic acid ethyl esters
2
1m
/377g
At room temperature
1.1
160∘
1
www.elitescreens.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Insta-DE2 Series
Summary of Contents for Elite Screens Insta-DE2 Series
- Page 1 Insta-DE2 Series Dry-Erase Front Projection Screen Film User’s Guide Product Features Award winning and GREENGUARD certified VersaWhite material. 1.1 gain with 160 degree wide viewing angle. Special anti-scratch layer to ensure long use as a dry- erase/projection screen.
- Page 2 The Insta-DE 2 product is to be solely installed on a flat surface. The dry erase function of this product requires a smooth writeable surface. Elite Screens is not responsible should these instructions not be properly followed. Any surfaces that are textured (ex. orange peel, drilled holes, glue/tape residue, dents, etc.) should be patched, sanded, and primered before applying the Insta-DE2 screen.
- Page 3 Installation Watch the installation video at: www.elitescreens.com/ide2install We strongly recommend two or more people for this installation. 1. Smoothen the entire surface of the wall with sandpaper. 2. Clean the entire surface with a wet sponge or lint-free towel to remove any dust left from sanding the wall.
- Page 4 9. Flatten the surface with a flexible wall smoothing tool in a 45 degree angle to avoid scratching the surface. 10. Lift edges and smoothen out any remaining air bubbles. Caution The smoothing tool’s edge is sharp. Carefully scrape the screen when removing air bubbles to avoid scratching the surface.
- Page 5 4. Allow the compound to dry for approximately 3-4 hours before using the dry-erase feature of the Insta-DE2. Use only the included erasers to remove and erase dry-erase markings. For a deep clean, we recommend using a non-alcohol based dry-erase board cleaner with a soft microfiber cloth. Elite offers a replacement kit (part number ZER3) which includes: 1 x bottle of 8.45 oz cleaning solution 1 x microfiber cloth...
- Page 6 Make sure the water and surfactant (soap) are properly mixed. You can dilute the mixture by adding warm water. For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com 081513-JA www.elitescreens.com...
