User's Manual

Ethernet Interface

Rev. 4.00
http://www.samsungminiprinters.com

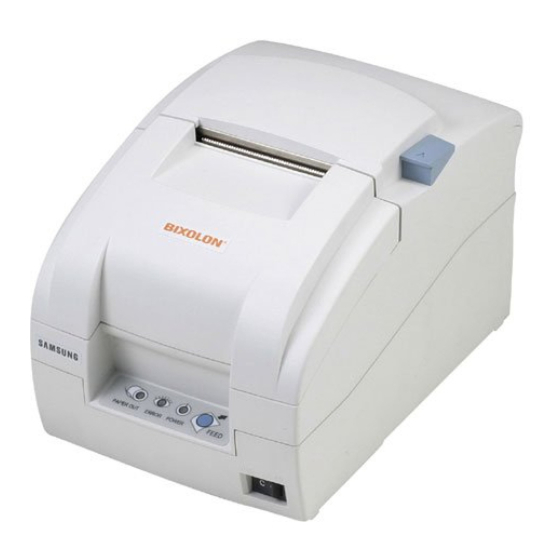

SRP-270
SRP-275
SRP-350
SRP-350plus
SRP-370 / 372
SRP-770 / 770II
SLP-T400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SRP-270

Summary of Contents for BIXOLON SRP-270

  • Page 1: Ethernet Interface

    User's Manual Ethernet Interface Rev. 4.00 SRP-270 SRP-275 SRP-350 SRP-350plus SRP-370 / 372 SRP-770 / 770II SLP-T400 http://www.samsungminiprinters.com...

  • Page 2: Table Of Contents

    Ethernet ■ Table of contents 1. Manual Information......................3 2. Interface card and available printer................3 3. Specifications.........................4 3-1. Hardware version....................4 3-2. Configuration Tool....................4 3-3. Virtual Driver ......................5 3-4. Hardware version and Configuration Tool............5 3-5. Details of interface card ..................5 4. How to install........................6 5.

  • Page 3: Manual Information

    Ethernet 1. Manual Information The purpose of this manual is to provide information on the operation and usage instructions of the Ethernet Interface for the BIXOLON Printers. 2. Interface card and available printer Printer Interface Card Hardware version Picture V4.x.x SRP-270 V3.x.x...

  • Page 4: Specifications

    IFC-E TYPE [Note] - The DIP switch on the interface board should always be OFF. 3-2. Configuration Tool BIXOLON provides 2 types of network and serial communication set up utilities as a below; - Configure_V4.x.x.exe - Web Server - 4 -...

  • Page 5: Virtual Driver

    - It is available for Windows 2000, XP and 2003 server. 3-4. Hardware version and Configuration Tool Hardware Configuration Tool Network Interface card Printer version file interface SRP-270,350 IFA-E SRP-370,372 SRP-350Plus Configure_V4.x V4.x.x Web Server IFC-E SRP-275 SRP-770II ON Board...

  • Page 6: How To Install

    - Each version uses its own Configuration Tool. 2) Turn of the printer and insert the interface card. 3) Set the baud rate (Serial speed) - SRP-270,275: Max. 19200 bps - SRP-350: Max. 57600 bps - SRP-350Plus: Max. 115200 bps - SRP-370,372: Max.

  • Page 7: Static Ip Interface Set Up

    Ethernet 5. Static IP interface set up 5-1. Configuration Tool 1) Turn on the printer. 2) Execute Configure Tool. [Note] - Use proper Configuration Tool dependent on hardware version 3) Click Search. - 7 - V 4.00...
  • Page 8 Ethernet 4) Select MAC Address in Board list and set up Network Setting. MAC Address [Note] - If many MAC addresses appear, refer to the MAC address on the label of the interface card. - Ask the Network administrator IP and its related information. - If you are not aware of Subnet Mask, refer to the below.
  • Page 9 Ethernet 5) Enter value at Local Port. [Note] - Default value is 9100. Choose from 6000 to 10000. 6) Set Inactivity Time as ‘0’. [Note] - Default value is 0. Choose from 0 to 65535. - When you set Inactivity time, Ethernet interface will disconnect by force after designated time.
  • Page 10 Ethernet 7) Set baud rate (Speed) at Serial Setting [Note] - The baud rate (Speed) should be same as the baud rate of the printer. (Refer to [Appendix 1]) - Highest baud rate (Speed) can be used. 8) When setting finishes, click Setting. [Note] Successfully finished set up Unsuccessfully finished set up...
  • Page 11 Ethernet 9) Click Exit to finish set up. - 11 - V 4.00...

  • Page 12: Web Server

    Ethernet 5-2. Web Server 1) Execute Internet Explorer. 2) Enter IP address of the printer at Address of Internet Explorer and click go. [Note] - If you are not aware of IP address, check IP address by pushing Function key. (Refer to [Appendisx2]) - Ask Network administrator IP Address and its related information.
  • Page 13 Ethernet [Note] - If you are not aware of Subnet Mask, refer to the below. - When the IP address is (1) 1~126.xxx.xxx.xxx: Subnet Mask: 255.0.0.0 (2) 128~191.xxx.xxx.xxx: Subnet Mask: 255.255.0.0 (3) 192~223.xxx.xxx.xxx: Subnet Mask: 255.255.255.0 For example, when the IP address is 192.168.192.321, Subnet mask is 255.255.255.0.
  • Page 14 Ethernet 6) Set baud rate (Serial speed). [Note] The baud rate (Speed) should be same as the baud rate of the printer. (Refer to [Appendix 1]) 7) When setting finishes, click Apply. [Note] When the setting finishes successfully, the following message appears. Please press here if you would like to back to the configuration - 14 - V 4.00...
  • Page 15 Ethernet 8) If you click the message, you can check your configuration setting. [Note] - If any change was not found after setting on Web Server, check the bellows; (1) Execute Internet Explorer. (2) Internet Explorer Menu → Tools → Internet options. (3) General tab →...
  • Page 16 Ethernet (4) Check for newer version of stored pages → Click Every visit to the page. (5) Click Refresh in Internet Explorer. - 16 - V 4.00...

  • Page 17: Dhcp Interface Set Up

    Ethernet 6. DHCP interface set up 6-1. Configuration Tool 1) Turn on the printer. 2) Execute Configure Tool. [Note] - Use proper Configuration Tool dependent on hardware version 3) Click Search. - 17 - V 4.00...
  • Page 18 Ethernet 4) Select MAC Address in Board list and check at DHCP Mode. MAC address [Note] - If many MAC addresses appear, refer to the MAC address on the label of the interface card. - Ask the Network administrator IP and its related information. 5) Set baud rate at Serial Setting.
  • Page 19 Ethernet 6) When setting finishes, click Setting. [Note] Successfully finished set up Unsuccessfully finished set up - When setting doesn’t finish correctly, try again. 7) Wait approximately 10 or more seconds until the printer receives IP from the server. - 19 - V 4.00...
  • Page 20 Ethernet 8) Click Search to check given IP. 9) If the given IP is OK, click Exit. - 20 - V 4.00...

  • Page 21: Web Server

    Ethernet 6-2. Web Server 1) Check at DHCP mode and click Apply. 2) Push the Function Key on the interface 10 or more seconds from finishing set up. Enter given IP address at address of Internet Explorer to enter web server. - 21 - V 4.00...

  • Page 22: Firmware Update

    Ethernet 7. Firmware update 7-1. Configuration Tool 1) Turn on the printer 2) Execute Configure Tool. [Note] - Use proper Configuration Tool dependent on hardware version 3) Click Search. - 22 - V 4.00...
  • Page 23 Ethernet 4) Select MAC Address in Board. MAC Address [Note] - If many MAC addresses appear, refer to the MAC address on the label of the interface card. 5) Click Upload and select file to download. - 23 - V 4.00...
  • Page 24 Ethernet [Note] - Check the extension of the file, which should be “bin”. Successfully finished F/W update Unsuccessfully finished F/W update - Printer and available firmware Printer Firmware SRP-770, SRP-770II, SLP-T400 ethernettoserial_v5.X Except SRP-770, SRP-770II ethernettoserial_v2.X 6) When firmware update finishes, click Search to check if Firmware is updated successfully.

  • Page 25: Web Server

    Ethernet 7-2. Web Server 1) Click Firmware update. 2) Internet Explorer is executed and it moves to download site automatically. [Note] Printer and available firmware Printer Firmware SRP-770, SRP-770II, SLP-T400 ethernettoserial_v5.X Except SRP-770, SRP-770II ethernettoserial_v2.X - 25 - V 4.00...
  • Page 26 Ethernet 3) Download Configure_Vx.xx.zip file and *.bin file. [Note] You can download it by double-clicking icons or copy and paste. 4) Unzip Configure_Vx.xx.zip and execute Configure_Vx.xx.exe at Configure_Vx.xx folder. [Note] - In case Configure_Vx.xx.exe can’t be executed, run configure_setup.bat first and retry it.

  • Page 27: Ethernet Test By Using Windows Test Page

    Ethernet 8. Ethernet test by using Windows test page If you don’t have any test program to check printer’s performance, you can use Windows driver. It is available for Windows 2000, XP and 2003 server. 1) Install Windows driver of the printer. When the driver installation finishes, reboot the computer.
  • Page 28 Ethernet 4) Select Ports tab. 5) Click Add Port. - 28 - V 4.00...
  • Page 29 Ethernet 6) Select Standard TCP/IP Port and click New port. 7) When standard TCP/IP printer add wizard window pops up, click Next. 8) Enter printer IP at Printer Name or IP Address and click Next. [Note] Enter same IP address as the Ethernet interface card. Enter only at Printer Name or IP Address.
  • Page 30 Ethernet 9) Click Next. [Note] Click Next without any selection nor change. 10) Click Finish. 11) Click Close to close Printer port window - 30 - V 4.00...
  • Page 31 Ethernet 12) Click Configure Port. 13) Enter same port number as the value of Local Port of the Ethernet interface at Raw Setting. [Note] There is no change except Raw Setting. - 31 - V 4.00...
  • Page 32 Ethernet 14) Click OK. 15) Select General tab and click Print Test Page to check if the printer works properly. - 32 - V 4.00...

  • Page 33: [Appendix 1] Printer Dip Switch Set Up

    Baud rate DSW 2-7 DSW 2-8 19200bps DTR/DSR : SW 2-3 OFF 9600bps 8 data bit : SW 1-4 OFF SRP-270 None parity : SW 1-5 OFF 4800bps 2400bps Baud rate DSW 1-1 DSW 1-2 DTR/DSR : SW 1-3 OFF...

  • Page 34: [Appendix 2] Function Key Set Up

    Ethernet [Appendix 2] Function Key set up 1. How to use (1) Turn on the printer (2) Wait 10 or more seconds until the Ethernet interface boots up (3) Push the Function key Function key SRP-770II (4) The settings will be printed only one time since the printer is turned on. (5) Turn off and on the printer to print them again.

  • Page 35: [Appendix 3] Factory Reset

    - Local Port: 9100 - Inactivity Time: 0 - Speed SRP-770II, SLP-T400: 230400 bps SRP-270, SRP-275, SRP-350, SRP-350plus, SRP-370, SRP-372: 9600 bps 2. How to rest 1) Turn off the printer 2) Turn on the printer while pressing Function Key [Note] Press Function key 3 more seconds after turning on the printer.
