u s e r 's m a n u a l
NVDN-221V/IR
NVDN-201V/IR
NVDN-201D/IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVDN-201D/IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novus NVDN-201D/IR

Summary of Contents for Novus NVDN-201D/IR

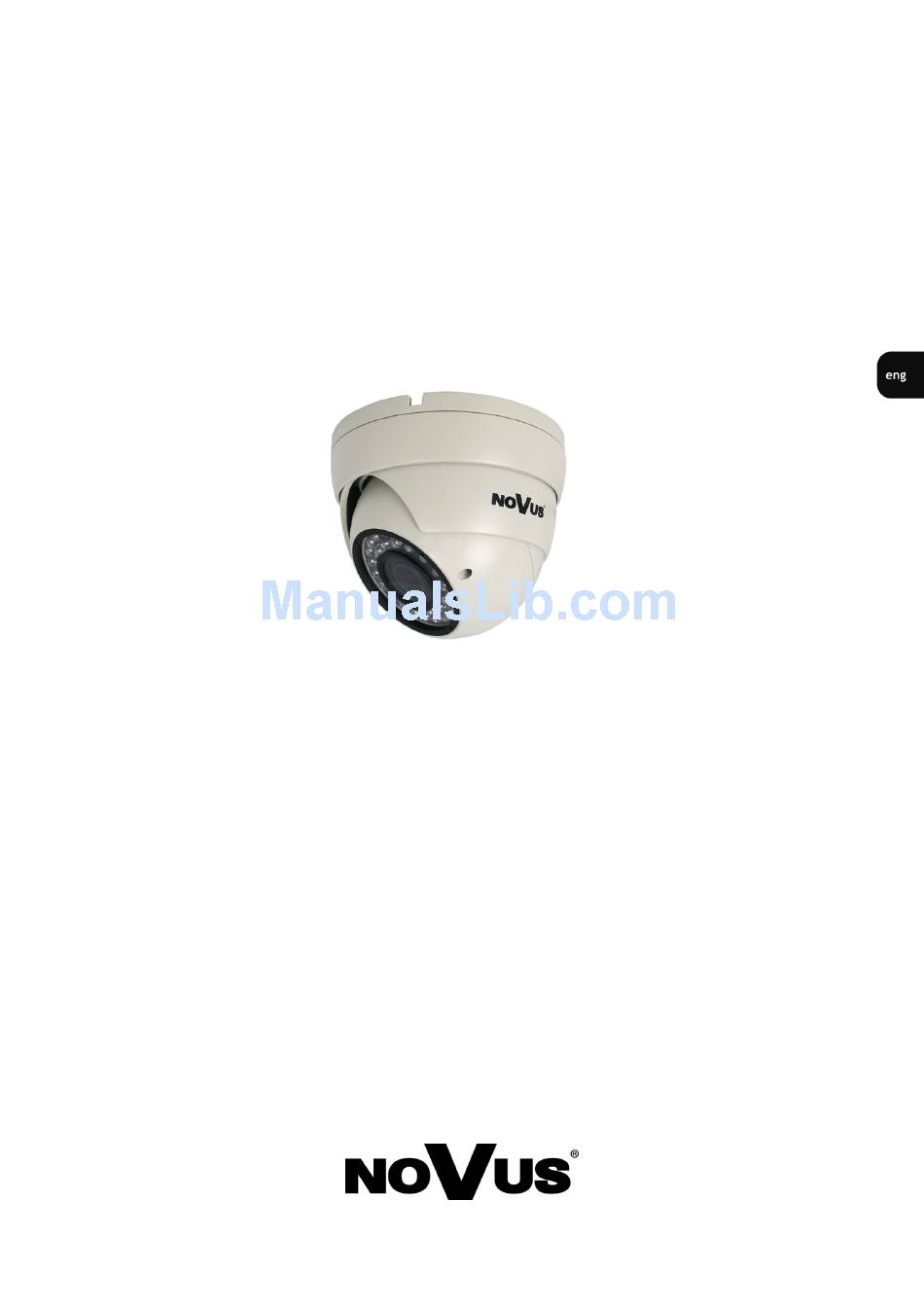

  • Page 1 ’s m a n u a l NVDN-221V/IR NVDN-201V/IR NVDN-201D/IR...
  • Page 2 NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 INFORMATION EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with the requirements of the following directives and national regulations implementing the directives:  Electromagnetic compatibility EMC 2004/108/EC.

  • Page 3: Safety Requirements

    NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 SAFETY REQUIREMENTS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
  • Page 4 NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 SAFETY REQUIREMENTS 9. Device should be supplied only from a power sources whose parameters are in accordance with those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera from a power sources with unknown parameters, unstable or not meeting producer’s...

  • Page 5: Foreword Information

     Horizontal resolution: up to 700 TVL  Min. Illumination:  from 0.05 lx/F=1.2 (0 lx IR on) (NVDN-221V/IR) from 0.14 lx/F=2.0 (0 lx IR on) (NVDN-201V/IR, NVDN-201D/IR) Lens type:  Varifocal 3.5~8 mm (NVDN-221V/IR) Standard, f=3 mm (NVDN-201V/IR and NVDN-201D/IR) 3-axis camera module adjustment ...

  • Page 6: Features And Specification

    NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 FEATURES AND SPECIFICATION 3. SPECIFICATION MODEL NVDN-221V/IR NVDN-201V/IR NVDN-201D/IR IMAGE Pick-up Element 1/4” CMOS imager Number of Effective 720 (H) x 576 (V) Pixels 650 TVL - color mode Horizontal Resolution 700 TVL - b/w mode 0.05 lx/F=1.2...

  • Page 7: Specification

    NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 SPECIFICATION 3.1 Dimensions: NVDN-221V/IR NVDN-201V/IR NVDN-201D/IR All rights reserved © AAT Holding Sp. z o.o.

  • Page 8: Installation

     Screw the stopping ring firmly (holding the camera with hand if needed) (NVDN-221V/IR and NVDN-201V/IR).  Attach the stopping ring tabs to the base of the camera. (NVDN-201D/IR).  Secure the base-ring joint by counter-screw (NVDN-221V/IR and NVDN-201V/IR). ...
  • Page 9 NVDN-221V/IR, NVDN-201V/IR, NVDN-201D/IR - User’s manual ver. 1.0 INSTALLATION NVDN-221V/IR and NVDN-201V/IR NVDN-201D/IR Base of camera Mounting screws Camera Dome cover Counter screw Stopping ring 4.1 Power supply connection Warning: Device should be supplied only from a power sources whose parameters are in accordance with those specified by the producer in the camera technical datasheet.
  • Page 10 AAT Holding Sp. z o.o. ul. Puławska 431, 02-801 Warszawa tel.: (22) 546 0 700, fax: (22) 546 0 719 www.novuscctv.com 2013-10-04 wer. 1.0 AG, KN(1.1)
