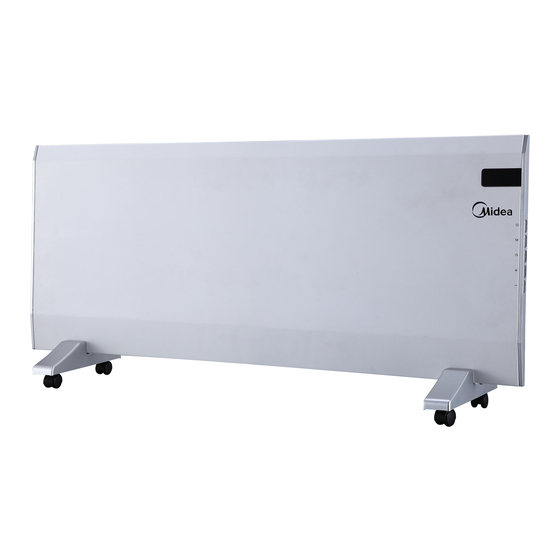

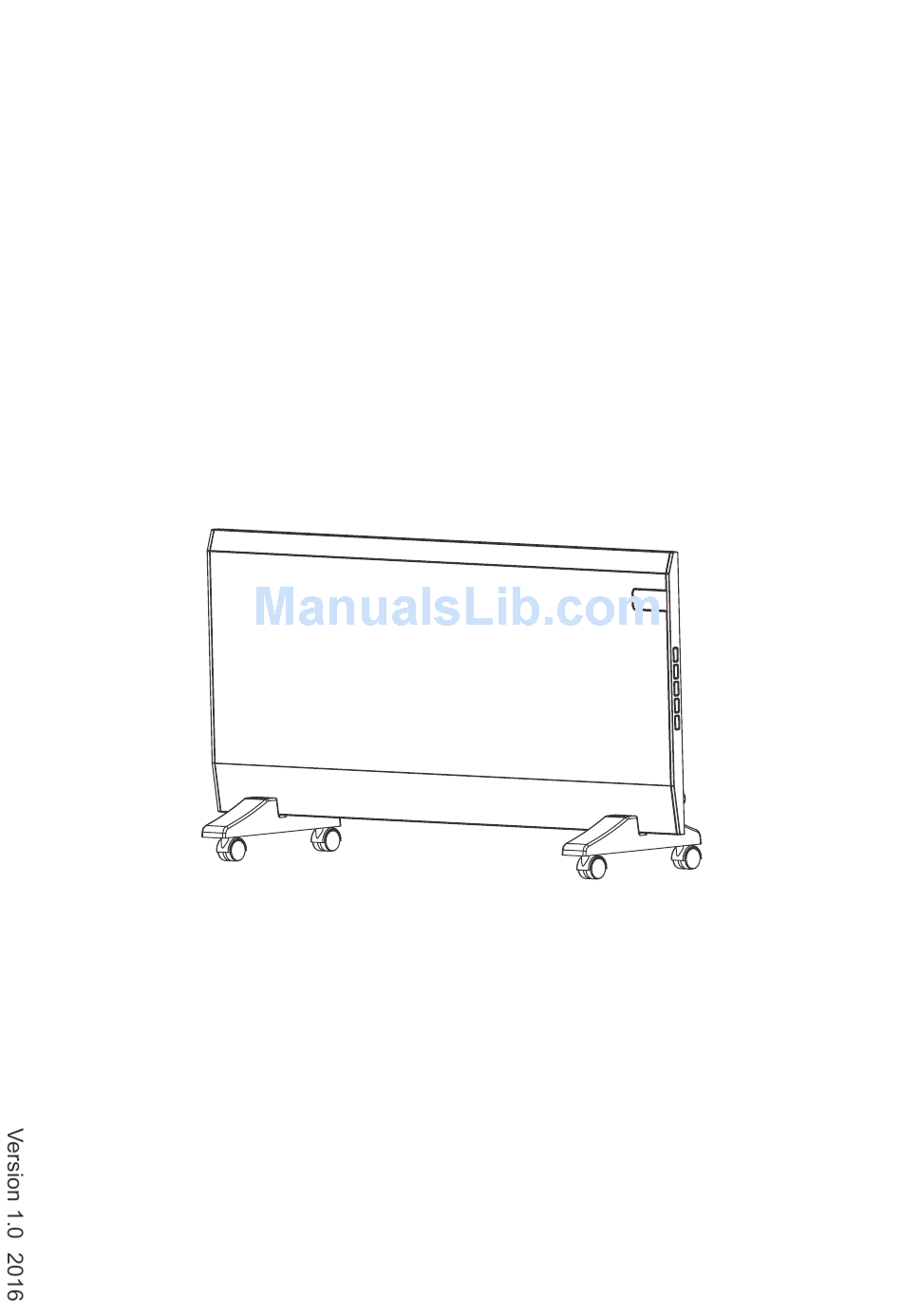

- Page 1 OWNER’S MANUAL PANEL HEATER MODEL: NDK15-12K GD Midea Environment Appliances MFG. Co. Ltd. No.28, Dong Fu Road, HeSui East Industrial Area, Dong Feng Town, ZhongShan, GuangDong, China. READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
-
Page 2: Important Safeguards
8. Do not use in locations when the heater will be left unattended for long periods of time. (for example - several weeks in an unoccupied summer cottage) 9. Do not use attachments not recommended and sold by MIDEA distributor. 10. Loose connections between the heater plug and the electrical outlet may cause the plug to overheat. - Page 3 15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. 16.Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the...
-
Page 4: Installation Instruction
CAUTION 1. Never use the unit in places where floors are not even or unstable. 2. Do not insert and pull out the plug with wet hand, as this may cause electrical shock. 3. The heater must only be used in the upright position. Never use when the unit is fallen over. - Page 5 INSTALLATION INSTRUCTION Warning! Before you install your heater, please make sure the heater is in Off position and is disconnected from power supply. A. For free-standing use Accessories for free-standing use: Insert pic Ÿ Wheel plates: 2pcs Ÿ Short screws: 4pcs Ÿ...
- Page 6 Please follows below steps to install as a wall mounted heater: 1. Take the brackets A, B and C and assemble them together with four screws (D), see Fig Fig 2. 2. Insert the bracket assembly into the back holes (E) of the heater body, see Fig 3 and then slide the assembly up to match the inclined plane of the back cover.
-
Page 7: Symbol Function
OPERATING INSTRUCTION There are 6 function buttons on the side of the heater (see Fig 6), function are as follows: SYMBOL FUNCTION Main power switch “I/0” Display & function ON/OFF Heating mode: HIGH/LOW Timer setting Increase the temperature and timer setting Decrease the temperature and timer setting PRODUCT DIGITAL DISPLAY OVERVIEW Description of each symbol... - Page 8 Setting the heating mode There are two heat settings on this heater (the default setting is High), press the “M” button to select the heating setting. 1. High: 1500W, will illuminate. 2. Low: 750W, will illuminate. Setting the temperature In order to set the temperature, the heater has to be working at heating mode: High or Low.
-
Page 9: Troubleshooting
Using the remote control There are five function buttons on remote control, function are as follows: SYMBOL FUNCTION Display & function ON/OFF Heating mode: HIGH/LOW Timer setting Increase the temperature and timer setting Decrease the temperature and timer setting The remote control function is same as the button on the heater body, it allows you to operate easily. -
Page 10: Technical Specifications
Note: There may be trace of smoke or odour when unit is first operated. Do not be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate, and should not re-occur. TECHNICAL SPECIFICATIONS Model No. NDK15-12K Voltage 220-240V AC Frequency 50Hz Power...
