Audi A8 1994 Body Repair Manual page 26

Audi A8 1994 ➤
Body repairs - Edition 10.1998

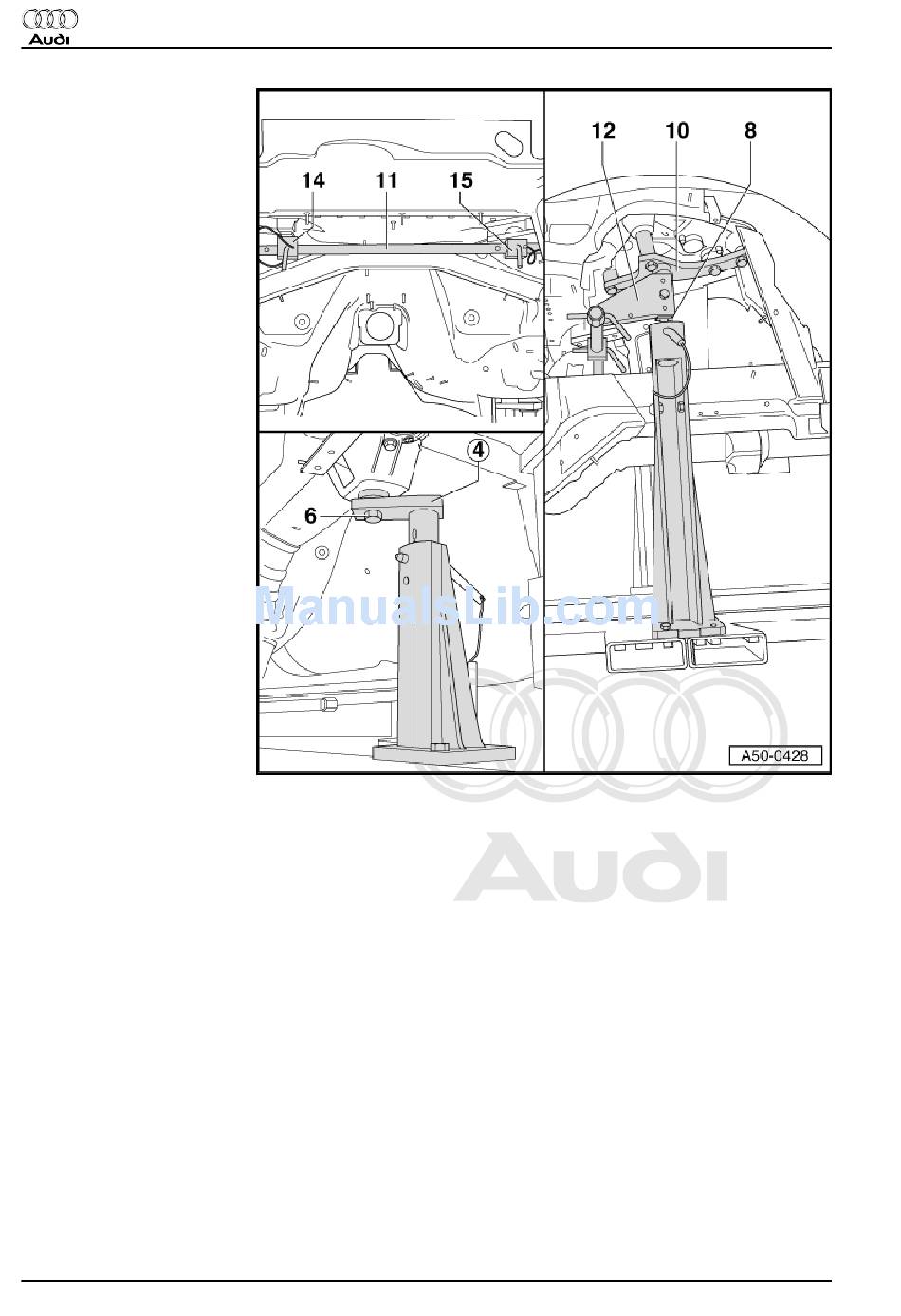

11 - Bar in place of steering
box
Lubricate bar with oil and take
care to avoid damage.
14 - Mounting for steering
15 - Mounting for steering
6 - Mounting for subframe
6 - Spacer bolt
8 - Mounting for alignment
brackets -10- and -12-
Do not insert pin until after fit‐
ting body on jig.
10 - Strut holder
12 - Mounting for bar
22
Rep. Gr.00 - Technical data
