Digital Devices Octopus Net Manual page 25

A second possibility is to operate the Octopus Net in mixed mode (multicast and single-cast).
For example, multicast use one or two tuners which are then occupied and the other tuners
running in single-cast mode.
Note: It is of course possible between multicast and available Singlecast streams at e.g. with 8
tuners to make an own allocation.
The configuration options for the multicast setup:

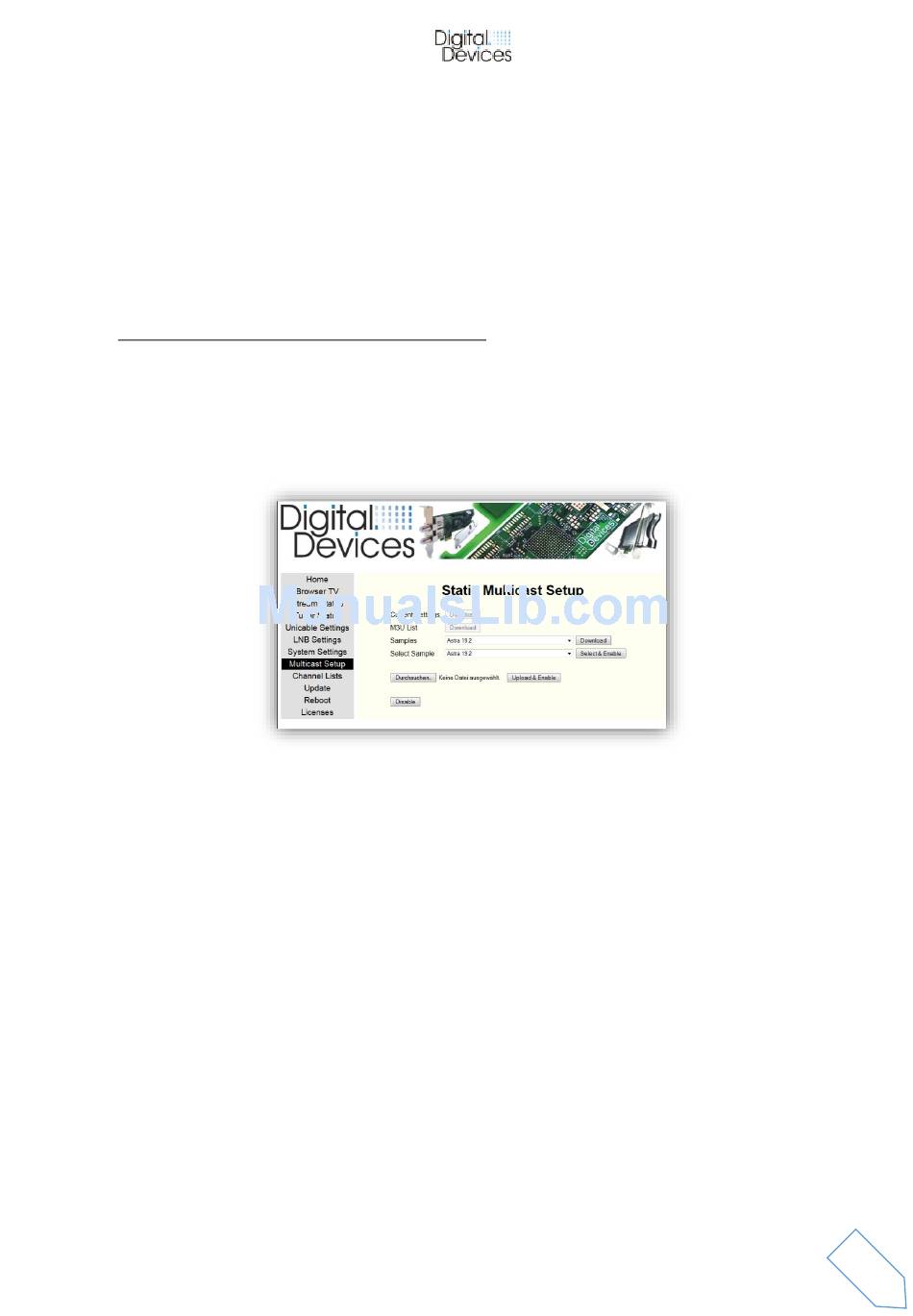

In the configuration menu of the Octopus Net under "Multicast Setup" various sample
configurations are included. Here once "Astra 19.2" selected.
By "Sample Download" you can download a sample file. Here you can see how the file is built.
By "Select & Enable" a selected entry from the list can be activate.
Through the "Browse" button, a created file will be loaded into the Octopus NET and
automatically uploaded and Enable. By "Disable" a running multicast will disabled.
The Digital Devices Octopus Cast tool helps you create, such individual multicast file /
configuration. (Download at www.digital-devices.de) Documentation are inside the tool
available.
Configuration Example: If the sample file is enabled, 11 streams "normal" assigned and a stream
10 (Kika) is streamed permanently only on ports 3,4 and 5.
25
