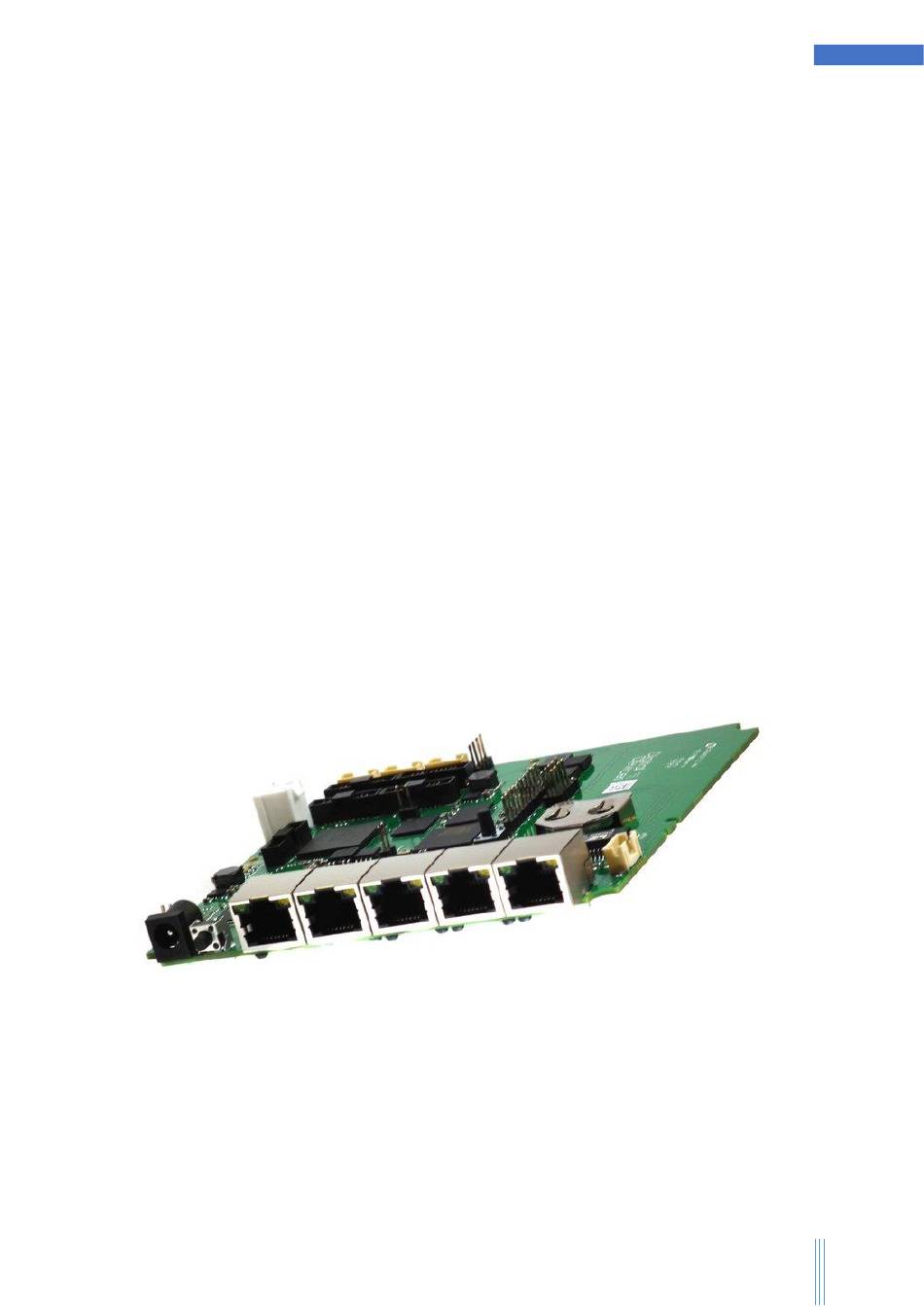

- Page 1 Addition to the Octopus Net manual - Octopus NET Mini ITX Additional information for Octopus NET manual Octopus Net Rack / Octopus Net mini ITX (Construction Kit) 24. Mai 2017...
- Page 2 Addition to the Octopus Net manual - Octopus NET Mini ITX Table of contents Classification ............................ 3 Delivery Content ..........................4 Extension ............................5 Configuration Sample: ........................5 Description of the mainboard ......................6 Installation ............................7 Specials ............................8...
- Page 3 DuoFlex twin-tuner modules or a Max S8/A8 card. Due to the space available in the 13 cm x 13 cm x 5 cm Octopus Net housing, the maximum has been reached with the expansion stage (2/4/8 tuners + 1x DuoFlex-CI).
- Page 4 Addition to the Octopus Net manual - Octopus NET Mini ITX 2. Delivery Content (Abb. 1) 1) Power cable (EU standard) 2) 15V table power supply 3) 4x 25 cm power adapters 4) mini ITX rear panel (I/O panel) 5) mini ITX base plate...
- Page 5 All extensions must be supplied with a data cable and a power adapter; the corresponding cables are included either with the Octopus Net mini ITX or the respective extension. The Octopus Net mini ITX must be supplied with power by a power supply unit. Depending on the solution situation, an internal or external supply is possible.

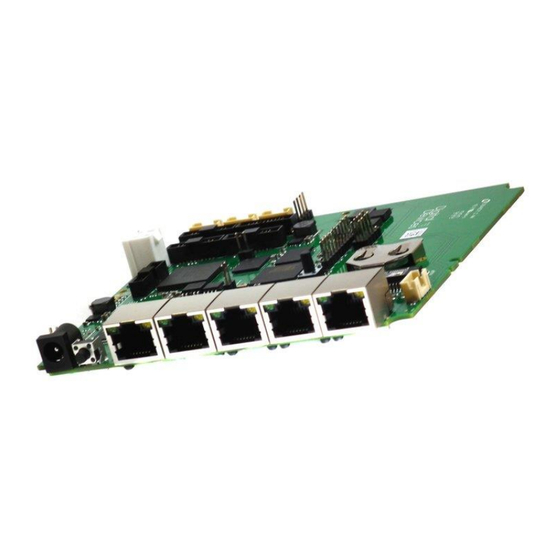

- Page 6 Addition to the Octopus Net manual - Octopus NET Mini ITX 5. Description of the mainboard (Abb. 3) E/A Switch with LED Status LED 1 and 2 Pin header for power switch and power LED (See Page 8) Molex P4 socket for internal power supply...
- Page 7 Addition to the Octopus Net manual - Octopus NET Mini ITX 6. Installation The Octopus Net mini ITX board is delivered pre-assembled on the mini ITX base frame. To mount the base plate in a suitable mini ITX enclosure, the Octopus Net board must be dismantled with 3 screws to access the hidden fourth fastening point.
- Page 8 Alternatively, an ATX test cable can be used. Octopus NET mini ITX cannot control the ATX power supply unit. The power supply unit must run and supply power, the connection for the power button is only used to switch the Octopus Net mini ITX on and off.
