Summary of Contents for Homemaker MH-MF40A

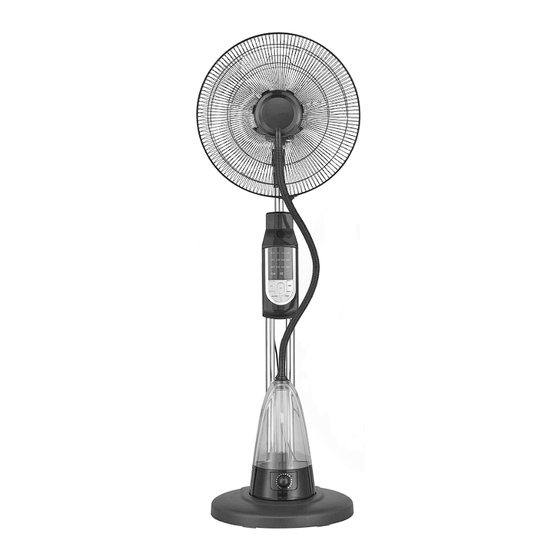

- Page 1 40cm Pedestal Misting Fan User Manual Model No.: MH-MF40A 220 – 240Va.c. 50Hz 70W Rev 4 Note: The specifications and/or components of this appliance are subject to change without prior notice.
-
Page 2: Table Of Contents
1 Safety Instructions ................. 3 2 Components ................... 5 3 Assembly ..................6 3.1 Base ........................6 3.2 Fan Head / Controller Assembly ..............8 3.3 Fan Blade and Safety Grille ................9 3.4 Misting Generator and Water Tank .............. 12 4 Filling the Water Tank .............. -
Page 3: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: • Carefully read this instruction manual before using appliance. • Keep appliance out of reach of young children. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Do not operate appliance underneath or near flammable or combustible materials (e.g. • curtains). Keep at least 300mm clearance around sides, back, front and top. • Unplug this apparatus during lightning storms or when unused for long periods of time. •...
-
Page 5: Components
2 Components Safety Grille Fan Blade Mist Head Remote Controller (Batteries not included) Tilt Adjustable Neck Fan Control Panel Flexible Mist Hose Water tank Misting Generator Base Page 5 of 20... -
Page 6: Assembly
3 Assembly Some Items of your Pedestal Fan have been boxed unassembled to minimise packaging waste. Each part is designed to fit together and to be disassembled easily for cleaning or storage. 3.1 Base • To Assemble the Posts to the Base, first place the Base on a flat level surface. •... - Page 7 • Rotate the base over to access the underneath. • Take the screws that you removed from the metal tubes and screw them into the holes as shown. • With the base still upside down, take the Floor Weight and locate it over the four screw posts as shown.
-
Page 8: Fan Head / Controller Assembly
• When finished, turn the Base over and Stand upright on the floor. 3.2 Fan Head / Controller Assembly • Take the Fan Head / Controller assembly and unscrew the two screws located on the back. Do not fully unscrew otherwise the two nuts will fall off. •... -
Page 9: Fan Blade And Safety Grille
3.3 Fan Blade and Safety Grille • If Fitted, remove the clear Plastic Nut from the motor spindle and the black plastic nut from the front of motor housing Black plastic unscrews Clear plastic nut unscrews Clockwise Anticlockwise • Place the Back Grille over the threaded section on the Fan Head, ensuring the wire handle on the back of the grille it at the top. - Page 10 • Place the Fan Blade onto the motor spindle. Note: The groove in the rear centre of the fan blade aligns with a T-bar on the motor spindle to ensure correct positioning. • Fix the blade into place by gently hand tightening the Clear Plastic Nut Anticlockwise onto the end of the motor spindle.
- Page 11 • Open up all locking clips on the front safety grille by rotating outward • Fit locating tab (on the bottom of the front Grille) centrally over the Rim of the Rear grille at the bottom. • While holding in place, align the two holes at the top of both grilles and insert the small Bolt through then screw on the small nut.
-
Page 12: Misting Generator And Water Tank
• With the Front safety grille in position and secured with the nut and bolt, close all the clips over the outer rim. 3.4 Misting Generator and Water Tank • Place the Misting Generator onto the Base ensuring it is seated properly in its recess. -
Page 13: Filling The Water Tank
4 Filling the Water Tank Warning: Unplug the appliance during filling and cleaning. • To Fill the Water Tank, turn it upside down to access the filer cap. Unscrew the filler cap and lift it up to remove. Note the filler cap is tight so as to •... -
Page 14: Setting The Fan Head Angle
• Fit the water tank / hose connector into the top of the water tank as shown 5 Setting the Fan Head Angle The Fan Head can be adjusted Up and Down so as to blow air at the required angle. •... -
Page 15: Operation
7 Operation The fan and functions can be operated by the control panel on the front of the fan, or by the supplied remote control. Note: The modes “NAT” (Nature) and “SLEEP” can only be selected with the Remote Control. They cannot be selected using the controller on the front of the fan. Remote Control Fan Control Panel 7.1 Using the Fan... -
Page 16: Oscillating Function
7.2 Oscillating Function The fan is fitted with an Oscillating function where when activated, the fan head will swing from side to side. • To activate, the Fan must first be running in Speed Setting LOW, MED or HIGH. • Press the “OSC”... -
Page 17: Timer
approximately 30 minutes, the wind pattern will automatically drop down to the same wind pattern as if Natural Mode was selected at Medium fan speed. After approximately a further 30 minutes, the wind pattern will automatically drop down to the same wind pattern as if Natural Mode was selected at low fan speed. The fan will continue to run in the Low Speed Natural Mode until manually turned off. -
Page 18: Care And Cleaning
• Ensure the Variable Mist Control Dial (located on the front of the Mist Generator) has been set to Maximum (fully clockwise). • Press the “MIST” button on the fan control panel or remote control. • At this point, mist will start to be generated. •... -
Page 19: Descaling
• Never spray with liquids or submerge the Misting Fan in water or any other liquid. • Do not use flammable liquids, chemicals, abrasive creams, steel wool or scouring pads for cleaning. 8.2 Descaling In some areas, the water being used may be high in minerals (Hard Water) and over time, there may be small deposits of scale build up in the water tank and on the mist head. -
Page 20: Warranty Against Defect
10 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
