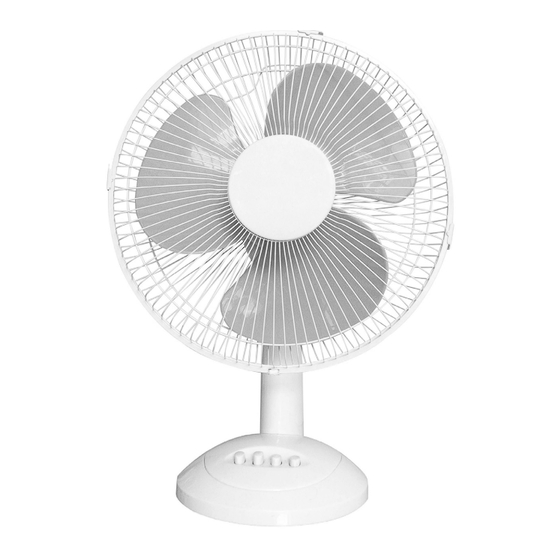

- Page 1 30cm Bench Fan User Manual Model No.: TX-1201D Item No.: 900580 220 - 240Va.c. 50Hz 40W Rev 3 Note: The specifications and/or components of this appliance are subject to change without prior notice.
-
Page 2: Table Of Contents
1 Safety Instructions ................. 3 2 Components ................... 5 3 Assembly ..................6 3.1 Base ........................6 3.2 Safety Grille and Blade ................... 6 4 Instructions For Use ..............8 5 Care and Cleaning ................8 6 Storage .................... 8 7 Warranty Against Defect ............... -
Page 3: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: • Carefully read this instruction manual before using appliance. • Keep appliance out of reach of young children. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 • Appliance should not be used outdoors, placed near a hot gas or electrical burner or placed in a heated oven. Do not install near any heat sources such as radiators, heat registers, stoves, or • other apparatus that produce heat. •...
-
Page 5: Components
2 Components Safety Grille Tilt Adjustable Oscillating Head 3 Speed Control Note: Image may differ slightly too actual model. Page 5 of 9... -
Page 6: Assembly
3 Assembly 3.1 Base The body of the fan needs to be fixed to its base. To do this, first remove only the 4 screws as identified with the arrows in the diagram below. NOTE: Do Not Remove any of the other screws. Place the Base Ring over the base and push down firmly, then fasten with the 4 screws. - Page 7 Place the Fan Blade onto the motor spindle. Note: The groove in the rear centre of the fan blade aligns with a T-bar on the motor spindle to ensure correct positioning. Fix the blade into place by gently hand tightening the spinner nut anticlockwise onto the end of the motor spindle.
-
Page 8: Instructions For Use
4 Instructions For Use Remove the cable tie and unravel the cordset before operation. The fan and motor assembly are attached to a 4-position ratchet. Tilt up or down until the assembly clicks into the desired position Press button 1 for a low speed , 2 for a medium speed and 3 for a high speed. Press 0 to switch the Fan off. -
Page 9: Warranty Against Defect
7 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
