Osram DALIeco Quick Start Manual

DALIeco
Note: Further information on the individual functions and
settings can be found in the DALIeco control user
guide.
Quick Start Guide

Single Office Mode

Step 1: Activate programming mode
Step 2: Select mode
Step 3: Daylight harvesting - save set value for daylight harvesting automatically –OR–
Daylight harvesting - save set value for daylight harvesting manually
Step 4: Exit programming mode
Basic Settings Single Office:
• Light level of the two DALI channels: 80%
• Power up: By movement, push button or remote control
• Turn off: Automatic, push button or remote control
• Absence Switch-off delay time: 15min.
• Stand-by: Off
• Daylight harvesting: ON (Not active until set value is stored!)
• Offset: +30% for CH-2 (Does not show up until daylight harvesting is dimming CH-1)
Optional settings (individually configurable)

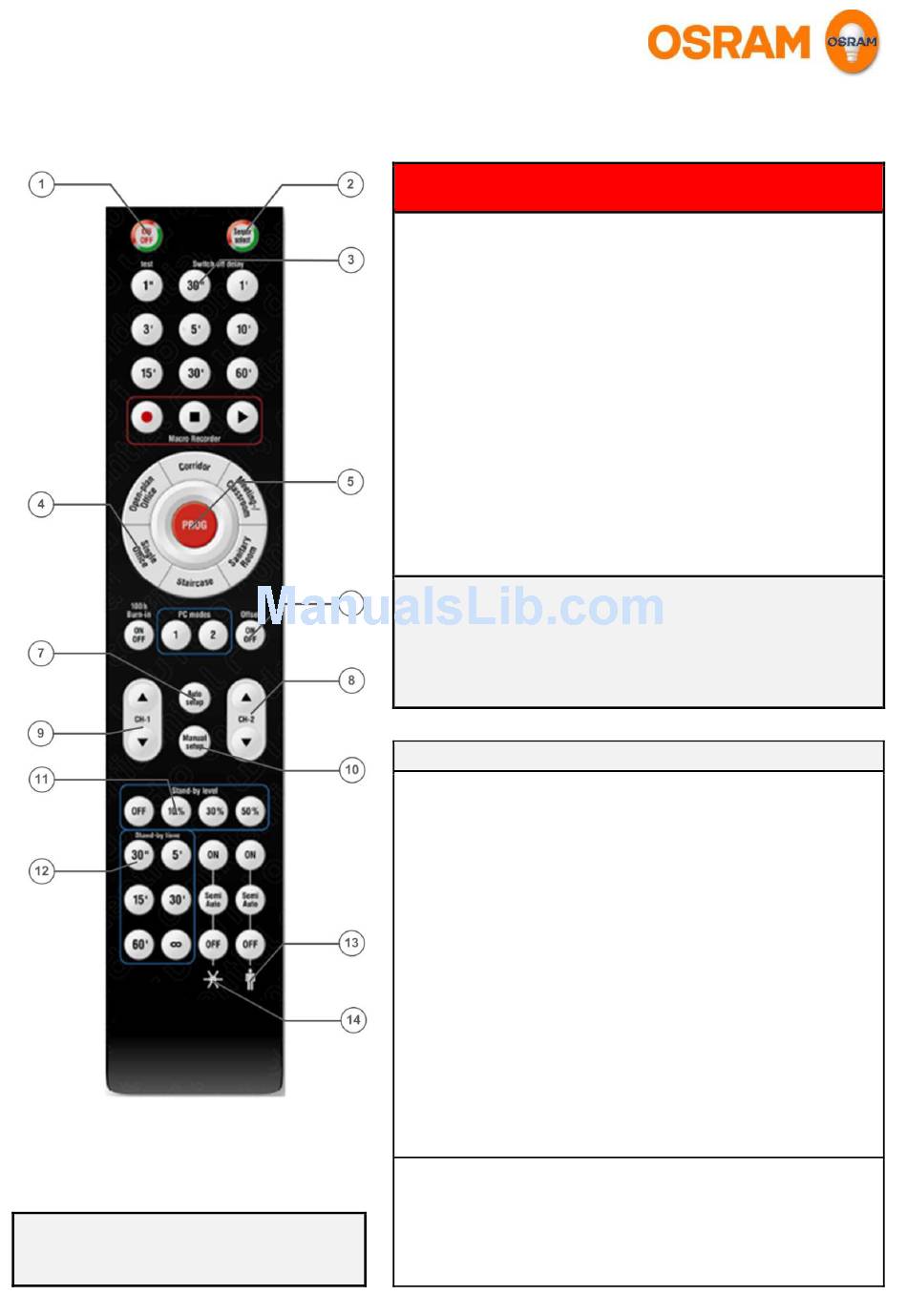

Start with long press (>0.5s) of the programming key
LED [1] starts flashing red.
Absence Switch-off delay time
Absence Stand-by-level
Absence Stand-by delay time
Daylight harvesting activation/deactivation
Motion Sensor activation/deactivation
Exit with short press (<0.5s) of the programming key
LED [1] turns off.
Note: Programming mode will exit 60s after the last key press by default.
Adjust Offset (not adjustable in the programming mode)
-
-
-
Attention!: All previous settings will be replaced by the
basic settings Single Office!
Keep the programming key [5] pressed (>0.5s).
LED [1] starts flashing red.
Briefly press the Single-Office button
DALI luminaires flash 1 time.
Activate daylight harvesting by pressing Auto setup
Luminaires dim to 80% and sensor value stored as target light intensity.
Note: Set-up only in the evening/night-time with little or no daylight.
Set-up duration is about 3 min. LED
Set brightness value by pressing the buttons CH-1
Confirm by pressing the Manual setup key
Daylight harvesting will be activated.
DALI luminaires flash 2 times; LED
Note: Set-up only in the evening/night-time with little or no
Briefly press the programming key
LED [1] turns off.
Note: Programming mode will exit 60s after the last key press by default.
e.g. Briefly press the 30sec key [3]
Note: 1sec test is purely a test function (Do not use)!
e.g. Briefly press the 10% key [11] for a 10% brightness of the stored light
value.
e.g. Briefly press the 30sec key [12]
Stand-by before switch-off.
Note: Not possible if Stand-by level is set on OFF.
e.g. Briefly press the Off-button [14]
Note: Default On (See DALIeco control manual for details).
Use full automatic mode olny in combination with motion detection.
e.g. Briefly press the Off-button [13]
Note: Default ON (See manual for details).
Briefly press the Offset key [6] to start.
Change Offset level with the CH-2 key
Briefly press the Offset key [6] to save and end.
Note: Only available in combination with the daylight harvesting.
Offset adjustment of CH-2 only between the CH-1 value and the
stored set value.
Adjust Offset with sufficient daylight only.
[4] (<0.5s).
[7].
[2] will flash red/green during that period.
[9] up/down.
[10] shortly.
[2] will flash red/green during that period.
daylight.
[5] (<0.5s).
[5]. (Start programming mode)
for a delay time of 30sec.
for a 30sec delay time of
to deactivate daylight harvesting.
to deactivate motion detection.
[5]. (End programming mode)
[8].
