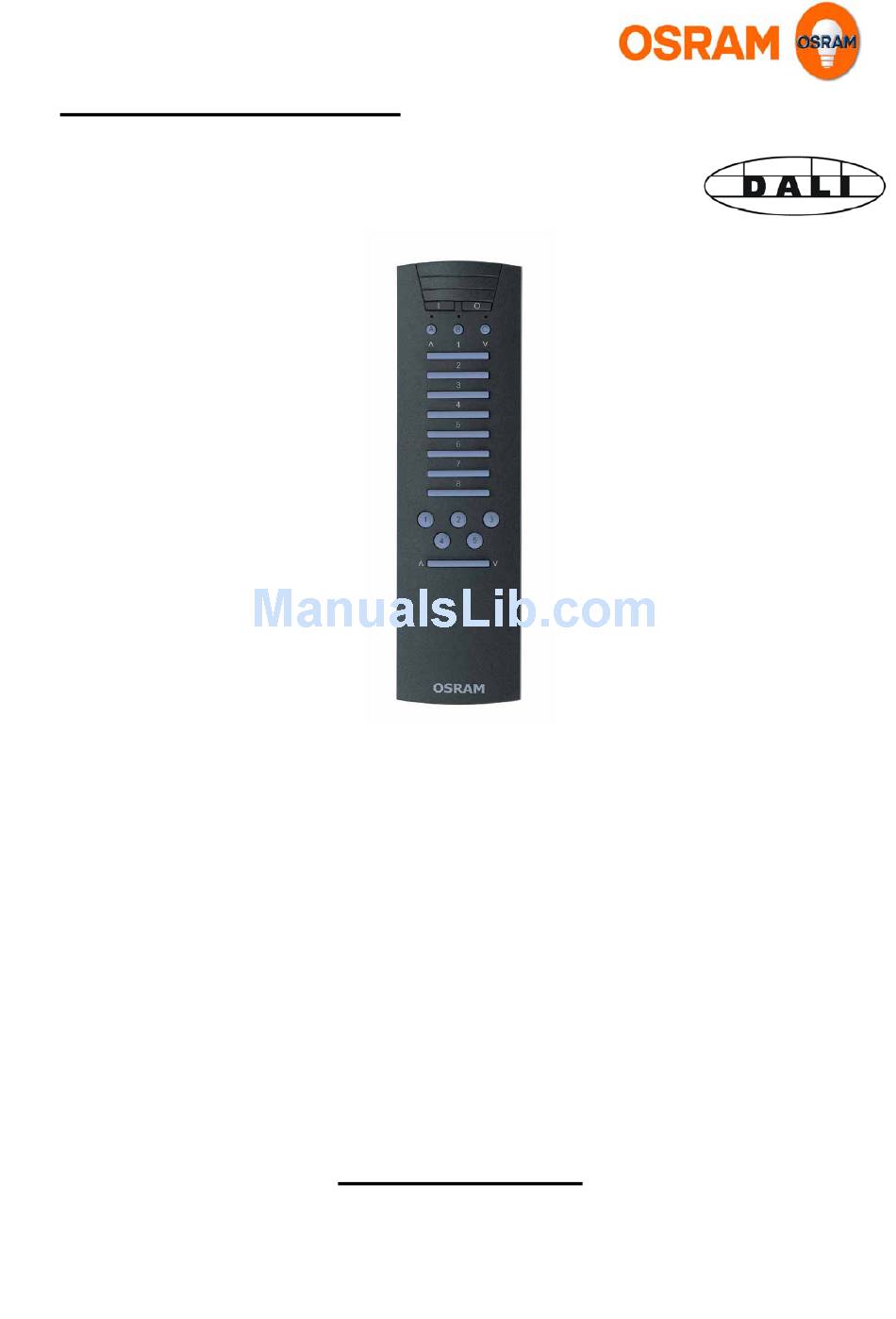

Operating instructions:
Radio remote control
Type: DALI RMC ADVANCED
Customer Service Center (KSC) Germany
OSRAM GmbH
Hellabrunner Str. 1
D-81536 Munich
Tel.: +49 (0) 89 6213 – 0
Fax: +49 (0) 89 6213 – 2020
Albert-Schweitzer-Str. 64
D-81735 Munich
Tel.: +49 (0) 1803 677 – 200
Fax: +49 (0) 1803 677 – 202
www.osram.com
Advertisement
Table of Contents
Related Manuals for Osram DALI RMC ADVANCED
Summary of Contents for Osram DALI RMC ADVANCED
-
Page 1: Operating Instructions
Operating instructions: Radio remote control Type: DALI RMC ADVANCED OSRAM GmbH Hellabrunner Str. 1 D-81536 Munich Tel.: +49 (0) 89 6213 – 0 Fax: +49 (0) 89 6213 – 2020 Customer Service Center (KSC) Germany Albert-Schweitzer-Str. 64 D-81735 Munich Tel.: +49 (0) 1803 677 – 200 Fax: +49 (0) 1803 677 –... - Page 2 Function overview............Page 3 Startup ................Page 4 Programming in the DALI ADVANCED central unit ..Page 5 Operation ................. Page 6 Notes on radio operation ..........Page 7 Technical data ..............Page 8 Page 2 Operating instructions: Remote Control DALI RMC ADVANCED...
- Page 3 There are three levels (A, B and C) each with eight channels for switching and dimming; in other words, 24 separate radio channels can be controlled. The ALL ON and ALL OFF buttons enable all the connected loads to be switched on or off. Operating instructions: Remote Control DALI RMC ADVANCED Page 3...
-
Page 4: Startup
The maximum duration of transmission is 12 seconds, even if another button is then pressed. A radio telegram is not sent if more than one button is pressed at the same time. Page 4 Operating instructions: Remote Control DALI RMC ADVANCED... -
Page 5: Programming In The Dali Advanced Central Unit
Deleting channels: Channels that have been programmed can be deleted in the "Untrain Channel" menu option on the manual programming unit (see the operating instructions for the manual programming unit). Operating instructions: Remote Control DALI RMC ADVANCED Page 5... -
Page 6: Operation
2. Press the required channel button. If no further button is pressed within about 4 seconds, the hand-held transmitter switches back to the level that has been selected as the default level. Page 6 Operating instructions: Remote Control DALI RMC ADVANCED... -
Page 7: Notes On Radio Operation
This radio system may not be used for communicating beyond property boundaries. • If operated in Germany, the regulations contained in Official Bulletin Vfg 73/2000 must be met. The hand-held transmitter may be operated in all EU and EFTA states. Operating instructions: Remote Control DALI RMC ADVANCED Page 7... -
Page 8: Technical Data
: max. 80 % Digital Addressable Lighting Interface The international digital interface standard for the lighting industry Date 13.09.02 / Remote Control ADVANCED Version 1.0 Subject to change without notice. Errors and omission excepted. Page 8 Operating instructions: Remote Control DALI RMC ADVANCED...
