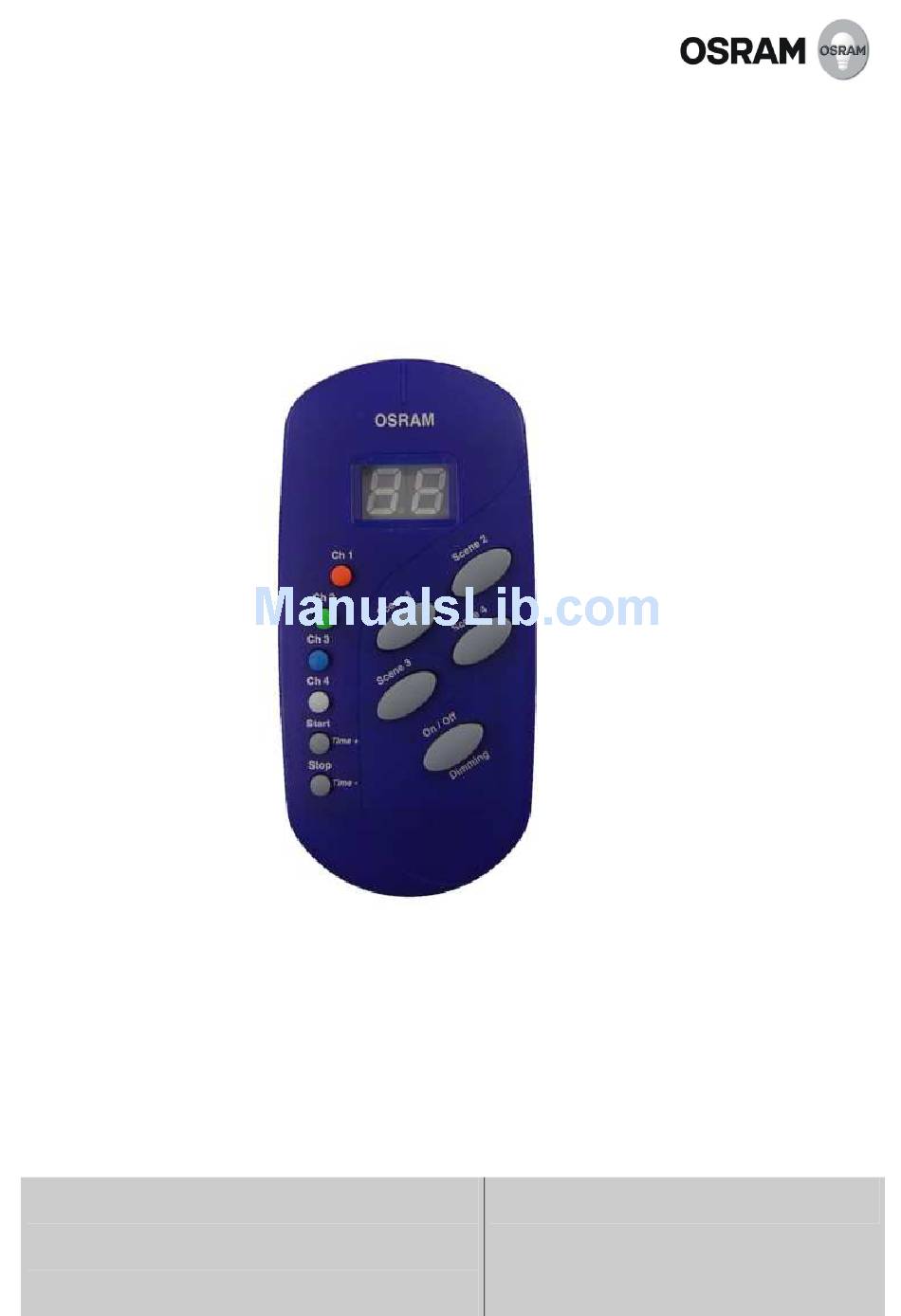

Page 1: Operating Instructions
Operating instructions III / 2004 DALI EASY RMC Version 1.0 OSRAM GmbH www.osram.com Costumer-Service-Center (CSC) www.osram.de Steinerne Furt 6286167 Augsburg, Germany Tel. : (+49) 1803 / 677 - 200 (charges apply) Fax.: (+49) 1803 / 677 - 202... - Page 2 EASY RMC remote control. This is the only way to ensure that you use the equipment safely and correctly. Keep these operating instructions in a safe place for future reference. You should make sure that everyone who uses the DALI EASY RMC has read these operating instructions.
-
Page 3: Definition Of Terms
The fade time is the time in which the lighting system changes from one lighting scene to the next in sequencer mode. Cycle time The cycle time is the time in which the daylight simulation system runs through a complete daylight cycle. OSRAM – Operating Instructions: remote control DALI EASY RMC page 3... - Page 4 IR receivers may be connected. To ensure that the remote control function operates properly, the IR receiver must not be exposed to direct light. Wherever possible, mount the IR receiver in a shaded spot. page 4 OSRAM – Operating Instructions: remote control DALI EASY RMC...
- Page 5 All the luminaires are faded up or down. The fade direction changes each time the button is held down. If the luminaires are switched off, a long press switches them on and fades them from minimum to maximum brightness. OSRAM – Operating Instructions: remote control DALI EASY RMC page 5...
- Page 6 Wellness 1 to 59 seconds Long Time 1 to 99 minutes Display for the cycle time in daylight simulation Description Display Time range Daylight simulation 1 to 24 hours page 6 OSRAM – Operating Instructions: remote control DALI EASY RMC...
- Page 7 If there is more than one system in the reception area their IR receivers must first be disconnected or adequately covered to avoid an unwanted RESET. OSRAM – Operating Instructions: remote control DALI EASY RMC page 7...
-
Page 8: Technical Data
0° C – + 40° C Protection type: IP20 Dimensions: 120 x 57 x 26 mm (L x B x H) The CE symbol signifies compliance with the relevant EU Directives. page 8 OSRAM – Operating Instructions: remote control DALI EASY RMC...
