Mini radio remote control

Advertisement

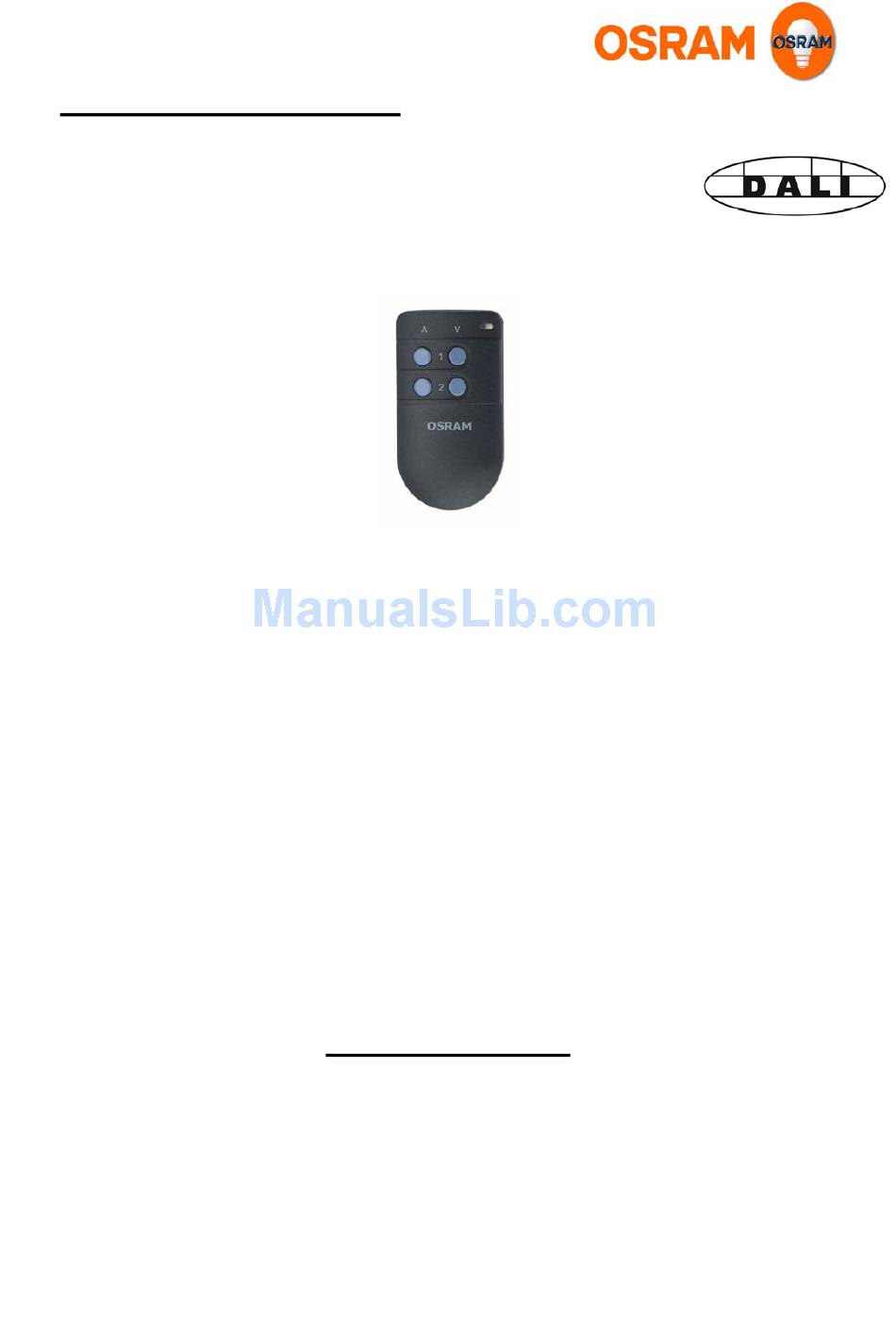

Operating instructions:

Mini radio remote control
Type: DALI RMC ADVANCED
Customer Service Center (KSC) Germany
OSRAM GmbH
Hellabrunner Str. 1
D-81536 Munich
Tel.: +49 (0) 89 6213 – 0
Fax: +49 (0) 89 6213 – 2020
Albert-Schweitzer-Str. 64
D-81735 Munich
Tel.: +49 (0) 1803 677 – 200
Fax: +49 (0) 1803 677 – 202
www.osram.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALI RMC ADVANCED and is the answer not in the manual?

Questions and answers

Summary of Contents for Osram DALI RMC ADVANCED

  • Page 1: Operating Instructions

    Operating instructions: Mini radio remote control Type: DALI RMC ADVANCED OSRAM GmbH Hellabrunner Str. 1 D-81536 Munich Tel.: +49 (0) 89 6213 – 0 Fax: +49 (0) 89 6213 – 2020 Customer Service Center (KSC) Germany Albert-Schweitzer-Str. 64 D-81735 Munich Tel.: +49 (0) 1803 677 –...
  • Page 2 Page 2 Operating instructions: Mini Remote Control DALI RMC – M ADVANCED...
  • Page 3 Contents 1. Function overview............Page 4 2. Programming in the DALI ADVANCED central unit ..Page 4 3. Operation ................. Page 5 4. Changing the battery ............Page 5 5. Notes on radio operation ..........Page 7 6. Technical data ..............Page 8 Operating instructions: Mini Remote Control DALI RMC –...
  • Page 4: Programming In The Dali Advanced Central Unit

    Function overview Fig. A The hand-held radio transmitter enables all the receivers, the universal radio-controlled dimmer and the radio-controlled louvre blind actuator connected to the DALI ADVANCED central unit to be remotely controlled. Two independent radio channels (channel 1 and channel 2) are provided. Each channel has two buttons (/\ and \/) (see Fig.
  • Page 5: Operation

    For information on how to train the radio actuators to recognise the hand-held transmitter, please see the operating instructions for the universal radio-controlled dimmer and for the radio-controlled louvre blind actuator. Deleting channels: Channels that have been programmed can be deleted in the "Untrain Channel" menu option on the manual programming unit (see the operating instructions for the manual programming unit).
  • Page 6 Fig. B) Fig. C) Procedure for changing the battery: 1. Open the case of the hand-held transmitter by undoing the screw (Fig. B). 2. Remove the old battery from the battery compartment. 3. Insert the new battery. Make sure it is the right way round, (+ on top, see Fig. C) 4.
  • Page 7: Notes On Radio Operation

    If used as specified, this device complies with the requirements of the R&TTE directive (1999/5/EU). A complete conformity declaration can be found on the internet at: www.osram.com • The remote control may be operated in all EU and EFTA states.
  • Page 8: Technical Data

    Technical data Power supply: 3 V DC Batteries: 1x lithium button cell (CR 2032) Battery life: approx. 5 years Transmission frequency: 433.42 MHz, ASK Range: max. 30 m (in the open) Dimensions (LxWxH): 73 x 40 x 19 mm Temperature range: 0 °C to +55 °C Rel.
