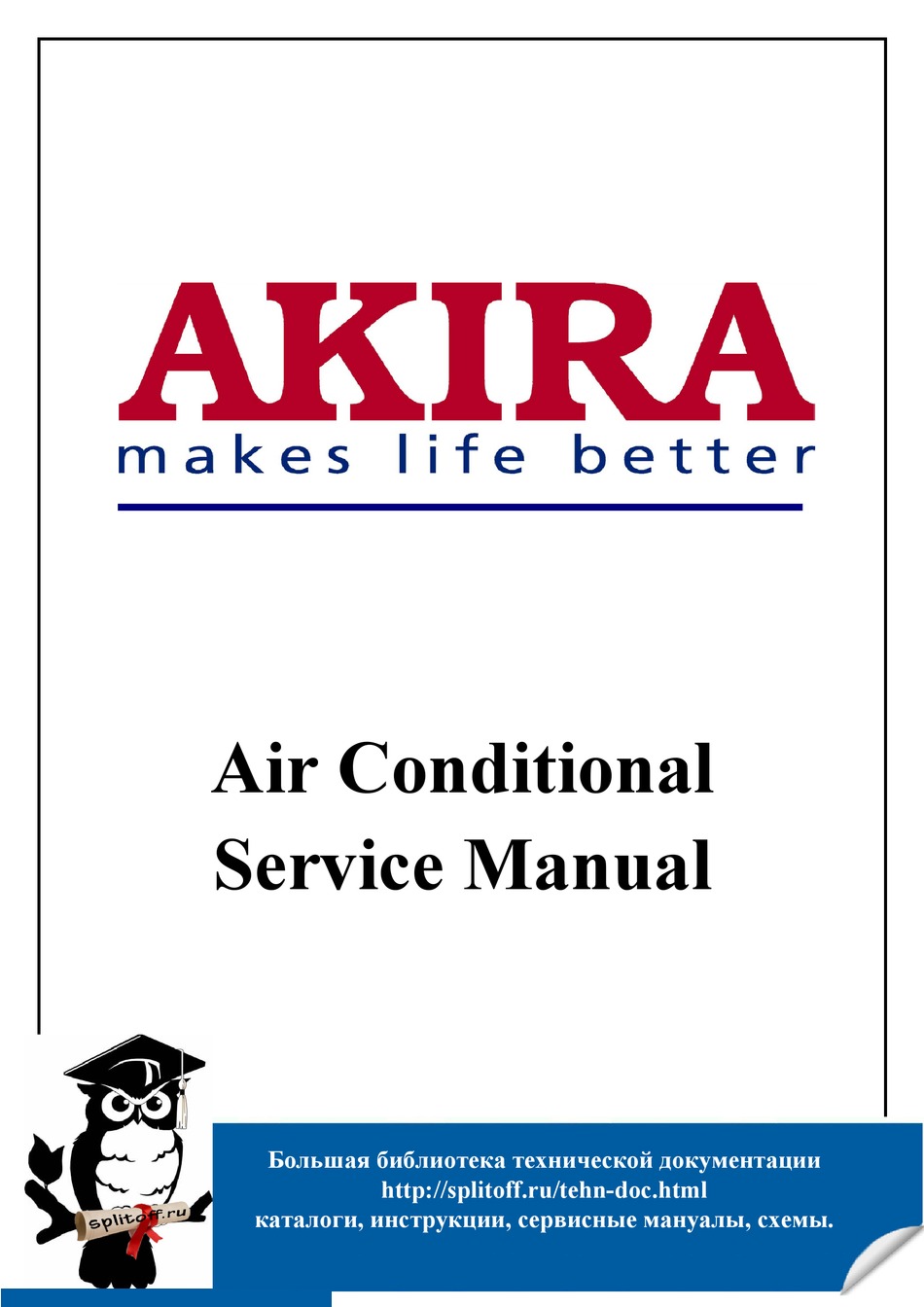

Page 1: Service Manual
Air Conditional Service Manual http://splitoff.ru/tehn-doc.html... - Page 2 Model: AC-W17CL Model No:AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 3: Table Of Contents
TECHNICAL SPECIFICATIONS....................4 FEAURE OF PRODUCT ......................... 5 PRINCIPLE OF OPERATION ......................6 SYSTEM DIAGRAM........................7 EXPLODED VIEW .......................... 8 PART LIST ............................9 OPERATION STEP ........................12 TROUBLE SHOOTING......................... 18 CIRCUIT DIAGRAM........................27 Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 4: Technical Specifications
3, 1.8mm Fan diameter & height (mm) Noise level dB(A) Width (mm) Depth (mm) Height (mm) Net weight (kg) Controlled temperature range & accuracy ( ) 15~30 Service ambient temperature ( ) 18~43 Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 5: Feaure Of Product
FEATURES OF PRODUCT Models AC-W17CL has their indices remarkably improved as a whole and gained the lead among the products of the same kind in the market. A brief account of their features is given below. (1) Fine Appearance. The design of appearance has changed from the dull design style of traditional window type air conditioners. -
Page 6: Principle Of Operation
The cooled high-pressure refrigerant is throttled in the outdoor unit and returns to the compressor after evaporation. By cycling in this manner, the purpose of increasing the room temperature is fulfilled. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 7: System Diagram
3. Fan motor 4. Fan 6 6 6 6 5. Outdoor heat exchanger 6. Compressor 7. Capillary 7 7 7 7 8 8 8 8 The direction of refrigerant flow The direction of air flow Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 8: Exploded View
EXPLODED VIEW Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 9: Part List
641029 Sheath 641080 Packing tape 641030 Compressor damping ring 641081 Boat switch 641031 Rubber washer 641082 Foam block 641032 Terminal box cover 641083 Fixing pin 641033 641084 Fixing clamp 641034 641085 Wind-door lever Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 10 Louver motor 641047 Motor stand (1) 641098 Power supply lead 641048 Motor stand (2) 641099 Wiring ring 641049 Motor 641100 Electrical box 641050 Motor fixing clamp 641101 Screw 641051 Screw 641102 Waterproof foam block Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 11 Boat switch 641081 Louver motor 641097 TY-50C 5r/min Panel assembly 641002 Fan motor capacitor 641094 CBB611A F/450VAC Compressor capacitor 641096 CBB65A-1K F/450VAC Centrifugal fan 641039 Propeller fan 641055 Eccentricity wheel 641086 Knob 641005 Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 12: Operation Step
Unscrew the two screws at the lower back of the frame and remove the frame by holding it while grabbing the handle of the bottom plate and pulling the latter out by force. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 13 Unscrew the three screws at the electrical box unit remove it. Disconnect the wires and earthing conductor. (5) Removal of front cover plate Unscrew the eight screws at the front cover plate and remove it. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 14 (7) Remove the bracing (8) Removal of evaporator assembly Unscrew the two screws at the wind-path partition plate and remove it, then take out the evaporator assembly from the wind-path partition plate. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 15 The wind-path partition plate can be taken out by removing the screw connecting the win-path partition plate and base plate. (10) Removal of centrifugal fan Unscrew the bolt at the centrifugal fan and remove (11) Remove volute and water collecting plate. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 16 The condenser can be dismantled by unscrewing the six screws fixing it. (14) Removal of propeller fan Unscrew the nut that fastens the propeller fan to the motor shaft and dismantle the fan. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 17 (16)Removal of fan motor assembly The fan motor assembly can be taken out by removing the four nuts connecting the motor to the base plate. (17) Disconnect the piping and the compressor. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 18: Trouble Shooting
Power plug improperly connected or poor Correct poor connected and plug the power connected plug properly into the socket Erroneous wiring Check wiring according to the electric diagram and rewire correctly Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html... - Page 19 Power failure Check the circuit in order Loose connector Reconnect the connector Motor capacitor damaged Replace the capacitor Motor winding open or short-circuited. Replace the motor Fault selector switch Replace the selector switch Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 20 (e.g. motor burned or seized or valve plate damaged) A too high cooling load Check for the expected cooling load A too high set temperature Adjust the set temperature Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 21 A too high heating load Check for the expected heating load A too low set temperature Adjust the set temperature 4- way valve fault Replace the 4-way valve Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 22 The capillary and High Pressure and Low Secure any loose components Pressure piping not well secured, causing bumping and rubbing noise Internal parts of the compressor damaged and Replace the compressor metal bumping noise generated Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 23 Poor contact of starting Repair or replace the or with an external force switch winding. Capacitor open-circuited 2. Inspect and determine the fault with a multi-meter. Make adjustment. 3. Replace the capacitor. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 24 6. Incorrect voltage. 4. Measure the total current or secondary circuit current. Service or replace the starting switch. Attain proper matching as per properties of motors. Measure the voltage with voltmeter and make calibration. Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 25 Abnormal vibration of Rotor being out of balance. Calibrate it for dynamic motor Pulley being out of balance balance. A Bent shaft extension. Calibrate it for static balance. 3. Straighten or replace the shaft Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 26 Model No: AC-W17CL Version 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 27: Circuit Diagram
CIRCUIT DIAGRAM : SELECTOR SA 2 : BOAT SWITCH : THERMOSTAT : FAN MOTOR : LOUVER MOTOR : COMPRESSOR , C : CAPACITOR : PLUG YE(LO) BK(MED) BN(HI) 230V~ 50Hz GN YE http://splitoff.ru/tehn-doc.html Model No: AC-W17CL Version 1.0...
