Installation instruction
AWRON Display E46DGA
BMW
•
E46 M3
•
E46 330i
Einbauanleitung: E46DGA
Autor:
AWRON GmbH
Version: V1.0
Datum: 26.03.2014
Seite:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E46DGA and is the answer not in the manual?

Questions and answers

Related Manuals for Awron E46DGA

Summary of Contents for Awron E46DGA

  • Page 1 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Installation instruction AWRON Display E46DGA • E46 M3 • E46 330i...
  • Page 2 Installation Guide • Disassembly interior trim • Remove air vent cable • Remove footwell trim on the driver side • Install AWRON cable harness system • Wiring harness connector to OBD connector • Mounted AWRON performance display Support & FAQs...

  • Page 3: Scope Of Delivery

    Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Scope of delivery E46DGA Display module Harness...
  • Page 4 Installation Manual : E9xDGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Toolkit Mounting wedge Assembly tool...
  • Page 5 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Disassembly interior trim Use mounting wedge Open the glove compartment. Now lever with a plastic wedge the air guide out. Than insert the plug of the controls and the switch (see marking). Now the air guide can take out.
  • Page 6 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Disassembly interior trim Remove the bezel using a plastic wedge. Use mounting wedge Unscrew screws Remove the two screws which marked on the picture.
  • Page 7 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Disassembly interior trim Remove the air guide Open air duct using plastic wedge and pull out.
  • Page 8 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Remove air vent cable Lever out retaining clip on the cable. Remove red clip and blue cable Pull cable from lever. Remove green clip...
  • Page 9 Einbauanleitung: E46DGA Version: V1.0 Seite: Autor: Datum: 26.03.2014 AWRON GmbH Remove footwall trim on the driver side Use screwdriver Remove the two screws marked in the picture of the footwell cover. And the rivet (left)
  • Page 10 Einbauanleitung: E46DGA Version: V1.0 Seite: 10 Autor: Datum: 26.03.2014 AWRON GmbH Install AWRON cable harness system Harness from the footwell up and out embarrassed. No tools required Top pull out of the vent. No tools required Connect AWRON cable harness system...
  • Page 11 Einbauanleitung: E46DGA Version: V1.0 Seite: 11 Autor: Datum: 26.03.2014 AWRON GmbH OBD-Connector OBD connector Plug OBD cable in OBD connector...

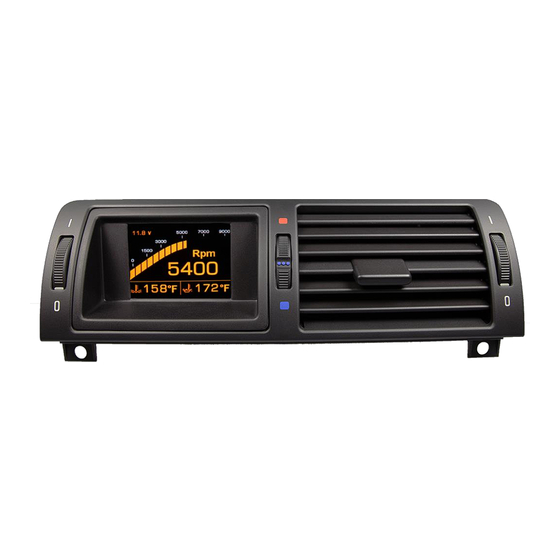

  • Page 12 Einbauanleitung: E46DGA Version: V1.0 Seite: 12 Autor: Datum: 26.03.2014 AWRON GmbH Mounted AWRON display Mounted AWRON E46DGA Performance display system...
  • Page 13 Autor: Datum: 26.03.2014 AWRON GmbH Support & FAQ For all enquiries concerning your AWRON display system, or if you Please also seen us and our have problems with installation another AWRON products on guide the AWRON support team at our website www.awron.de...
