Summary of Contents for Awron E92DGA M3

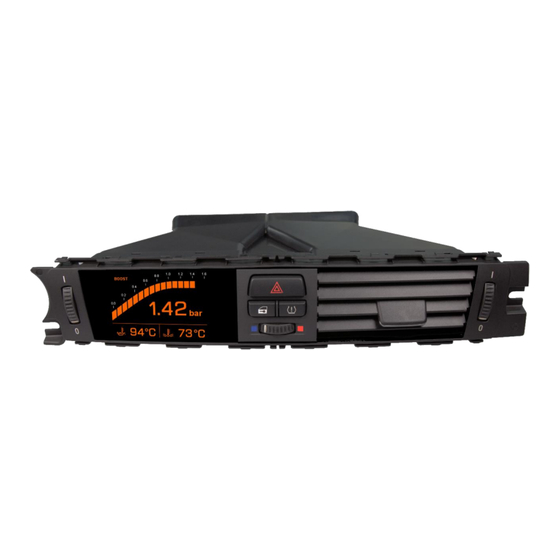

- Page 1 Installation Instr. : E92DGA Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH AWRON Display E92DGA – M3 Installation Manual E90/E91/E92/E93 • E90 M3 - Limousine • E92 M3 - Coupe...
- Page 2 • Oppening interior trim • Mounting AWRON display • Cable installation on passenger footwall side • Installation AWRON harness on the Junction-Box • Diesel sensor connection (ONLY FOR DIESEL ENGINES) • Installation and position of USB cable Support & FAQs...
-
Page 3: Scope Of Delivery
Installation Instr. : E92DGA Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH Scope of delivery E9xDGA Display module Power cord set... - Page 4 Installation Instr. : E92DGA Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH Toolkit Mounting wedge Assembly tool...
- Page 5 Installation Instr. : E92DGA Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH Schematic...
-
Page 6: Wiring Diagram
Installation Instr. : E92DGA Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH Wiring diagram... - Page 7 Version: V1.1 Seite: Autor: Datum: 23.02.2016 AWRON GmbH Opening interior trim Use mounting wedge Solve with a plastic wedge the interior trim. Start from the right. Look for the connector at the start button and the control panel warning lights, etc. (see picture below right) Disconnect the connectors, then they can remove the trim.
- Page 8 Autor: Datum: 28.04.2015 AWRON GmbH Mounting AWRON display Socket wrench 8mm With a socket wrench 8mm remove the socket wrench, and also remove the two marked nuts (see picture). Unclip the air ventilation duct from the interiors of the bar.
- Page 9 AWRON GmbH Mounting AWRON display No tools required Clip the new ventilation duct with the AWRON display in your interior trim and carefully remove the nuts. The AWRON display can now be connected to the wiring harness and installed. Now close the Start button and run the cable out of the control element between the display and demister.
- Page 10 Installation Instr. : E92DGA Version: V1.1 Seite: 10 Autor: Datum: 22.02.2016 AWRON GmbH Cable installation on passenger footwell side For cable installation necessary flax as photos from 1-6 show.
- Page 11 Installation Instr. : E92DGA Version: V1.1 Seite: 11 Autor: Datum: 22.02.2016 AWRON GmbH Cable installation on passenger footwell side Contact must be switched off or put the key in the ignition lock mandatory! Remove screws marked in the picture of the footwall cover.
- Page 12 Installation Instr. : E9xDGA Version: V1.1 Seite: 12 Autor: Datum: 28.04.2015 AWRON GmbH Installation AWRON harness on the Junction-Box Passenger side Junction box installation point Power distribution Junction box control unit...
- Page 13 Seite: 13 Autor: Datum: 28.04.2015 AWRON GmbH Installation AWRON harness on the Junction-Box ATTENTION: The Blue connectors can be located on either the left or right side of the junction box depending on the year. Important! The blue plug is always the CAN, and the power supply to the black.
- Page 14 Installation Instr. : E9xDGA Version: V1.1 Seite: 14 Autor: Datum: 28.04.2015 AWRON GmbH Installation AWRON harness on the Junction-Box Contact must be switched off or put the key in the ignition lock mandatory! No tools required No tools required...
- Page 15 Insert two pins of the vehicle wiring harness into white connector housing. Orientate and pay attention on the color of the AWRON wire and unplag pin 1 and pin 2 from AWRON harness into blue connector on the position like picture showed.
- Page 16 Installation Instr. : E9xDGA Version: V1.1 Seite: 16 Autor: Datum: 28.04.2015 AWRON GmbH Cable installation on passenger footwell side Contact must be switched off or put the key in the ignition lock mandatory! No tools required No tools required...
- Page 17 Insert two pins of the vehicle wiring harness into black connector housing. Orientate and pay attention on the color of the AWRON wire and unplug pin 1 (red/yellow) and pin 6 (brown) from AWRON harness into black connector X14272 on the position like picture showing.
- Page 18 Installation Instr. : E9xDGA Version: V1.1 Seite: 18 Autor: Datum: 28.04.2015 AWRON GmbH Cable installation on passenger footwell side Contact must be switched off or put the key in the ignition lock mandatory! Return booth (black and blue connector) to the Junction box...
- Page 19 Installation Instr. : E9xDGA Version: V1.1 Seite: 19 Autor: Datum: 28.04.2015 AWRON GmbH Installation and position of USB cable At final step you need to install USB cable between passenger seat and hand brake.
- Page 20 Autor: Datum: 28.04.2015 AWRON GmbH Support & FAQ For all enquiries concerning your AWRON display system, or if you Please also seen us and our have problems with installation another AWRON products on guide the AWRON support team our website www.awron.de...
