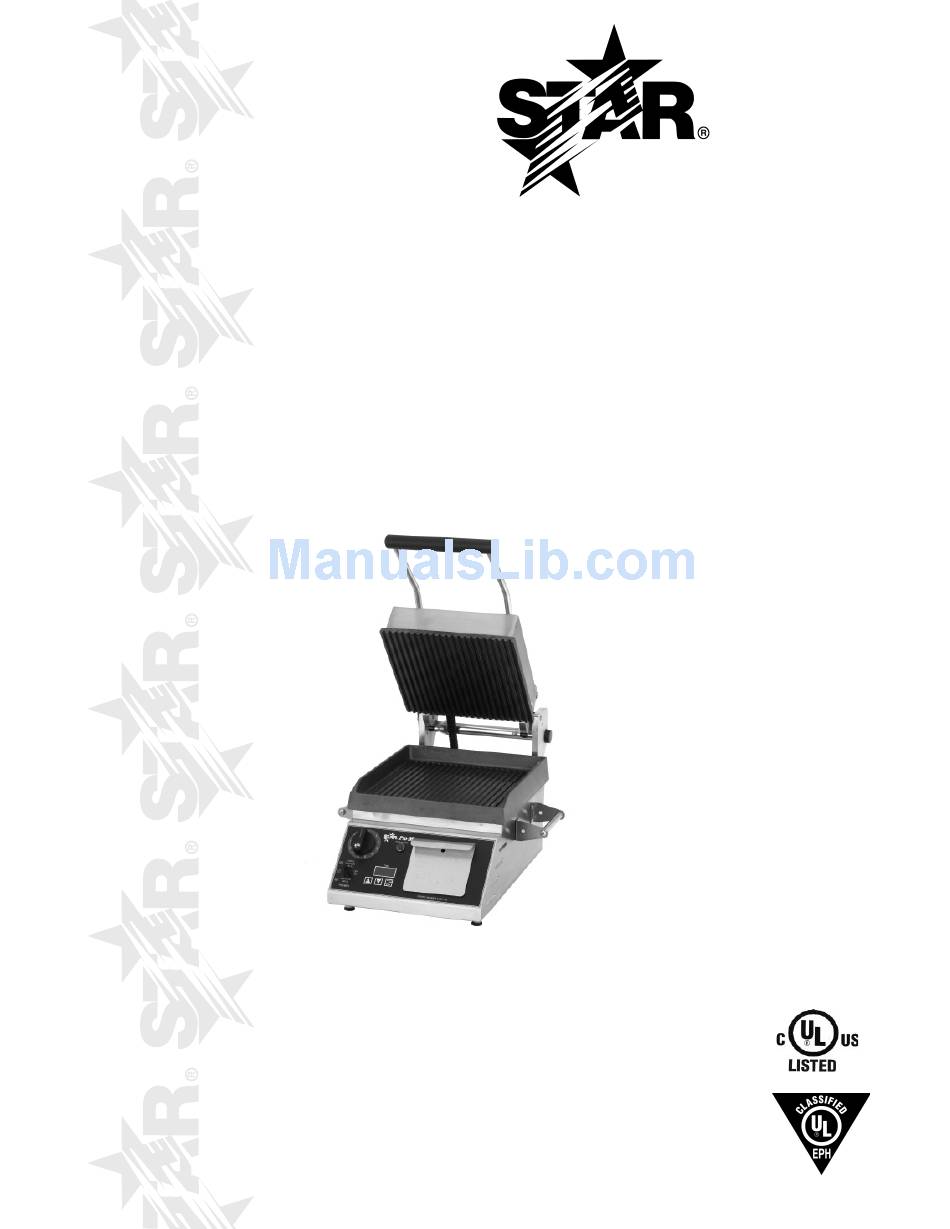

- Page 1 TWO SIDED GRILLS MODEL CG10ITJD-240V Installation and Operation Instructions 2M-Z7605 Rev. A 7/11/06 CG10ITJD-240V...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
ELECTRICAL SPECIFICATIONS Model No. Volts Rated Wattage Amps NEMA Plug CG10ITJD 1800 6-15P GENERAL INSTALLATION DATA CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. - Page 4 SEASONING THE COOKING SURFACES The cooking surfaces must be "seasoned" in order to reduce product sticking. To season, set the dial to position 3. Spray the upper and lower cooking surfaces with a non-salted vegetable oil (i.e PAM®). Repeat if required. SETTING THE TEMPERATURE The thermostat control knob is used to set the temperature to your requirements.
-
Page 5: Operation Troubleshooting
CLEANING All surfaces except the cooking grids are stainless steel and can be cleaned with a warm, damp cloth and mild detergent. Polish with a dry soft cloth. CAUTION DO NOT IMMERSE OR LET THE UNIT STAND IN WATER. DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER ON WHICH THE UNIT IS LOCATED. - Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 7 GENERAL LOCATION BUT MAY BE RELOCATED OR SCALED FOR CLARITY. WIRE DIAGRAM, CG/GR, 10/14, 120V/230/240V, WITH TIMER SOME ITEMS ARE INCLUDED FOR STAR MANUFACTURING INTERNATIONAL, INC. ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE MODEL: SEE ABOVE SK2001 REV.
- Page 8 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODEL GR10I,CG10I,...
-
Page 9: Parts List
SCREW 10-24X1/2 FZA PS-GR134 ROLLER BEARING KIT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
