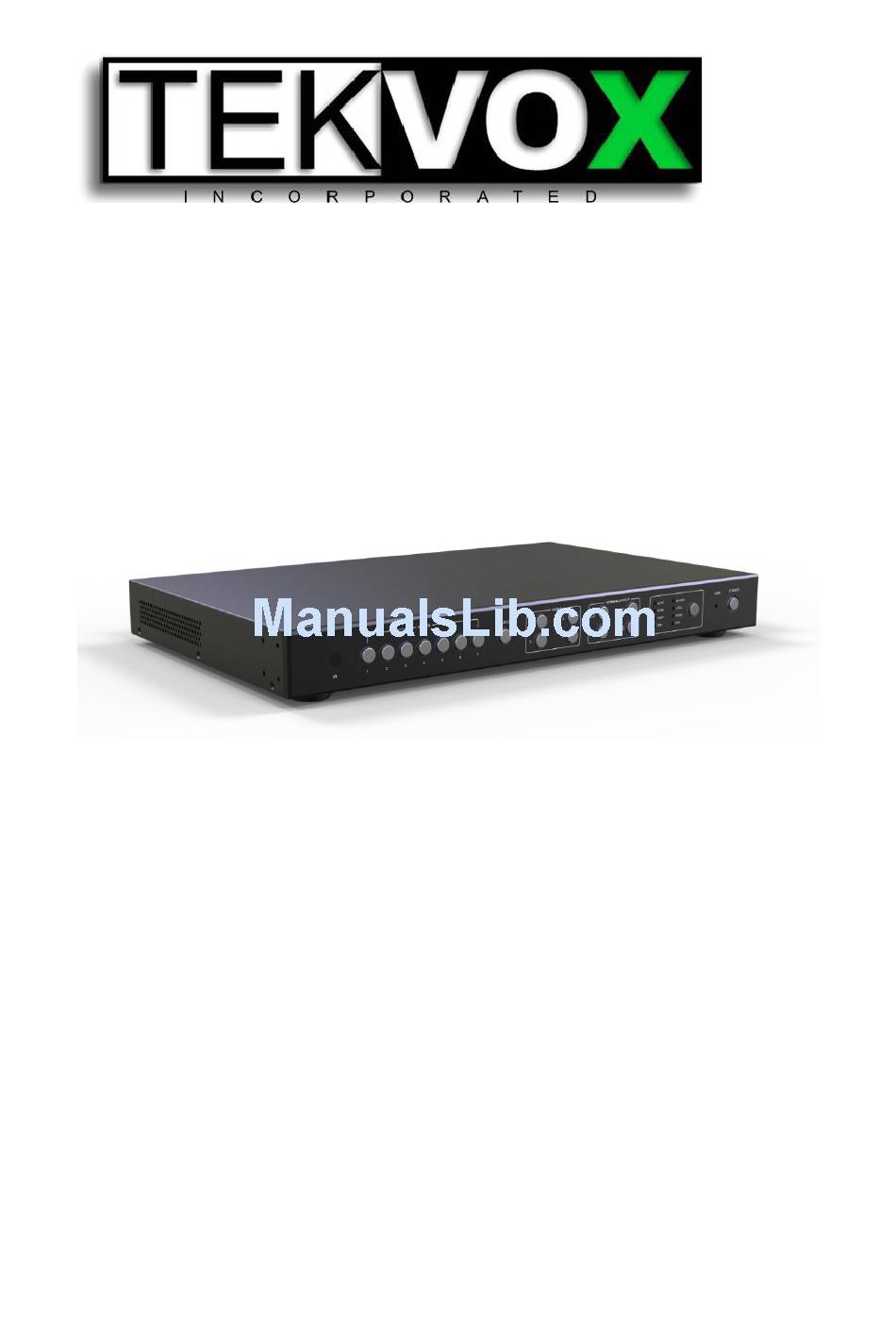

4K 7x1 Multiviewer Switcher
(TEK MV71-4K 79064 & 79065)

User Manual

All Rights Reserved
Revised July 1, 2015
1 / 49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEK MV71-4K 79065 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tekvox TEK MV71-4K 79065

  • Page 1: User Manual

    4K 7x1 Multiviewer Switcher (TEK MV71-4K 79064 & 79065) User Manual All Rights Reserved Revised July 1, 2015 1 / 49...
  • Page 2 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are recent as of January 2015.
  • Page 3 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4 Feature List Multiple inputs: 4 x HDMI, 2 x DisplayPort, 1 x RGB/YPbPr HDMI,DisplayPort source input with 4Kx2K@30Hz support Supports MHL in the four HDMI input ports Supports multiple HDMI output resolutions, such as 4Kx2K@30Hz and 1080P. Supports Auto Scaler in each source input Supports different multiple-window modes of quadruple windows, triple windows, double windows and a single window, outputting to a display device through one HDMI output...
  • Page 5: Table Of Contents

    Contents Getting Started ............................... 7 Panel Layout ................................ 7 Front Panel ..............................7 Back Panel ............................... 8 IR Remote Control Unit ............................9 Button layout ..............................9 HDMI/DP Cable Switcher (Optional) ......................... 10 Installation ................................ 10 How to Connect the Multiviewer Switcher ....................10 Wiring Diagram ............................. 11 Operating ................................12 Standby Mode and Operational Mode ......................12 Screen layout Configuration ..........................12 Single Window .............................. 15 Double Windows ............................16 Triple Windows ............................. 17 Quadruple Windows ............................. 18 Output Resolution ............................. 19 Audio Setting ..............................19 Audio Input Select ............................19 Audio Output Instructions ..........................21 OSD Setting Instructions ........................... 21 Advanced Settings ..............................25 RS232 Setting ..............................25 IP Setting ................................26 Command List ..............................28...
  • Page 6 Aspect Ratio Selection ....................... 31 Resolution Selection ........................32 Advanced Control ............................32 Power Control ..........................32 Audio Delay ..........................33 System Controls ......................... 33 EDID Management ............................35 Copy Preset EDID ........................36 Copy EEPROM EDID ......................... 37 Write EDID Name (EEPROM) ....................38 Read EDID Name (EEPROM) ....................
  • Page 7: Getting Started

    Getting Started Panel Layout Front Panel Name Description IR receive sensor, receives the IR signals IR receive window from the IR remote. Presses the buttons 1~7 to select the corresponding video or audio input. The Input Buttons and Indicator indicators mean the corresponding status of the video or audio input.
  • Page 8: Back Panel

    Back Panel Name Description Power Switch Turn the power ON or OFF using this switch, Connect and 110/220 the included AC power cord to this receptacle and AC Power connect the plug to an available electrical outlet. Receptacle 8 channel analog audio output, Connect a 3.5mm Analog audio mini-stereo cable from this jack to the Line In jack of a output...
  • Page 9: Ir Remote Control Unit

    IR Remote Control Unit Button layout Name Description Press this button to power-ON or power-OFF Power the Multiviewer Switcher Press "1-7" buttons to select the corresponding Input 1-7 video input or audio input Press "1-7" buttons to select the corresponding Windows 1-4 window for select video input Press this buttons to select Single mode, Double...
  • Page 10: Hdmi/Dp Cable Switcher (Optional)

    HDMI/DP Cable Switcher (Optional) Name Description HDMI/DP Output Connect up to 4k or Hi-Def HDMI/DP sources Power Indicator Indicates the power indicator. Link Indicator Indicates the connection status indicator. Presses this button Multiviewer Switcher to switch Switch Button to this signal port. Connects to the HDMI or DisplayPort ports of HDMI/DP Input Multiviewer Switcher using the HDMI cables.
  • Page 11: Wiring Diagram

    OPTIONAL: Connect the HDMI/DP input port of HDMI/DP cable switcher to the 4K or HD source device. Connect the HDMI/DP input port of Multiviewer Switcher to the HDMI/DP output port of HDMI/DP cable switcher using HDMI or DP cables. OPTIONAL: Connect four 3.5mm mini-stereo cables from the jacks on the Multiviewer Switcher to the “Line In”...
  • Page 12: Operating

    Operating Standby Mode and Operational Mode The “PWR” LED next to the Power button on the front panel indicates the power state of the Multiviewer Switcher. This indicator remains illuminated as long as power is being supplied to the Multiviewer Switcher.
  • Page 13 Press the four buttons in the Screen Layout of the Multiviewer Switcher, corresponding to the four modes above. For example, if you want to use the mode for quadruple windows, press the button so that the icon is displayed or the button in the remote. The button indicator on the panel will light up, and the picture output on the display device through HDMI will show quadruple windows.
  • Page 14 14 / 49...
  • Page 15: Single Window

    Single Window 1) Use the button on the front panel remote to set to the single window mode. When the Video 1 button indicator lights up, the Input 1 indicator will light up. 2) The HDMI output configures the HDMI 1 input. The window is shown as follows: 3) If you want to switch to the signal of DisplayPort5: Method 1: Press the INPUTS 5 button on the front panel or remote.
  • Page 16: Double Windows

    Double Windows 1) Use the “ ” button on the front panel or remote to set the mode to double windows. This will turn the Video 1 and 2 indicators on the front panel on. 2) The HDMI output port outputs the mode of double windows.
  • Page 17: Triple Windows

    Triple Windows 1) Use the “ ” button on the front panel or remote to set to the mode of triple windows. The Video 1, 2, and 3 button indicators on the front panel will light up. 2) The HDMI output port outputs the mode of triple windows. Window 1 is configured to HDMI1 input (HDMI1 is the factory default.
  • Page 18: Quadruple Windows

    Quadruple Windows 1) Use the “ ” button on the front panel or remote to set to the mode of quadruple windows. The Video 1, 2, 3, and 4 button indicators on the front panel will light up. 2) HDMI output port outputs the mode of quadruple windows. Window 1 is configured to HDMI1 input (HDMI1 is the factory default.
  • Page 19: Output Resolution

    Output Resolution HDMI output resolutions support multiple modes with the indicator indication. Auto • 4K * 2K (3840 * 2160 @30Hz) • 1080P (1920 * 1080 @ 60Hz) • 720P ( 1280 * 720 @ 60Hz) • WUXGA (1900 * 1200 @ 60Hz) • UXGA (1600 * 1200 @ 60HZ) • WXGA (1280 * 800 @ 60Hz) • XGA (1024 * 768 @60Hz) • Auto means that the output of the HDMI resolutions is based on the EDID information read from the display device.
  • Page 20 Operations for audio switching: Method 1: (1). Press audio button. The corresponding indicator will light up. This means that the audio output is selected. If the Input indicator of the corresponding audio source turns solid, the other indicators will blink. (2).
  • Page 21: Audio Output Instructions

    Audio Channel Format Audio Output Instructions There are three methods of audio output: (1). HDMI output (2). Optical output (3). Analog output, 8 channels for audio output If the input audio format is stereo, then “½” audio output is used. If the audio format is 5.1, then channels from 1 to 6 output the audio.
  • Page 22 C. When the triple windows are displayed: 22 / 49...
  • Page 23 D. Quad windows: 3) Audio Mute indicates: 4) Volume adjustment: 5) VGA Auto Menu: 23 / 49...
  • Page 24 6) IP address: 24 / 49...
  • Page 25: Advanced Settings

    Advanced Settings RS232 Setting RS-232 port: Connect to RXD, TXD, GND only RS-232 Settings: Description Setting Baud rate 9600 Data bits Parity None Stop bits Hardware flow control None Notes: For more information about serial command lines, see the chapter of commands. 25 / 49...
  • Page 26: Ip Setting

    IP Setting MV71 supports IP control, Telnet, UTP, and so on. There are two methods to obtaining the IP address: 1. Obtain the IP address and port number via the information from the on-screen display (OSD). 2. Obtain the IP address and port number via SmartGui. The following presents the two methods: Obtain the IP address and port number via the information from the OSD.
  • Page 27 Make sure that the PC and MV71 are in the same network segment. Click Search. The following device list is shown: Select the device, and click Setup. The IP information is obtained from the Device Info page: IP: 192.168.3.7 Port: 23 27 / 49...
  • Page 28: Command List

    Command List The MV71 is controlled or operated through the commands from RS232 or IP. The command contains the following: Source Control • Advanced Control • EDID Management • Command header: ATM Length: <=255 Command: xxxxxxx Read/Write: W/R Parameter data : xx (N byte) Carriage Return Termination is not required. All values are in ASCII. 28 / 49...
  • Page 29: Source Control

    Source Control Function Item Command Description Single Viewer ATM 09 SCR_LYT W 1 Switch to the single window. Double Viewer ATM 09 SCR_LYT W 2 Switch to the double windows. Screen Triple Viewer ATM 09 SCR_LYT W 3 Switch to the triple windows. Layout: Quadruple ATM 09 SCR_LYT W 4...
  • Page 30: Audio Source Selection

    Audio Source Selection Select input #1 ATM 09 ADO_IPT W 1 Audio output is set to audio input 1 Select input #2 ATM 09 ADO_IPT W 2 Audio output is set to audio input 2 Select input #3 ATM 09 ADO_IPT W 3 Audio output is set to audio input 3 Audio input Select input #4...
  • Page 31: Volume Control

    Volume Control Audio volume Volume = 0 - 10 ATM 09 VOL_CRL W [X] [X] = 0 To 10, 0 = Off control: Set audio mute “ON” ATM 09 AUD_MUT W 0 Set the audio output as mute Audio Set audio mute Cancel the mute setting for the audio Mute: ATM 09 AUD_MUT W F...
  • Page 32: Resolution Selection

    Resolution Selection Set the HDMI output as AUTO, outputting the resolutions based on AUTO ATM 09 OPT_TIM W 1 the EDID information of the display device. Sets the HDMI output resolution as 4Kx2K@30Hz UHD ATM 09 OPT_TIM W 2 4Kx2K@30Hz UHD 1920X1080@60Hz Sets the HDMI output resolution as ATM 09 OPT_TIM W 3...
  • Page 33: Audio Delay

    Audio Delay ATM 09 AUD_DLY W 0 Set the audio output delay to Off. 40ms ATM 09 AUD_DLY W 1 Set the audio output delay (40ms) 80ms ATM 09 AUD_DLY W 2 Set the audio output delay (80ms) 120ms ATM 09 AUD_DLY W 3 Set the audio output delay (120ms) 160ms ATM 09 AUD_DLY W 4...
  • Page 34 Enable HDCP on ATM 0A HDO_HDP W 1 Enable the HDCP “Switch-ON” on HDMI output the HDMI output port Disable HDCP on ATM 0A HDO_HDP W 1 Disable the HDCP “Switch-ON” on HDMI output the HDMI output port Enable HDCP on ATM 0A HDO_HDP W 2 Enable the HDCP “Switch-ON”...
  • Page 35: Edid Management

    EDID Management The MV71 has EDID management capabilities where either simple EDID presets can be recalled for or EDID data can be captured or loaded into ROM and copied to each input. The simplest method is to use the built in preset EDIDs and assign them to an input. Example: Assign preset EDID to input port: Send:...
  • Page 36: Copy Preset Edid

    Copy Preset EDID Function Item Command Description ATM 0B EDI_POR W 1 C 1 Copy the preset EDID 1 in the program to port 1 ATM 0B EDI_POR W 1 C 2 Copy the preset EDID 2 in the program to port 1 Copy Preset EDID to Port_1 ATM 0B EDI_POR W 1 C 3...
  • Page 37: Copy Eeprom Edid

    Copy EEPROM EDID Function Item Command Description ATM 0B EDI_POR W 1 E 1 Copy the EDID of the EEPROM 1 to port 1 ATM 0B EDI_POR W 1 E 2 Copy the EDID of the EEPROM 2 to port 1 ATM 0B EDI_POR W 1 E 3 Copy the EDID of the EEPROM 3 to port 1 Copy EEPROM...
  • Page 38: Write Edid Name (Eeprom)

    Function Item Command Description ATM 0B EDI_POR W 6 E 1 Copy the EDID of the EEPROM 1 to port 6 ATM 0B EDI_POR W 6 E 2 Copy the EDID of the EEPROM 2 to port 6 ATM 0B EDI_POR W 6 E 3 Copy the EDID of the EEPROM 3 to port 6 Copy EEPROM ATM 0B EDI_POR W 6 E 4...
  • Page 39: Read Edid Data From (Eeprom)

    Function Item Command Description Read EDID Data from (EEPROM) ATM 09 EDI_EEP R 1 Read EDID of the EEPROM 1 ATM 09 EDI_EEP R 2 Read EDID of the EEPROM 2 ATM 09 EDI_EEP R 3 Read EDID of the EEPROM 3 Read EDID ATM 09 EDI_EEP R 4 Read EDID of the EEPROM 4...
  • Page 40: Web Setting

    WEB Setting The MV71 can be controlled via a web browser which contains home screen, general settings, and advanced settings. After the cables are connected, the IP address is obtained and the IP address is input in the Web browser, allowing the MV71 to be controlled. For more information about how to obtain the IP address, see the chapter IP Setting above.
  • Page 41: Screen Layout Selection

    Screen Layout Selection Single: single window; Double: double windows; TRIPLE: triple windows; Quadruple: quadruple windows. Select the related parameters and click Submit to let the changes take effect. Video Input Selection Video inputs W1~W4 correspond to the video inputs of the four windows. The Video selection ranges from 1 to 7, corresponding to the seven video inputs.
  • Page 42: Audio Input

    Normal: Set the picture in the window as the original aspect ratio Full: Set the picture in the window to fill the entire window 16:9: Set the picture in Window 1 as the 16:9 aspect ratio 4:3: Set the picture in Window 1 as the 4:3 aspect ratio Select the related parameters, and click Submit to let the changes take effect.
  • Page 43: Audio Volume

    Audio Volume: Output volume ranges from 0 to 10. O is mute, and 10 is the maximum volume. Select the related parameters, and click Submit to let the changes take effect. Output Timing: 43 / 49...
  • Page 44: Advanced Settings

    HDMI output resolution selection: AUTO (auto adjustment of the output resolution based on the EDID of the display device), 4Kx2K@30Hz, 1920x1080@60Hz, 1280x720@60Hz, 1920x1200@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 1024x768@60Hz. Select the related parameters, and click Submit to let the changes take effect. Advanced Settings Advanced settings contain the following options: 1.
  • Page 45: Audio Mute Selection

    Power Saving Selection When no signal is input in all the windows, it enters the status of auto setting the standby time in order to save power. Time options range from 0 min to 60 min. It is recommended that you use 0 min, 5 min, 10 min, 15 min, 30 min, and 60 min.
  • Page 46: Auto Position Setting

    Audio output time-delay selection: 0~10. 0 is turning off the time-delay function. Select the related parameters, and click Submit to let the changes take effect. Auto Position Setting When VGA is input, perform this function to automatically adjust the VGA picture. Adjustment parameters contain Horizontal Position, Vertical Position, Clock, and Phase.
  • Page 47: Other

    For the Serial baud rate setting, it is recommended that you use 9600. Select the related parameters, and click Submit to let the changes take effect. Other F/W Update The MV71 can be updated through a USB drive as follows. 1) Copy the updated file MERGE.bin to the root directory of the USB drive.
  • Page 48: Specifications

    Specifications Supported Formats Resolutions (max.) • 3840x2160 @30Hz(4K x 2K @30Hz) Electrical Screen layout Select • 4 x Tact-type, green backlight Buttons Video Select Buttons • 4 x Tact-type, green backlight Inputs Select Buttons • 7 x Tact-type, green backlight Audio Select Button •...
  • Page 49: Relative Products Series

    Relative Products Series: Similar Products Comparison Chart: TEK MV71-4K-421 (79064) TEK MV71-4K-421T (79065) Video 4HDMI,2DP, 1VGA/YPbPr 4HDMI,2DP, 1VGA/YPbPr Inputs: Video 1HDMI & 1HDMI Outputs HDBase-T Audio 7 aux unbalanced stereo 7 aux unbalanced stereo Inputs Audio 7.1 unbalanced analog and optical 7.1 unbalanced analog and optical program Outputs program audio...
