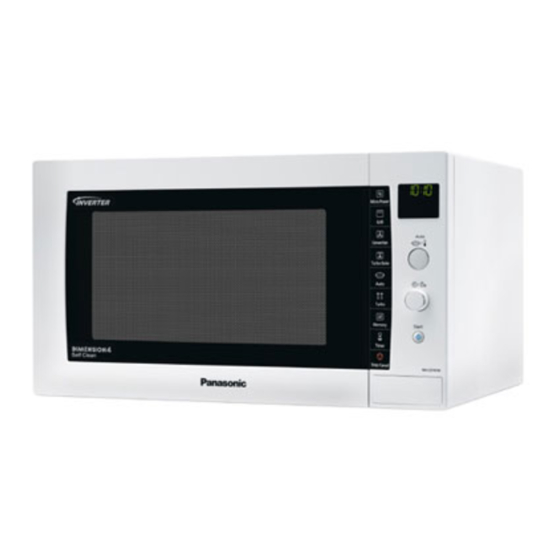

Panasonic NN-CD767 Operating Instructions Manual
Microwave/grill/convection oven
Hide thumbs
Also See for NN-CD767:
- Cookery book & operating instructions (94 pages) ,
- Operating instructions manual (218 pages)
Table of Contents
Advertisement
Operating Instructions
Bedienungsanleitung
Gebruiksaanwijzing
Mode d'emploi
Manuale di istruzioni
Instrucciones de funcionamiento
Instrukcja obsługi
Návod k obsluze
Kezelési útmutató
Microwave/Grill/Convection Oven
Mikrowellengerät mit Grill/Heißluft
De Panasonic Microgolf/Warme Lucht Oven
Panasonic Four à Micro-ondes Multifonctions
Forno a microonde e Convezione
Horno Microondas/Convección
Kuchenka mikrofalowa z funkcjami Grill/Konwekcja
Mikrovlnná / Horkovzdušná trouba/ Gril
Grillezös / légkeveréses mikrohullámú sütö
NN-CD757 / NN-CD767
Advertisement
Table of Contents
Related Manuals for Panasonic NN-CD767
Summary of Contents for Panasonic NN-CD767
- Page 1 Instrucciones de funcionamiento Instrukcja obsługi Návod k obsluze Kezelési útmutató Microwave/Grill/Convection Oven Mikrowellengerät mit Grill/Heißluft De Panasonic Microgolf/Warme Lucht Oven Panasonic Four à Micro-ondes Multifonctions Forno a microonde e Convezione Horno Microondas/Convección Kuchenka mikrofalowa z funkcjami Grill/Konwekcja Mikrovlnná / Horkovzdušná trouba/ Gril Grillezös / légkeveréses mikrohullámú...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these instruc- tions carefully and keep for future reference. WICHTIGE SICHERHEITSANWEISUNGEN. Bitte sorgfältig durchlesen und zur weiteren Bezugnahme aufbewahren. BELANGRIJKE VEILIGHEIDSINSTRUCTIES. Lees ze a.u.b. zorgvuldig door en bewaar ze zodat u ze opnieuw kunt raadplegen wanneer nodig. INSTRUCTIONS DE SÛRETÉ...
-
Page 3: Installation And Connection
This oven may be built in by using the proper trim kit, white NN- Children should be supervised to ensure they do not play TKA70WBBP, silver NN-TKA70MBBP, which may be purchased with the oven. from a local Panasonic dealer. En-1... -
Page 4: Safety Instructions
Safety Instructions Fan Motor Operation Use of your oven While the oven is in Microwave/Heater operation, the cooling fan 1. Do not use the oven for any reason other than the preparation always rotates to cool the electric components. After the of food. - Page 5 Important Information 6) Liquids 1) Cooking Times • When heating liquids, e.g. soup, sauces and beverages in • Cooking times given in the cookbook are approximate. The your microwave oven, overheating the cooking time depends on the condition, temperature, amount of liquid beyond boiling point can occur food and on the type of cookware.
-
Page 6: Outline Diagram
Outline Diagram [10] [11] [13] [12] [1] Door Release Button Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Pad pressed. The oven lamp lights as soon as the oven door is opened. -
Page 7: Control Panel
Control Panel NN-CD767 / NN-CD757* Display Window Microwave Power Pad Grill Power Pad Convection Pad Grill Convection Pad Auto Weight Programs Pad Auto Defrost Pad Memory Pad (10) Auto Menu/Temperature/Microwave Wattage/Grill level/Selector Dial (11) Time/Weight Dial (10) (12) Stop/Cancel Pad:... -
Page 8: Oven Accessories
Oven Accessories The following chart shows correct use of the accessories in the oven. Glass Tray Metal Tray High Wire Rack Low Wire Rack Panacrunch Pan Microwave Grill Convection Combination Cooking Modes The diagrams shown below are examples of the accessories. It may vary depending on recipe/dish used. -
Page 9: Clock Setting
Controls and Operation Procedure Word Prompting: Plug-in “88:88” Word Prompting These models have a unique function Press “Word Prompting” which guides you through the operation of your “FRANCAIS” In French e.g. “CHOISIR LA DUREE microwave. After plugging in the oven Press press the Start Pad until you locate “DEUTSCH”... -
Page 10: Microwave Cooking And Defrost
Microwave Cooking and Defrost There are 6 different microwave power levels available (see the chart below). Use of accessory: This chart shows approximate wattage for each power level. Power Level Wattage Max time available 1000 W 30 minutes MIN (DEFROST) 270 W 99 min. - Page 11 Grilling The Grill Pad provides 3 Grill settings. Use of accessory: Power Level Wattage High Wire Rack 1 HIGH 1300 W 2 MEDIUM 950 W 3 LOW 700 W Metal Tray Glass Tray Start • Press Grill Power • Select Grill Power level by •...
-
Page 12: Cooking By Convection/Grill Convection
Cooking by Convection/Grill Convection These Pads offer a choice of convection temperatures 40°C (only for Convection mode) and 100 - 250°C in 10°C increments. For quick selection of the most commonly used cooking temperatures, the temperatures start at 150°C and count up to 250˚C then 40˚C (only for Convection mode) and 100°C. -
Page 13: Combination Cooking
Turbo-Bake (Quick Start Grill/Convection) After preheating, Start Start place the food in the Turbo Bake oven. • Press • Press Turbo- • To change the • Press Start Pad to • Set the cooking time Start. Bake Pad. Convection temperature, start preheating. - Page 14 Combination Cooking 2) Convection + Microwave Start • Press • Set the desired • Press the • Set the • Set the desired cooking • Press Start Convection Pad. temperature. Microwave Power desired time (up to 9 hours). Pad. Pad. Microwave power level.
-
Page 15: Auto Defrost
Auto Defrost With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. Start Turbo •... -
Page 16: Auto Weight Programs
Auto Weight Programs This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill setting, Convection temperature and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. - Page 17 Auto Weight Programs Program Word Recommended Category Accessories Instructions Number Prompt Weight For cooking fresh chicken pieces. Place on Cook Fresh PIECES 150 - 1000 g High Wire Rack on Metal Tray on Glass Tray. Chicken Pieces Turn at beep. For cooking whole chicken.
- Page 18 Auto Weight Programs Program Word Recommended Category Accessories Instructions Number Prompt Weight For reheating, crisping the base and Fresh browning the top of fresh purchased pizza. PIZZA 120 - 600 g Pizza Remove all packaging and place the pizza in the Panacrunch pan.
-
Page 19: Panacrunch Pan
Your Panacrunch pan accessory will brown and crisp 2. Always place the pan in the centre of the glass tray and pizzas, quiches, pies, breaded products. Your Panasonic ensure it does not touch the wall of the oven cavity. Failure... -
Page 20: Delay Start Cooking
Delay Start Cooking By using Timer Pad, you are able to program Delay Start cooking. e.g. Start • Press • Set the delay time • Set the desired cooking program • Press Start Pad. Timer Pad. by turning and cooking time. Time/Weight Dial (up to 9 hours). -
Page 21: Stand Time
Stand Time By using Delay/Stand Pad, you can program Stand Time after cooking is completed or use to program the oven as a minute timer. e.g. Start • Set the desired cooking program and • Press Timer • Set desired amount of time by •... - Page 22 Memory This feature allows you to pre-program your oven for regular reheating or cooking tasks. You are able to pre-program your oven for a specific power level and time that is convenient for you. You are able to pre-program three memory tasks. To set a Memory Program Program the desired Memory...
-
Page 23: Questions And Answers
A: Yes. You can cook your favourite recipe just as you would in a conventional oven. using CONVECTION/GRILL? Check instructions in the Panasonic Cookbook for suggested oven temperatures and cooking times. Q: “D” appears in the display and the oven A: The oven has programmed DEMO MODE. -
Page 24: Care Of Your Oven
Care of Your Oven 1. Turn the oven off before cleaning. 8. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom 2. Keep the inside of the oven, door seals and door seal areas surface of the oven with mild detergent and hot water then clean. -
Page 25: Technical Specifications
Technical Specifications Power Source: 230 V, 50 Hz Power Consumption: Maximum; 2770 W Microwave; 1215 W Grill; 1350 W Convection; 1470 W Output: Microwave; 1000 W (IEC-60705) Grill Heater; 1300 W Convection Heater; 1400 W Outside Dimensions: 510 (W) x 477 (D) x 304 (H) mm Oven Cavity Dimensions: 359 (W) x 352 (D) x 217 (H) mm Uncrated Weight:... - Page 26 Panasonic Manufacturing U.K. Ltd. Wyncliffe Road Pentwyn Industrial Estate Cardiff E00037P21EP CF23 7XB M0507-1 Printed in the UK...
