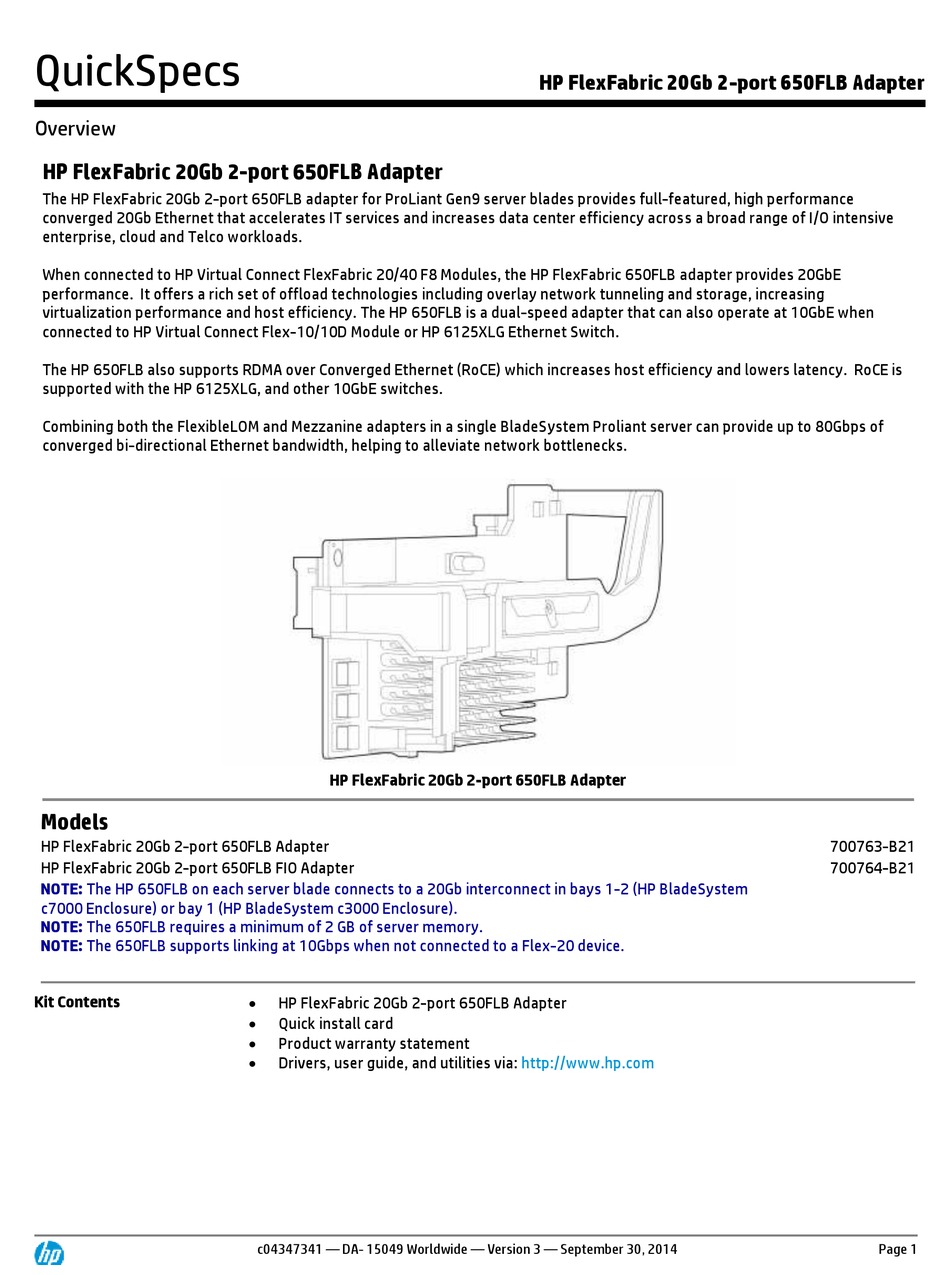

QuickSpecs
Overview
HP FlexFabric 20Gb 2-port 650FLB Adapter
The HP FlexFabric 20Gb 2-port 650FLB adapter for ProLiant Gen9 server blades provides full-featured, high performance
converged 20Gb Ethernet that accelerates IT services and increases data center efficiency across a broad range of I/O intensive
enterprise, cloud and Telco workloads.
When connected to HP Virtual Connect FlexFabric 20/40 F8 Modules, the HP FlexFabric 650FLB adapter provides 20GbE
performance. It offers a rich set of offload technologies including overlay network tunneling and storage, increasing
virtualization performance and host efficiency. The HP 650FLB is a dual-speed adapter that can also operate at 10GbE when
connected to HP Virtual Connect Flex-10/10D Module or HP 6125XLG Ethernet Switch.
The HP 650FLB also supports RDMA over Converged Ethernet (RoCE) which increases host efficiency and lowers latency. RoCE is
supported with the HP 6125XLG, and other 10GbE switches.
Combining both the FlexibleLOM and Mezzanine adapters in a single BladeSystem Proliant server can provide up to 80Gbps of
converged bi-directional Ethernet bandwidth, helping to alleviate network bottlenecks.
Models
HP FlexFabric 20Gb 2-port 650FLB Adapter
HP FlexFabric 20Gb 2-port 650FLB FIO Adapter
NOTE: The HP 650FLB on each server blade connects to a 20Gb interconnect in bays 1-2 (HP BladeSystem
c7000 Enclosure) or bay 1 (HP BladeSystem c3000 Enclosure).
NOTE: The 650FLB requires a minimum of 2 GB of server memory.
NOTE: The 650FLB supports linking at 10Gbps when not connected to a Flex-20 device.
Kit Contents
HP FlexFabric 20Gb 2-port 650FLB Adapter
HP FlexFabric 20Gb 2-port 650FLB Adapter
Quick install card
Product warranty statement
Drivers, user guide, and utilities via:
c04347341 — DA- 15049 Worldwide — Version 3 — September 30, 2014
HP FlexFabric 20Gb 2-port 650FLB Adapter
http://www.hp.com
700763-B21
700764-B21
Page 1

Advertisement

loading

Related Manuals for HP FlexFabric 650FLB

Summary of Contents for HP FlexFabric 650FLB

  • Page 1 It offers a rich set of offload technologies including overlay network tunneling and storage, increasing virtualization performance and host efficiency. The HP 650FLB is a dual-speed adapter that can also operate at 10GbE when connected to HP Virtual Connect Flex-10/10D Module or HP 6125XLG Ethernet Switch.
  • Page 2 RoCE -  HP FlexFabric 650FLB Adapter also supports 1Gb or 10Gb connections with the following modules:  HP 10GbE Ethernet Pass-Thru Module for c-Class BladeSystem  HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem  HP Cisco B22HP Fabric Extender with 16 FET for BladeSystem c-Class Tape Drive Support ...
  • Page 3 HP Virtual Connect Evolve 20GbE at your own speed! When paired with the HP Virtual Connect FlexFabric 20Gb Ethernet FlexFabric 20Gb Modules you can take advantage of four FlexNICs, which are PCI Physical Function devices that are OS/ Ethernet Module for the Hypervisor independent.
  • Page 4 HP Sea of Sensors 3D Support for HP's Sea of Sensors which is a collection of 32 sensors that automatically track thermal activity - heat - across the server. When temperatures get too high, sensors can kick on fans and make other adjustments to reduce energy usage.
  • Page 5 Management Support The HP 650FLB adapter can be administered from HP Systems Insight Manager (SIM). The adapters can be managed individually or in teams, providing SNMP based statistics for reporting purposes. The 650FLB adapter can also be managed by other applications with SNMP support.

  • Page 6: Service And Support

    Protect your business beyond warranty with HP Care Pack Services When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care Pack services provide total care and support expertise with committed response choices designed to meet your IT and business need.
  • Page 7 Offers customers a single point of contact for server problem diagnosis, hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request to the HP Global Solution Center, and basic software problem diagnosis, fault isolation, and resolution if available to HP.
  • Page 8 HP 10/20Gb HP Virtual Connect FlexFabric-20/40 F8 Module for c-Class BladeSystem 691367-B21 interconnects HP Virtual Connect FlexFabric-20/40 F8 Module for c-Class BladeSystem with TAA 691367-B22 HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem 571956-B21 HP Virtual Connect FlexFabric 10/24 Enterprise Edition BLc7000 Option...

  • Page 9: Technical Specifications

    HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide c04347341 — DA- 15049 Worldwide — Version 3 — September 30, 2014...
  • Page 10 Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. c04347341 — DA- 15049 Worldwide — Version 3 — September 30, 2014...
  • Page 11 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
