HP 614988-B21 Specification

Host bus adapter
Hide thumbs

Advertisement

Quick Links

QuickSpecs
Overview

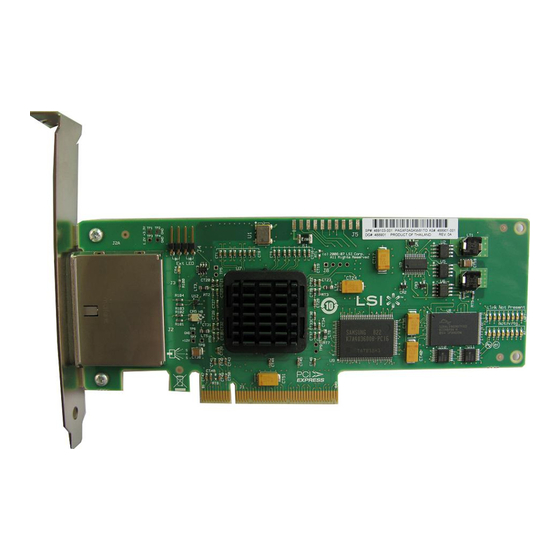

The HP SC08e Host Bus Adapter (HBA) is a 2 x4 External Port SAS HBA that provides customers with the flexibility and speed they have
come to expect from HP. The SC08e HBA has been optimized for connection to the new SAS based HP StorageWorks P2000 G3 SAS
Modular Smart Array and provides support for both 6Gb SAS and 3Gb SAS/SATA Hard disk drives. This SAS HBA, doubles the
performance of previous 3G SAS HBAs and is ideal for driving cost-effective and reliable scalability in today's data centers. HP's SC08e
HBA has been thoroughly tested and integrated into many of the HP ProLiant servers.
Model
Serial Attached SCSI (SAS)
HBA
Compatibility
Servers
HP SC08e 6Gb 2-ports Ext PCIe SAS HBA
NOTE: This is a 2 x4 External Port HBA
ProLiant DL (rack-optimized):
HP ProLiant DL160 G6
HP ProLiant DL160se G6
HP ProLiant DL165 G6
HP ProLiant DL165 G7
HP ProLiant DL180 G6
HP ProLiant DL320 G6
HP ProLiant DL360 G6
HP ProLiant DL360 G7
HP ProLiant DL370 G6
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL385 G6
HP ProLiant DL385 G7
HP ProLiant DL580 G7
HP ProLiant DL585 G6
DA - 13651 North America — Version 8 — November 1, 2013
HP SC08e Host Bus Adapter
614988-B21
Page 1

Advertisement

loading

  Related Manuals for HP 614988-B21

  Summary of Contents for HP 614988-B21

  • Page 1 Overview The HP SC08e Host Bus Adapter (HBA) is a 2 x4 External Port SAS HBA that provides customers with the flexibility and speed they have come to expect from HP. The SC08e HBA has been optimized for connection to the new SAS based HP StorageWorks P2000 G3 SAS Modular Smart Array and provides support for both 6Gb SAS and 3Gb SAS/SATA Hard disk drives.
  • Page 2 QuickSpecs HP SC08e Host Bus Adapter Overview HP ProLiant DL585 G7 HP ProLiant DL785 G6 HP ProLiant DL980 G7 ProLiant ML (expansion-optimized): HP ProLiant ML330 G6 HP ProLiant ML350 G6 HP ProLiant ML370 G6 NOTE: This is a list of supported servers. Some may be discontinued.
  • Page 3: Standard Features

    Eight 6 Gbps SAS physical links supporting up to 2 simultaneous x4 Wide SAS Ports Up to 384TB of external storage per controller with 8 x HP P2000 G3 MSA and 96 x 4TB LFF SAS or SATA hard drives Up to 179TB of external storage per controller with 1 x HP P2000 G3 MSA SFF plus 5 x HP D2700 Disk Enclosures and 149 x 1.2TB SFF SAS hard drives...
  • Page 4 Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days Duration - Select duration of coverage for a period of 1, 3, or 5 years Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level this product attaches too DA - 13651 North America —...
  • Page 5: Service And Support

    HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments.
  • Page 6 HP Installation and Startup of HP ProLiant Servers Provides for the installation of your new HP ProLiant server and operating system to assist you in bringing your new HP ProLiant server and operating system into operation in a timely and professional manner.
  • Page 7 HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center. Support Portal The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment. Features include:...
  • Page 8 HP SC08e Host Bus Adapter Service and Support HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world.
  • Page 9: Related Options

    P2000 G3 SAS Controller HP StorageWorks P2000 G3 SAS MSA Array System Controller AW592A P2000 Controller-less Chassis (AC-powered) HP StorageWorks P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF) AP838A HP StorageWorks P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF) AP839A...
  • Page 10: Technical Specifications

    The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

This manual is also suitable for:

Sc08e
