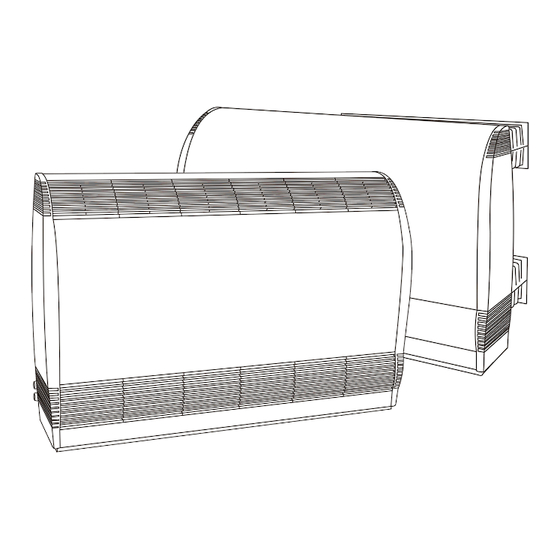

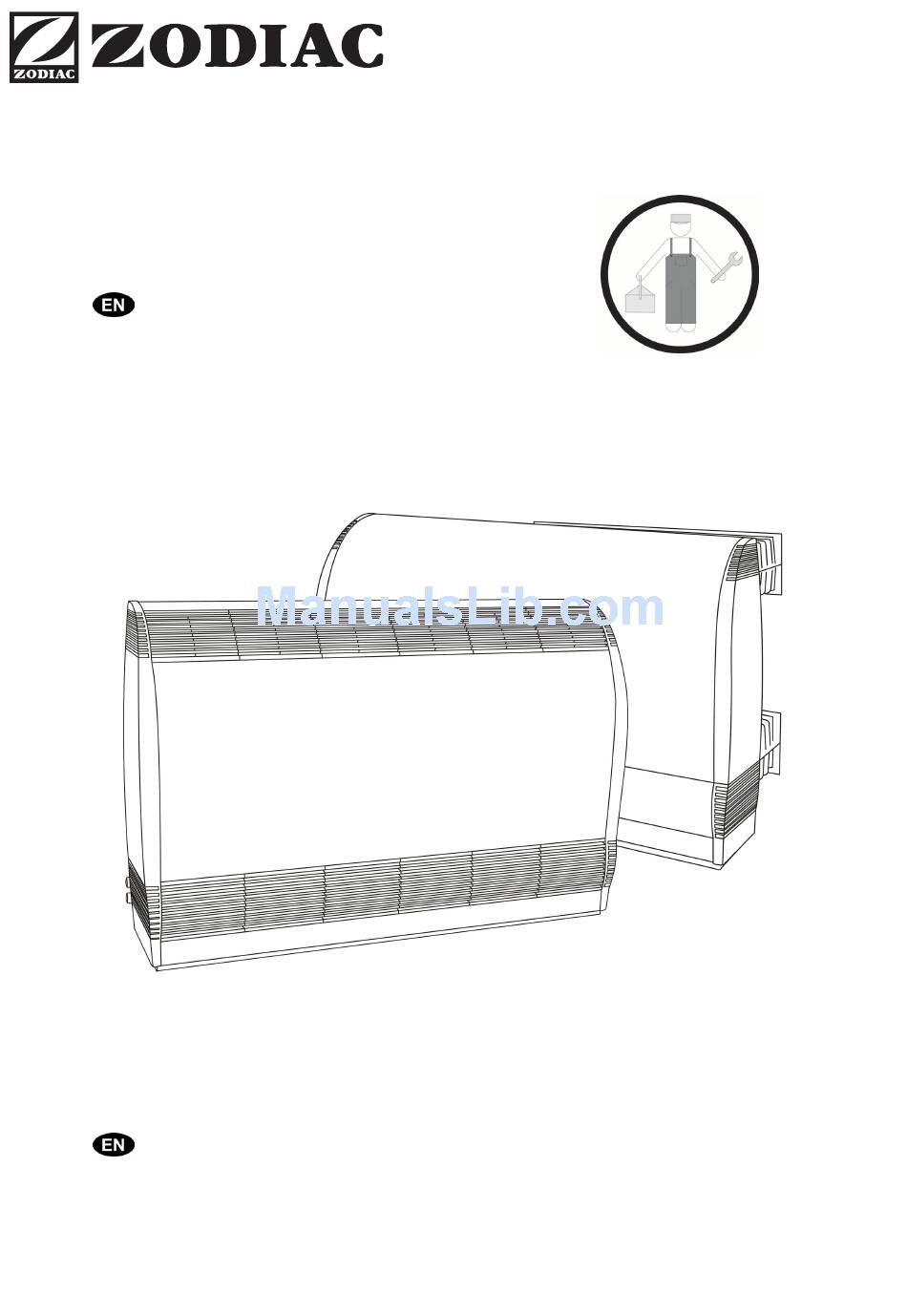

- Page 1 Installation instructions SIROCCO 55-80-110 Air dehumidifier for indoor swimming pools Réf. : N.D.005.A.EN - Ver . 02-2010...
-
Page 2: Table Of Contents
1. Installation ....................... 2 1.1 General ..........................2 1.1.1 Precautions ..........................2 1.1.2 General terms of delivery ......................2 1.1.3 Storage and transport conditions ....................3 1.1.4 Field of application ........................3 1.1.5 Operating principle ........................3 1.2 Description ........................ -
Page 3: Installation
1. Installation 1.1 General Read this manual carefully before installing, maintaining or repairing this appliance! symbol indicates important information that must be taken into account in order to avoid the risk of injury and/or damage to the appliance. symbol indicates useful information. 1.1.1 Precautions This device must be installed and serviced by certified professionals approved in the electrical, hydraulic and cooling domains. -
Page 4: Storage And Transport Conditions
Sirocco 55 Sirocco 80 3.3 L/h 1100 W 2310 W 800 m Sirocco 110 4.6 L/h 1340 W 2810 W 1000 m * under the following nominal conditions: air 30°C - humidity 70%. unit protection class: Sirocco ambient: IP 44 ; Sirocco can be inset: IP 45 ... -
Page 5: Installation
1.3 Installation 1.3.1 Electrical regulations for swimming pools Refer to the current regulations for your country. French standard C15.100 Section 702 - U.T.E: In volumes 0 and 1, only protection using Very Low Voltage (article 411.1) with a nominal voltage not exceeding 12 V AC or 30V DC is allowed. -
Page 6: Installation Requirements
1.3.2 Installation requirements 1) install the appliance on a level base, to avoid any overflows from the condensation tray (adjustment by two hexagonal screws, see figure 1.3.3), 2) easy access to the appliance for maintenance and connections, 3) place nothing in front of or on the blowing and suction grates, 4) anti-vibration studs (supplied) must be installed under the base when the appliance is placed on the floor or on a support, 5) for a swimming pool building with a high ceiling or visible roof frame:... -
Page 7: Connection To Surrounding Air
1.3.4 Connection to surrounding air 1.3.4.1 Appliance on the ground (or on a support) Pool *minimum distance Sirocco 55-80-110 suction grid blowing grid Hygro Control condensation drainage ... -
Page 8: Inset Connection
618 x 165 Sirocco 80 808 x 165 998 x 165 Sirocco 110 the sleeves are: - to be incorporated in the wall at the time of construction, The blocks of polystyrene must remain in the sleeves to protect them from crushing. -
Page 9: Connection Of The Condensation Drainage
Extra heating 3 230V-50Hz- 3 x 6 without option or 230V-50Hz- 6.35 3 x 2.5 3G2.5 hot water battery Sirocco 110 single-phase Extra heating 4.5 230V-50Hz- 29.4 3 x 10 3G10 without option or 400V-50Hz- 5 x 2.5 5G2.5... - Page 10 C) or control of heat connection terminals (do not modify source by contact “NO” (see §1.3.7.5) the connections) (3-6) (see §1.4.3.2) Terminal Sirocco 110 three-phase 400V-3N-50HZ: Main supply (see § 1.3.7.3) Regulation connection (see §1.3.7.5) Contact “normally Main supply 230Vac-50Hz open”...
- Page 11 Main supply 12Vac-50Hz- between terminals 4 and 5. - The numbering of the terminals must be respected, - Do not put these cables into the same duct as other 230 V or 400 V to avoid any risk of interference of the signals, - Obstruct the place where the cable emerges from the wall or seal it by using materials other than silicone and silicone-based materials, in order to avoid any arrival of air exterior to the room through the duct or dividing wall.
- Page 12 Adjusting the reference values - Hygro Control must be active, - press for 3 seconds, the modifiable value blinks, - use to set the value, - press to validate, - and then to exit. Value range minimum maximum Comfort setting Humidity Temperature 5 °C...
-
Page 13: Connection Of The Options
0.41 0.77 Sirocco 80 0.42 0.46 0.37 0.47 Sirocco 110 0.53 0.58 0.65 0.83 Power returned to the air at 27°C input to the hot water battery. Water temperature input to the hot water battery: 45 °C minimum, 90°C maximum. -
Page 14: Commissioning
1.4 Commissioning 1.4.1 Starting the appliance power on the appliance (by switching on the general terminal board), only for three-phased Sirocco: when the dehumidifier is switched on, check the status of the phase controller (KA4). If it is off, cut off the power supply and invert two phases directly on the appliance connection terminal board. -
Page 15: Troubleshooting
connection to a ZPCE double circuit gas boiler: connect the terminals 3-6 of the terminal board, to terminals 3-6 of the boiler terminal board, Terminals 3-6 can also ensure a heat source control function (see §1.3.7.4) adjust the thermostat between to 26 and 28°C (maximum 30°C), in general set the air temperature 1 to 2°C higher than the pool water temperature, If your pool has a cover (shutter or bubble sheet type, etc.), you can lower the room temperature (by adjusting the thermostat to about 20°C) when it is in place and raise the... - Page 16 Led lit continuously Meaning “défaut thermique ventilateur” Not used on Sirocco = fan heat fault triggering HP and/or LP switch and/or phase order relay KA4 (only on “défaut pressostat Sirocco three-phase) HP ou BP” - HP : check that the ventilator is operational, that the air filter is clean and = high or low the belt is tight enough, pressure switch fault...
-
Page 17: Troubleshooting Procedures
2.2 Troubleshooting procedures Checks to make before any operation: - correct electrical supply (voltage and cable size) - all cables are correctly connected - Hygro Control operational - appliance has triggered dehumidification but not heating The appliance does not work. No LED lit up on ECP 600 No fault displayed on the Display of a fault on... - Page 18 The ventilation is working but not the compressor Is the appliance being ventilated all the time? Set the VI/VP switch on the ECP 600 to Is the appliance in a defrost cycle (indicator lit on ECP 600)? Wait for the end of the cycle Is the compressor indicator...
-
Page 19: Maintenance
3.2 Spare parts Naming Item number Representation Hygro Control sensor WCE03431 Filter: WSD01911 Sirocco 55 can be inset Sirocco 80 can be inset WSD01912 Sirocco 110 can be inset WSD01913 Sirocco 55 ambient Sirocco 80 ambient WSD01914 Sirocco 110 ambient WSD01915... -
Page 20: Recycling The Product
3.3 Recycling the product Your appliance has reached the end of its working life. You would like to dispose of it or replace it. Please do not throw it into your dustbin or into your local selective sorting containers. When this symbol appears on a new appliance, it means that the equipment must not be thrown away and that it will be collected selectively so that it can be reused, recycled or recovered. - Page 22 Electric diagram Sirocco 55-80-110 single-phase...
- Page 23 Sirocco 110 three-phase...
- Page 24 English single phase main supply 230Vac-1N-50Hz U-V-W-N three phase main supply 400Vac-3N-50Hz Earth black blue brown command logic controller ECP 600 air inlet sensor (black sheath) defrost sensor (grey sheath) 5-7-2-4-1 connection of Hygro Control (sie §1.3.7.4) supply (230 V AC -50 Hz) for remote fault warning light or relaying 26-27 control of heating for PSA type boiler or an existing heating system supply (230Vac-50Hz) for battery circulator or used for electric logic of the heating option...
- Page 25 Dimensions weight without option Sirocco 55 1030 Sirocco 80 1220 Sirocco 110 1410 1000 1033...
- Page 28 Plaque signalétique – Product name plate Votre installateur – Your installer Chauffage et déshumidification de piscines – Heating and dehumidification of pools Zodiac Pool Care Europe – Boulevard de la Romanerie – BP 90023 49180 Saint Barthélémy d’Anjou cedex – France www.zodiac-poolcare.com...
