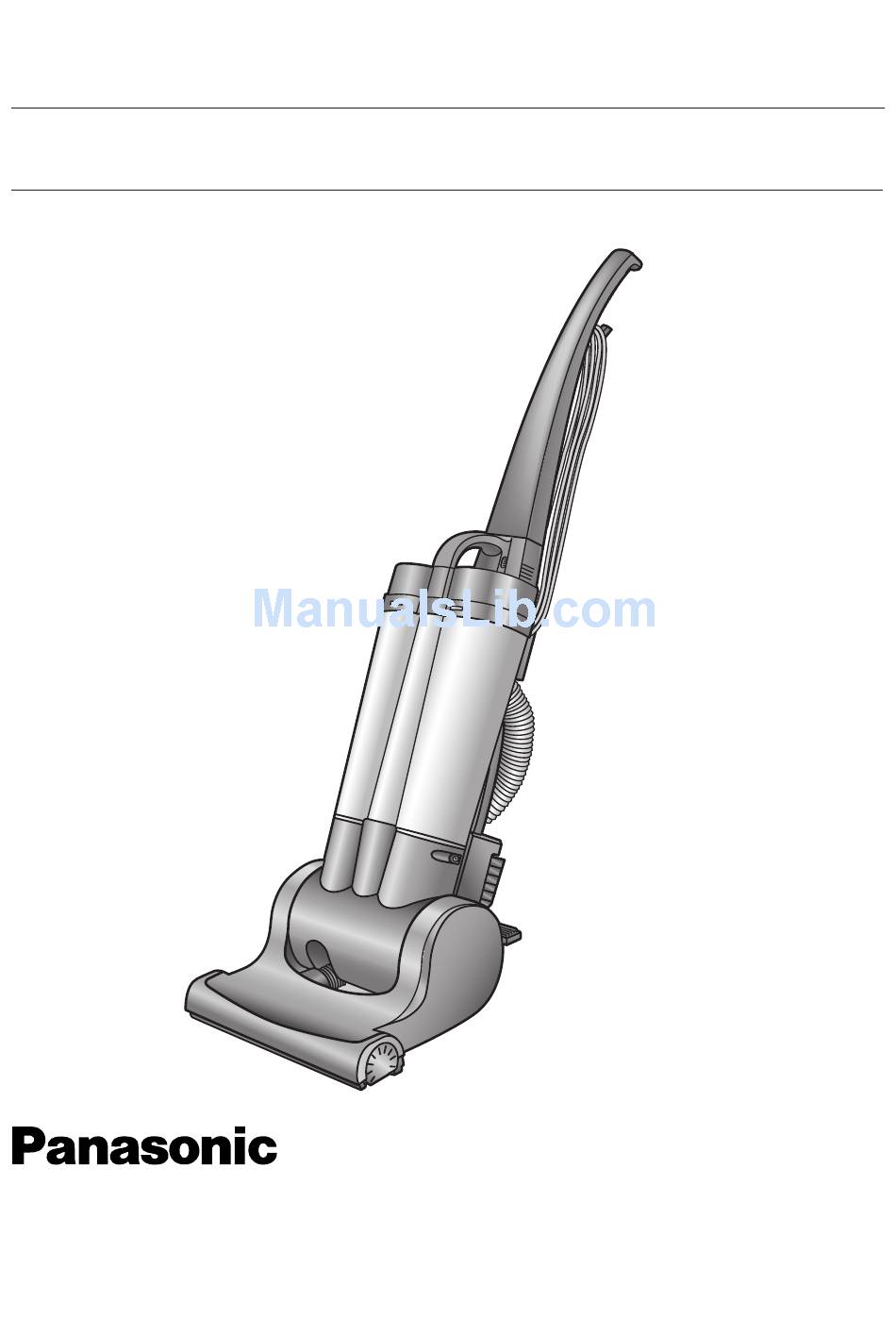

Operating Instructions Vacuum Cleaner MC-E4011, MC-E4013 We would advise that you carefully study these Operating Instructions before attempting to operate the unit and that you note the Important Safety Instructions. Please keep in a safe place with your Authorised Dealer Service booklet.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
Do not use to pick up flammable or combustible materials, or others that may become so or use in areas where they may be present. This appliance should be serviced by an authorised Panasonic Service Centre, and only genuine Panasonic spare parts should be used.
IDENTIFICATION OF MAIN PARTS A-1) Handle A-4) Upper cord hook C) ON/OFF Switch E-2) Crevice nozzle F) Dust compartment lock Dust compartment handle / Carrying handle E-2) Pipe F) Dust compartment cover B) Mains lead F) Main filter B A-4) Lower cord hook F) Main filter A (additional) Hose...
HOW TO OPERATE YOUR CLEANER B) MAINS LEAD RELEASE C) ON/OFF SWITCH To start or stop the cleaner, push the switch button to ' I ' to Turn the upper cord hook Fix the mains lead into the cord to release the mains lead. clip to help secure it during use.
MAINTENANCE AND SERVICING IMPORTANT: Before servicing any part, always DISCONNECT THE CLEANER FROM THE MAINS SUPPLY. F) HOW TO EMPTY THE DUST COMPARTMENT IMPORTANT: Depending on the type of dust, one of the two compartments may get full before the other. If either becomes full, reaching the dust maximum mark, please empty both.
G) FILTERS CARE Pre-filter / Main filter A / Main filter B Cleaning or Replacing the filters To replace the filters, Remove main filter A and B. Separate the pre-filter by Remove dust accumulated in the filters remove dust compartment pulling it away from the by tapping them against a hard surface.
H) BLOCKAGES If your cleaner stops picking up dust and the dust compartments are empty, a blockage may have occurred in the hose, suction pipe inlet or in the dust compartment inlet. Remove any obstruction as indicated. NOTE: Use a blunt flexible stick to clear the obstruction. Hose NOTE: For ease of access to the hose end, remove the dust compartment.
CAUTION: Before replacing any part DISCONNECT THE CLEANER FROM THE MAINS SUPPLY. We recommend the use of genuine Panasonic replacement parts. To replace any of the following parts, place the cleaner in the horizontal position and turn it over exposing the underside.
Important: The thermal cut-out will not reset if the unit is not disconnected from the mains socket. Mains lead IMPORTANT: If the mains lead becomes damaged, it must be repaired by Panasonic, authorised service centre or a qualified person in order to avoid any hazard.
Most major credit and debit cards accepted. E-mail: customer.care@panasonic.co.uk All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. It couldn’t be simpler! Also available through our Internet is direct shopping for a wide range of finished products,...
Page 12
Matsushita Electric España, S.A. VACUUM CLEANER DIVISION Zona Industrial del Polígono de CELRÀ 100% recycled paper 17460 CELRÀ (Girona) SPAIN Printed in Spain Z07AC090 – 12 –...
